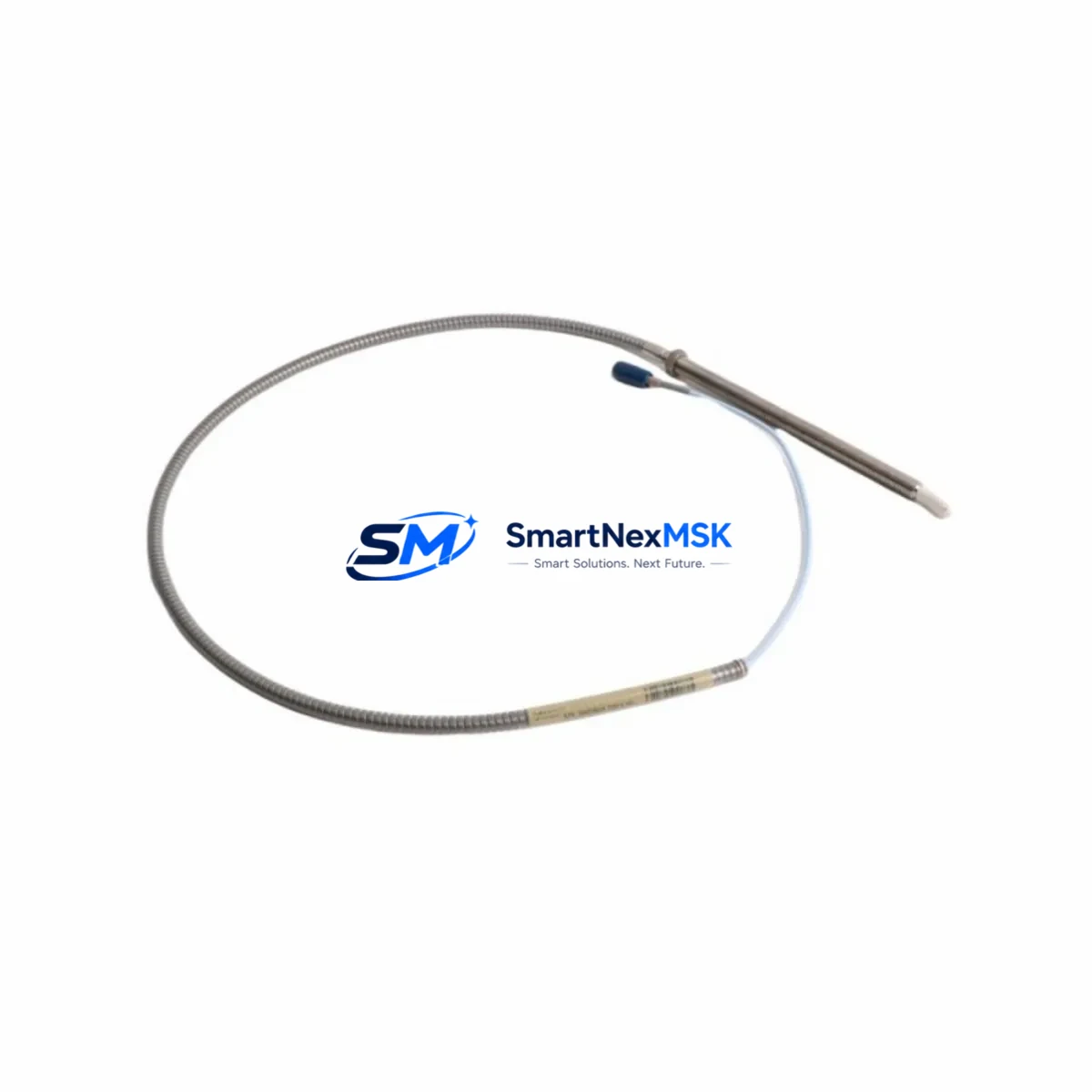

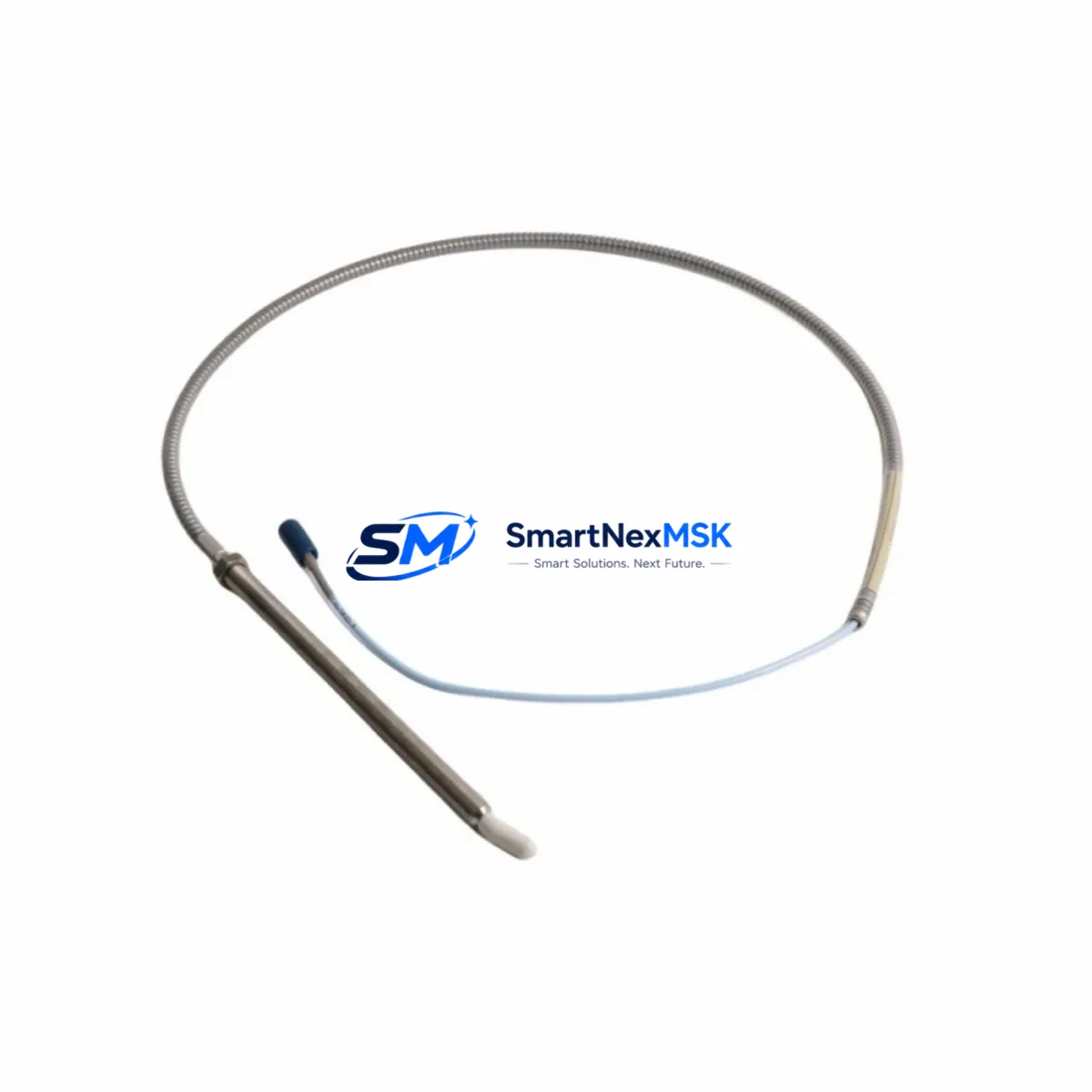

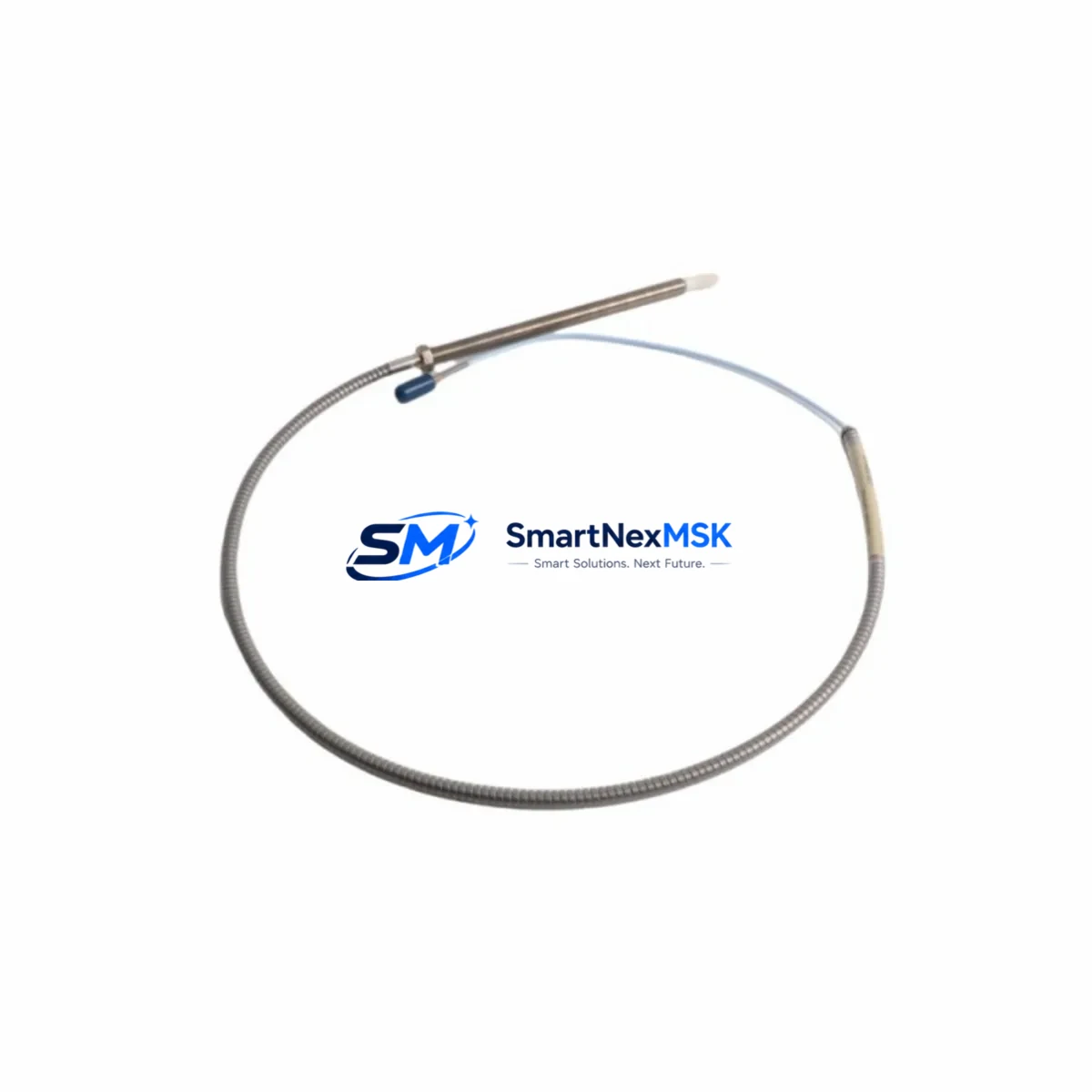

The Bently Nevada APP1407030-00100 is an eddy current proximity probe engineered for seamless integration into existing 3300 XL Series vibration monitoring and machinery protection systems. As legacy installations age and OEM support windows close, plant engineers and reliability teams increasingly rely on verified retrofit-ready replacements to sustain continuous operation without full system overhauls. This probe delivers the same signal conditioning characteristics, gap voltage linearity, and mechanical form factor as the original, enabling direct substitution with minimal downtime and no reprogramming of the host monitor.

Whether you are replacing a failed probe on a critical rotating machine, upgrading a brownfield control cabinet, or restoring a mothballed production line, the APP1407030-00100 is designed to slot into your existing 3300 XL rack infrastructure. It is fully compatible with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, preserving the calibrated signal chain from probe tip to monitor input card. Engineers migrating from earlier 7200 Series or 3300 Series installations will find the electrical interface and connector pinout consistent with established wiring practices, reducing the risk of field errors during hot-swap procedures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the probe reaches the machine. Start by auditing the existing 3300 XL rack assembly: confirm the Proximitor Sensor model, extension cable part number, and the monitor card slot assignment within the 3500 Series rack or standalone 3300 XL enclosure. In many brownfield installations, the 3300 XL 8mm Proximitor Sensor (driver) has been in service for over a decade alongside the probe, and both components should be evaluated together. If the Proximitor shows drift or elevated noise floor on the 3500/22M Transient Data Interface, plan to replace both the probe and driver as a matched pair to restore calibration accuracy.

Terminal wiring is a frequent source of commissioning delays. The APP1407030-00100 connects via a coaxial armored cable to the 3300 XL Extension Cable, which in turn terminates at the Proximitor barrier terminal block inside the control cabinet. Before disconnecting the old probe, photograph the existing terminal layout and record the shield grounding point. Improper shield grounding is the leading cause of elevated noise on the vibration channel and can trigger nuisance trips on the 3500/42M Proximitor Monitor or the 3500/45 Position Monitor if the machine also carries axial thrust measurement.

For plants running a DCS backbone — such as a Honeywell Experion PKS or an Emerson DeltaV system — the 3300 XL monitor outputs are typically hardwired to the DCS I/O marshalling cabinet via 4–20 mA or discrete relay contacts. No changes to the DCS I/O card or controller logic are required when replacing the probe, since the signal conditioning remains within the Bently Nevada monitor layer. However, if the migration also involves upgrading from a 3300 XL monitor to a 3500 Series rack, the DCS engineer should verify the new relay output wiring and update the cause-and-effect matrix accordingly.

Plants that use a Bently Nevada System 1 software platform for online machinery diagnostics should confirm that the probe channel configuration — including scale factor, OK limit, and alert/danger setpoints — is preserved in the System 1 database before the swap. After installation, a live gap voltage reading from the Proximitor output confirms correct probe seating and gap distance. The scale factor for the APP1407030-00100 in the standard 3300 XL system is 7.87 V/mm; any deviation beyond ±5% at the nominal gap indicates a mounting or cable issue requiring investigation before returning the machine to service.

If the retrofit is part of a broader control cabinet upgrade that also involves replacing the 3500/20 Rack Interface Module, adding a 3500/92 Communication Gateway for Modbus or PROFIBUS connectivity, or installing a new 3500/05 Power Supply Module, coordinate the probe replacement within the same planned outage window to minimize total downtime exposure.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any proximity probe replacement on a running production asset. The recommended approach is to pre-stage the APP1407030-00100 alongside the matched 3300 XL Extension Cable and a calibrated Proximitor Sensor before the maintenance window opens. Verify the replacement probe against the original calibration certificate — gap voltage linearity, scale factor, and OK relay threshold — using a bench test rig or a portable Bently Nevada calibrator before bringing it to the machine floor.

During the outage, follow a structured sequence: isolate the monitor channel, de-energize the Proximitor supply, disconnect the extension cable at the junction box, remove the old probe from the bracket, install the new APP1407030-00100, reconnect the extension cable with correct torque on the coaxial connector, re-energize the Proximitor, and verify gap voltage at the monitor front panel before releasing the channel back to the protection system. This sequence preserves the original program logic in the 3500 Series rack — no ladder logic or function block changes are needed in the associated PLC or safety controller.

For facilities where the 3300 XL monitor feeds a safety instrumented system (SIS) — such as a Triconex Tricon or a Rockwell Automation GuardLogix safety controller — confirm with the SIS engineer that the channel bypass is properly activated in the safety logic before beginning work, and that the bypass is removed and the channel is validated before the machine restarts. Maintaining field control continuity during the swap protects both personnel and equipment from spurious trip events caused by an open or floating probe input.

Retrofit Support FAQ

Q1: Is the APP1407030-00100 a direct drop-in replacement for the original Bently Nevada part?
Yes. The APP1407030-00100 maintains the same mechanical dimensions (M10 × 1.0 mm thread, probe body diameter, and cable exit geometry), electrical interface (coaxial connector to 3300 XL Extension Cable), and signal characteristics (scale factor, gap voltage range) as the original OEM part. No modifications to the monitor card, rack wiring, or host system configuration are required for a like-for-like swap.

Q2: What commissioning checks are required after installation?
After installing the probe and reconnecting the extension cable, measure the gap voltage at the Proximitor output with the machine stationary. The nominal gap voltage should fall within the –10 VDC to –18 VDC window at the specified installation gap (typically 1.0 mm for 8mm probes). Confirm the OK relay is energized on the 3300 XL or 3500 Series monitor front panel. Record the as-found and as-left gap voltage in the maintenance log before returning the channel to service.

Q3: Can this probe be used with non-Bently Nevada monitors or third-party Proximitor drivers?
The APP1407030-00100 is calibrated and characterized for use with the Bently Nevada 3300 XL Proximitor Sensor. Use with third-party drivers is not recommended, as scale factor and OK threshold calibration are matched to the Bently Nevada signal conditioning chain. If your system uses a different monitor platform, contact our technical team to confirm compatibility before ordering.

Q4: What does the 12-month warranty cover, and is a test report included?
Every APP1407030-00100 unit ships with a pre-shipment functional test report confirming gap voltage linearity and scale factor within OEM specification. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, improper gapping, or use outside the specified environmental ratings. Warranty claims are processed within 5 business days of receipt of the returned unit.
