Bently Nevada VELOMITOR 330500 Safety-Enhanced Velocity Sensor

Bently Nevada VELOMITOR 330500 Safety-Enhanced Velocity Sensor for Harsh Industrial Sites

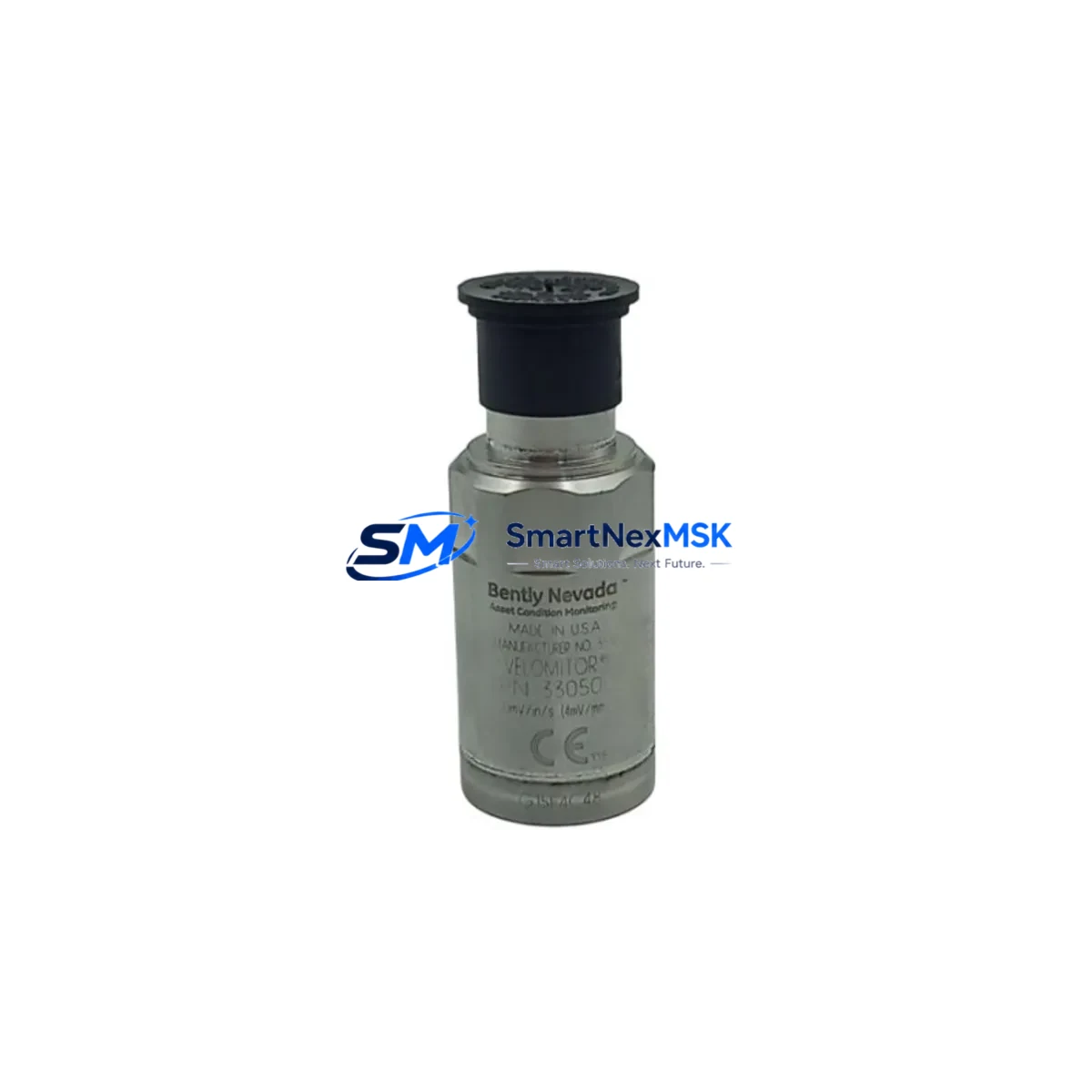

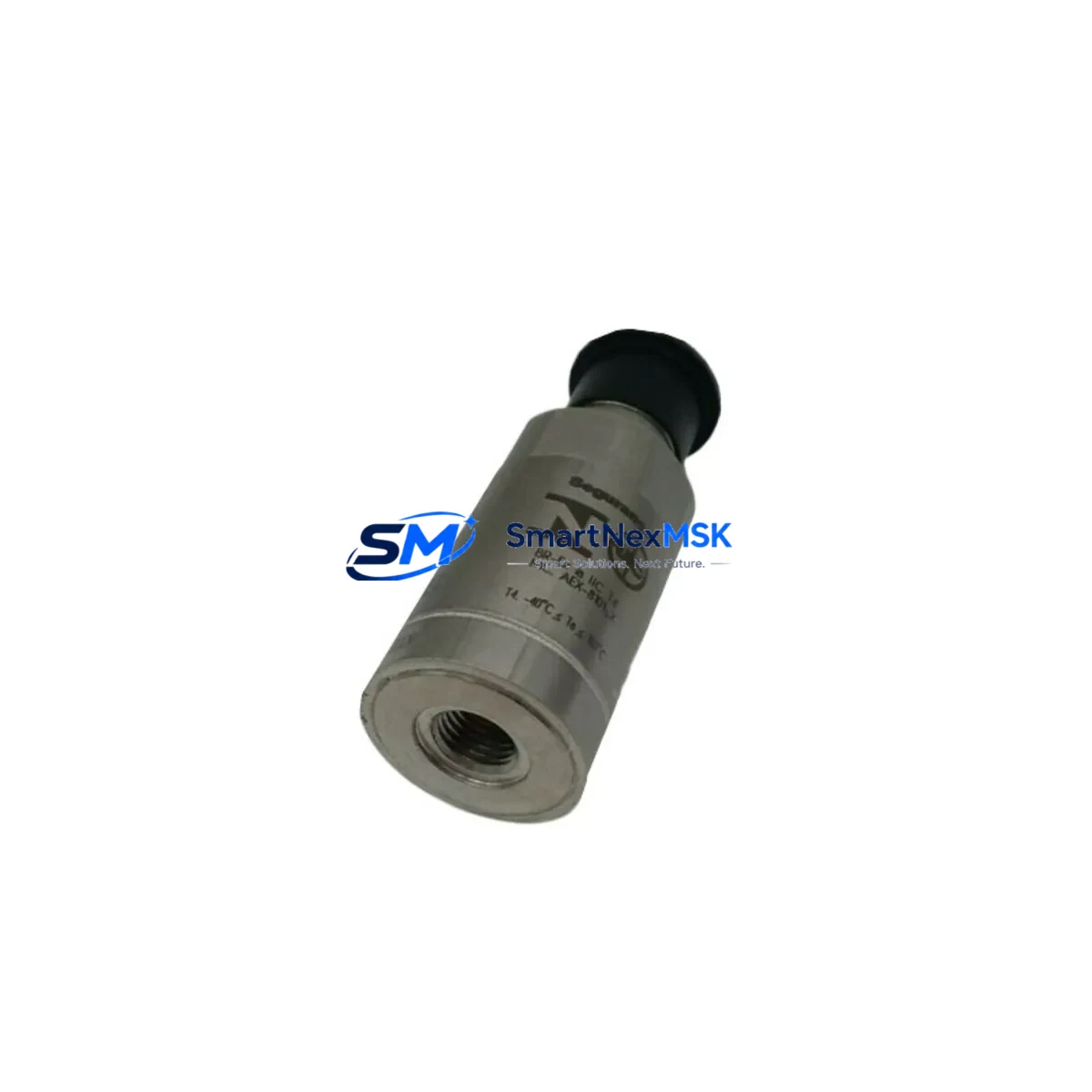

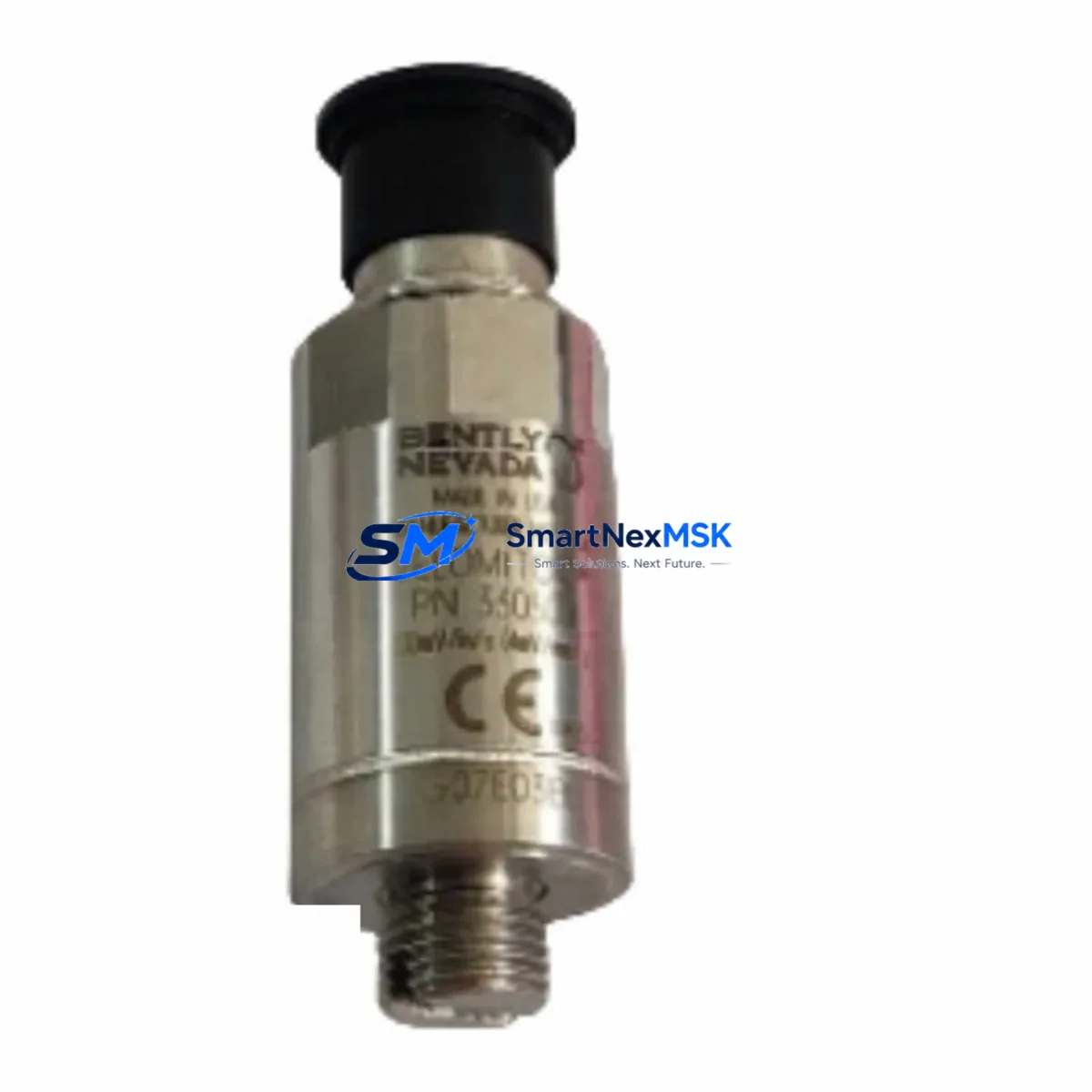

The Bently Nevada VELOMITOR 330500 is a ruggedized piezoelectric velocity sensor engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL machinery protection ecosystem, the VELOMITOR 330500 delivers broadband velocity output with exceptional signal fidelity — making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, metallurgical complexes, and continuous process manufacturing sites where unplanned downtime carries severe safety and financial consequences.

Unlike conventional velocity transducers, the VELOMITOR 330500 integrates an internal signal conditioning circuit that converts raw piezoelectric output into a low-impedance velocity signal, eliminating the need for external integrators and dramatically reducing susceptibility to signal drift caused by cable capacitance, ground loops, or electromagnetic interference from variable-frequency drives, high-voltage switchgear, and heavy motor loads. In control cabinets where the Bently Nevada 3500/42M Proximitor/Seismic Monitor or 3500/45 Position Monitor modules are installed, the VELOMITOR 330500 feeds clean, conditioned velocity data directly into the protection rack — ensuring that interlock and trip logic operates on accurate, noise-free signals even in the presence of severe EMI from adjacent power distribution equipment.

In high-load rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — vibration signal integrity is a non-negotiable safety requirement. The VELOMITOR 330500’s internal ASIC-based conditioning circuit maintains flat frequency response from 4.5 Hz to 5,000 Hz, covering the full spectrum of mechanical fault signatures including unbalance, misalignment, bearing defects, and structural resonance. When paired with the Bently Nevada 3500/22M Transient Data Interface and System 1 Condition Monitoring Software, the sensor enables real-time trending and alarm management that supports both API 670 machinery protection standards and functional safety requirements under IEC 61511.

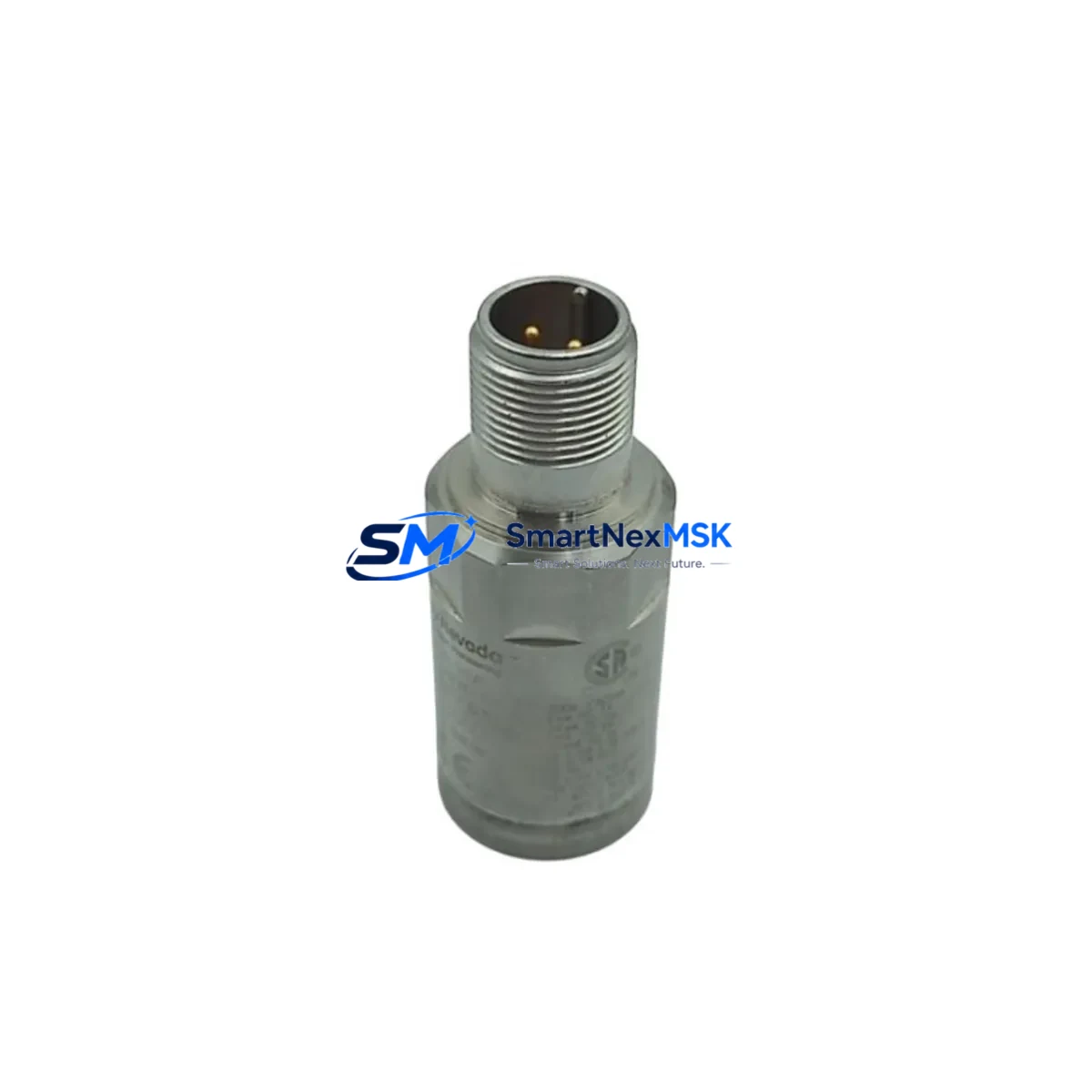

Field reliability in harsh environments demands more than electrical performance. The VELOMITOR 330500 is housed in a stainless steel body rated to IP67, providing full protection against dust ingress and temporary immersion — critical for outdoor installations, wash-down zones, and below-grade pump pits. Its operating temperature range of -55°C to +121°C ensures stable performance across arctic cold-start conditions and high-temperature turbine bearing housings alike. The sensor’s integral cable and military-style connector eliminate field-wiring variability, a common source of intermittent faults in vibration monitoring loops. For installations requiring explosion-proof or intrinsically safe certification, the VELOMITOR 330500 is available in ATEX and IECEx-rated configurations, making it suitable for Zone 1 and Zone 2 hazardous area classification in refineries, offshore platforms, and chemical processing units.

Within a complete machinery protection cabinet, the VELOMITOR 330500 operates alongside complementary Bently Nevada components to form a layered safety architecture. The Bently Nevada 330130-080-00-00 Proximitor Sensor and 330103-00-07-05-02-00 8mm Proximity Probe handle radial shaft displacement monitoring, while the VELOMITOR 330500 captures casing vibration velocity — together providing the dual-parameter protection required by API 670 for critical machinery trains. Power to the monitoring rack is typically supplied through a Bently Nevada 3500/15 Power Supply Module, which incorporates redundant power paths and surge suppression to prevent voltage transients from corrupting sensor signals or triggering spurious trips. Communication to the plant DCS or safety instrumented system is managed via the 3500/92 Communication Gateway Module, supporting Modbus, PROFIBUS, and OPC-DA protocols for seamless integration with ABB, Siemens, or Honeywell control platforms.

For sites operating under a Safety Instrumented System (SIS) framework, the VELOMITOR 330500 can be configured as part of a voted monitoring loop — for example, a 2oo3 voting architecture using three sensors on a single machine train — to achieve the required SIL 2 probability of failure on demand (PFD) targets. This architecture eliminates single-point-of-failure risk in the vibration protection loop, ensuring that a single sensor fault does not result in either a spurious shutdown or an undetected dangerous condition. The sensor’s self-diagnostic output, when monitored by the Bently Nevada 3500/42M rack, provides continuous loop integrity verification without requiring manual field checks — a critical advantage in unmanned or remotely monitored installations.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the VELOMITOR 330500 integrates multiple layers of signal conditioning, power management, and communication redundancy to eliminate single points of failure across the entire monitoring loop. At the rack level, the Bently Nevada 3500/42M Proximitor/Seismic Monitor processes velocity inputs from the VELOMITOR 330500 alongside proximity probe signals from the 330130-080-00-00 Proximitor Sensor, enabling simultaneous radial displacement and casing vibration monitoring on a single machine train. The 3500/15 Power Supply Module provides dual-redundant 24 VDC rails with integrated transient suppression, protecting all rack-mounted modules — including the 3500/22M Transient Data Interface and 3500/92 Communication Gateway — from voltage spikes generated by motor starts, capacitor bank switching, or utility grid disturbances.

Signal cable routing from the VELOMITOR 330500 to the monitoring rack should follow segregated cable trays, physically separated from high-voltage power cables and variable-frequency drive output conductors. Where cable separation is not achievable, shielded twisted-pair cable with drain wire grounded at a single point (typically at the rack end) minimizes common-mode noise pickup. The Bently Nevada 3500/20 Rack Interface Module provides the system-level communication backbone, coordinating alarm states across all installed monitor modules and transmitting consolidated machinery health data to the plant historian via the 3500/92 gateway. For SIS integration, hardwired relay outputs from the 3500/42M connect directly to the safety PLC — such as a Triconex Tricon CX or Rockwell GuardLogix 5580 — ensuring that vibration trip signals reach the final element (e.g., turbine trip solenoid or compressor anti-surge valve) within the required SIL response time, independent of network communication latency.

Critical Industrial Safety Applications

Petrochemical & Refinery: The VELOMITOR 330500 is widely deployed on centrifugal compressors, boiler feed pumps, and cooling tower fans in refinery and petrochemical complexes, where continuous operation is mandatory and unplanned shutdowns trigger process safety events. Its ATEX-certified variants are installed directly in Zone 1 classified areas adjacent to hydrocarbon process streams, providing real-time vibration protection without requiring a safe-area barrier enclosure.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants rely on the VELOMITOR 330500 for casing vibration monitoring at bearing housings. The sensor’s wide temperature range accommodates the thermal cycling inherent in turbine start-stop sequences, while its low-noise output ensures that the 3500/42M protection rack can discriminate genuine vibration events from electrical interference generated by generator excitation systems and bus transfer switching.

Mining & Mineral Processing: Ball mills, SAG mills, conveyor drive motors, and slurry pumps in mining operations subject sensors to extreme shock, dust, and moisture. The VELOMITOR 330500’s IP67 stainless steel housing and armored cable withstand these conditions, providing reliable vibration data to the plant control system and enabling predictive maintenance scheduling that reduces unplanned mill stoppages — a critical factor in continuous ore processing operations.

Water & Wastewater Treatment: High-service pumps, blowers, and centrifuges in water treatment facilities operate continuously in humid, corrosive environments. The VELOMITOR 330500 monitors these assets for early-stage bearing wear and impeller imbalance, allowing maintenance teams to schedule interventions during planned outages rather than responding to emergency failures that could compromise water supply continuity.

Metallurgy & Steel: Rolling mill drives, continuous casters, and blast furnace blowers in steel plants generate intense vibration and electromagnetic noise. The VELOMITOR 330500’s internal signal conditioning rejects common-mode interference from large DC drive systems, delivering clean velocity signals to the protection rack even in the presence of high-current bus bars and induction heating equipment operating in close proximity.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the VELOMITOR 330500?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional faults arising under normal operating conditions within the sensor’s specified environmental and electrical ratings. Warranty claims are supported with replacement unit dispatch and full technical documentation. Warranty period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each VELOMITOR 330500 unit?
Every unit undergoes a comprehensive pre-shipment inspection including sensitivity calibration verification against the 100 mV/in/s nominal specification, frequency response check across the 4.5 Hz – 5,000 Hz operating band, insulation resistance measurement, and visual inspection of the housing, connector, and cable integrity. A test report is available upon request.

Q3: Is the VELOMITOR 330500 compatible with existing Bently Nevada 3500 series monitoring racks?
Yes. The VELOMITOR 330500 is fully compatible with the Bently Nevada 3500/42M Proximitor/Seismic Monitor and other seismic input modules within the 3500 rack system. It is also backward-compatible with legacy 3300 series monitors. No additional signal conditioning hardware is required — the sensor’s internal ASIC provides a conditioned, low-impedance output ready for direct connection to the monitor input terminals.

Q4: Can long-term supply and replacement support be guaranteed for critical plant spares programs?
Yes. We maintain dedicated stock of the VELOMITOR 330500 and related Bently Nevada components to support plant spares programs, turnaround maintenance, and emergency replacement requirements. Orders are processed with same-day or next-business-day dispatch for in-stock items. For large-volume or scheduled spares contracts, please contact our sales team to discuss priority allocation and consignment stock arrangements.
