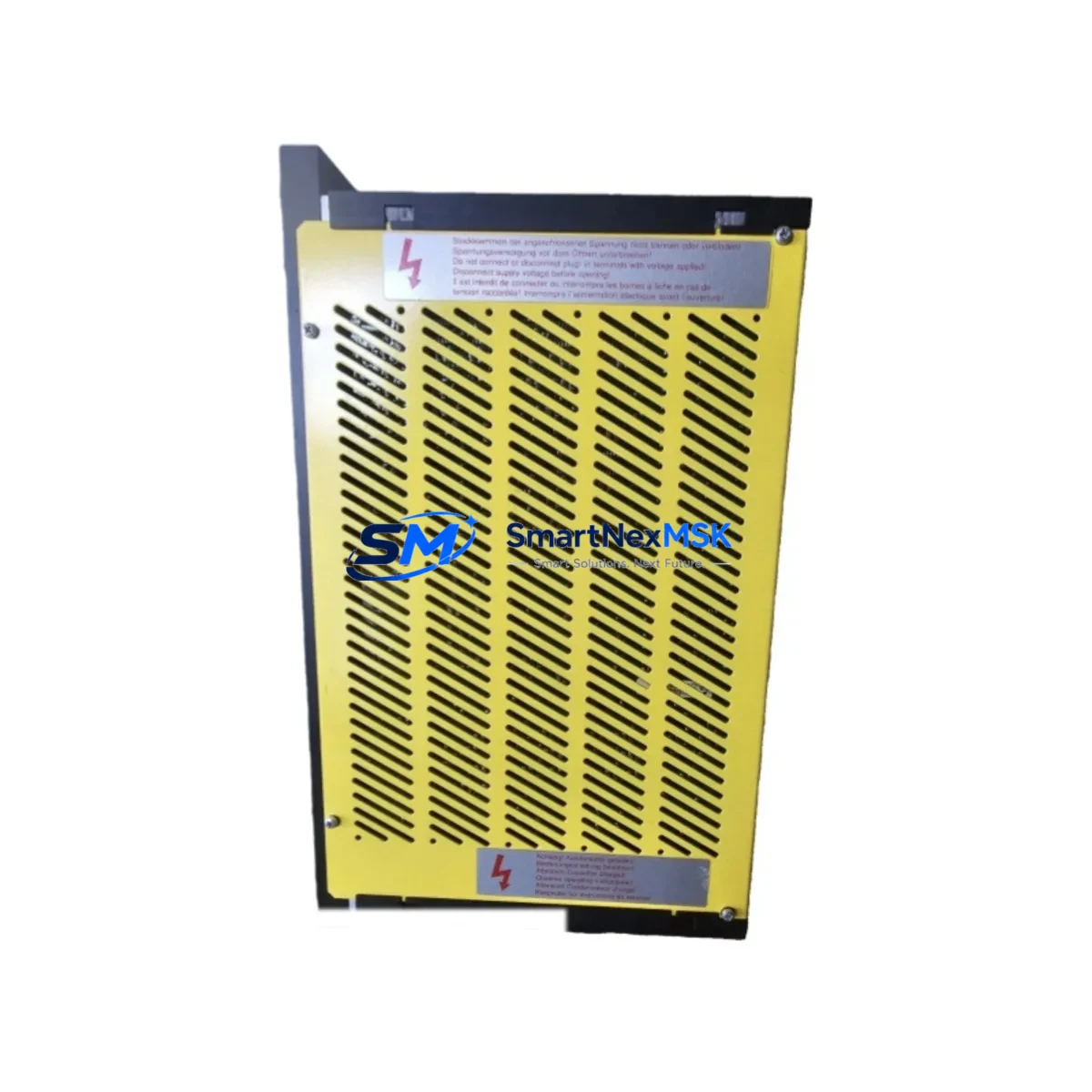

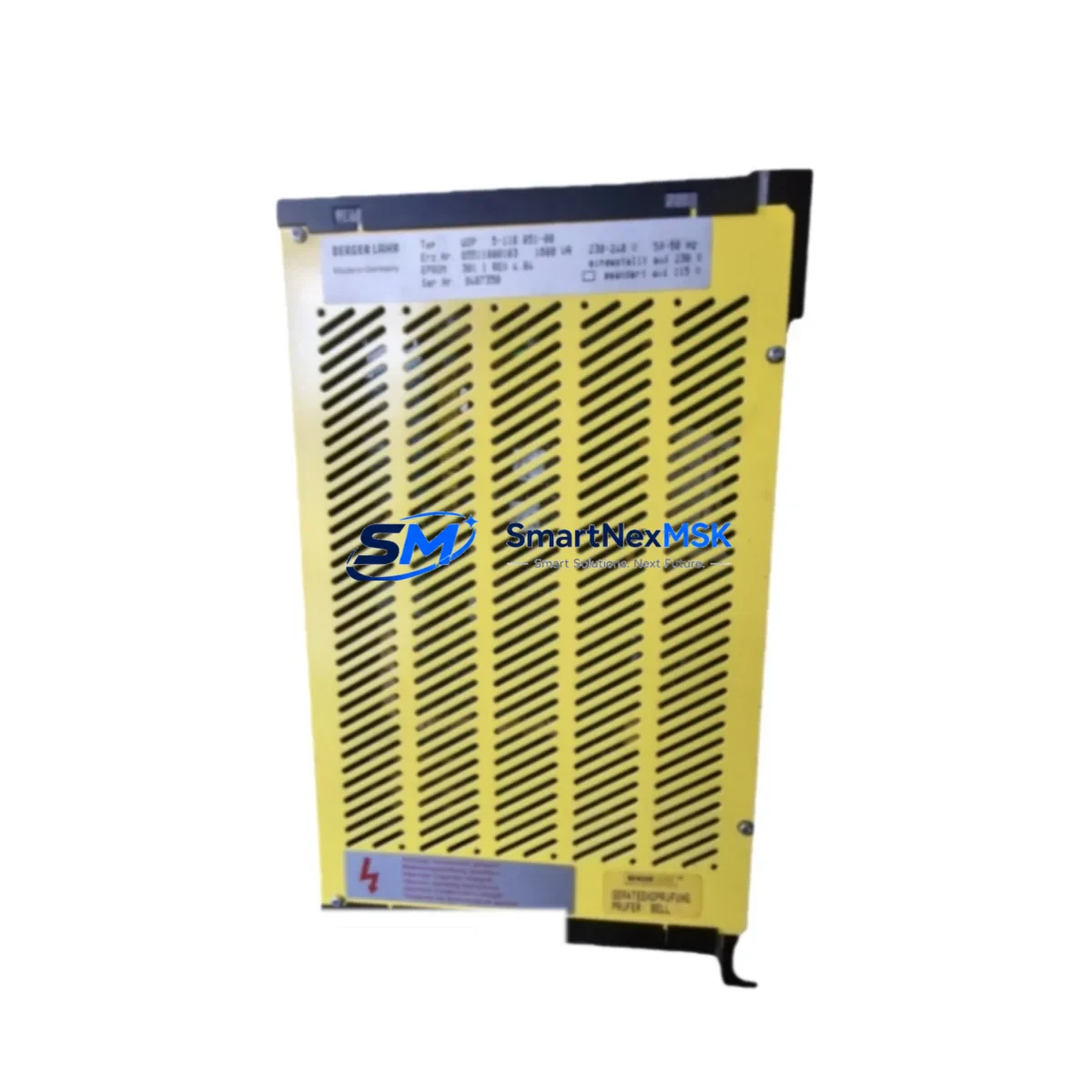

BERGER LAHR WDP5-118.051-00 Safety-Enhanced Stepper Drive

BERGER LAHR WDP5-118.051-00 Safety-Enhanced Stepper Drive: Reliable Control for Harsh Industrial Sites

The BERGER LAHR WDP5-118.051-00 is a high-performance stepper drive engineered for continuous, safety-critical operation in demanding industrial environments. As part of the proven WDP5 series, this module delivers precise motion control with robust protection against the electrical and mechanical stresses common in heavy industry — including high-load production lines, chemically aggressive atmospheres, high-vibration machinery, and safety-critical interlock circuits.

In modern industrial control cabinets, stepper drives are often the last line of defense between a controlled process and an unplanned shutdown. The WDP5-118.051-00 is designed to minimize control interruption risk by maintaining stable output even under fluctuating supply voltages, electromagnetic interference, and thermal cycling. Its compact DIN-rail form factor integrates seamlessly into existing BERGER LAHR motion control architectures, reducing retrofit complexity and commissioning time on the plant floor.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the WDP5-118.051-00 within a well-engineered control cabinet requires a layered protection strategy. In high-load or continuous-duty applications, the drive should be paired with a BERGER LAHR WD3-007.0820 power supply module to ensure clean, regulated DC power free from ripple that could cause step-loss or torque instability. Upstream, a 24 VDC surge protection device (SPD) on the cabinet’s power rail prevents transient spikes — common in plants with large motor starters or welding equipment — from reaching the drive’s sensitive control circuitry.

For motion feedback and position verification in closed-loop configurations, the WDP5-118.051-00 is commonly used alongside BERGER LAHR encoder feedback modules and SMSD stepper motor series matched to the WDP5 current class. In safety interlock circuits, a PILZ PNOZ safety relay or equivalent SIL-rated device should be wired in series with the drive’s enable input, ensuring that the stepper axis is de-energized immediately upon a safety event — such as a guard door opening or an emergency stop activation.

Communication integrity is equally critical. In distributed motion architectures, the drive interfaces with BERGER LAHR POSIDRIVE or POSIDYN controller modules via step/direction signals. Shielded cable runs, properly grounded at one end, suppress common-mode noise that would otherwise cause erratic stepping or missed pulses. Where the control cabinet also houses a Siemens S7-300 or S7-1500 PLC for supervisory control, proper cable segregation between power and signal wiring is essential to prevent cross-coupling interference.

Thermal management within the cabinet should not be overlooked. The WDP5-118.051-00 dissipates heat proportional to load current; in high-duty-cycle applications, a cabinet cooling unit or filtered fan assembly maintains ambient temperature within the drive’s rated operating range, preventing thermal derating or protective shutdown. Pairing the drive with a BERGER LAHR motor cable set rated for the application’s current and shielding requirements completes a fully protected motion axis from controller to actuator.

Critical Industrial Safety Applications

The BERGER LAHR WDP5-118.051-00 is deployed across a wide range of safety-sensitive and continuous-production industrial sectors:

Petrochemical & Refining: In valve actuator control systems within hazardous zones, the WDP5-118.051-00 drives precision positioning of flow-control valves where step accuracy and fail-safe de-energization are mandatory. Its overvoltage and short-circuit protection prevents drive failure from propagating into a process upset.

Power Generation & Utilities: Turbine auxiliary systems and cooling water control loops rely on stepper-driven positioning mechanisms. The drive’s EMI immunity ensures stable operation in environments with large transformer fields and high-frequency switching noise from variable-frequency drives (VFDs).

Mining & Mineral Processing: Conveyor belt tensioning systems and ore-sorting gate actuators in underground or open-pit operations demand drives that tolerate dust ingress, vibration, and wide temperature swings. The WDP5-118.051-00’s robust construction and thermal protection make it a reliable choice for these conditions.

Water & Wastewater Treatment: Dosing pump drives and sluice gate actuators in water treatment plants operate continuously, often unattended. The drive’s overcurrent protection and stable step resolution ensure accurate chemical dosing and gate positioning without operator intervention.

Metallurgy & Steel Production: Rolling mill auxiliary drives and ladle transfer positioning systems require precise, repeatable motion under high electromagnetic noise from arc furnaces and induction heaters. The WDP5-118.051-00’s interference immunity and robust power stage maintain control integrity in these extreme environments.

Port & Logistics Automation: Container crane spreader positioning and automated stacking crane systems use stepper drives for fine positioning of load-handling devices. Reliable operation under variable load and frequent start-stop cycles is essential for throughput and safety.

Continuous Manufacturing (Packaging, Printing, Textiles): Web tension control, registration mark tracking, and cut-to-length systems in continuous-process manufacturing demand zero-missed-step performance. The WDP5-118.051-00 delivers the step accuracy and protection needed to maintain product quality and prevent costly web breaks or registration errors.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The 12-month warranty covers all functional defects arising from manufacturing or component failure under normal operating conditions. Every unit undergoes a power-on functional test prior to shipment, with results logged. In the event of a warranty claim, SMARTNEXMSK provides replacement or repair with documented traceability. The warranty period begins from the date of confirmed delivery.

Q2: What outgoing inspection and testing is performed before shipment?
Each WDP5-118.051-00 unit is subjected to a full power-on functional test covering enable/disable response, step/direction signal processing, and protection circuit verification (overcurrent and overvoltage trip). Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: Is the WDP5-118.051-00 compatible with existing BERGER LAHR motion controllers and third-party PLCs?
Yes. The WDP5-118.051-00 accepts standard step/direction signals compatible with BERGER LAHR POSIDRIVE and POSIDYN motion controllers, as well as pulse-output modules from Siemens, Mitsubishi, Omron, and other major PLC platforms. Customers are advised to verify supply voltage and current ratings against their specific motor and controller configuration before installation.

Q4: Can long-term supply and spare parts availability be guaranteed for maintenance planning?
SMARTNEXMSK maintains dedicated stock of WDP5 series modules to support long-term maintenance and spare parts programs for industrial customers. For facilities with planned maintenance schedules or critical-spares requirements, we offer reserved stock arrangements and advance procurement support. Contact our sales team to discuss multi-unit pricing, lead times, and consignment options for your site’s maintenance program.
