BIHL+WIEDEMANN BWU1840/BWU1416 Spare for ASi Automation

BIHL+WIEDEMANN BWU1840/BWU1416 Spare for ASi Automation: Spare Replacement & Industrial Downtime Risk Control

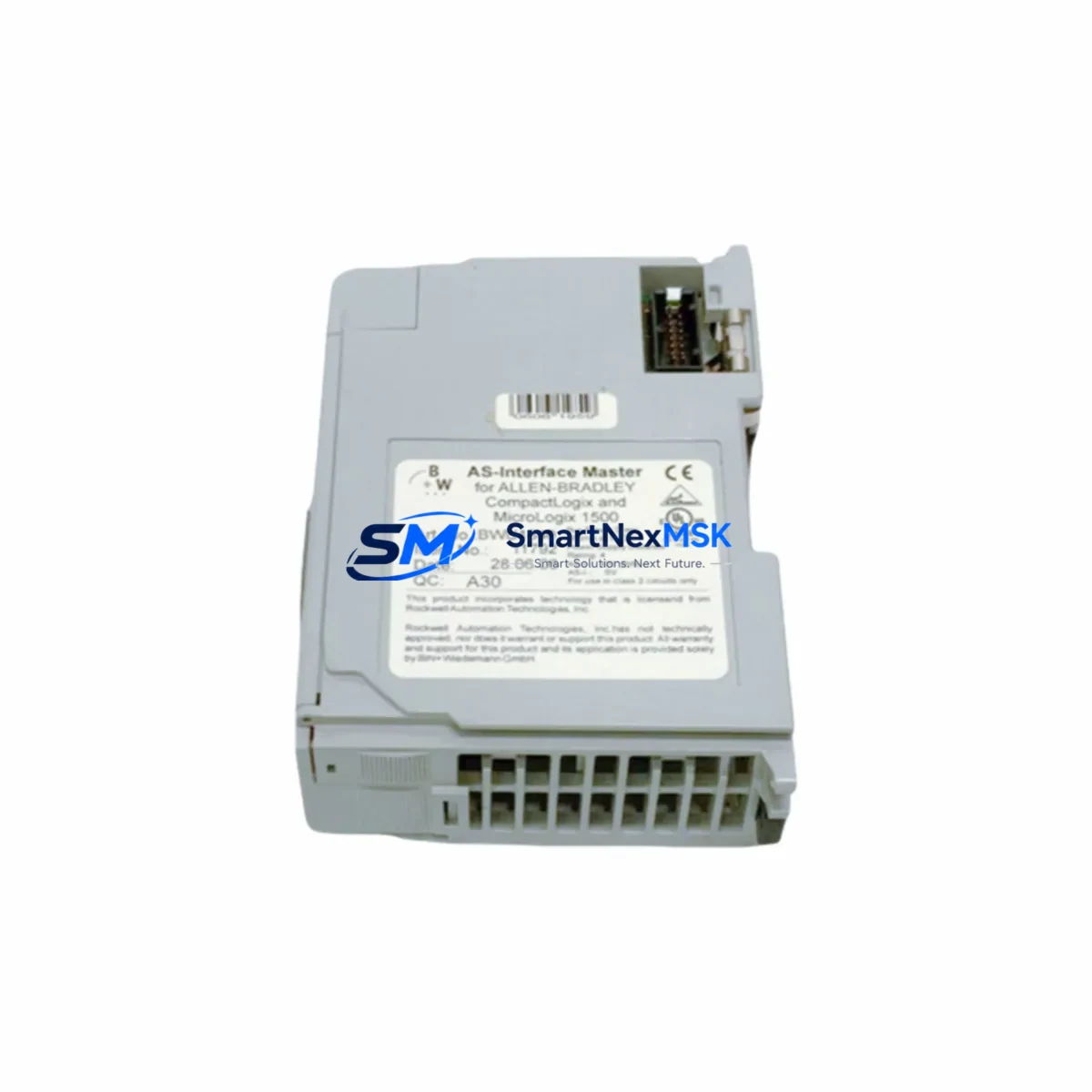

The BIHL+WIEDEMANN BWU1840 / BWU1416 is a dual-circuit AS-Interface master module engineered for demanding industrial automation environments. As a maintenance-ready original spare, this unit supports uninterrupted operation of AS-Interface networks in manufacturing lines, process control panels, and distributed I/O architectures. Whether you are executing a planned shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory, the BWU1840/BWU1416 delivers the compatibility, reliability, and documentation traceability that maintenance and procurement engineers require.

Sourced as a genuine BIHL+WIEDEMANN component, each unit undergoes pre-shipment functional testing and ships with a 12-month warranty. Long-term supply continuity is supported for legacy system operators managing older ASi network generations where OEM availability may be constrained.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the BWU1840/BWU1416 in a live control cabinet, a disciplined maintenance approach significantly reduces the risk of secondary faults and repeat downtime. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding electrical circuit, not merely swap the module.

Begin by verifying the ASi power supply unit — typically a dedicated 30 V DC ASi power supply such as the BIHL+WIEDEMANN BWU2786 or equivalent — since a degraded power supply is a common root cause of master module failures. Inspect the ASi flat cable and all M12 tap connectors for insulation damage, moisture ingress, or loose terminations, as cable faults frequently cause slave address conflicts that are misdiagnosed as master module failures.

Check all ASi slave modules on both circuits for correct address assignment and response status. Faulty or mis-addressed slaves — including compact I/O slaves, valve terminal slaves, and safety slaves — can overload the master’s polling cycle. If the control system integrates the ASi network via a PROFIBUS-DP or PROFINET gateway, confirm that the gateway configuration file (GSD/GSDML) matches the new master’s firmware version to avoid communication mapping errors after replacement.

For systems using safety-rated ASi components (ASi Safety at Work), verify that the safety monitor — such as the BIHL+WIEDEMANN BWU3787 or similar — retains its validated configuration after the master module swap. Safety monitors store independent slave address tables and may require re-validation following a master replacement.

Inspect the 24 V DC auxiliary power rail feeding the control cabinet, including fuse holders, miniature circuit breakers, and terminal blocks. A voltage drop on the auxiliary rail can cause the ASi master to report spurious slave faults. Review signal isolators on any analog I/O channels interfacing with the ASi network, and confirm that relay output modules in the same cabinet are not generating inductive spikes that could affect the ASi data signal.

Finally, if the system includes an HMI or operator panel communicating with the PLC that hosts the ASi master, perform a full I/O force test after replacement to confirm that all field signals — sensors, actuators, valve solenoids, and indicator lights — are correctly mapped and responding. Document the replacement in the maintenance log with the new module’s serial number and test results to support future audits and warranty claims.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the ASi circuit and apply LOTO (Lockout/Tagout) to the ASi power supply and the 24 V DC auxiliary rail. Confirm zero voltage on the ASi flat cable before proceeding.

Step 2 — Configuration Backup: If the existing BWU1416 or BWU1840 is still partially functional, export the slave address table and any gateway parameter sets via the master’s configuration interface or the connected PLC programming software. This backup eliminates the need to re-commission all ASi slaves from scratch.

Step 3 — Physical Removal: Disconnect the ASi flat cable connectors, the 24 V DC supply terminals, and the fieldbus interface (PROFIBUS or PROFINET) from the old module. Release the DIN rail locking tab and remove the module.

Step 4 — Installation of BWU1840/BWU1416: Mount the replacement module on the DIN rail. Reconnect all cables in the reverse order of removal. The BWU1840 is a direct drop-in replacement for the BWU1416, sharing the same connector layout and DIN rail footprint, which eliminates the need for cabinet re-wiring.

Step 5 — Address Restore & Commissioning: Power up the ASi circuit and restore the slave address table from the backup. Confirm that all slaves on both ASi circuits are detected and in normal operating status. Perform a full I/O test cycle before returning the system to production.

Step 6 — Documentation: Record the replacement in the equipment maintenance log. Retain the pre-shipment test certificate and warranty documentation for the 12-month warranty period.

This workflow minimizes downtime to a single planned maintenance window and avoids the extended outages associated with unplanned emergency replacements. Maintaining one BWU1840/BWU1416 unit in your on-site spare parts inventory is recommended for any facility operating more than two ASi networks.

Spare Parts Support FAQ

Q1: Is the BWU1840 a direct replacement for the BWU1416?
Yes. The BWU1840 is the current-generation successor to the BWU1416, sharing the same dual-circuit ASi master architecture, DIN rail footprint, and connector layout. No cabinet re-wiring is required. The BWU1840 is backward-compatible with ASi V2.1 slaves already installed on the BWU1416 network, making it a transparent drop-in replacement for legacy system upgrades and emergency substitutions.

Q2: How is the unit tested before shipment?
Each BWU1840/BWU1416 unit undergoes functional verification prior to dispatch, including power-on testing and communication interface checks. A pre-shipment test record is available upon request. The unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended spare parts inventory strategy for ASi master modules?
For facilities operating critical production lines with AS-Interface networks, maintaining a minimum of one spare ASi master module per production zone is standard practice. Given the lead times associated with specialty industrial automation components, on-site stock eliminates the risk of extended downtime caused by procurement delays. The BWU1840/BWU1416 is suitable for long-term storage in its original packaging in a dry, temperature-controlled environment.

Q4: Can compatibility be verified before purchase for my specific ASi network configuration?
Yes. Provide your existing master module part number, ASi network version (V2.1 or V3.0), slave count per circuit, and fieldbus gateway type (PROFIBUS-DP or PROFINET). Our technical team will confirm compatibility and, where applicable, advise on any firmware or configuration steps required for a seamless replacement. Contact us at sales@smartnexmsk.com prior to ordering if your application involves safety-rated ASi slaves or non-standard gateway configurations.
