BIO-RAD 750B33TCB2GC Retrofit-Ready Vacuum Pump for HYDROTECH 862 Series: Compatible Upgrade for Legacy Lab Systems

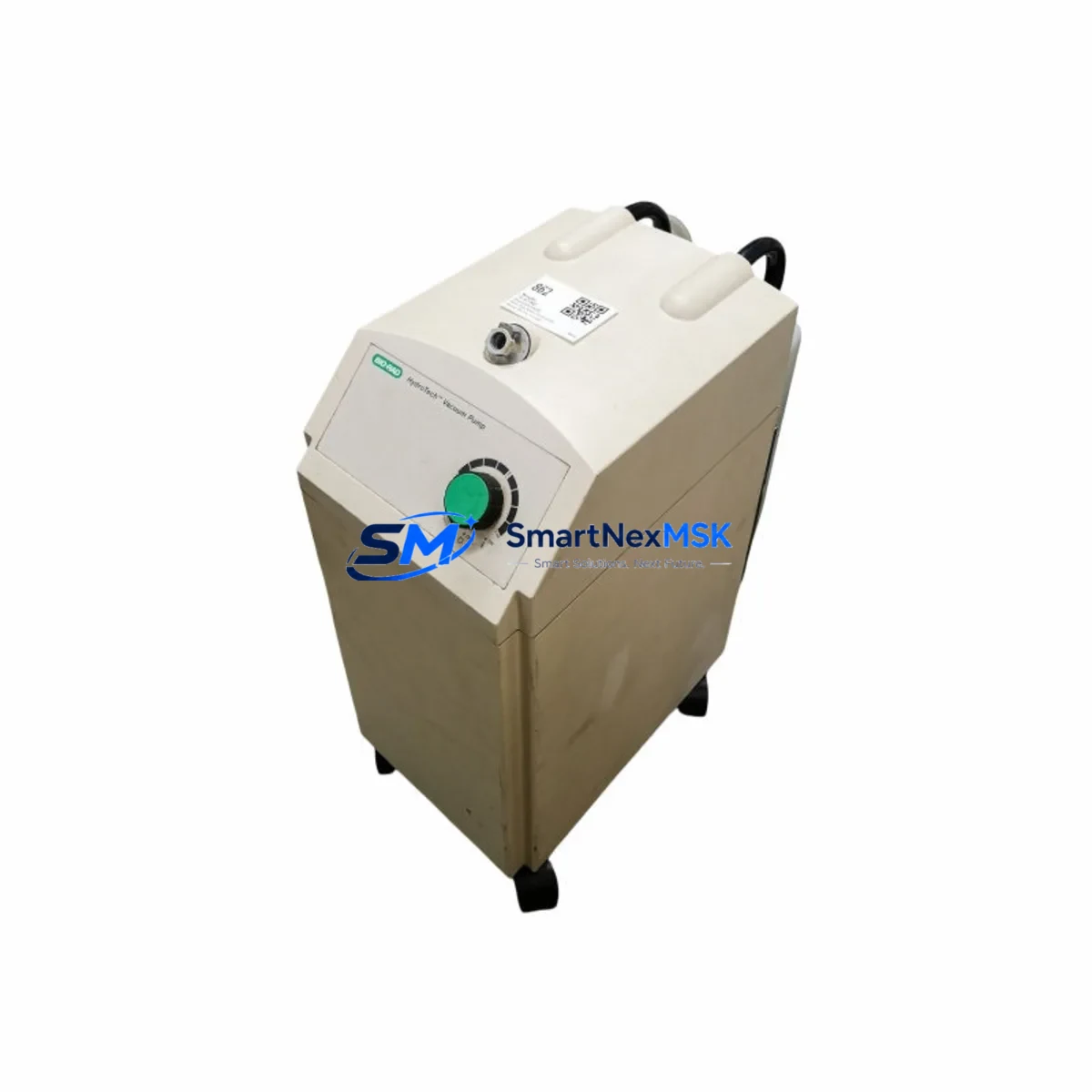

The BIO-RAD 750B33TCB2GC (also referenced as part number 0021-06952) is a retrofit-ready vacuum pump engineered as a direct replacement for systems originally equipped with the HYDROTECH 862 series vacuum pump. As HYDROTECH 862 units reach end-of-life and spare parts become increasingly scarce, laboratories and instrument service teams are turning to the BIO-RAD 750B33TCB2GC as the preferred upgrade path — offering verified compatibility, reduced downtime, and a clear migration route for aging analytical and life science instrumentation.
Whether you are maintaining a gel electrophoresis workstation, a chromatography system, a filtration manifold, or a multi-channel sample processing platform, the 750B33TCB2GC delivers the vacuum performance and mechanical reliability required to restore full system operation without redesigning your existing plumbing or control architecture. Its compact form factor and standardized port configuration make it a practical drop-in solution for service engineers working under tight maintenance windows.
Upgrade Compatibility Table
| Parameter | HYDROTECH 862 (Original) | BIO-RAD 750B33TCB2GC (Replacement) |
|---|---|---|
| Part / SKU | HYDROTECH 862 | 750B33TCB2GC / 0021-06952 |
| Pump Type | Diaphragm / Rotary Vacuum | Diaphragm Vacuum Pump |
| Port Configuration | Standard inlet/outlet | Compatible inlet/outlet — direct fit |
| Mounting Interface | Original bracket mount | Compatible bracket footprint |
| Electrical Supply | Verify original voltage/Hz rating | Confirm supply voltage before installation |
| Communication / Control | Analog on/off or relay control | Relay-compatible; verify control wiring |
| Replacement Recommendation | End-of-life / discontinued | Recommended direct replacement |
| Commissioning Focus | — | Verify tubing connections, check for leaks, confirm vacuum level at operating point |
| Warranty | — | 12-Month Warranty included |
Retrofit Planning for Existing Laboratory and Analytical Systems
A successful retrofit begins well before the replacement pump arrives on-site. Service engineers should start by documenting the existing vacuum circuit: inlet tubing diameter, outlet exhaust routing, trap configuration, and any in-line vacuum regulators or gauges currently installed. The BIO-RAD 750B33TCB2GC is designed to integrate into the same plumbing envelope as the HYDROTECH 862, but confirming tubing ID and barb or push-fit connector sizes before ordering eliminates the need for adapter fittings that can introduce leak points.
On the electrical side, verify the supply voltage and frequency at the pump’s terminal block against the 750B33TCB2GC nameplate rating. Many BIO-RAD instruments in this class operate on 100–120 V or 220–240 V depending on regional configuration; confirm the correct voltage variant is ordered. If the original HYDROTECH 862 was controlled through a relay board or instrument controller — common in automated gel documentation systems, blotting stations, or vacuum filtration manifolds — the replacement pump’s motor start characteristics should be reviewed to ensure relay contact ratings are not exceeded.
For systems that include a vacuum trap or moisture separator upstream of the pump, inspect and replace the trap insert as part of the retrofit. Accumulated condensate or biological material in an aging trap can shorten the service life of a new pump significantly. Similarly, if the system uses a vacuum gauge or transducer to monitor operating pressure, verify calibration after installation to confirm the replacement pump is achieving the target vacuum level required by the analytical method.
In multi-channel or manifold-based systems — such as those used in parallel filtration, solid-phase extraction, or multi-well plate processing — the 750B33TCB2GC should be evaluated against the total flow demand of all connected ports operating simultaneously. If the original HYDROTECH 862 was operating near its flow capacity, consider whether the replacement unit’s rated free-flow and ultimate vacuum specifications meet the aggregate system demand. Ancillary components such as vacuum manifold blocks, PTFE tubing assemblies, inline check valves, and vacuum relief valves should be inspected and replaced as needed during the same service event to avoid callbacks.
Instrument platforms commonly encountered in the same service environment as the HYDROTECH 862 include BIO-RAD gel electrophoresis power supplies, Trans-Blot transfer systems, ChemiDoc imaging stations, and Bio-Dot or Bio-Dot SF microfiltration apparatuses. Technicians servicing these platforms will also frequently encounter vacuum tubing kits, replacement diaphragm sets, inlet filter assemblies, and exhaust muffler elements as consumable components that should be stocked alongside the pump itself.
Downtime Control During System Migration
Minimizing instrument downtime during a vacuum pump replacement requires a structured approach. Before removing the HYDROTECH 862, photograph or document all tubing connections, electrical wiring, and mounting orientation. Label each connection point to eliminate ambiguity during reassembly. If the instrument is part of an active sample processing workflow, schedule the replacement during a planned maintenance window or between analytical runs to avoid disrupting in-progress experiments.
The mechanical swap itself — disconnecting tubing, unbolting the pump, installing the BIO-RAD 750B33TCB2GC, and reconnecting all lines — typically takes under one hour for an experienced service technician. The more time-sensitive step is post-installation verification: power on the instrument, confirm the pump starts without unusual noise or vibration, and measure the achieved vacuum level against the instrument’s specification. For systems with a vacuum sensor or interlock, confirm the sensor reads correctly and that the instrument’s control logic accepts the vacuum signal before returning the system to service.
Where the instrument supports it, retain a backup copy of any instrument configuration or method files before beginning the retrofit. Although a vacuum pump replacement does not alter software or firmware, having a verified backup ensures rapid recovery if unrelated issues surface during recommissioning. For instruments connected to a laboratory information management system (LIMS) or data acquisition platform, confirm the instrument is back online and communicating correctly before closing the service record.
Retrofit Support FAQ
Q1: Is the BIO-RAD 750B33TCB2GC a direct drop-in replacement for the HYDROTECH 862?
The 750B33TCB2GC is the recommended replacement for HYDROTECH 862 series vacuum pumps used in BIO-RAD instrument platforms. Port configuration and mounting dimensions are compatible for direct installation. Confirm tubing sizes and electrical supply voltage before installation to ensure a clean fit.
Q2: What commissioning checks are required after installation?
After mechanical installation and electrical connection, power on the pump and verify it reaches the required operating vacuum level. Check all tubing connections for leaks using a vacuum gauge. Confirm relay or control wiring is functioning correctly and that any instrument interlocks dependent on vacuum level are satisfied before returning the system to service.
Q3: Does the replacement unit come with a warranty?
Yes. All BIO-RAD 750B33TCB2GC units supplied by SMARTNEXMSK include a 12-month warranty covering manufacturing defects. Units are functionally tested prior to shipment. Contact sales@smartnexmsk.com for warranty claims or technical support.
Q4: What if my existing wiring or tubing does not match the replacement pump?
Minor differences in tubing barb size or connector type can typically be resolved with standard adapter fittings available from laboratory supply vendors. For electrical wiring differences, consult the instrument service manual or contact our technical team at sales@smartnexmsk.com before proceeding. Do not operate the pump outside its rated voltage or flow specifications.
