BIRD 1210-03191 Safety-Enhanced RF Power Termination Load

BIRD 1210-03191 Safety-Enhanced RF Power Termination Load for Harsh Industrial Sites

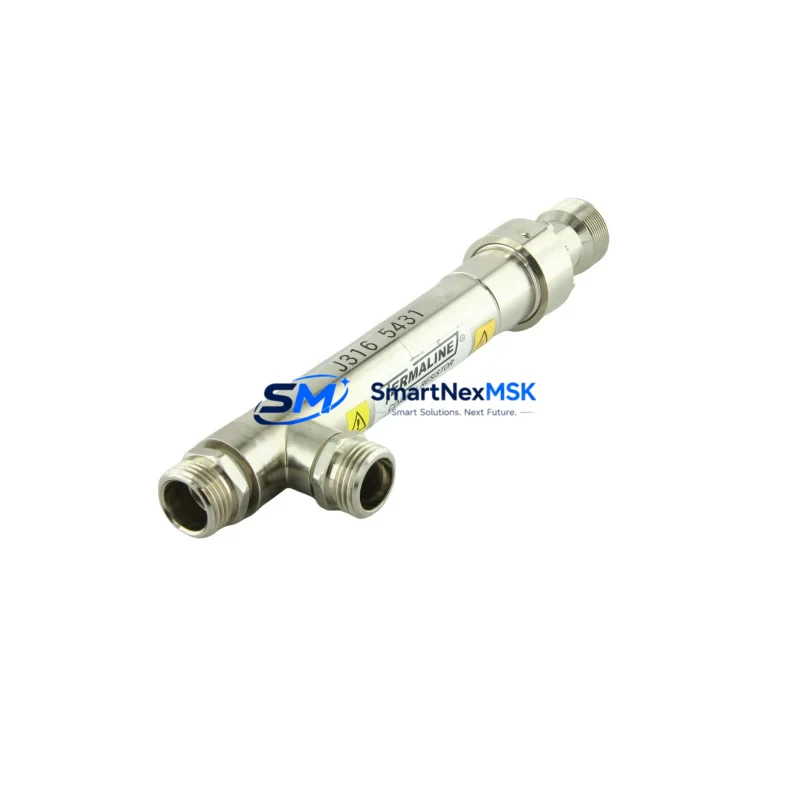

The BIRD 1210-03191 is a ruggedized RF power termination load from BIRD Technologies’ Termaline LC40/M3/WI series, engineered for continuous-duty operation in the most demanding industrial RF environments. Designed to safely absorb and dissipate high-frequency power without signal reflection, this termination load is a critical component in RF transmission systems where control loop integrity, signal stability, and personnel safety are non-negotiable. Whether deployed in petrochemical processing plants, power generation facilities, mining operations, or continuous manufacturing lines, the 1210-03191 delivers consistent, measurable protection against RF energy hazards and system instability.

In high-load industrial RF systems, an improperly terminated transmission line is a direct source of standing wave buildup, reflected power surges, and transmitter damage. The BIRD 1210-03191 eliminates these risks by providing a precision-matched impedance termination that absorbs excess RF energy cleanly and safely. Its ruggedized construction resists vibration, thermal cycling, and electromagnetic interference — conditions routinely encountered in control cabinets, relay protection panels, and field-mounted RF equipment enclosures across heavy industry.

Safety Reliability Table

Control Cabinet Protection Strategy

In industrial RF transmission and control systems, the BIRD 1210-03191 termination load functions as the final line of defense against reflected power that can destabilize the entire RF chain. When integrated into a control cabinet alongside a BIRD 43 Thruline Wattmeter and directional sensing elements, the system gains real-time visibility into forward and reflected power levels — enabling operators to detect anomalies before they escalate into equipment damage or process shutdowns.

For systems using BIRD 8329 or 8340 series RF power sensors, the 1210-03191 provides a stable reference termination during calibration cycles, ensuring measurement accuracy is maintained even under fluctuating load conditions. In RF distribution panels where BIRD Termaline coaxial attenuators and directional couplers are used to split or sample RF signals, proper termination of unused ports with the 1210-03191 prevents standing wave interference from propagating back into the transmitter chain.

Power supply stability is equally critical in these environments. RF power amplifiers and transmitters paired with industrial DC power modules and surge protection devices (SPDs) on the AC input side depend on clean, stable power delivery. A voltage surge or transient on the supply rail can cause momentary output power spikes that, without a properly rated termination load like the 1210-03191, result in reflected energy damaging the final amplifier stage. Similarly, RF coaxial surge arrestors installed upstream of the termination point provide an additional layer of protection against lightning-induced transients in outdoor or rooftop-mounted antenna systems.

In safety interlock architectures, the 1210-03191 is often used in conjunction with RF relay switching modules and coaxial transfer switches to safely route RF power away from active circuits during maintenance windows or emergency shutdowns. This ensures that RF energy is always directed into a known, safe load rather than left unterminated — a critical requirement in facilities operating under IEC 61511 functional safety standards or equivalent regional regulations. Communication integrity is maintained through industrial-grade coaxial cable assemblies with low-loss dielectric, ensuring that signal paths between the transmitter, coupler, and termination load remain stable across the full operating temperature range.

Critical Industrial Safety Applications

Petrochemical & Refinery Operations: In hazardous area RF communication systems within petrochemical plants, unterminated RF ports represent both a signal integrity risk and a potential ignition hazard in Zone 1/Zone 2 classified areas. The BIRD 1210-03191 provides a safe, absorptive termination that eliminates radiated RF energy from open ports, supporting compliance with ATEX and IECEx equipment safety requirements for RF systems operating near flammable atmospheres.

Electric Power Generation & Substation Control: High-voltage substations and power generation facilities rely on RF-based SCADA and teleprotection communication links. In these environments, the 1210-03191 is used to terminate backup or standby RF channels, preventing reflected power from interfering with active protection relay communication. Reliable termination is essential to maintaining the integrity of distance protection and differential relay schemes that depend on low-latency, high-reliability RF links.

Mining & Tunneling Communications: Underground mining operations deploy leaky feeder RF systems and distributed antenna systems (DAS) for personnel tracking and emergency communication. The 1210-03191 terminates end-of-line RF ports in these systems, preventing signal reflections that degrade coverage in critical zones. In continuous mining operations where communication system downtime directly impacts safety, the ruggedized construction of the 1210-03191 ensures reliable performance despite vibration, dust, and humidity.

Water Treatment & Utilities: Municipal water treatment facilities use RF telemetry systems to monitor pump stations, valve actuators, and flow meters across geographically distributed sites. Proper RF termination with the 1210-03191 ensures that telemetry signals remain clean and free of multipath interference, supporting accurate SCADA data acquisition and reducing the risk of false alarms or missed fault conditions in critical water infrastructure.

Metallurgy & Steel Production: In electric arc furnace (EAF) and induction heating environments, high levels of electromagnetic interference are generated continuously. RF communication and control systems in these facilities require robust termination components that maintain stable impedance matching despite extreme EMI levels. The BIRD 1210-03191, with its shielded construction and precision impedance matching, provides reliable termination performance even in the presence of intense electromagnetic noise from furnace operations.

Safety and Quality FAQ

Q1: What warranty coverage does the BIRD 1210-03191 carry?
The 1210-03191 is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement or repair, and our technical team provides application guidance to ensure correct installation and operation.

Q2: How is each unit tested before shipment?
Every BIRD 1210-03191 unit undergoes pre-shipment functional verification, including impedance matching confirmation and visual inspection for connector integrity and housing condition. Units that do not meet specification are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 1210-03191 compatible with existing BIRD Termaline LC40 system installations?
Yes. The 1210-03191 is a direct-fit replacement component within the BIRD Termaline LC40/M3/WI series ecosystem. It is compatible with standard BIRD coaxial connector interfaces used in this series and can be installed as a drop-in replacement without system modification. For non-standard installations, our technical team can advise on adapter requirements.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
We maintain dedicated inventory stock of the BIRD 1210-03191 to support ongoing maintenance, planned replacement programs, and emergency spare requirements. For facilities operating under planned preventive maintenance (PPM) schedules, we offer priority allocation and advance reservation to ensure parts availability aligns with scheduled maintenance windows. Contact our sales team to discuss long-term supply agreements.
