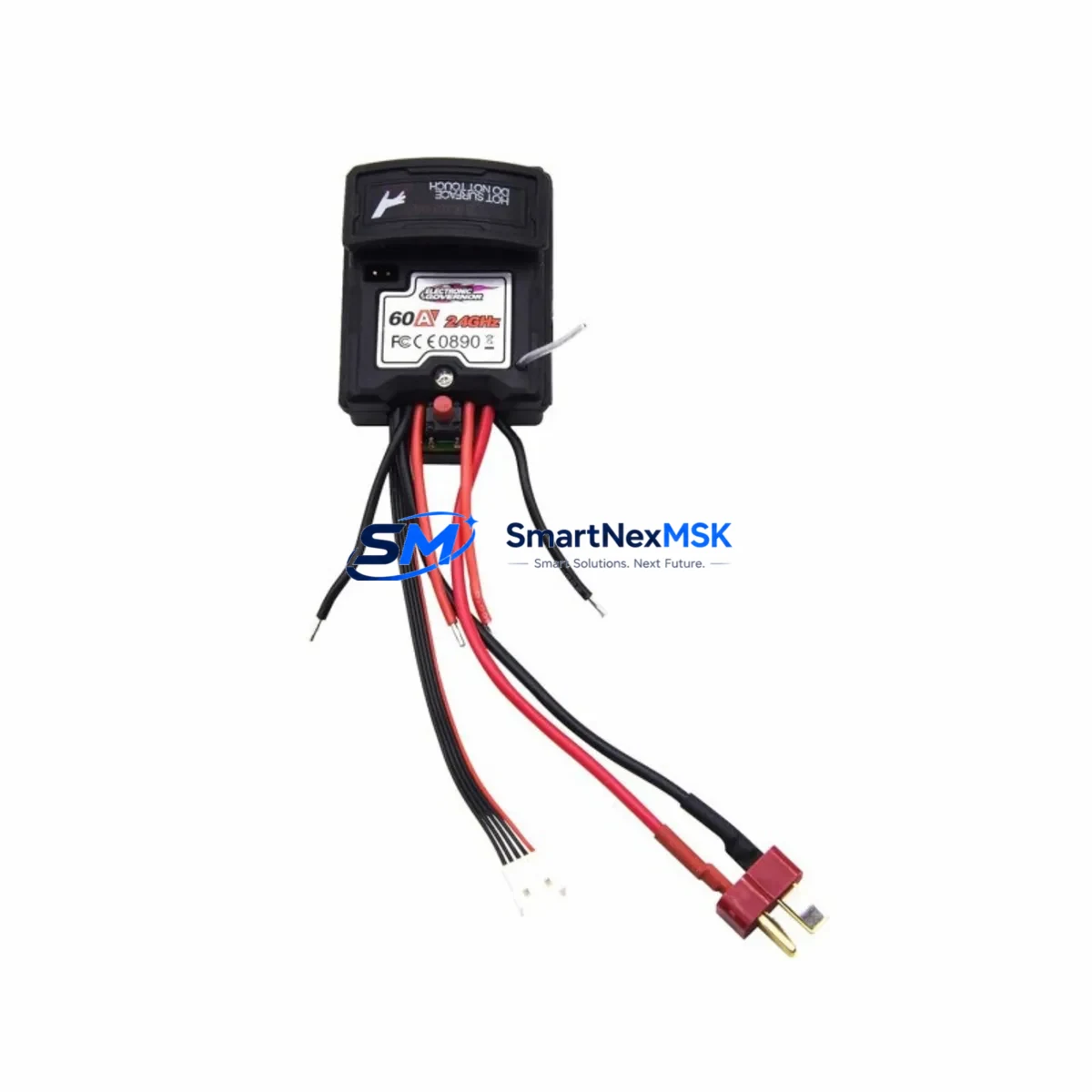

Blomiky ZJBX-25-464 Safety-Enhanced ESC for Harsh Industrial Sites

Blomiky ZJBX-25-464 Safety-Enhanced ESC: Reliable Motor Control for Harsh Industrial Sites

In high-demand industrial environments where motor control failures carry serious operational and safety consequences, the Blomiky ZJBX-25-464 ruggedized Electronic Speed Controller (ESC) delivers the protection, stability, and continuous-duty performance that critical automation systems require. Engineered for the ZJBX Series platform, this 25A brushless ESC is purpose-built to operate reliably inside industrial control cabinets, mobile machinery, conveyor drive systems, and safety-critical motor loops where signal integrity and power stability cannot be compromised.

Unlike standard commercial ESCs, the ZJBX-25-464 is designed with industrial field conditions in mind — including high electromagnetic interference (EMI), voltage transients, mechanical vibration, dust ingress, and wide ambient temperature swings. Its ruggedized construction and conservative thermal design ensure that motor speed commands are executed accurately and consistently, even when surrounding equipment such as variable frequency drives (VFDs), contactors, solenoid valves, and high-current relay banks generate significant electrical noise on shared power rails.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Blomiky ZJBX-25-464 within a well-designed industrial control cabinet requires a layered protection strategy that addresses power quality, signal integrity, and thermal management simultaneously. At the power input stage, pairing the ZJBX-25-464 with a dedicated DC-DC isolated power module (such as a 24V regulated rail converter) ensures that voltage fluctuations from upstream switching power supplies or battery chargers do not propagate into the ESC’s logic and gate-drive circuits. A TVS diode array or varistor surge suppressor installed at the DC bus entry point provides the first line of defense against inductive load kickback from co-located motor starters and solenoid coils.

For signal-level protection, routing the PWM control line through a signal isolator or optocoupler barrier module eliminates ground loop interference that commonly causes erratic speed commands in cabinets where PLCs, HMIs, and servo drives share a common ground reference. In systems using a Siemens S7-1200 or S7-300 PLC as the master controller, the digital output module’s PWM channel should be configured with a dedicated cable shield grounded at a single point to prevent common-mode noise injection.

Thermal management is equally critical. Mounting the ZJBX-25-464 on an aluminum DIN rail heat spreader or attaching a passive heatsink with forced-air cooling from a cabinet fan module maintains junction temperatures within safe limits during continuous 25A operation. In cabinets housing multiple drives — including stepper motor drivers, servo amplifiers, and DC motor controllers — thermal zoning and adequate spacing prevent heat accumulation that degrades MOSFET reliability over time.

For communication-intensive installations where the ESC operates alongside Profibus DP nodes, Modbus RTU devices, or CANopen field devices, ferrite bead filters on signal cables and proper cable segregation (power vs. signal runs in separate conduit) are essential to maintaining clean data transmission and preventing nuisance faults in the control loop. Integrating the ZJBX-25-464 into a safety interlock circuit alongside an emergency stop relay module and a safety monitoring relay (e.g., Pilz PNOZ or equivalent) ensures that motor shutdown is executed within the required response time when a hazardous condition is detected.

Critical Industrial Safety Applications

The Blomiky ZJBX-25-464 ESC is well-suited for a broad range of demanding industrial applications where motor control reliability directly impacts process safety and uptime.

In petrochemical and refinery facilities, the ZJBX-25-464 controls brushless pump and agitator motors in hazardous classified zones where control interruptions can trigger process upsets or safety system activations. Its surge-protected input and stable PWM response ensure that flow control commands are executed without hesitation even during grid disturbances.

In electric power generation and substation auxiliary systems, the module drives cooling fan motors and valve actuators in environments subject to high-frequency switching transients from power electronics. The ESC’s decoupled power architecture prevents these transients from corrupting speed reference signals.

In underground mining operations, where conveyor belt drives and ventilation fan motors must operate continuously in dusty, high-humidity conditions, the ZJBX-25-464’s ruggedized construction and wide operating temperature range support reliable long-term deployment with minimal maintenance intervention.

In water and wastewater treatment plants, the ESC provides precise speed control for aeration blower motors and sludge pump drives, where variable flow demands require smooth, repeatable motor response across the full speed range without hunting or oscillation.

In metallurgical and steel mill environments, where high-current arc furnaces and induction heaters generate severe electromagnetic interference, the ZJBX-25-464’s EMI-hardened design maintains control signal fidelity and prevents spurious motor trips that could damage tooling or interrupt continuous casting sequences.

In port and heavy logistics automation, the module drives positioning motors in automated crane systems and conveyor transfer stations, where precise speed ramp control and reliable braking response are essential for load safety and cycle time consistency.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ZJBX-25-464?
The 12-month warranty covers all manufacturing defects, component failures, and functional malfunctions that occur under normal industrial operating conditions within the rated voltage and current specifications. Warranty claims are supported with replacement dispatch or full refund, subject to return inspection. Coverage begins from the confirmed shipment date.

Q2: How is the ZJBX-25-464 tested before shipment?
Every ZJBX-25-464 unit undergoes a 100% functional test prior to dispatch, including PWM signal response verification, full-load current draw measurement, thermal stability check, and over-temperature protection trigger test. Units that do not pass all inspection criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: Is the ZJBX-25-464 compatible with standard industrial PLC PWM outputs and third-party motor controllers?
Yes. The ZJBX-25-464 accepts standard 50Hz PWM signals (1000–2000μs pulse width) compatible with the digital output modules of major PLC platforms including Siemens, Mitsubishi, Omron, and Allen-Bradley, as well as dedicated motion controllers and industrial single-board computers. Signal voltage levels should be verified against the ESC’s input specification before integration.

Q4: Can long-term supply continuity be guaranteed for the ZJBX-25-464 as a spare part?
Yes. The ZJBX-25-464 is maintained as a stocked line item with ongoing replenishment from the Blomiky ZJBX Series supply chain. For facilities requiring guaranteed spare part availability for planned maintenance intervals, bulk purchase agreements and reserved inventory arrangements are available. Contact our sales team to discuss long-term supply contracts and lead time commitments.
