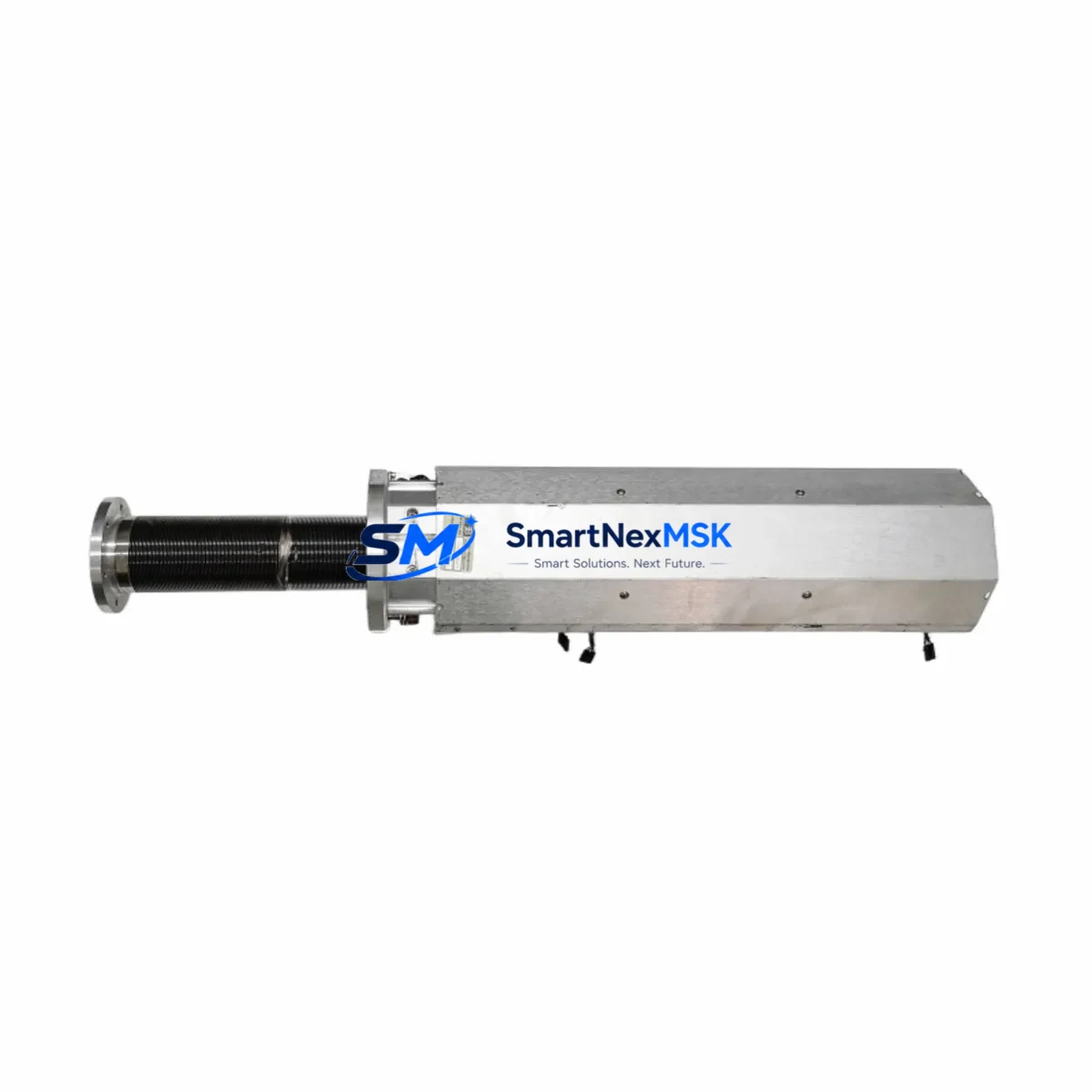

Brooks Automation 001-9093-05 Safety-Enhanced Z-Axis Elevator Arm

Brooks Automation 001-9093-05 Safety-Enhanced Z-Axis Elevator Arm: Precision Control for Harsh Industrial Sites

The Brooks Automation 001-9093-05 is a ruggedized Z-Axis Elevator Arm Module engineered for continuous, high-reliability wafer transfer operations in demanding semiconductor and industrial automation environments. Designed to maintain precise vertical positioning under high-load cycles, this module delivers consistent performance where control interruptions, mechanical drift, and environmental stress are constant operational risks. Whether deployed in cleanroom wafer handling systems, automated material handling equipment, or critical robotic transfer cells, the 001-9093-05 provides the structural rigidity and motion accuracy required to protect process integrity and minimize unplanned downtime.

In high-throughput production environments, Z-axis positioning errors can cascade into costly wafer breakage, recipe deviations, and extended recovery shutdowns. The Brooks Automation 001-9093-05 addresses these risks through precision-machined arm geometry, robust actuator coupling, and vibration-damped construction that resists the mechanical fatigue common in continuous 24/7 operations. Its compatibility with Brooks Automation Atmospheric Robot platforms — including the MagnaTran and Equinox series — ensures seamless integration into existing transfer chamber architectures without requiring custom mechanical adaptation.

For facilities managing multi-chamber cluster tools, the 001-9093-05 works in concert with Brooks Automation end effectors, wrist assemblies, and forearm link components to maintain full kinematic chain integrity. When paired with Brooks Automation robot controllers and motion driver boards, the elevator arm’s positional feedback loop remains stable even under thermal cycling and vibration loads typical of high-power process equipment. Facilities that also operate Brooks Automation vacuum transfer modules or atmospheric sorter platforms will find the 001-9093-05 a direct, drop-in replacement that restores full system throughput without recalibration delays.

From a control system protection standpoint, the 001-9093-05 reduces the risk of signal drift and positional overshoot that can trigger safety interlocks and force emergency stops in automated transfer sequences. In facilities where wafer transfer robots interface with SEMI-compliant equipment front-end modules (EFEMs) and load port units, maintaining Z-axis accuracy is a prerequisite for safe cassette-to-cassette handling. The module’s precision travel limits and hard-stop mechanical design provide a secondary layer of protection against over-travel faults that could damage adjacent process equipment or wafer carriers.

Spare parts availability and supply continuity are critical for facilities operating legacy Brooks Automation platforms. The 001-9093-05 is stocked and available for immediate dispatch, supported by a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional inspection to verify dimensional accuracy, actuator engagement, and structural integrity before leaving our facility. For operations teams managing planned maintenance windows or emergency breakdown replacements, this level of supply assurance directly reduces mean time to repair (MTTR) and protects production scheduling commitments.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable Z-axis elevator arm performance depends on the integrity of the entire control and power delivery architecture surrounding it. In a typical Brooks Automation robot control cabinet, the 001-9093-05 operates under the command of a Brooks Automation robot controller board, which coordinates motion sequencing, position feedback, and fault detection across all robot axes. Upstream of the controller, a regulated DC power supply module ensures that voltage fluctuations from facility power distribution do not introduce positional jitter or axis fault conditions during high-speed transfer cycles.

To protect against power transients and surge events — common in facilities with large motor loads or frequent equipment switching — surge protection devices and EMI filter modules are typically installed at the cabinet input stage. These components shield the robot controller and servo drive electronics from voltage spikes that could corrupt motion parameters or trigger nuisance faults. The Brooks Automation servo amplifier or motor driver module, which directly commands the Z-axis actuator, is particularly sensitive to power quality; maintaining clean, stable power to this component is essential for preserving the 001-9093-05’s positional accuracy over extended operating periods.

Communication integrity between the robot controller and the host system — typically managed via SECS/GEM protocol over an Ethernet or serial interface module — must also be maintained to prevent transfer sequence interruptions. A communication fault that causes the robot to hold position mid-transfer can result in wafer drop events or cassette misalignment. Facilities that deploy network switches with managed QoS settings and redundant communication paths significantly reduce this risk. Additionally, Brooks Automation teach pendant units and diagnostic interface modules allow maintenance teams to verify Z-axis calibration and fault history without taking the system offline, supporting proactive maintenance strategies that extend component service life.

Critical Industrial Safety Applications

The Brooks Automation 001-9093-05 Z-Axis Elevator Arm is deployed across a range of high-stakes industrial and semiconductor manufacturing environments where positional accuracy and mechanical reliability are non-negotiable safety requirements.

In semiconductor wafer fabrication facilities, the module supports atmospheric and vacuum wafer transfer robots that move 200mm and 300mm wafers between load ports, aligners, and process chambers. Any Z-axis positioning error in these sequences risks wafer contact with chamber walls, end effector misalignment, or cassette slot collisions — all of which result in wafer loss and unplanned tool downtime. The 001-9093-05’s precision travel geometry and robust actuator coupling directly mitigate these risks.

In flat panel display (FPD) manufacturing and solar cell production lines, large-format substrate handling robots rely on Z-axis elevator modules to execute precise pick-and-place operations across multi-level cassette systems. The mechanical durability of the 001-9093-05 supports the high cycle counts demanded by continuous glass substrate handling without the positional degradation that leads to substrate breakage or recipe deviations.

For pharmaceutical and biotech automation facilities using robotic sample handling and storage systems, Z-axis precision is critical for safe vial retrieval and placement in high-density storage arrays. Mechanical failures in this context can result in sample loss, contamination events, or system lockouts that disrupt time-sensitive research workflows.

In advanced packaging and electronics assembly operations, the 001-9093-05 supports robotic material handling systems that feed precision assembly stations. Consistent Z-axis performance ensures that component placement sequences remain within tolerance, protecting downstream assembly quality and reducing scrap rates in high-value production runs.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Brooks Automation 001-9093-05?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. If the unit fails to perform its specified Z-axis positioning function within the warranty period due to a manufacturing or material defect, we will provide a replacement or repair at no additional cost. Warranty claims are supported by our technical team with prompt response to minimize your production impact.

Q2: What pre-shipment testing is performed on each 001-9093-05 unit?
Each unit undergoes a pre-shipment functional inspection that verifies dimensional accuracy against OEM specifications, actuator engagement and travel range, and structural integrity of all mechanical interfaces. This inspection process ensures that the unit you receive is ready for installation and will perform to specification from the first cycle, reducing commissioning time and the risk of early-life failures.

Q3: Is the 001-9093-05 compatible with my existing Brooks Automation robot platform?
The 001-9093-05 is designed as a direct OEM-equivalent replacement for compatible Brooks Automation atmospheric robot platforms, including MagnaTran and Equinox series systems. It maintains the same mechanical interface dimensions and actuator coupling geometry as the original component, enabling drop-in replacement without custom modification. If you are uncertain about compatibility with your specific robot configuration, contact our technical team with your robot model and serial number for confirmation before ordering.

Q4: Can you guarantee long-term supply availability for ongoing maintenance programs?
Yes. We maintain dedicated inventory of the Brooks Automation 001-9093-05 to support both planned preventive maintenance programs and emergency breakdown replacement requirements. Our stocking strategy is designed to provide consistent supply continuity for facilities that depend on this component for ongoing operations. For customers with high-volume or scheduled maintenance requirements, we can discuss reserved stock arrangements to ensure priority access to inventory when you need it most.
