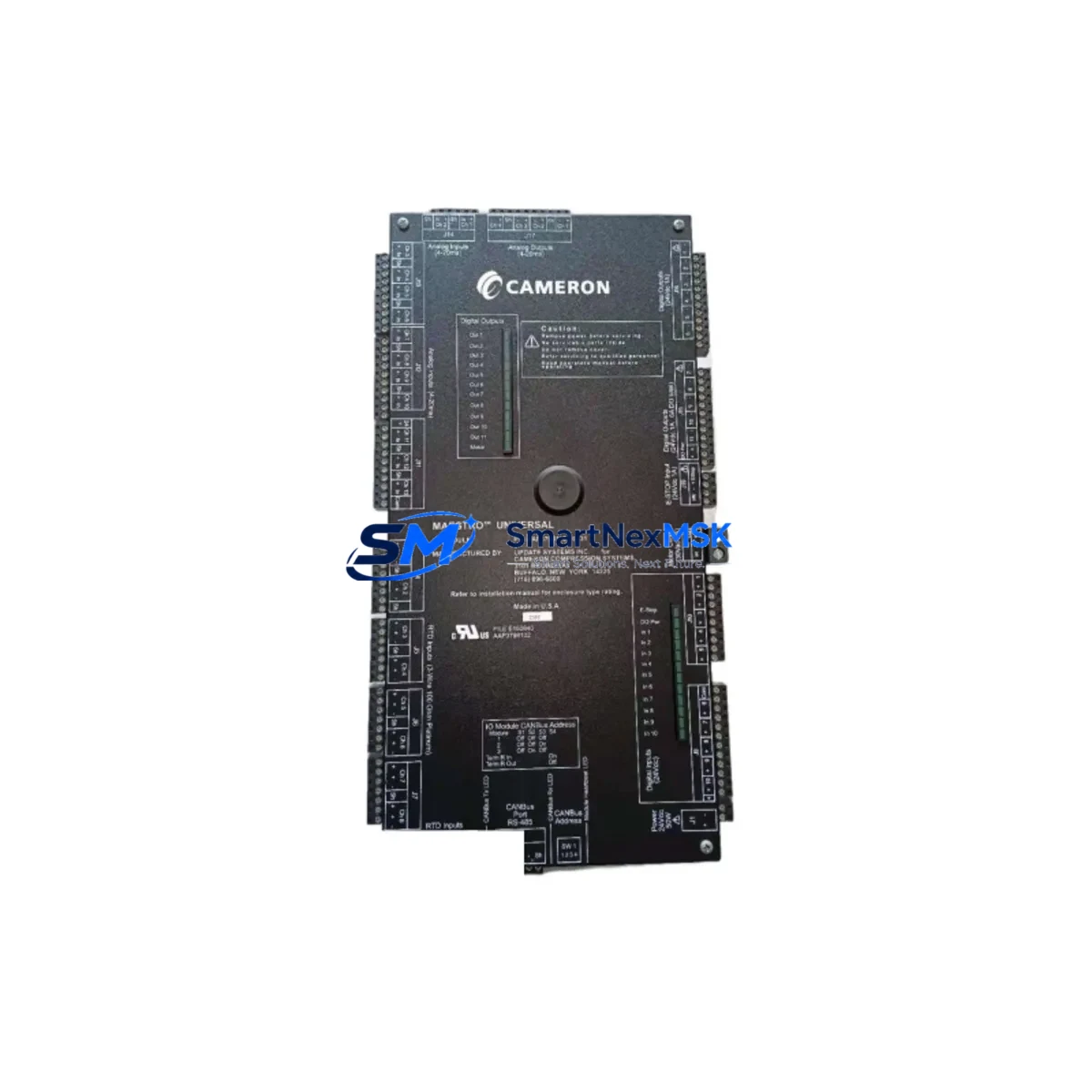

CAMERON AAP3798102-00131 Retrofit-Ready Control Module

CAMERON AAP3798102-00131 Retrofit-Ready Control Module for AAP Series Control Systems

The CAMERON AAP3798102-00131 is a retrofit-ready control system module engineered for seamless integration into Cameron Advanced Automation Platform (AAP) Series control architectures. Designed to serve as a direct replacement for aging or discontinued modules in legacy process control cabinets, this unit supports smooth migration from end-of-life hardware without requiring full system redesign. Whether you are upgrading a wellhead control panel, a compressor automation skid, or a pipeline SCADA node, the AAP3798102-00131 delivers the compatibility and reliability that industrial retrofit projects demand.

Cameron’s AAP platform has been widely deployed across upstream oil and gas, midstream compression, and downstream processing facilities. As original equipment reaches end-of-life, sourcing verified replacement modules becomes critical to maintaining uptime and avoiding costly full-system overhauls. The AAP3798102-00131 is stocked, tested, and shipped with a 12-month warranty, giving procurement and maintenance teams the confidence to plan scheduled turnarounds or respond to unplanned failures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the AAP3798102-00131 begins well before the module arrives on site. Maintenance engineers should pull the original panel drawings and verify the existing rack slot assignment, terminal block labeling, and field wiring color codes. In many AAP installations, the control cabinet also houses companion components such as the Cameron AAP Power Supply Module, AAP Communication Gateway, and AAP Analog Input/Output modules — all of which must remain operational during a single-module swap to avoid cascading faults.

Before removing the legacy module, document the current module address setting using the AAP programming software or the onboard DIP switch configuration. Mismatched module addresses are one of the most common causes of post-replacement communication failures. If the system uses a Cameron SCADA Remote Terminal Unit (RTU) or interfaces with a third-party DCS via Modbus TCP/IP or HART protocol, confirm that the replacement module’s firmware version is compatible with the existing polling configuration.

For facilities running mixed-generation hardware — for example, a control cabinet that combines original AAP modules with newer Cameron FlexPak or Cameron CamSmart controller components — pay close attention to backplane bus timing and I/O scan rates. The AAP3798102-00131 is designed to maintain backward compatibility within the AAP rack ecosystem, but integrators should always perform a bench test using a spare rack or a Cameron AAP programming cable before committing to a live swap.

Field wiring termination is another critical checkpoint. The original terminal block layout should be photographed and mapped before disconnection. If the existing installation uses AAP marshalling panels or intermediate junction boxes, verify that signal types (4–20 mA, discrete 24 VDC, thermocouple, RTD) match the channel configuration of the replacement module. Where the original module supported HART pass-through for field device diagnostics, confirm this capability is preserved in the replacement unit to avoid losing asset health visibility in the plant DCS or historian.

HMI screen updates are often overlooked during module replacements. If the facility uses a Cameron or third-party HMI panel with tag-mapped I/O addresses, any change in module slot position or channel reassignment will require corresponding updates to the HMI project file. Coordinate with the controls engineer to schedule HMI download during the planned maintenance window to avoid operator display mismatches after the retrofit is complete.

Downtime Control During System Migration

Minimizing downtime during a module replacement on a live AAP control system requires a structured pre-outage checklist. Begin by placing the affected control loop in manual mode at the DCS or SCADA level, ensuring that field actuators — valves, drives, and pumps — are held at safe operating positions before the module is de-energized. If the system supports hot-swap or warm-standby configurations, verify whether the AAP3798102-00131 can be inserted under power; if not, coordinate a brief controlled shutdown of the affected rack segment only.

Back up the existing PLC or controller program to a laptop using the Cameron AAP programming cable and the appropriate configuration software before any hardware change. This preserves the original logic, tag database, and calibration offsets in the event that the replacement module requires a fresh download. For systems where program memory resides on the module itself rather than on a central controller, this step is non-negotiable.

After physical installation, power up the rack and confirm that the module’s status LED sequence matches the expected initialization pattern described in the AAP hardware manual. Verify communication link establishment with the host controller or RTU before returning the loop to automatic mode. A structured loop check — confirming each I/O channel reads correctly against a known field signal — should be completed and signed off before the maintenance window closes. Total planned downtime for a single-module swap on a well-prepared AAP system typically ranges from 30 minutes to 2 hours, depending on I/O count and wiring complexity.

Retrofit Support FAQ

Q1: Is the AAP3798102-00131 a direct drop-in replacement for the original Cameron module of the same SKU?
Yes. The AAP3798102-00131 is sourced and verified to match the original Cameron part number. Before installation, confirm the hardware revision and firmware version against your system’s compatibility matrix. In most cases, no configuration changes are required beyond verifying the module address matches the original slot assignment.

Q2: What wiring checks should be completed before powering up the replacement module?
Verify that all field terminals are reconnected to the correct channels per the original termination drawing. Check that signal types match the module’s channel configuration — particularly for analog inputs where 4–20 mA loops require loop power to be correctly sourced. Confirm that shield grounding is intact and that no terminal screws are loose. For HART-enabled channels, verify that the HART communicator can establish a connection before returning the loop to service.

Q3: How is the 12-month warranty applied, and what does it cover?
All AAP3798102-00131 units shipped by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental exposure beyond the module’s rated specifications. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault.

Q4: Can this module be used in a system that has been partially upgraded to a newer Cameron or third-party control platform?
The AAP3798102-00131 is designed for use within the Cameron AAP rack and backplane ecosystem. In hybrid installations where the AAP rack coexists with newer controllers via a communication gateway, the module will continue to function normally within its native rack. Protocol bridging between the AAP bus and external platforms (Modbus TCP, EtherNet/IP, PROFIBUS) should be handled at the gateway level, not at the module level. Consult your system integrator to confirm gateway configuration before commissioning.
