Canon CPU-86 BH8-0675-03 Maintenance-Ready Spare for BH8 Series Automation

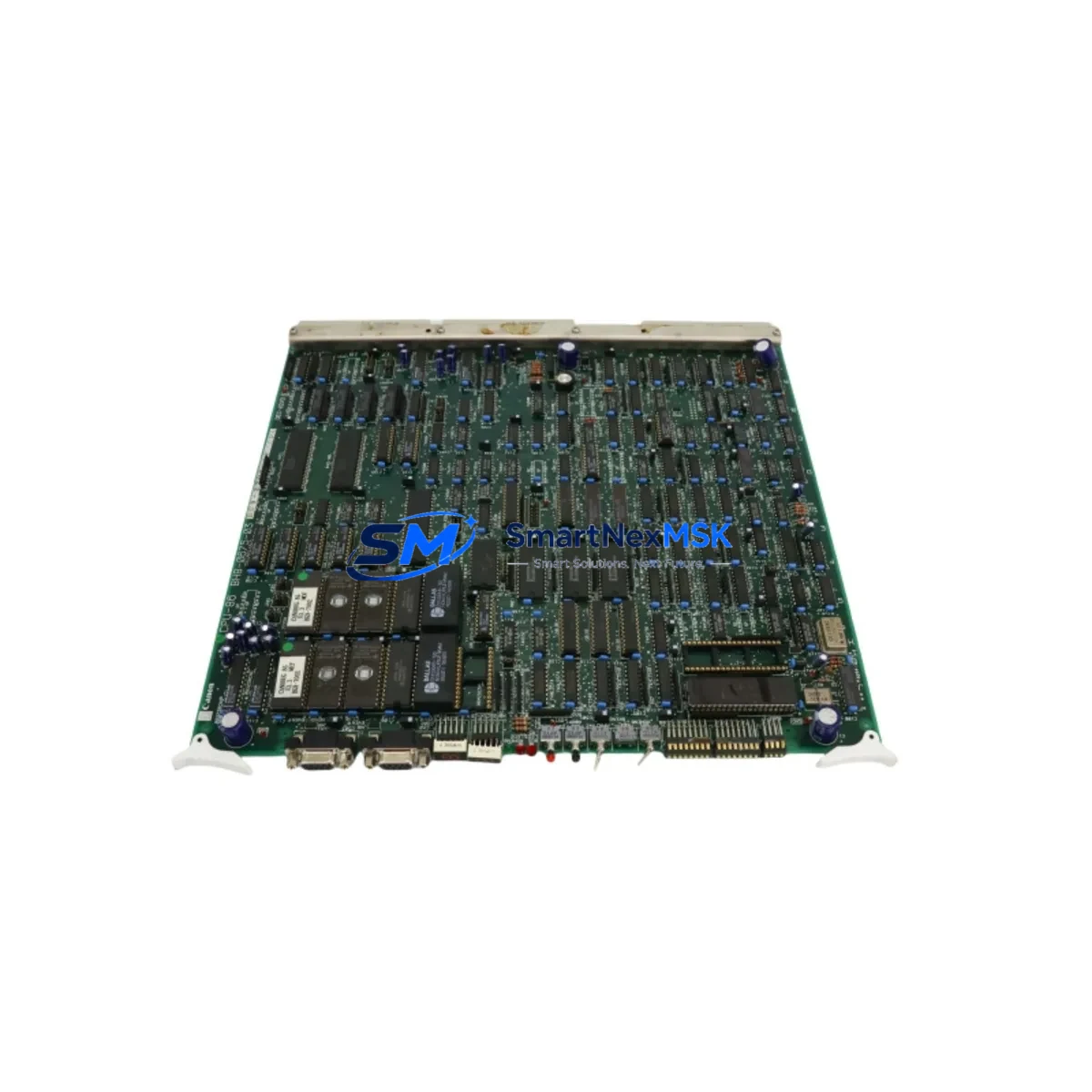

The Canon CPU-86 (BH8-0675-03 / BG9-3728) is a core AF CPU control board used in Canon BH8-series industrial imaging and automation systems. As a central processing unit governing autofocus sequencing, signal coordination, and system timing, this board is a critical component in any planned maintenance program. When this board fails or degrades, the entire production line dependent on the Canon BH8 platform faces unplanned downtime — making a verified, tested spare an essential item in every maintenance engineer’s cabinet.

SMARTNEXMSK supplies this board as an original spare, fully inspected and function-tested prior to shipment. Each unit is backed by a 12-month warranty and ships with documentation to support site installation and compatibility verification. Whether you are managing a scheduled overhaul, responding to an emergency fault, or building a strategic spare parts inventory for aging Canon BH8 systems, this CPU board is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Canon CPU-86 BH8-0675-03 board is flagged for replacement during a scheduled inspection or after a fault event, experienced maintenance engineers know that the CPU board rarely fails in isolation. A thorough site assessment should accompany any board swap to prevent repeat failures and reduce the risk of secondary downtime.

Begin by inspecting the 24VDC power supply module feeding the BH8 control cabinet — voltage ripple or transient spikes are a leading cause of CPU board degradation. Check the power distribution terminal blocks and fuse holders for signs of overheating, loose connections, or blown protection elements. If the system uses a Canon BH8 backplane or motherboard assembly, inspect the board slot connectors for oxidation or mechanical wear before seating the replacement CPU-86.

On the I/O side, verify the condition of the digital I/O interface boards connected to the BH8 CPU. Faulty I/O modules can generate erroneous signals that stress the CPU and lead to premature failure. Similarly, inspect any relay output modules in the same control cabinet — welded relay contacts can cause voltage feedback that damages logic boards.

For systems with serial or fieldbus communication, check the RS-232 / RS-422 communication interface cards and any signal isolation modules between the CPU and field devices. Poor signal integrity is a common but overlooked contributor to CPU board faults in aging Canon BH8 installations. If the system interfaces with an HMI panel or operator terminal, confirm that the communication cable and protocol settings are intact after the board replacement.

Finally, review the AF driver boards and motor control sub-boards within the same enclosure. These components share the same power rail and signal bus as the CPU-86, and their condition directly affects the reliability of the replacement board. Proactive replacement of worn driver stages alongside the CPU board is a best practice for extending system life and avoiding a second maintenance call within the same service cycle.

Building a structured spare parts kit around the Canon BH8 platform — including the CPU-86, key I/O boards, power modules, and communication cards — is the most cost-effective strategy for maintenance teams managing legacy Canon AF systems in production environments.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement board part number (BH8-0675-03 or cross-reference BG9-3728 / MI-6) matches the installed unit. Check firmware or revision markings on the board label if visible.

Step 2 — Safe isolation: Power down the Canon BH8 system following the site lockout/tagout procedure. Discharge any capacitor banks in the power supply section before handling the CPU board.

Step 3 — Board removal: Document connector positions and cable routing with photographs before disconnecting. Remove the CPU-86 board carefully, avoiding stress on the edge connectors and ribbon cables.

Step 4 — Inspection of slot and connectors: Clean the board slot with compressed air. Inspect backplane connector pins for damage or corrosion. Address any issues before installing the replacement.

Step 5 — Installation and power-up: Seat the replacement Canon CPU-86 BH8-0675-03 firmly. Reconnect all cables in the documented order. Power up the system and monitor for fault codes or abnormal behavior during the first 10–15 minutes of operation.

Step 6 — Functional test: Run a full AF sequence test and verify all I/O signals are responding correctly. Log the replacement date, board serial number, and test results in the site maintenance record.

This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail — critical for ISO-compliant maintenance programs in industrial facilities.

Spare Parts Support FAQ

Q1: Is the Canon CPU-86 BH8-0675-03 an original part or a compatible replacement?
This is an original Canon spare part, not a third-party compatible. Each unit is sourced from verified supply channels and inspected before shipment. Cross-reference numbers BG9-3728, MI-6, 10332-12400, and 0020-26374 are confirmed equivalents for this board.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each board is tested prior to dispatch. In the event of a warranty claim, SMARTNEXMSK provides a replacement unit or full refund after fault verification. Contact sales@smartnexmsk.com to initiate a claim.

Q3: How do I confirm compatibility with my Canon BH8 system before ordering?
Provide your system model, existing board part number, and any visible revision markings to our technical team. We will verify compatibility before shipment. For urgent replacements, same-day shipping is available for in-stock units.

Q4: Can SMARTNEXMSK support long-term supply for Canon BH8 spare parts?
Yes. SMARTNEXMSK maintains ongoing inventory of Canon BH8-series components to support customers managing legacy systems. We offer scheduled supply agreements for maintenance teams requiring regular restocking of CPU boards, I/O modules, power supplies, and related components. Contact us to discuss a tailored spare parts support plan.
