CHINT YBLX-JW2/11Z/3 Spare for YBLX-JW Automation

CHINT YBLX-JW2/11Z/3 Maintenance-Ready Spare for YBLX-JW Series Automation

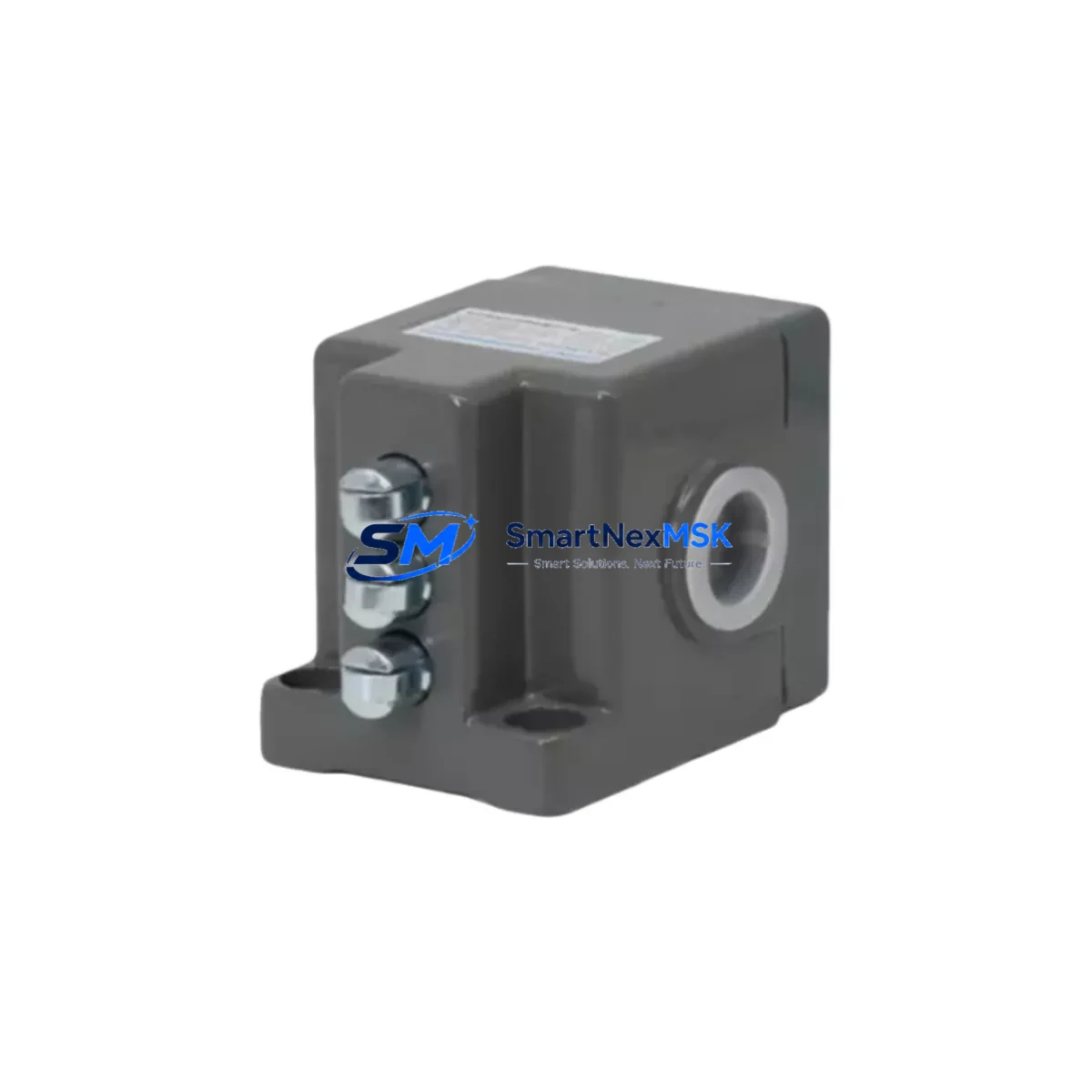

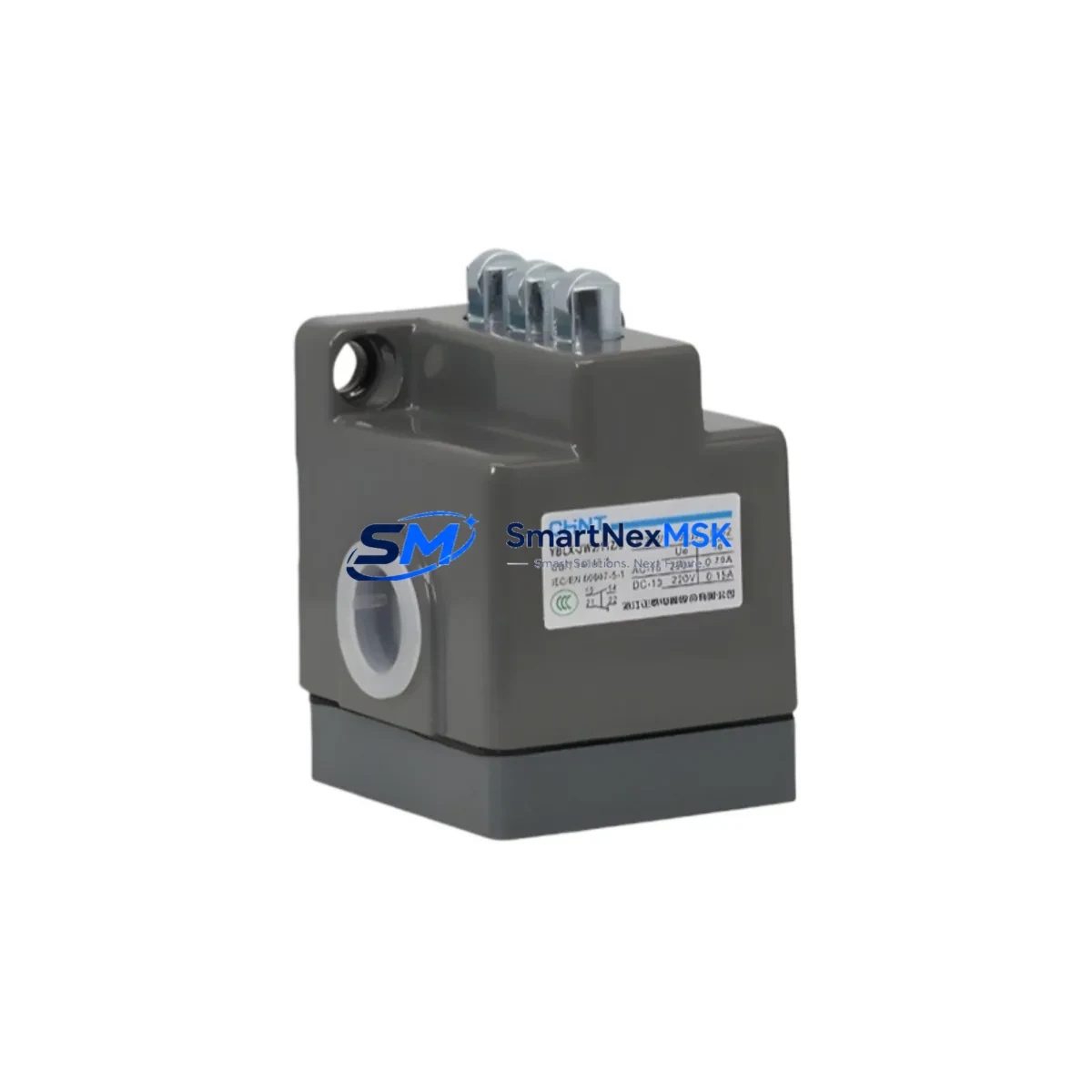

The CHINT YBLX-JW2/11Z/3 is an original rotary lever limit switch designed for industrial position detection and travel control in automation systems. As a direct maintenance spare for the YBLX-JW series, this component plays a critical role in conveyor lines, machine tool interlocks, crane travel limits, and packaging equipment. Sourced from CHINT’s certified manufacturing chain, each unit is tested prior to dispatch and backed by a 12-month warranty, ensuring your facility can restore operations quickly after an unplanned shutdown.

For maintenance engineers managing aging control cabinets or executing planned overhauls, the YBLX-JW2/11Z/3 represents a reliable, drop-in replacement that eliminates the need for wiring modifications or PLC parameter changes. Its 1NO+1NC contact configuration and rotary lever actuator are fully compatible with the original YBLX-JW series mounting footprint, reducing replacement time to under 30 minutes in most field scenarios.

Procurement engineers will appreciate the long-term supply commitment: this SKU is stocked for continuous availability, with standard lead times and express shipping options to minimize downtime exposure. Whether you are building a preventive maintenance kit, replenishing a depleted spare parts inventory, or responding to an emergency breakdown, the YBLX-JW2/11Z/3 is a proven, cost-effective solution for sustaining CHINT-based automation systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the YBLX-JW2/11Z/3 during a scheduled or emergency maintenance event, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by verifying the condition of the 24VDC or 220VAC control power supply feeding the limit switch circuit — a degraded power supply module can cause erratic switching behavior that mimics a faulty limit switch.

Next, inspect the terminal blocks and field wiring connected to the switch. Loose or corroded terminals on DIN-rail mounted terminal strips are a common source of intermittent faults in high-vibration environments. If the control cabinet includes a CHINT NM1 or NM8 series molded case circuit breaker protecting the branch circuit, verify its trip settings and contact condition as part of the same maintenance window.

For systems using a CHINT NXC or CJX2 series contactor in the same control loop, check the auxiliary contact block for wear — a worn auxiliary contact can produce false position signals that interact with the limit switch feedback. Similarly, if the YBLX-JW2/11Z/3 feeds a digital input on a PLC or DCS, inspect the I/O module’s input channel for correct voltage threshold settings and any signs of channel degradation.

In cabinets where signal integrity is critical, consider whether a signal isolator or relay interposing module is installed between the limit switch and the control system input. Aging interposing relays — particularly CHINT NXJ or MY series relay modules — should be replaced on a scheduled basis alongside the limit switch to avoid nuisance trips. If the system includes a CHINT NXM or similar motor protection relay, verify that the overload settings remain within specification after the limit switch replacement.

For facilities operating older CHINT-based systems, this maintenance event is also an opportunity to audit the condition of the control cabinet’s busbar connections, fuse holders, and any installed surge protection devices. Proactive replacement of these components alongside the YBLX-JW2/11Z/3 reduces the probability of a secondary failure within the same maintenance cycle and extends the operational life of the overall system.

Site Replacement Workflow

Step 1 — Isolation: De-energize the branch circuit at the MCCB or fuse disconnect. Verify zero voltage at the limit switch terminals using a calibrated multimeter before proceeding.

Step 2 — Documentation: Photograph the existing wiring and actuator lever position before removal. Note the terminal designations (COM, NO, NC) as labeled on the original YBLX-JW2/11Z/3 body.

Step 3 — Removal: Disconnect field wiring from the terminal screws. Remove the two mounting screws securing the switch body to the machine frame or bracket. Retain hardware for reuse if in good condition.

Step 4 — Installation: Mount the replacement YBLX-JW2/11Z/3 using the original footprint. Reconnect field wiring per the documented terminal layout. Torque terminal screws to the manufacturer’s specification (typically 1.2–1.5 Nm).

Step 5 — Actuator Adjustment: Set the rotary lever angle to match the original trip point. The YBLX-JW series lever is adjustable across a defined arc — confirm the actuation angle against the machine’s travel stop position.

Step 6 — Functional Test: Re-energize the circuit and perform a full travel test. Verify that the NO and NC contacts switch correctly at the intended trip point. Confirm PLC or DCS input status changes as expected.

Step 7 — Documentation Closure: Update the maintenance log with the replacement date, new component serial number, and test results. File the 12-month warranty documentation for future reference.

Spare Parts Support FAQ

Q1: Is the YBLX-JW2/11Z/3 a direct replacement for older YBLX-JW series limit switches?
Yes. The YBLX-JW2/11Z/3 maintains the same mounting footprint, terminal layout, and contact configuration as the standard YBLX-JW series, making it a direct drop-in replacement without wiring or bracket modifications in most applications.

Q2: How is each unit tested before shipment?
Every YBLX-JW2/11Z/3 unit undergoes pre-shipment verification including contact continuity testing, actuation force measurement, and contact resistance check. A test report is available upon request for quality-critical procurement.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical abuse. Warranty claims are processed with photographic evidence and the original order reference.

Q4: Can you support long-term or blanket purchase orders for this SKU?
Yes. We support scheduled delivery agreements and blanket PO arrangements for facilities requiring ongoing spare parts supply. Contact our sales team to discuss lead time commitments, minimum order quantities, and pricing for annual supply contracts.
