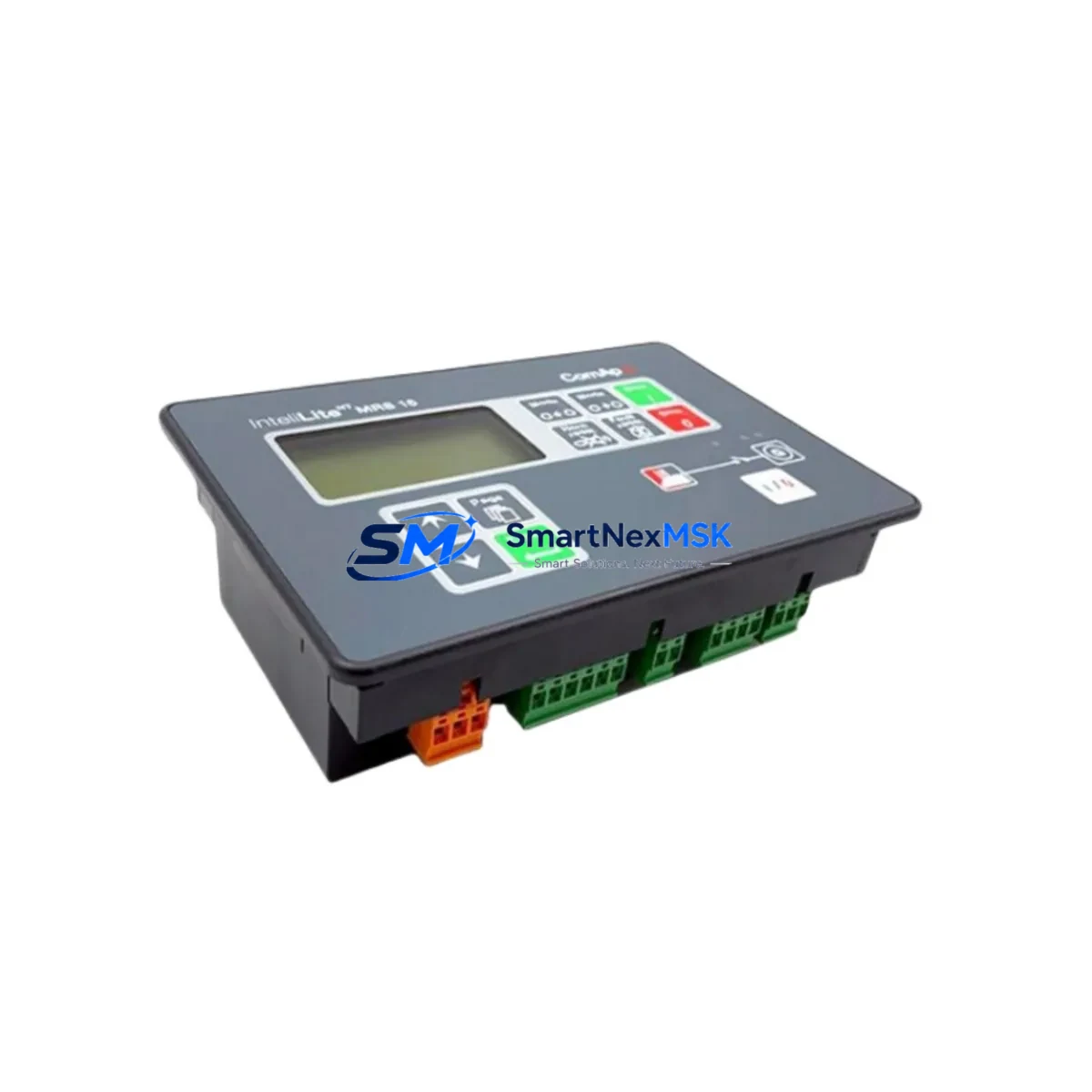

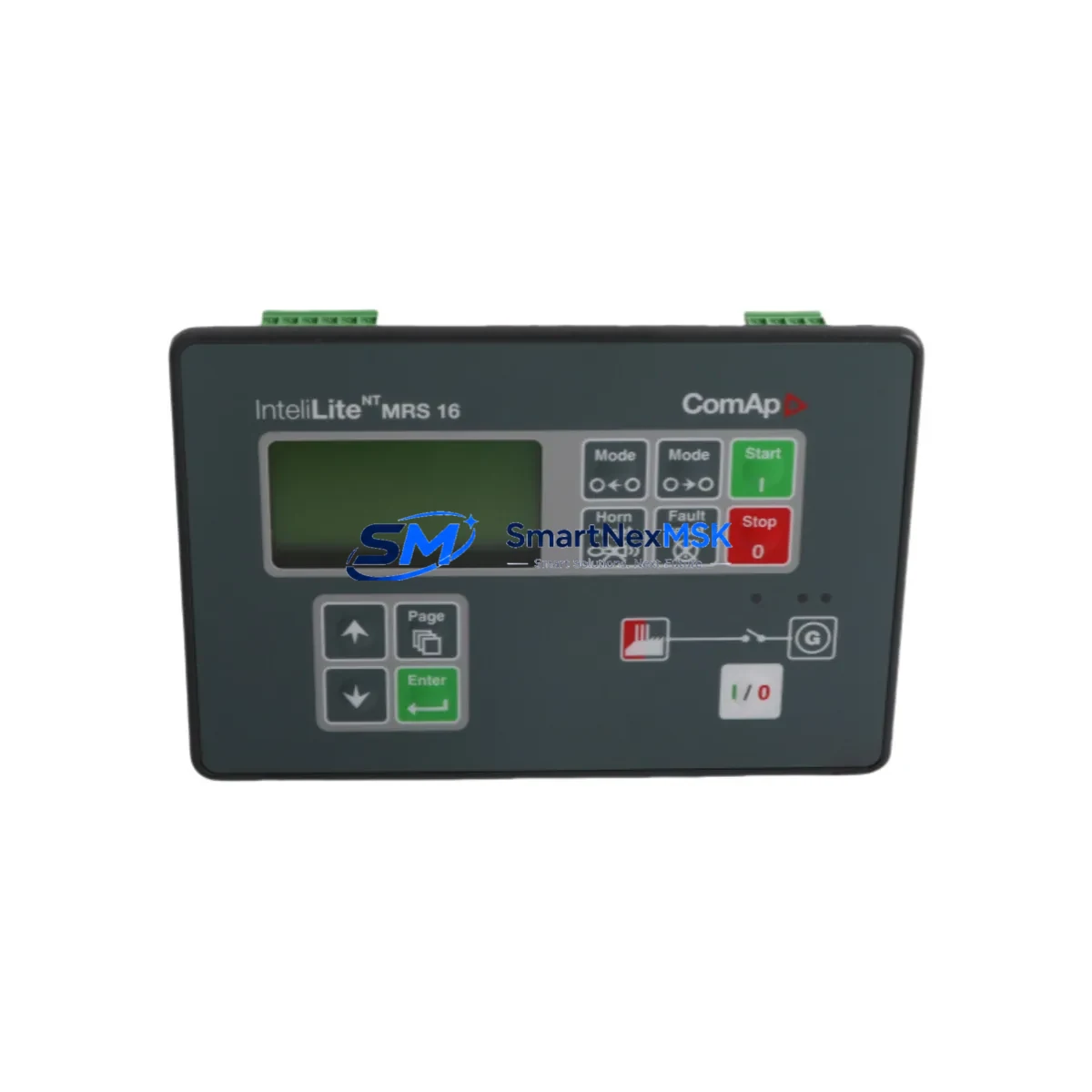

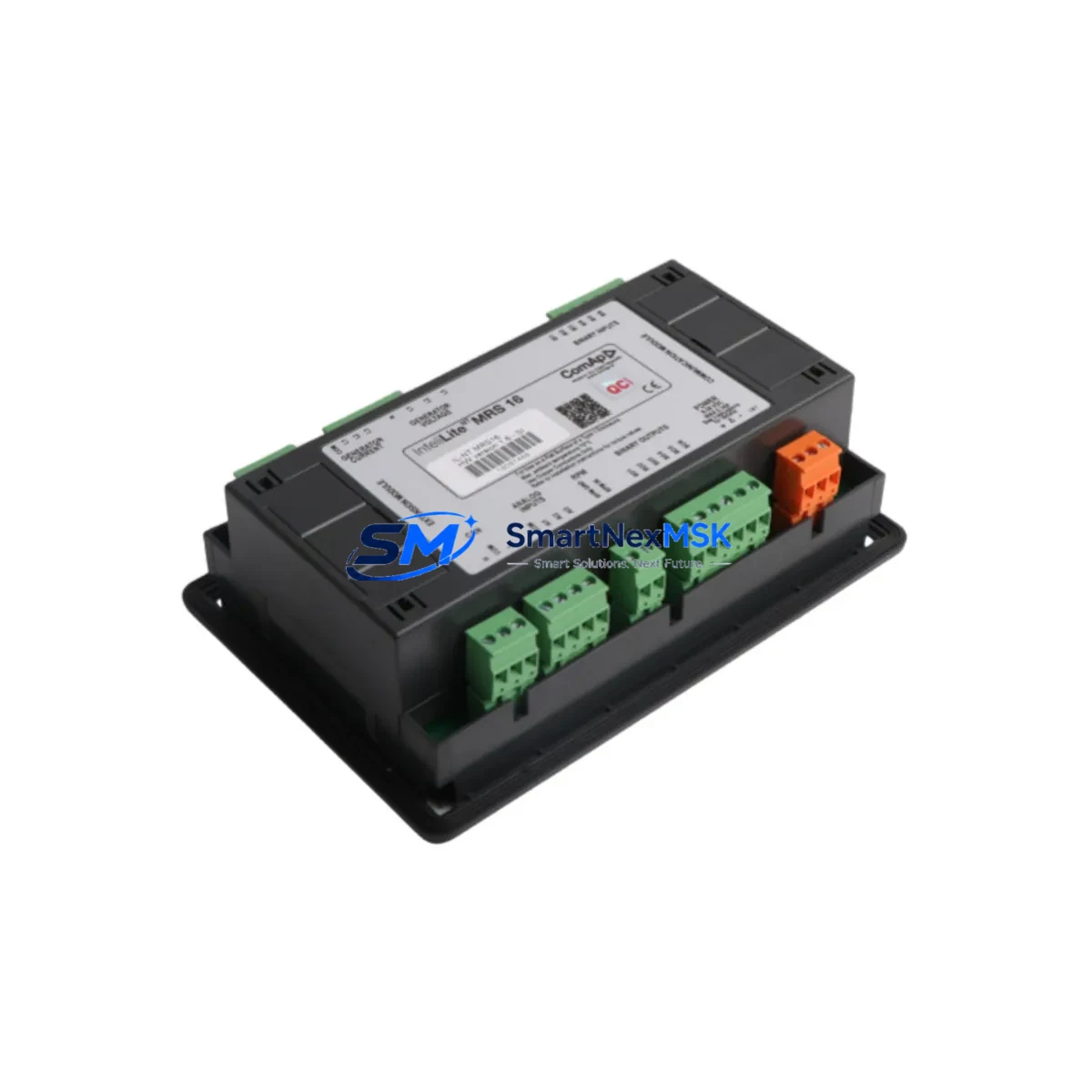

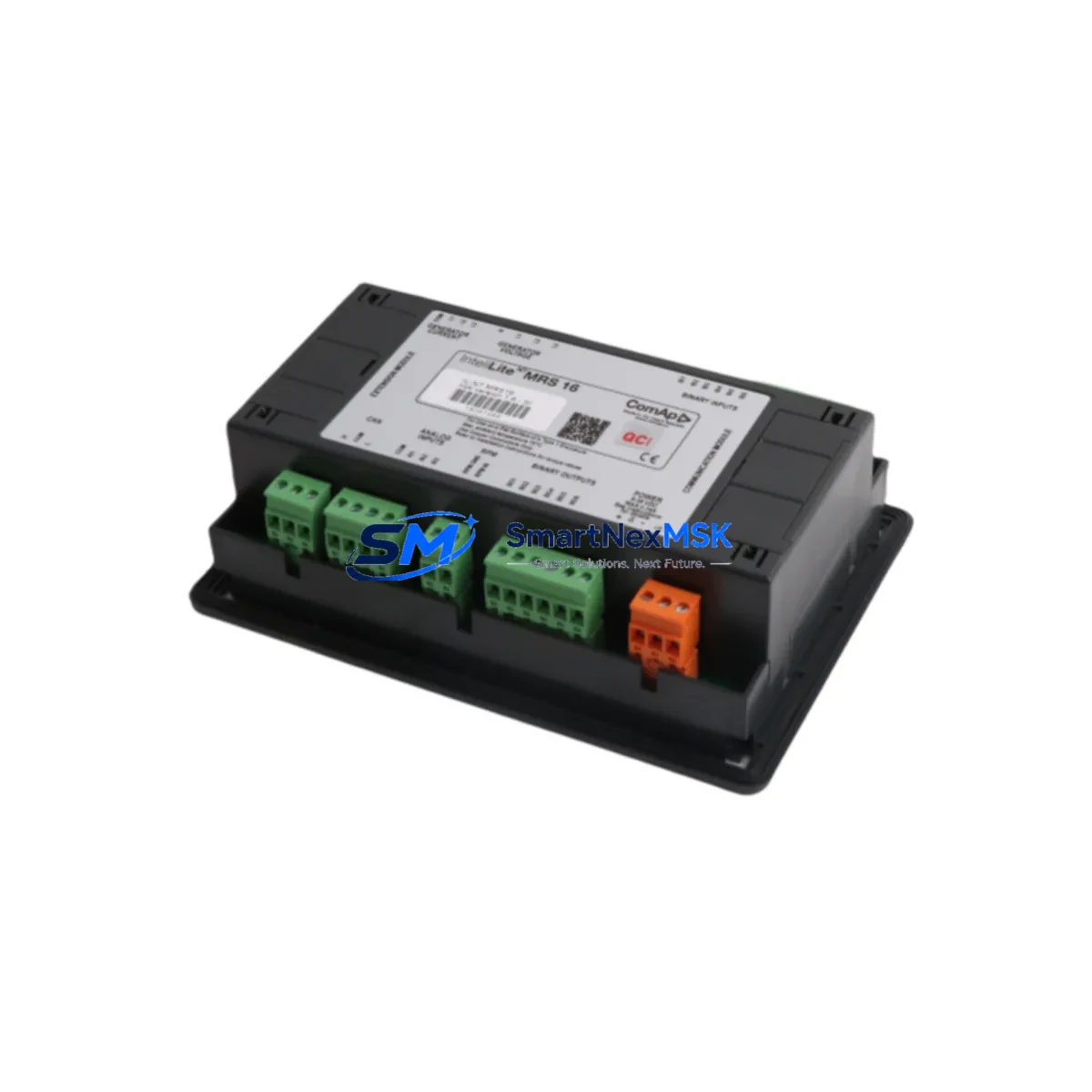

ComAp IL-NT MRS16 Maintenance-Ready Spare for InteliLite NT Automation
The ComAp IL-NT MRS16 is a critical spare part for InteliLite NT series generator controllers deployed across industrial power management, standby generation, and AMF (Automatic Mains Failure) applications. Sourced as an original replacement component, this module is engineered to restore full controller functionality with minimal downtime — making it an essential item in any maintenance engineer’s spare parts inventory for genset control panels and distributed power systems.
Whether you are managing a planned shutdown, responding to an unplanned trip, or conducting a routine control cabinet inspection, having a verified IL-NT MRS16 spare on hand eliminates the risk of extended outages caused by controller failure. This unit ships fully tested and is backed by a 12-month warranty, ensuring confidence in every replacement cycle.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| SKU / Part Number | IL-NT MRS16 |
| Brand | ComAp |
| Series | InteliLite NT |
| Product Type | Generator Controller Module |
| Function | AMF (Automatic Mains Failure), Remote Start, Manual/Remote/Automatic Mode Selection |
| Compatibility | InteliLite NT AMF 20, InteliLite NT AMF 25, InteliLite NT MRS 16, IL-NT series controllers |
| Communication | RS-232 / RS-485 (via IL-NT RS232 or IL-NT RS485 communication modules) |
| Power Supply Input | 8–36 V DC (battery-powered genset panel) |
| Operating Temperature | -20°C to +70°C |
| Mounting | Panel front-mount, DIN rail compatible enclosure |
| Origin | Czech Republic (CZ) |
| Application Environment | Industrial genset control panels, standby power systems, AMF switchgear |
| Maintenance Recommendation | Replace on controller fault, display failure, or communication loss; inspect every 24 months |
| Warranty | 12 Months |
| Pre-shipment Testing | Function-tested before dispatch |
Maintenance Planning for Continuous Operation
When replacing the IL-NT MRS16 in a genset control panel, a thorough maintenance engineer will treat the swap as an opportunity to audit the entire electrical circuit. Begin by verifying the battery charger module and DC bus voltage — the IL-NT series is sensitive to supply fluctuations, and a degraded charger can cause repeated controller resets that mimic a faulty MRS16. Inspect the IL-NT RS232 or IL-NT RS485 communication module for corrosion on the connector pins, as communication faults are frequently misdiagnosed as controller failures.
Check the IL-NT AIN8 analog input extension module if the installation monitors coolant temperature, oil pressure, or fuel level — these signals feed directly into the MRS16 logic and a faulty AIN8 can trigger false shutdowns. Similarly, inspect the IL-NT BIN8 binary input module for wiring integrity on remote start and mains failure detection circuits. Loose terminals on the Phoenix Contact or Weidmüller terminal blocks within the control cabinet are a common root cause of intermittent faults that appear to originate in the controller itself.
For panels with remote monitoring, verify the IL-NT GPRS or IL-NT ETH communication adapter is seated correctly and that its firmware is compatible with the replacement MRS16 firmware version. If the installation uses a ComAp InteliMains NT for mains protection coordination, confirm the inter-controller communication settings are preserved after the swap. Fuse holders and miniature circuit breakers (MCBs) on the 24 V DC auxiliary supply rail should be tested for continuity — a blown fuse here will prevent the new module from powering up and is easily overlooked. Finally, if the panel includes a ComAp IL-NT MINT or similar measurement module, cross-check its calibration data against the replacement controller’s configuration file to ensure metering accuracy is maintained post-replacement.
Site Replacement Workflow
Replacing the IL-NT MRS16 on-site follows a structured sequence to minimize downtime and avoid configuration loss. Before removing the faulty unit, use ComAp PC Suite or InteliConfig software to export the full controller configuration — including setpoints, protection thresholds, AMF timers, and I/O assignments — to a laptop or USB drive. This backup is essential: it allows the replacement module to be pre-configured offline before installation, reducing live panel time to under 30 minutes in most cases.
Power down the genset and isolate the DC supply before disconnecting the controller. Label all wiring harnesses and photograph the terminal layout. The IL-NT MRS16 uses a plug-in connector system, which simplifies the physical swap; however, confirm that the replacement unit’s firmware version matches or is compatible with the existing IL-NT communication modules and extension cards in the panel. After installation, restore the saved configuration, perform a dry-run AMF test with the mains breaker open, and verify all alarm and shutdown outputs respond correctly before returning the system to automatic mode.
This workflow is equally applicable when upgrading from an older InteliLite 3 or InteliLite 4 legacy controller to the NT platform — the structured approach ensures system compatibility is maintained and reduces the risk of commissioning errors that could compromise standby power reliability.
Spare Parts Support FAQ
Q1: Is the IL-NT MRS16 a direct drop-in replacement for older InteliLite NT controllers?
Yes. The IL-NT MRS16 is designed as a direct replacement within the InteliLite NT series. Physical dimensions, connector pinout, and firmware architecture are consistent across the NT platform. Configuration backup and restore via InteliConfig is strongly recommended to preserve all site-specific setpoints and ensure seamless operation after replacement.
Q2: How do you verify compatibility before installation?
Compatibility is confirmed by matching the existing controller’s part number and firmware version against the replacement unit. Our team cross-references the SKU (IL-NT MRS16) against the installed panel’s bill of materials and, where available, the original ComAp order documentation. Each unit is function-tested prior to shipment to validate I/O response, display operation, and communication port integrity.
Q3: What is your spare parts inventory and lead time policy?
We maintain buffer stock of high-demand ComAp InteliLite NT components to support emergency replacement scenarios. Standard orders ship within 1–3 business days. For critical standby power applications, we recommend holding at least one IL-NT MRS16 on-site as a cold spare, particularly for installations where the genset serves as the sole backup power source for essential loads.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units. Each IL-NT MRS16 is tested before dispatch. Warranty claims are supported with replacement or refund. The warranty does not cover damage caused by incorrect installation, overvoltage events, or unauthorized firmware modification.
