Consilium 5100070-02A Maintenance-Ready Spare for 5100 Series Automation

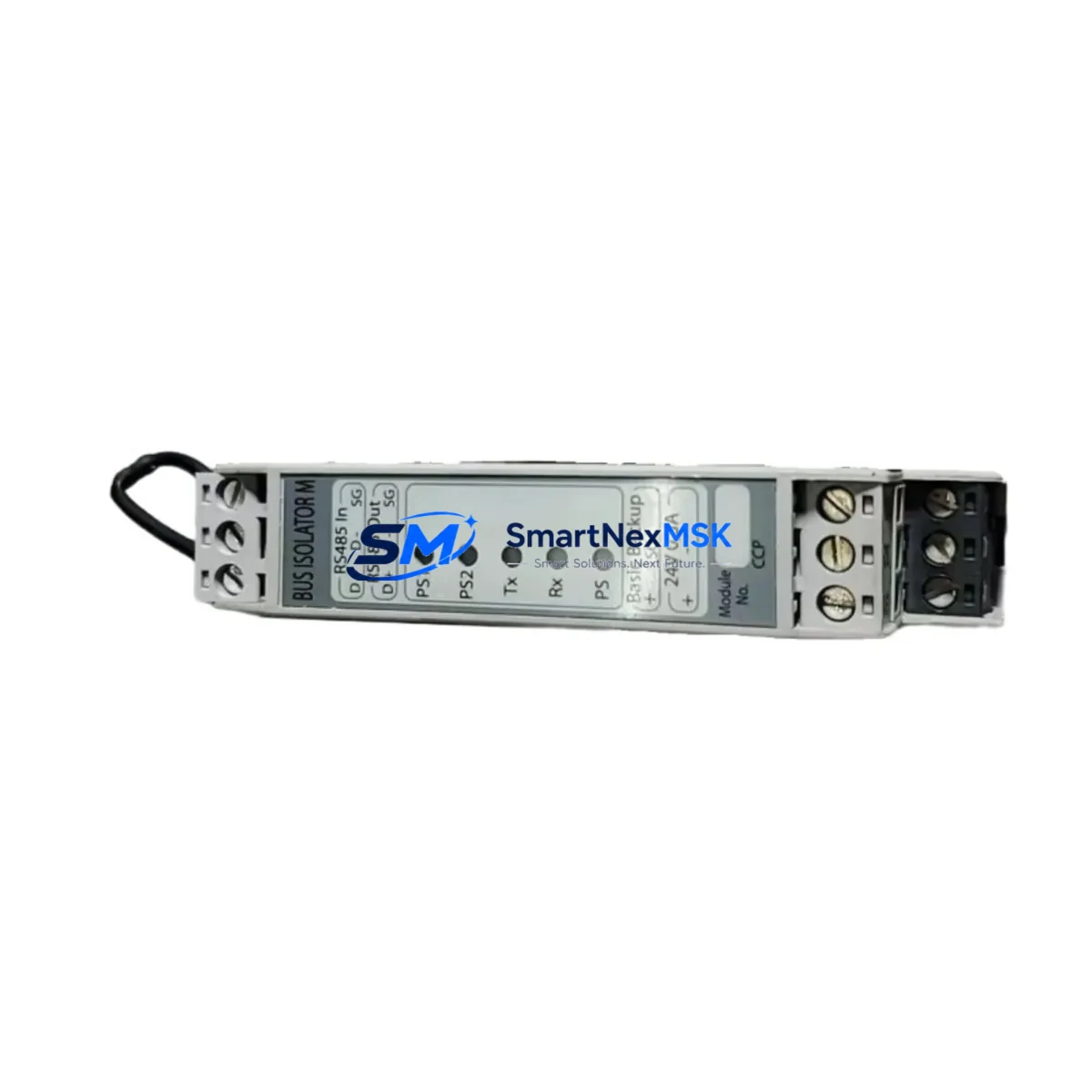

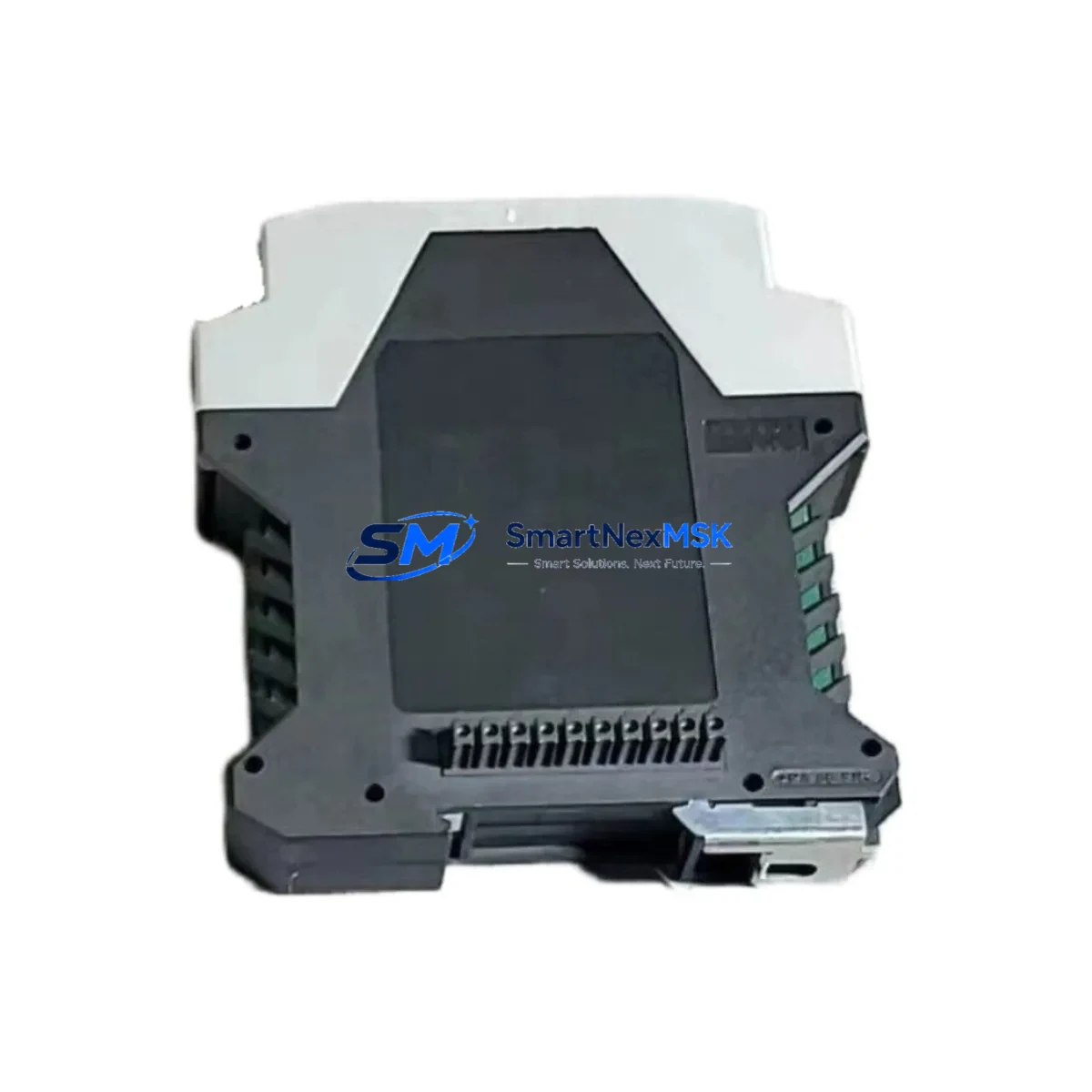

The Consilium 5100070-02A is an original bus isolator module engineered for the Consilium 5100 Series fire detection and industrial automation control systems. For maintenance engineers managing panel uptime and procurement engineers building resilient spare parts inventories, this module represents a critical line-item in any planned maintenance or emergency replacement program. Bus isolator modules are among the most failure-prone components in loop-powered detection networks — a single failed isolator can segment an entire detection loop, triggering false fault conditions and forcing unplanned shutdowns. Stocking a verified original 5100070-02A eliminates that risk.
This unit ships fully tested, with function verification completed prior to dispatch. Each module is backed by a 12-month warranty covering manufacturing defects and operational failure under normal installation conditions. Whether you are executing a scheduled panel overhaul, responding to a fault alarm, or building a forward-looking spare parts kit for a legacy 5100 Series installation, the 5100070-02A is the correct, compatible replacement.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 5100070-02A |
| Brand | Consilium |
| Series Compatibility | Consilium 5100 Series Fire Detection & Control Systems |
| Module Type | Bus Isolator Module |
| Function | Loop isolation to prevent fault propagation across detection segments |
| Installation | DIN rail or panel-mount per 5100 Series wiring diagram |
| Operating Environment | Industrial control cabinets, marine panels, process plant fire systems |
| Origin | Sweden (OEM) |
| Weight | 380 g |
| Warranty | 12 Months — covers manufacturing defects and operational failure |
| Pre-shipment Testing | Function-verified before dispatch |
| Lead Time | In-stock units ship within 1–3 business days |
Maintenance Planning for Continuous Operation
When replacing the 5100070-02A bus isolator during a scheduled inspection or emergency callout, a thorough maintenance engineer will not stop at the isolator alone. The 5100 Series loop architecture means that adjacent components share the same wiring segment and power rail. Before closing the panel, verify the condition of the Consilium 5100 Series loop power supply module — a degraded power supply is frequently the root cause of repeated isolator trips. Check the 5100 Series addressable detector bases on the affected loop segment; contaminated or aged bases can draw excess current and stress the isolator beyond its rated threshold.
Inspect all loop wiring terminals and terminal blocks for corrosion, loose crimps, or insulation breakdown — particularly in marine or high-humidity environments where Consilium panels are commonly deployed. If the system includes Consilium 5100 Series zone modules or input/output interface cards, confirm their LED status indicators show normal operation after isolator replacement, as a shorted I/O card can re-trigger the same fault. For panels with Consilium repeater panels or remote display units, verify that the restored loop segment is correctly reflected on all mimic displays.
In systems where the 5100 Series panel interfaces with a building management system (BMS) or SCADA gateway via RS-485 or Modbus, confirm communication integrity after the replacement — a bus fault can corrupt the communication buffer and require a controller restart. Also check the panel main CPU or controller card event log for any latched fault codes that must be manually cleared post-replacement. Finally, review the backup battery and charger module status; extended fault conditions can discharge the standby battery, and a replacement isolator installed into a panel with a weak battery does not restore full system resilience.
Site Replacement Workflow
The 5100070-02A is a direct plug-in replacement for the original Consilium bus isolator position within the 5100 Series panel. No firmware changes or address reprogramming are required for a like-for-like swap. Begin by isolating the affected loop at the panel controller, then remove the faulty isolator module from its mounting position. Install the 5100070-02A, confirm secure seating, and restore loop power. Observe the panel controller display for loop restoration confirmation — the previously faulted segment should return to normal status within the controller’s polling cycle.
For sites running older 5100 Series installations where the original isolator part number may have been superseded, the 5100070-02A maintains backward compatibility with the standard 5100 loop wiring topology. This makes it suitable for life-extension programs on panels that are no longer in active production support, reducing the need for full panel replacement and preserving the existing detector and wiring infrastructure. Document the replacement in the site maintenance log with the date, loop number, and new module serial number to support future audits and warranty claims.
Spare Parts Support FAQ
Q: Is the 5100070-02A compatible with all variants of the Consilium 5100 Series panel?
A: The 5100070-02A is designed for the Consilium 5100 Series loop architecture. Compatibility should be confirmed against your specific panel revision and wiring diagram. Contact our technical team with your panel model and software version for confirmation before ordering if you have any uncertainty.
Q: What is the warranty coverage and how is a claim initiated?
A: Every 5100070-02A ships with a 12-month warranty covering manufacturing defects and operational failure under normal installation conditions. To initiate a claim, contact sales@smartnexmsk.com with your order number, installation date, and a description of the fault. We will arrange replacement or credit within the warranty period.
Q: How is the module tested before shipment?
A: Each unit undergoes functional verification prior to dispatch. This includes continuity checks and isolation function testing to confirm the module performs to OEM specification. A test report is available on request for critical installations.
Q: Can this module support a long-term spare parts stocking strategy for legacy 5100 Series sites?
A: Yes. We maintain ongoing stock of the 5100070-02A and related 5100 Series components to support sites running legacy installations. Long-term supply agreements and volume pricing are available for maintenance contractors and facility operators managing multiple 5100 Series panels. Contact us to discuss your inventory requirements.
