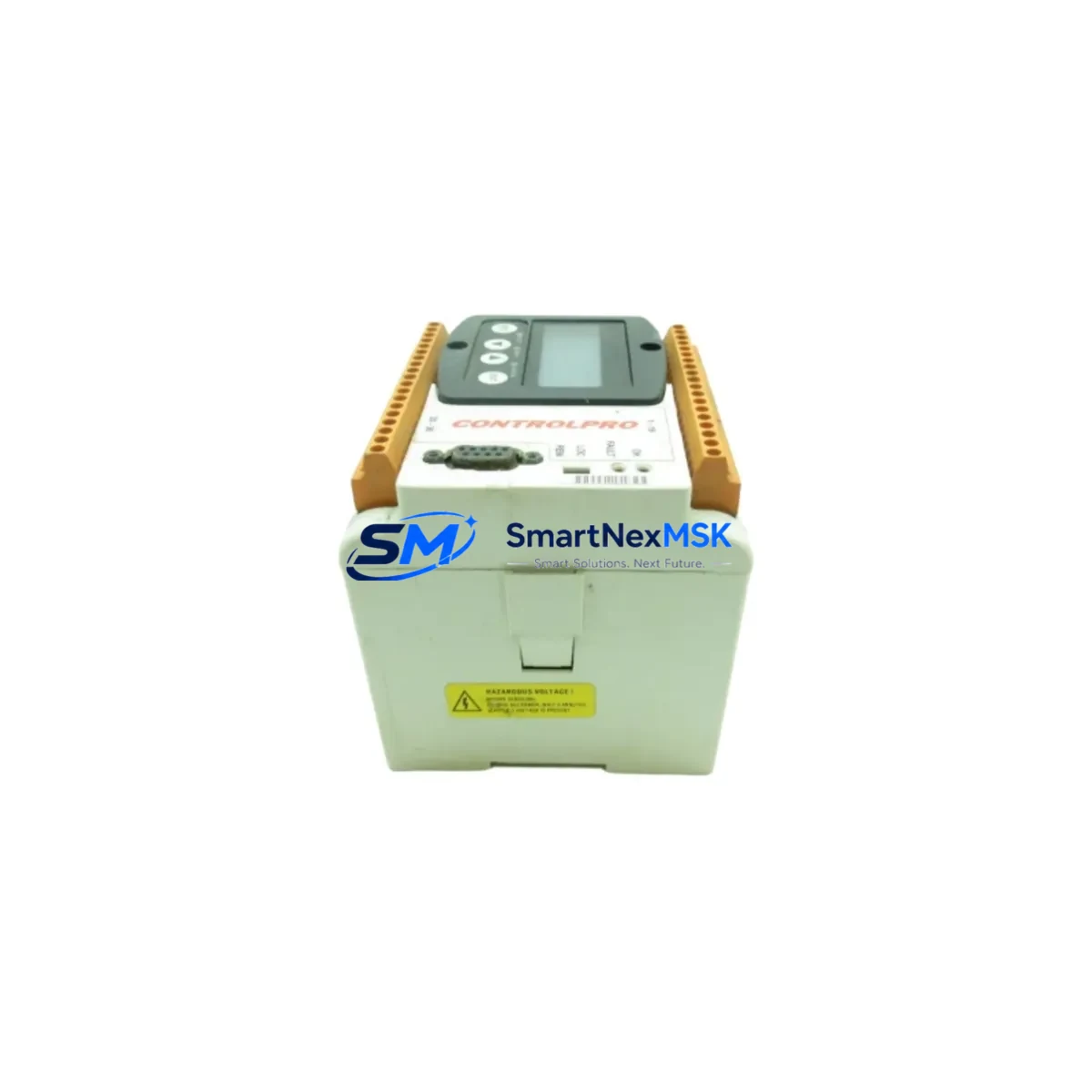

CONTROL PRO CID-115V Safety-Enhanced Vibration Monitor

CONTROL PRO CID-115V Safety-Enhanced Vibration Monitor: Reliable Control in Harsh Industrial Sites

In continuous production environments where unplanned downtime carries severe safety and financial consequences, the CONTROL PRO CID-115V vibration monitoring module delivers the real-time condition awareness that critical control systems demand. Engineered for deployment in high-load, high-interference industrial cabinets — including petrochemical processing units, power generation facilities, metallurgical plants, and heavy-duty mining operations — the CID-115V is purpose-built to detect mechanical anomalies before they escalate into catastrophic equipment failures or personnel safety incidents.

Unlike general-purpose sensors, the CID-115V integrates directly into safety-critical control loops, providing continuous vibration signal feedback to the host PLC or DCS platform. Its ruggedized housing and wide operating temperature range ensure stable performance even when mounted inside control cabinets exposed to thermal cycling, moisture ingress, and aggressive electromagnetic interference from variable-frequency drives, high-current contactors, and power bus switching events.

Safety Reliability Table

Control Cabinet Protection Strategy

The CID-115V does not operate in isolation — it is most effective when integrated as part of a layered control cabinet protection architecture. In a typical heavy-industry control panel, the module works alongside a CONTROL PRO CPM-24VDC power supply module that maintains stable 24V DC rail voltage, ensuring the vibration sensor’s analog output remains accurate even during upstream power fluctuations. Surge protection devices such as the CONTROL PRO SPD-AC120 surge protective device are recommended upstream of the CID-115V to absorb transient overvoltages from lightning strikes or capacitor bank switching.

For signal integrity in long-cable installations, pairing the CID-115V with a CONTROL PRO SIB-485 signal isolator barrier on the RS-485 Modbus line prevents ground loop interference from corrupting vibration data transmitted to the host controller. Where the host system is a Siemens S7-300 or S7-400 PLC, the CID-115V analog output connects cleanly to an SM 331 analog input module, enabling direct integration into existing STEP 7 or TIA Portal programs without additional signal conditioning hardware.

In safety interlock applications, the CID-115V relay output is typically wired into a PILZ PNOZ X safety relay or equivalent dual-channel safety relay module, creating a certified emergency stop circuit that de-energizes motor drives and actuators the moment abnormal vibration thresholds are exceeded. This architecture is particularly critical in pump protection circuits, where a bearing failure detected by the CID-115V can trigger an orderly shutdown sequence via the CONTROL PRO CSM-OUT8 digital output module before mechanical damage propagates to seals or impellers.

For distributed installations across large plant floors, the CID-115V integrates into Profibus DP or Modbus TCP gateway architectures, allowing vibration data from multiple field points to be aggregated at a central SCADA workstation. Complementary components such as the CONTROL PRO CID-Series terminal block assemblies and shielded twisted-pair field cables complete the installation, ensuring that the signal chain from sensor to controller remains free of noise-induced errors throughout the module’s service life.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous-area control rooms and compressor stations, the CID-115V monitors rotating equipment vibration continuously, providing early warning of imbalance or bearing wear in centrifugal pumps, gas compressors, and agitator drives. Its relay output integrates directly into the plant’s emergency shutdown (ESD) system, enabling automatic isolation of process streams before a mechanical failure creates a flammable-gas release scenario.

Power Generation & Substation Control: Turbine auxiliary systems and cooling water pump sets in thermal and hydroelectric power plants rely on continuous vibration monitoring to maintain grid stability. The CID-115V’s wide temperature tolerance and EMI immunity make it suitable for installation in generator excitation panels and MCC rooms where high-frequency switching noise is prevalent.

Mining & Mineral Processing: Conveyor drive motors, ball mill drives, and slurry pump stations in underground and open-cut mining operations are subject to extreme mechanical stress. The CID-115V provides the real-time vibration baseline data needed to schedule predictive maintenance windows, reducing unplanned stoppages that halt ore production and create confined-space safety risks for maintenance personnel.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities depend on uninterrupted pump operation. The CID-115V monitors booster pump and blower vibration around the clock, alerting SCADA operators to developing faults before a pump failure causes a treatment process upset or regulatory compliance breach.

Metallurgy & Steel Manufacturing: Rolling mill drives, ladle transfer cars, and continuous casting equipment operate under extreme load cycles. The CID-115V’s robust analog output and relay contact ratings support direct integration into the mill’s Level 1 automation system, providing the vibration interlock signals needed to protect high-value drive trains from catastrophic overload damage.

Port & Heavy Logistics Equipment: Ship-to-shore cranes, rubber-tyred gantry cranes, and conveyor systems in port terminals require reliable condition monitoring to maintain cargo throughput. The CID-115V’s DIN-rail form factor allows straightforward installation in mobile equipment control panels, and its Modbus RTU interface enables integration with port management SCADA platforms.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the CID-115V?
The 12-month warranty covers all manufacturing defects, component failures, and functional anomalies that occur under normal operating conditions within the specified voltage, temperature, and environmental ratings. Warranty claims are supported by our technical team with replacement unit dispatch typically within 3–5 business days of fault confirmation. Units damaged by incorrect wiring, overvoltage beyond rated limits, or physical impact are assessed on a case-by-case basis.

Q2: What pre-shipment testing is performed on each CID-115V unit?
Every CID-115V undergoes a full functional test prior to dispatch, including input voltage verification at 115V AC, vibration threshold relay actuation test, analog 4–20 mA output calibration check, and insulation resistance measurement. A test record is available upon request for customers requiring incoming inspection documentation for their quality management systems.

Q3: Is the CID-115V compatible with third-party PLCs and DCS platforms?
Yes. The CID-115V’s standard 4–20 mA analog output and volt-free relay contacts are universally compatible with analog input modules from Siemens, Rockwell Automation, Schneider Electric, ABB, Yokogawa, and Honeywell DCS platforms. The optional Modbus RTU interface (RS-485) provides digital integration with any controller supporting the Modbus protocol, which covers the vast majority of industrial automation platforms in service today.

Q4: Can long-term supply continuity be guaranteed for the CID-115V?
We maintain standing inventory of the CID-115V and key components in the CONTROL PRO CID Series to support ongoing spare-parts programs and emergency replacement requirements. Customers operating critical infrastructure are encouraged to discuss consignment stock or scheduled supply agreements with our sales team to eliminate lead-time risk during planned maintenance shutdowns or unplanned equipment failures.
