Cosel PBA1500F-24 Maintenance-Ready Spare for PBA1500F Automation

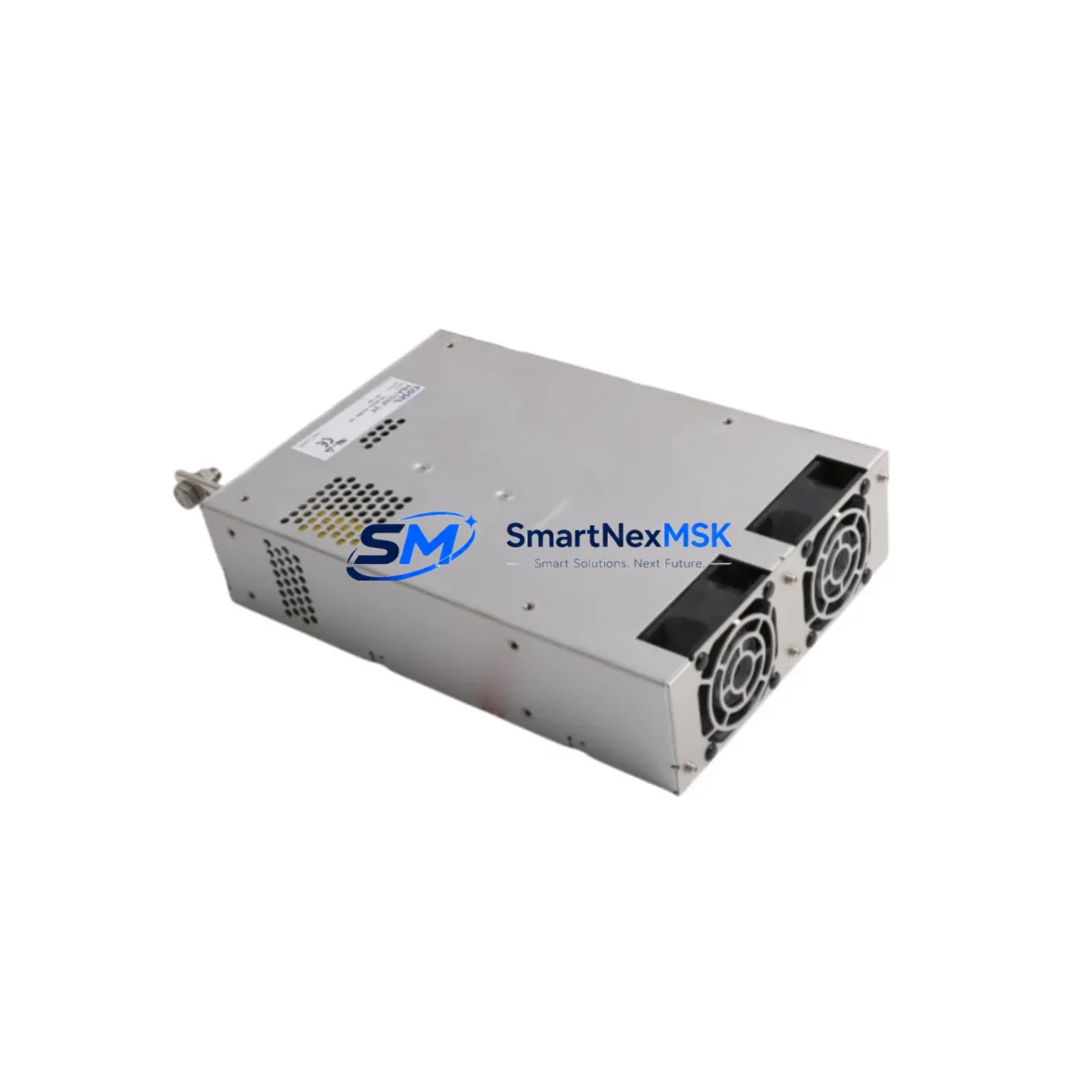

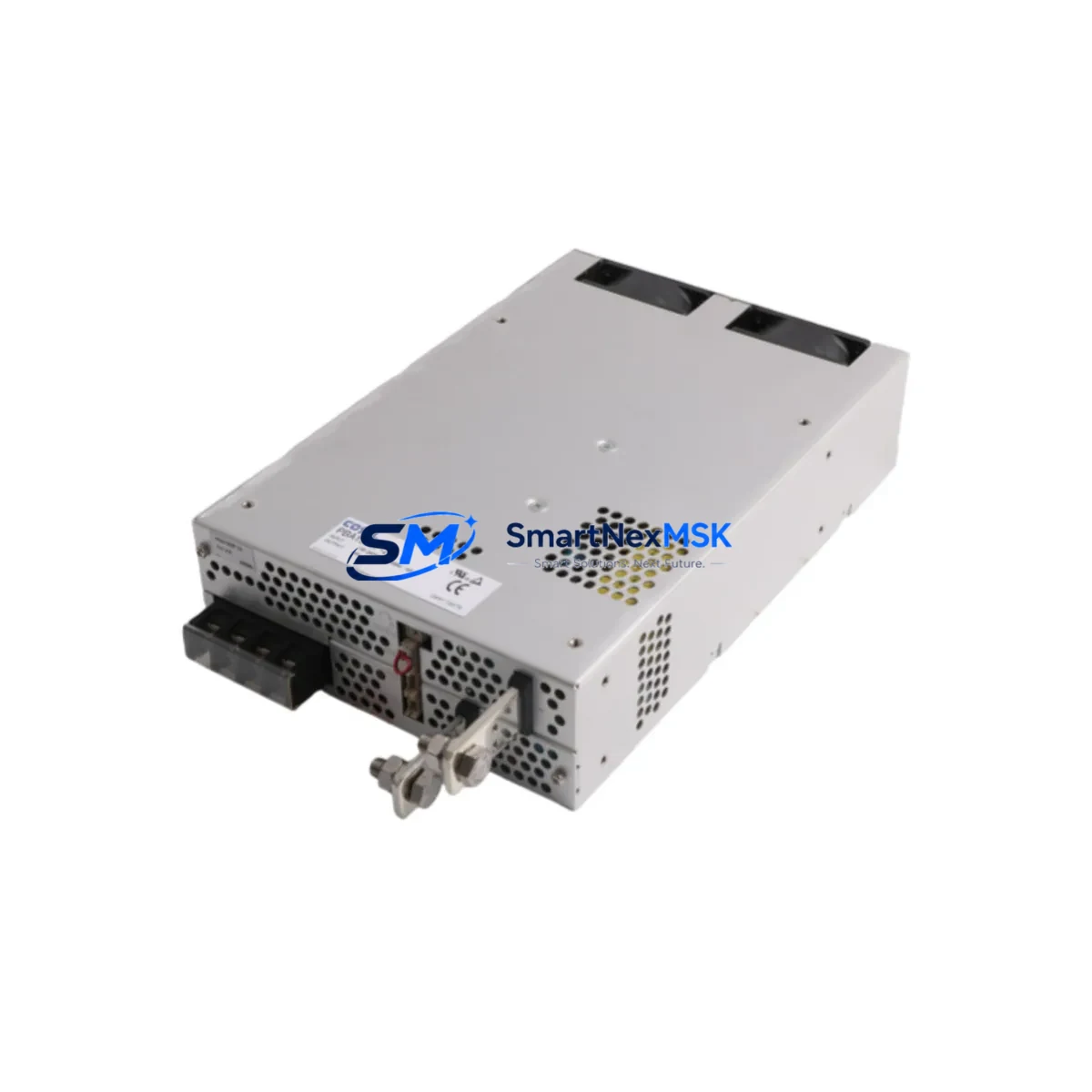

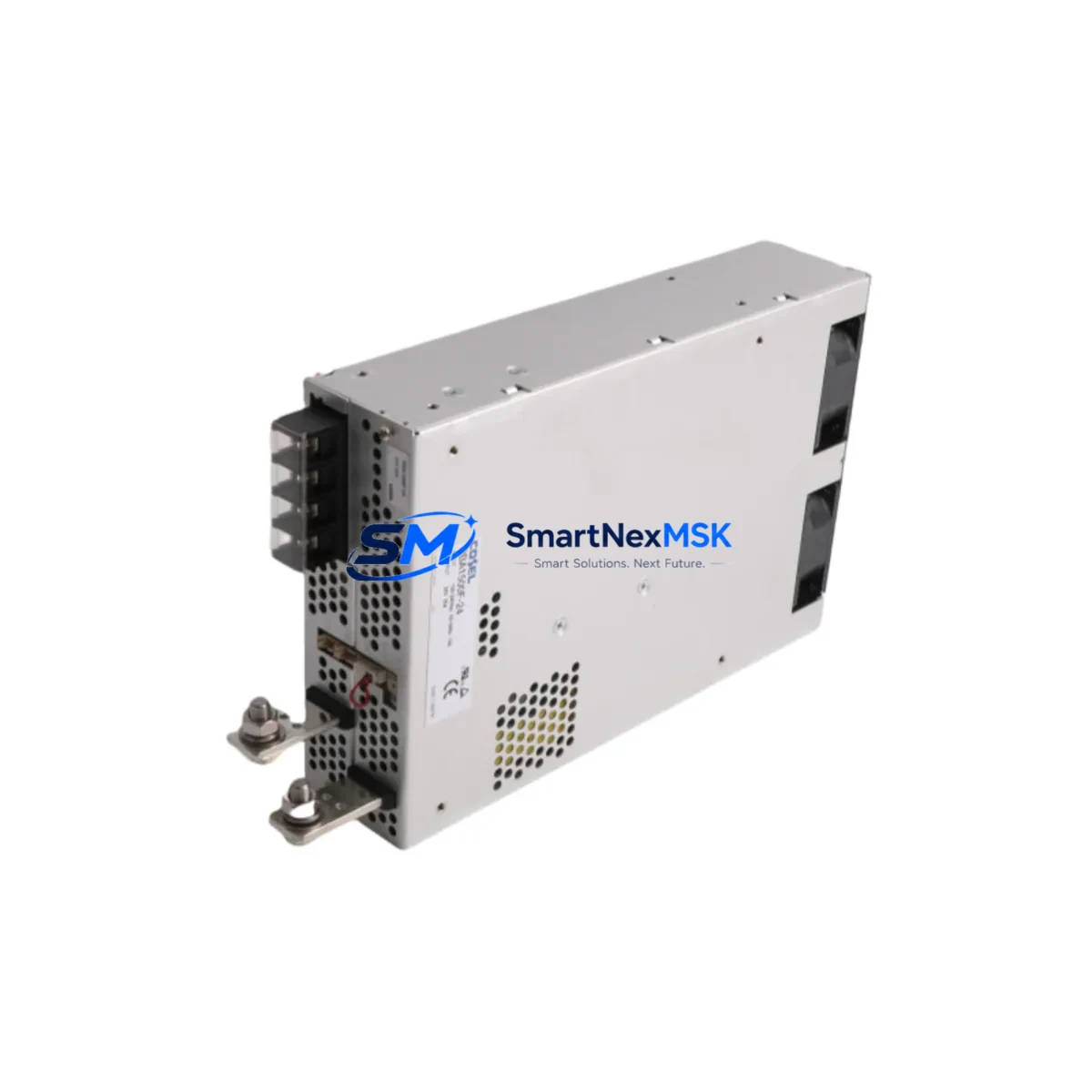

The Cosel PBA1500F-24 is a 1500W, 24VDC industrial-grade switching power supply engineered for continuous-duty automation environments. As a maintenance-ready original spare, it is designed to support rapid field replacement in PLC-driven control panels, DCS power distribution racks, and multi-axis servo drive cabinets where unplanned downtime carries significant operational cost. Sourced directly from verified supply channels, each unit undergoes functional testing prior to dispatch and is backed by a 12-month warranty.
For maintenance engineers managing aging Cosel PBA1500F Series installations, stocking a verified replacement unit eliminates the most common cause of extended downtime: waiting on procurement. For procurement engineers, the PBA1500F-24 represents a direct, specification-matched substitute that requires no panel re-engineering, no firmware reconfiguration, and no wiring modification — a critical advantage when production schedules cannot accommodate extended outages.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| SKU / Model | PBA1500F-24 |
| Brand | Cosel |
| Series | PBA1500F Series |
| Output Power | 1500W (continuous) |
| Output Voltage | 24VDC (adjustable ±10%) |
| Input Voltage | 85–264VAC, 47–63Hz (universal input) |
| Efficiency | ≥88% typical at full load |
| Cooling Method | Forced air (built-in fan) |
| Operating Temperature | -10°C to +50°C (derating above 40°C) |
| Protection Functions | OVP, OCP, OTP, short-circuit protection |
| Mounting | DIN rail / chassis mount compatible |
| Certifications | UL, CE, TÜV (series-level) |
| Origin | Japan |
| Compatibility | Direct replacement for PBA1500F-24 in PBA1500F Series panels |
| Maintenance Recommendation | Replace every 5–7 years or upon fan noise, output ripple increase, or thermal shutdown events |
| Warranty | 12 Months — tested and verified before dispatch |
Maintenance Planning for Continuous Operation
When a Cosel PBA1500F-24 fails or approaches end-of-service life, experienced maintenance engineers know that the power supply is rarely the only component under stress. A systematic inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure the replacement unit operates within its rated parameters from day one.
Begin with the input side: verify that the upstream circuit breaker or fused disconnect is rated correctly for 1500W load at the local supply voltage. Inspect the AC input terminal block and wiring for signs of heat discoloration, loose terminations, or insulation degradation — common in panels that have operated for more than five years without a scheduled inspection. If the panel uses a Cosel NFS series or ZWS series auxiliary power supply for 5VDC or 12VDC logic rails, check those units simultaneously, as shared thermal environments accelerate aging across all PSU components.
On the DC output side, inspect the output bus bar connections and any Cosel PBA or ZWS parallel operation modules if the system uses N+1 redundancy. Measure output ripple with an oscilloscope before and after replacement to confirm the new unit is within specification. Check the 24VDC distribution terminal blocks — Phoenix Contact or Weidmüller type are common in Cosel-powered panels — for contact resistance and torque compliance.
For panels integrating Siemens S7-300 or S7-400 PLC racks, or Yokogawa CENTUM VP DCS I/O modules, confirm that the 24VDC rail voltage is stable within ±1% before reconnecting field I/O. Unstable supply voltage is a leading cause of spurious I/O faults and communication errors on PROFIBUS DP or PROFINET segments. If the panel includes signal isolators or loop-powered transmitters on the 24VDC rail, verify their operating current draw against the new PSU’s output current budget.
Relay output modules — particularly Omron G2R or Phoenix Contact PLC-RSC series — should be inspected for contact wear if the panel has experienced repeated power cycling events. Similarly, 24VDC-powered HMI panels (such as Siemens TP700 or Pro-face GP4000 series) should be power-cycled cleanly after PSU replacement to clear any latched fault states. Finally, review the panel’s UPS or battery backup module if present — a failing PSU often masks a simultaneously degraded backup system that only becomes apparent after the primary supply is restored.
Site Replacement Workflow
Step 1 — Isolation and lockout: Follow site LOTO procedures. Isolate the AC input to the panel. Confirm 0V on the DC bus with a calibrated multimeter before proceeding.
Step 2 — Documentation: Photograph the existing wiring layout, terminal labels, and DIP switch or potentiometer settings on the outgoing PBA1500F-24 before removal. This is critical for restoring output voltage trim settings on the replacement unit.
Step 3 — Mechanical removal: Disconnect AC input terminals, DC output terminals, and any remote sense wiring. Remove the unit from its mounting position. Note the fan orientation if the replacement unit requires directional airflow alignment.
Step 4 — Replacement unit preparation: Verify the output voltage adjustment potentiometer on the new PBA1500F-24 matches the documented setting from the outgoing unit. Confirm DIP switch configuration for parallel operation mode if applicable.
Step 5 — Installation and wiring: Mount the replacement unit. Reconnect AC input, DC output, and remote sense wiring per the documented layout. Torque all terminals to specification.
Step 6 — Commissioning: Apply AC power with DC output load disconnected. Measure output voltage. Reconnect load incrementally. Monitor output voltage and ripple under full load for a minimum of 15 minutes before returning the system to production.
Step 7 — Documentation close-out: Record the replacement in the panel maintenance log with the new unit’s serial number, installation date, and post-commissioning measurements. Update the spare parts inventory to trigger reorder of a replacement stock unit.
Spare Parts Support FAQ
Q1: Is the PBA1500F-24 a direct drop-in replacement for the original Cosel unit?
Yes. The PBA1500F-24 supplied by SMARTNEXMSK is an original Cosel spare, not a third-party substitute. It is electrically and mechanically identical to the factory-installed unit, requiring no panel modifications, wiring changes, or firmware updates.
Q2: What testing is performed before dispatch?
Each PBA1500F-24 unit undergoes functional power-on testing, output voltage verification, and protection circuit validation prior to packaging. A test record is available upon request. Units are dispatched in anti-static, shock-protected packaging suitable for international freight.
Q3: How should I manage PBA1500F-24 spare stock for a multi-site operation?
For facilities operating more than three panels powered by PBA1500F Series supplies, we recommend maintaining a minimum of one cold-spare unit per site. For critical continuous-process environments (chemical, pharmaceutical, power generation), a 1:3 hot-spare ratio is advisable. SMARTNEXMSK supports blanket order arrangements and scheduled replenishment to simplify multi-site inventory management.
Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and output specification non-conformance. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated input/output parameters. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit.
