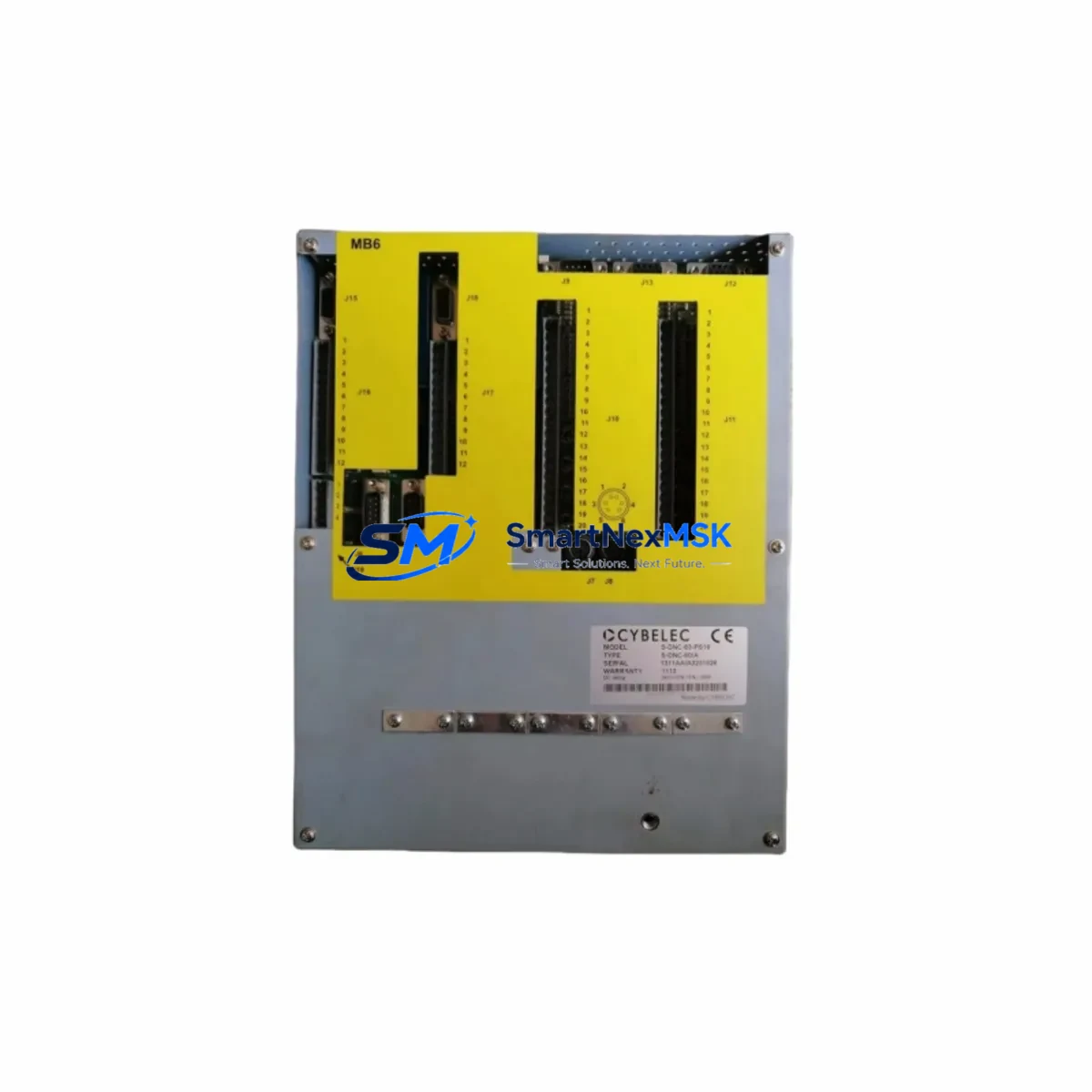

CYBELEC S-DNC-61-G16 Retrofit-Ready HMI Controller for DNC Series Control Systems
The CYBELEC S-DNC-61-G16 is a retrofit-ready Human-Machine Interface (HMI) controller engineered as a direct compatibility upgrade and drop-in replacement for the CYBELEC S-DNC-60/A and related DNC Series CNC control platforms. Designed for press brake and sheet metal forming machinery, this unit addresses the growing demand for reliable spare parts, discontinued component sourcing, and legacy system modernization across industrial production environments worldwide.
Whether your facility is managing an aging CYBELEC DNC-60 control cabinet, executing a planned press brake retrofit, or responding to an unplanned HMI failure, the S-DNC-61-G16 provides a verified upgrade path that preserves existing machine logic, minimizes rewiring, and restores full operational capability with minimal downtime.
Upgrade Compatibility Table
| Parameter | S-DNC-60/A (Legacy) | S-DNC-61-G16 (Replacement) |
|---|---|---|
| Display Interface | Monochrome CRT / early LCD | Graphic LCD, 16-level grayscale |
| Mounting / Form Factor | Panel-mount, DNC cabinet standard | Direct panel-mount, same footprint |
| Communication Protocol | RS-232 / proprietary DNC bus | RS-232 compatible, DNC bus retained |
| Replacement Compatibility | — | Drop-in for S-DNC-60/A; verify connector pinout |
| I/O Interface | Parallel I/O via backplane | Compatible backplane I/O interface |
| Power Supply Requirement | 24 VDC nominal | 24 VDC nominal (verify PSU capacity) |
| Commissioning Requirement | Full parameter entry required | Parameter restore from backup or re-entry |
| HMI Screen Compatibility | DNC-60 screen layout | Updated G16 graphic interface; screen re-mapping may apply |
| Warranty | End-of-life / no support | 12-Month Warranty included |
Retrofit Planning for Existing Automation Systems
A successful S-DNC-61-G16 installation begins well before the unit arrives on-site. Retrofit engineers should start by auditing the existing control cabinet layout, confirming the 24 VDC power supply output capacity is sufficient to support the new HMI alongside any co-installed I/O expansion modules. In many DNC-series cabinets, the original CYBELEC PSU-24 power supply module remains serviceable, but its load capacity must be verified against the updated draw of the G16 display and backplane logic.
Terminal block wiring should be documented before disconnection. The S-DNC-61-G16 uses the same general terminal layout as the S-DNC-60/A, but connector pinout verification against the machine’s original wiring diagram is mandatory — particularly for the RS-232 communication cable connecting the HMI to the CYBELEC DNC-60 axis controller board. If the original RS-232 cable shows wear or non-standard pin assignments, replacement with a shielded, correctly pinned cable is recommended prior to commissioning.
For machines that also incorporate a CYBELEC I/O expansion card or a secondary DNC analog output module, confirm that the backplane slot addressing remains consistent after the HMI swap. Module address conflicts are a common source of post-retrofit faults and should be resolved in the parameter configuration stage before powering the system.
Where the original installation includes a CYBELEC DNC footswitch interface or external pendant, verify that the pendant communication link is re-established after HMI replacement. Some DNC-series pendants communicate via a dedicated serial port on the HMI unit itself, and this port assignment must be confirmed in the system parameters.
Facilities upgrading from older DNC-60 platforms that also use a CYBELEC back-gauge controller or Y-axis servo drive interface should note that the G16 HMI supports the same servo communication protocol as the DNC-60 series, but servo drive parameters — including gain settings and position feedback calibration — should be re-verified after the HMI is replaced, as display scaling and axis reference values may differ between firmware versions.
If the machine’s control system includes a CYBELEC DNC programming cable (typically a USB-to-RS232 adapter with proprietary driver), ensure the cable and driver version are compatible with the G16 firmware before attempting any program upload or parameter backup. Incompatible cable firmware is a frequent cause of failed parameter transfers during retrofit commissioning.
Downtime Control During System Migration
Minimizing production downtime during an HMI replacement requires a structured pre-outage preparation protocol. Before taking the machine offline, technicians should perform a full parameter backup from the existing S-DNC-60/A using the CYBELEC DNC programming cable and the appropriate backup utility. This backup should capture all bending programs, machine parameters, axis calibration data, and any custom HMI screen configurations stored in the original unit.
Where a parameter backup is not possible due to HMI failure, the machine’s original commissioning documentation — including the parameter sheet, wiring diagram, and axis calibration record — becomes the primary reference for re-entry. Facilities that maintain a current parameter archive significantly reduce their mean time to recovery (MTTR) in HMI failure scenarios.
The physical swap of the S-DNC-61-G16 into the existing panel cutout is typically completed within one to two hours by an experienced technician. The majority of retrofit time is consumed by parameter re-entry, axis calibration verification, and test-bend validation. To protect original program logic, all bending programs should be re-loaded from backup before any test cycles are run, and the machine should not be returned to production until a minimum of three test bends have been verified against known reference dimensions.
For facilities operating multiple press brakes on the same DNC platform, a staged retrofit approach — replacing one machine at a time while others remain in production — is the recommended strategy for maintaining line throughput during a fleet-wide HMI upgrade program.
Retrofit Support FAQ
Q1: Is the S-DNC-61-G16 a direct drop-in replacement for the S-DNC-60/A?
The S-DNC-61-G16 is designed as a high-compatibility replacement for the S-DNC-60/A within the CYBELEC DNC Series. The mounting footprint and primary connector layout are compatible. However, technicians should verify the RS-232 pinout and backplane connector alignment against the machine’s original wiring documentation before installation, as minor revision differences may exist across machine build years.
Q2: What commissioning steps are required after installation?
After physical installation, the following commissioning steps are required: (1) restore or re-enter all machine parameters; (2) verify axis calibration and servo drive reference values; (3) confirm RS-232 communication link to the axis controller board; (4) re-load all bending programs from backup; (5) perform test bends and validate against reference dimensions. Full commissioning typically requires two to four hours depending on machine complexity and parameter archive availability.
Q3: Can the existing wiring and terminal connections be reused?
In most cases, yes. The S-DNC-61-G16 uses the same general terminal and connector layout as the S-DNC-60/A. All existing wiring should be documented and photographed before disconnection. Any wiring showing insulation damage, corrosion, or non-standard modifications should be replaced during the retrofit to ensure long-term reliability.
Q4: What warranty coverage is included, and what does it cover?
All S-DNC-61-G16 units supplied by SMARTNEXMSK include a 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Each unit undergoes pre-shipment functional testing prior to dispatch. Warranty claims are supported by our technical team via email and phone. Physical damage, incorrect installation, or operation outside specified parameters are excluded from warranty coverage.
