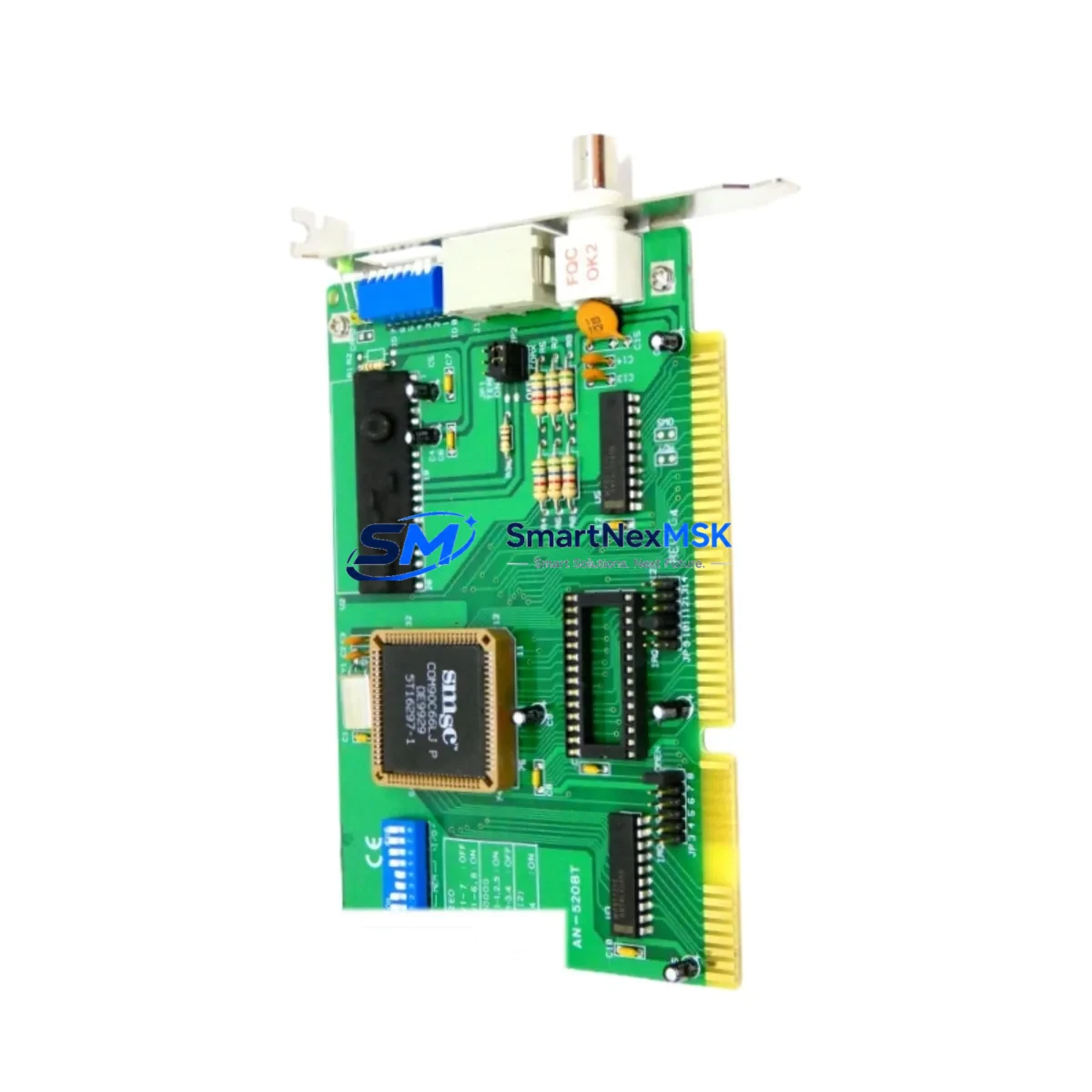

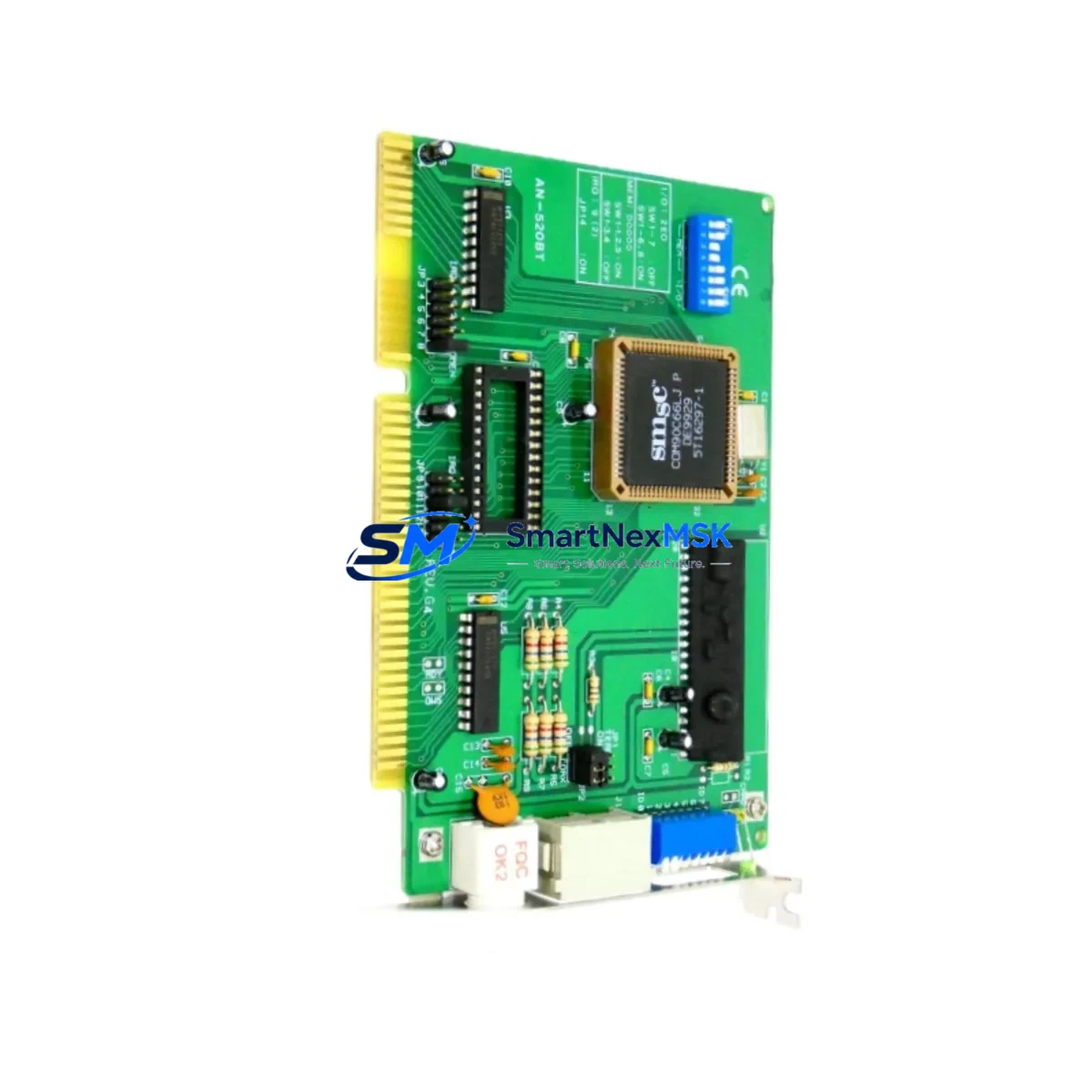

The Danpex AN-520BT is an original 16-bit ISA ARCNET network interface card engineered for industrial automation environments where network reliability and deterministic communication are non-negotiable. As a maintenance-ready spare for the AN-520 series, this card supports legacy PLC and DCS control architectures that depend on ARCNET topology for real-time data exchange between field devices, controllers, and supervisory systems. Unplanned downtime caused by NIC failure in these environments can cascade rapidly — halting production lines, triggering safety shutdowns, and requiring costly emergency interventions. Stocking the AN-520BT as a certified spare eliminates that risk.

Each unit is sourced as an original Danpex component, fully inspected and function-tested prior to shipment. A 12-month warranty is included with every order, covering manufacturing defects and operational failures under normal industrial use conditions. Whether you are managing a planned maintenance cycle, responding to an unscheduled fault, or building out a strategic spare parts inventory for aging control systems, the AN-520BT delivers the compatibility and reliability your maintenance team requires.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AN-520BT in a live control cabinet, a disciplined maintenance engineer does not stop at the NIC alone. The ARCNET network segment connected to this card relies on a chain of interdependent components, each of which should be inspected or tested during the same maintenance window to prevent repeat failures and maximize uptime between service intervals.

Begin with the ISA backplane and bus connectors — oxidized or loose ISA slot contacts are a common root cause of intermittent NIC faults that are misdiagnosed as card failures. Inspect the 24VDC or 5VDC power supply module feeding the controller rack; voltage ripple or marginal output under load can corrupt ARCNET frame transmission and cause the AN-520BT to drop off the network. If the system uses a redundant power supply unit, verify automatic switchover is functional.

Check all ARCNET coaxial cable terminations and BNC connectors along the segment — a single unterminated or damaged coax drop will degrade the entire network. For star topology installations, inspect the ARCNET active hub or passive hub for port integrity. If the system includes signal isolators or surge protection modules on the network lines, verify their clamping voltage ratings are still within specification, as these components degrade silently over years of operation.

On the controller side, review the CPU module or main processor card for firmware version compatibility with the AN-520BT driver. In systems where the NIC interfaces with a remote I/O rack or distributed I/O modules, confirm that the I/O configuration tables are intact after the card swap. If the control system includes a communications gateway or protocol converter bridging ARCNET to Modbus, PROFIBUS, or Ethernet, verify the gateway’s port mapping is unaffected by the NIC address change.

For systems with an HMI panel or SCADA workstation connected to the same ARCNET segment, confirm that the node address assigned to the AN-520BT does not conflict with existing network nodes — address conflicts are a frequent post-replacement fault. Finally, inspect terminal blocks, fuse holders, and relay output modules in the same cabinet for signs of heat stress, loose wiring, or blown fuses that may have contributed to the original NIC failure.

Site Replacement Workflow

Step 1 — Isolation: Place the affected controller in safe state. Notify the operations team and document the fault condition, including any error codes displayed on the HMI or logged in the SCADA historian.

Step 2 — Identification: Confirm the failed card is the AN-520BT by verifying the part number printed on the card bracket and PCB silkscreen. Cross-reference with the system’s spare parts register to confirm the AN-520BT is the correct replacement for the installed AN-520 series slot.

Step 3 — Configuration: Before removing the failed card, photograph or record the jumper settings for IRQ, I/O base address, and node ID. Set the replacement AN-520BT to identical jumper positions before installation.

Step 4 — Installation: Insert the AN-520BT into the ISA slot with firm, even pressure. Secure the bracket screw. Reconnect the ARCNET coax or RJ-11 cable to the card’s network port.

Step 5 — Verification: Power up the controller and observe the AN-520BT’s LED indicators for network activity. Confirm the node appears on the ARCNET segment from the HMI or network diagnostic tool. Run a communication test to all downstream I/O nodes before returning the system to automatic mode.

Step 6 — Documentation: Log the replacement in the maintenance management system (CMMS), update the spare parts inventory, and flag the need to replenish the AN-520BT stock to maintain minimum buffer levels.

Spare Parts Support FAQ

Q1: Is the AN-520BT still available as a new original spare, or only as refurbished stock?
The AN-520BT units we supply are original Danpex components, not refurbished or remanufactured. Each card undergoes function testing prior to shipment and is covered by a 12-month warranty. For legacy ISA ARCNET systems, maintaining access to original spares is critical for long-term system stability.

Q2: How do I verify compatibility between the AN-520BT and my existing AN-520 series installation?
Compatibility is confirmed by matching the ISA bus width (16-bit), the ARCNET protocol version, and the node address range supported by your controller firmware. If you can provide your system’s CPU module part number or the existing NIC’s jumper configuration, our technical team can confirm compatibility before shipment.

Q3: What is the recommended spare parts strategy for ARCNET-based control systems?
For systems where the AN-520BT is a single point of failure on the network segment, we recommend maintaining a minimum of one cold-standby spare per active node. For critical production lines, a hot-standby configuration with a pre-configured replacement card stored in the control room reduces mean time to repair (MTTR) to under 30 minutes.

Q4: What pre-shipment checks are performed on the AN-520BT before delivery?
Each AN-520BT is powered up and tested for ARCNET network initialization, node address broadcast, and data frame transmission integrity. Cards that fail any test parameter are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.
