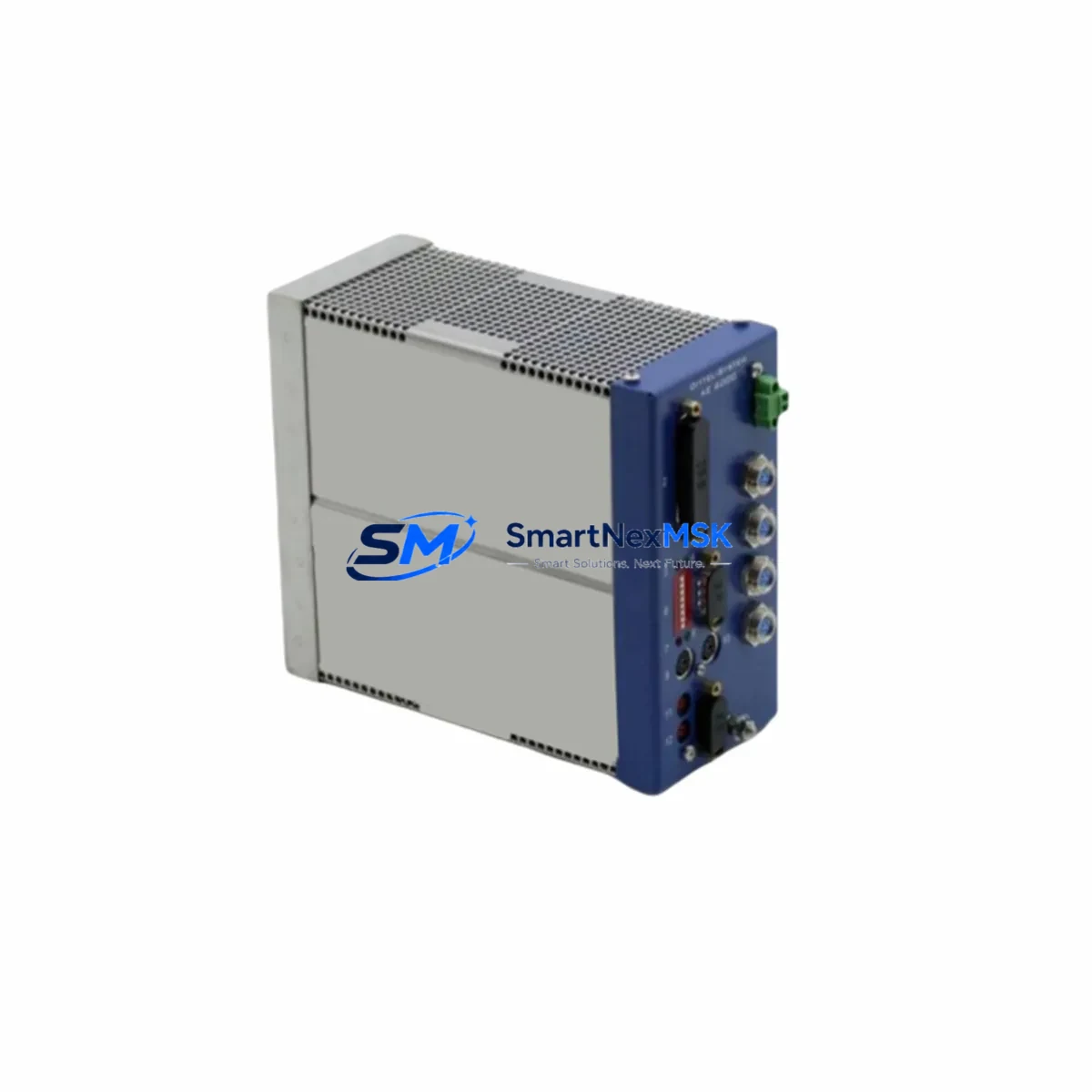

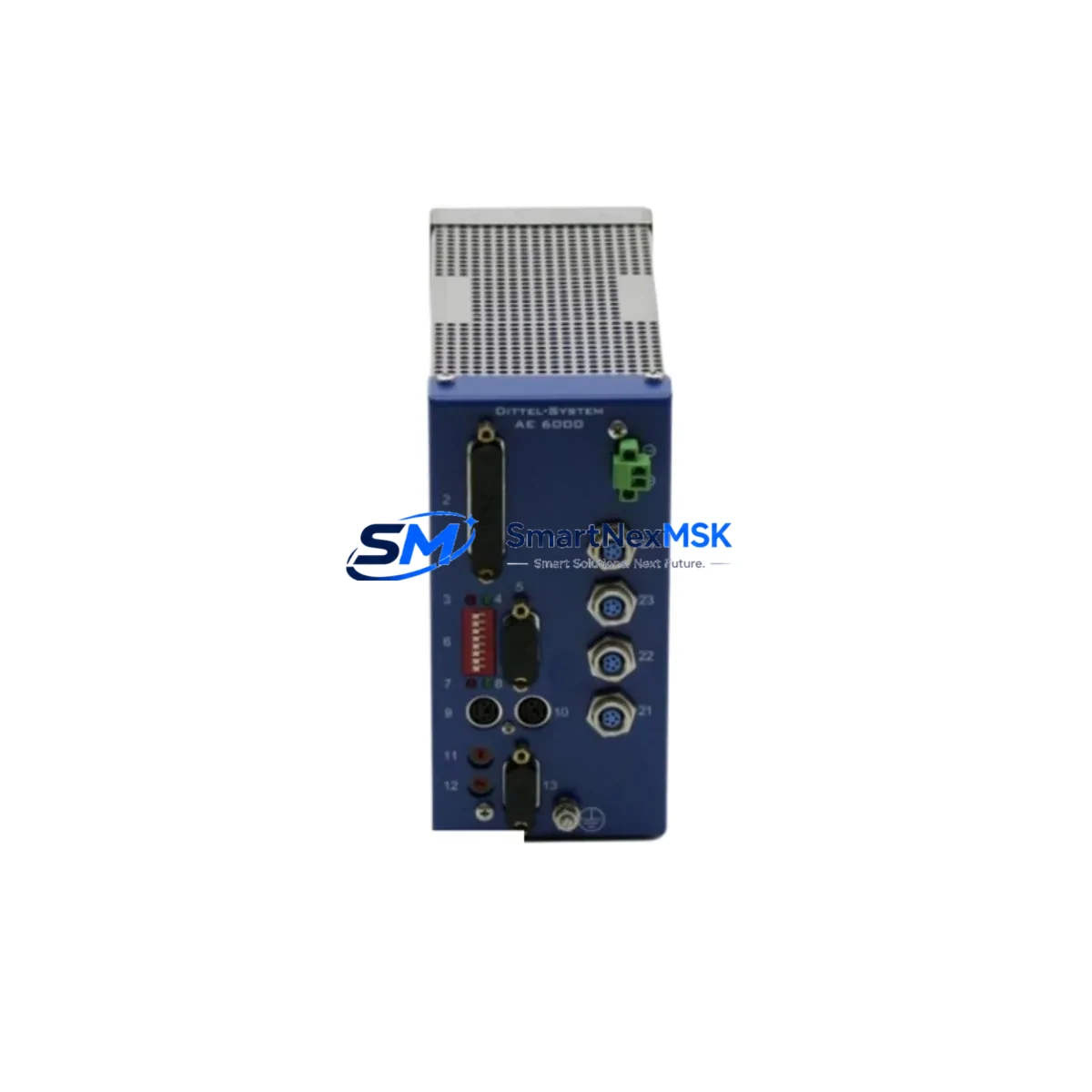

DITTEL F62001 AE6000 Safety-Enhanced Acoustic Emission Module

DITTEL F62001 AE6000 Safety-Enhanced Acoustic Emission Module for Harsh Industrial Sites

The DITTEL F62001 AE6000 is a precision-grade Acoustic Emission (AE) module engineered for safety-critical and high-demand industrial environments. Designed as part of the DITTEL AE6000 Series, this module delivers continuous, real-time acoustic emission monitoring to protect grinding machines, CNC machining centers, and precision manufacturing lines from undetected tool wear, wheel breakage, workpiece collision, and spindle overload events. In facilities where unplanned downtime or undetected mechanical failure carries serious safety and financial consequences, the F62001 AE6000 provides the front-line detection layer that keeps control loops intact and production running safely.

Built to withstand the electromagnetic interference, coolant mist, vibration, and thermal cycling common in heavy industrial control cabinets and machine tool enclosures, the F62001 AE6000 maintains signal integrity even in the most demanding shop-floor conditions. Its ruggedized housing and shielded signal path minimize susceptibility to EMI from adjacent frequency inverters, servo drives, and high-current switching devices — all of which are standard occupants of the same control cabinet. The module interfaces directly with the DITTEL AE6000 evaluation unit, forming a tightly integrated acoustic emission system that can be configured for threshold-based alarm outputs, analog signal transmission, or digital handshake with the machine’s PLC safety interlock circuit.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the DITTEL F62001 AE6000 within a machine tool control cabinet requires careful attention to signal routing, power supply quality, and interlock architecture. The AE module draws its operating power from the cabinet’s 24 VDC control supply rail — the same rail that typically feeds the DITTEL AE6000 evaluation unit, safety relay modules, and the machine’s PLC I/O expansion cards. Ensuring that this rail is protected by a dedicated SITOP PSU8200 or equivalent DIN-rail power supply with sufficient current headroom is a prerequisite for stable AE signal acquisition. Voltage dips caused by inrush from contactors or servo amplifiers on a shared rail can introduce false trigger events or suppress genuine AE signals, both of which compromise the safety function.

The F62001 AE6000 sensor cable should be routed separately from high-voltage motor cables and frequency converter output lines. In cabinets where a Siemens SINUMERIK 840D sl or FANUC 0i-MF CNC controller is installed alongside the AE system, cable segregation and proper grounding of the AE sensor shield to the cabinet PE busbar are essential. Where the machine uses a Siemens S7-1500 or S7-300 PLC for safety interlock management, the AE module’s alarm output can be wired directly to a digital input card — such as a Siemens SM 321 or SM 1221 — enabling the PLC program to trigger an E-stop or feed-hold command upon AE threshold breach.

In grinding machine applications, the F62001 AE6000 works in close coordination with the DITTEL AE6000 evaluation unit mounted in the same or adjacent cabinet section. The evaluation unit processes the raw AE signal, applies configurable band-pass filtering, and outputs a conditioned signal to the machine control. Alongside the AE system, the control cabinet typically houses a Rexroth IndraDrive or Siemens SINAMICS S120 spindle drive, whose speed feedback and torque monitoring data complement the AE signal for comprehensive spindle health assessment. For facilities running older FANUC Series 16i or 18i controllers, the F62001 AE6000 can be integrated via the machine’s analog input channel, providing a retrofit-compatible path without requiring CNC software modification.

Surge protection at the cabinet entry point — using a Phoenix Contact TRABTECH or equivalent Type 2 SPD — safeguards the AE module and associated electronics from transient overvoltages caused by nearby welding equipment, crane motors, or lightning-induced surges on the facility power network. This is particularly important in heavy industrial sites such as steel mills, shipyards, and automotive stamping plants where the electrical environment is inherently aggressive.

Critical Industrial Safety Applications

The DITTEL F62001 AE6000 is deployed across a wide range of safety-critical and continuous-production industrial environments where undetected mechanical anomalies carry unacceptable risk.

Petrochemical & Refinery Maintenance Machining: In on-site machine shops supporting petrochemical plants, precision grinding of pump shafts, valve seats, and compressor components must meet tight dimensional tolerances. The F62001 AE6000 provides real-time wheel-workpiece contact detection, preventing over-grinding events that could compromise the sealing integrity of critical rotating equipment. The module’s alarm output is wired to the facility’s safety PLC, ensuring that any anomalous AE event triggers an immediate feed-hold before dimensional damage occurs.

Power Generation & Turbine Component Grinding: Turbine blade and rotor grinding operations in power plant maintenance facilities demand zero-defect surface finish. The F62001 AE6000 detects micro-crack propagation and abrasive wheel glazing in real time, allowing the operator or automated control system to intervene before a surface defect is introduced. Integration with the plant’s Siemens PCS 7 or ABB System 800xA DCS via hardwired I/O ensures that AE alarm events are logged in the plant historian for traceability and audit compliance.

Mining & Mineral Processing Equipment Overhaul: Mining operations require frequent overhaul of crusher rolls, conveyor drive shafts, and hydraulic cylinder rods. Grinding these components with AE monitoring active ensures that hardened surface layers are not breached during material removal, preventing premature failure in service. The harsh environment of a mine maintenance workshop — characterized by dust, vibration, and wide temperature swings — is precisely the operating context for which the ruggedized F62001 AE6000 is designed.

Water Treatment & Pump Station Maintenance: Pump impeller and shaft grinding in water utility maintenance shops benefits from AE-based contact detection to prevent wheel loading and workpiece burn. The F62001 AE6000’s stable signal output under variable coolant flow conditions makes it well-suited for wet grinding applications common in this sector.

Metallurgy & Steel Mill Roll Grinding: Roll grinding machines in steel mills operate continuously under high load, grinding work rolls and backup rolls to precise profiles. The F62001 AE6000 is a standard safety and quality monitoring component in these applications, detecting wheel-roll contact, dressing events, and surface anomalies that would otherwise only be discovered during dimensional inspection — after the damage is done.

Safety and Quality FAQ

Q1: Does the DITTEL F62001 AE6000 come with a warranty, and what does it cover?
Yes. Every F62001 AE6000 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes a full functional test to verify signal output, alarm threshold response, and interface integrity. Units that do not pass the outgoing test are not shipped. Warranty claims are handled directly — contact sales@smartnexmsk.com with your order reference and a description of the observed fault.

Q2: How do I verify compatibility between the F62001 AE6000 and my existing DITTEL AE system?
The F62001 AE6000 is designed for use with the DITTEL AE6000 evaluation unit and is compatible with the standard DITTEL AE sensor range. If your existing system uses an earlier DITTEL evaluation unit (such as the AE5000 series), please contact our technical team before ordering. We can review your system configuration and confirm whether the F62001 AE6000 is a direct replacement or whether an adapter or evaluation unit upgrade is required.

Q3: What wiring and installation checks are required when replacing an existing AE module?
When replacing a faulty or end-of-life AE module with the F62001 AE6000, verify the following before powering up: (1) 24 VDC supply voltage at the module connector is within ±10% of nominal; (2) AE sensor cable shield is connected to PE at the cabinet end only (single-point grounding); (3) alarm output wiring to the PLC digital input card is intact and the input address matches the machine program; (4) the DITTEL AE6000 evaluation unit sensitivity and threshold settings are recorded before removal so they can be restored after the new module is installed. Our team can provide a pre-commissioning checklist on request.

Q4: Can SMARTNEXMSK guarantee long-term supply of the DITTEL F62001 AE6000 for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains stock of industrial automation spare parts including DITTEL AE series components to support customers with ongoing maintenance and overhaul programs. For facilities that require guaranteed availability — such as steel mills, power plants, or automotive production lines — we recommend establishing a framework supply agreement. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss volume pricing and reserved stock arrangements.
