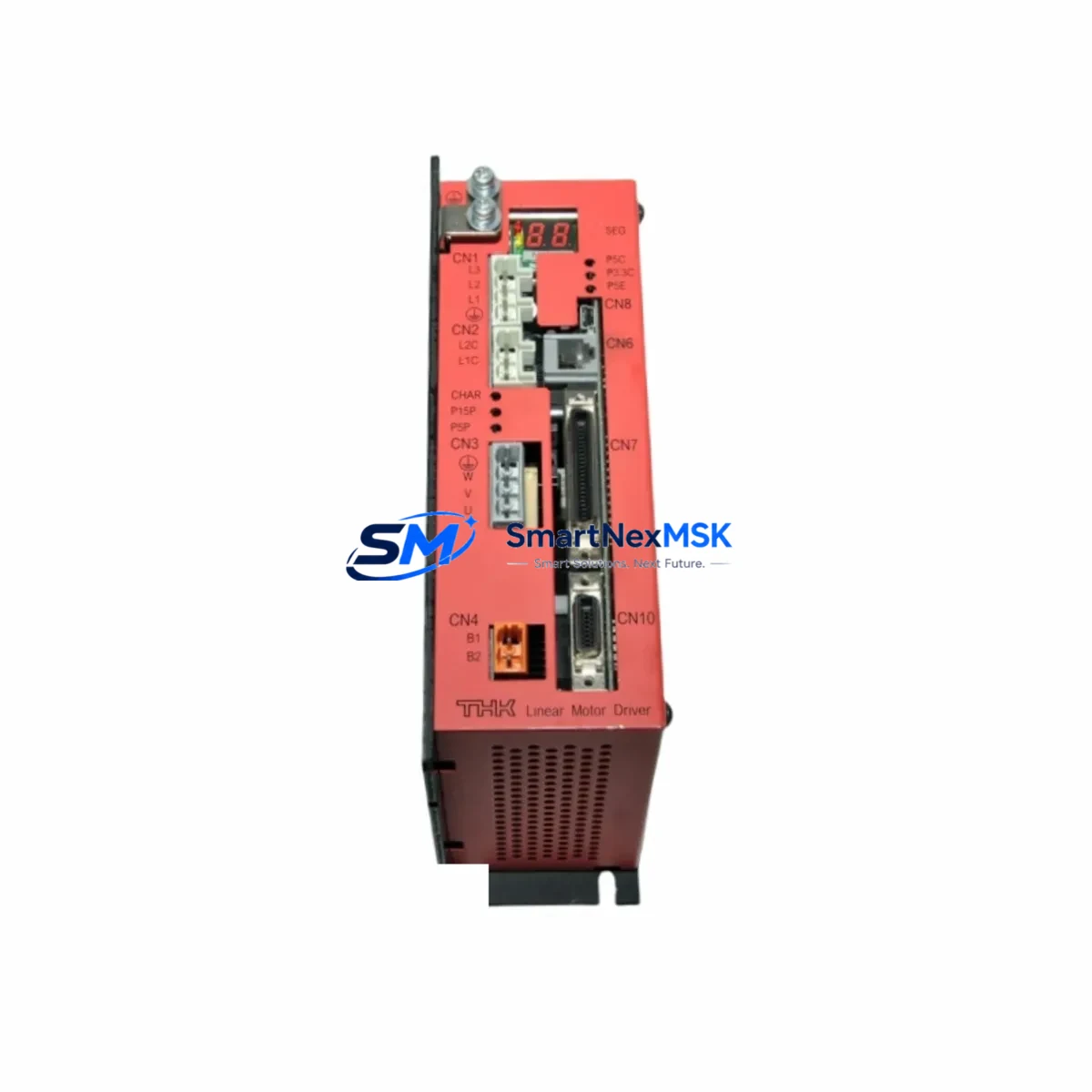

The DIVERSEN TD-300CU-200AC-G20L2-5U-J is a 5-axis linear motor driver engineered for high-precision industrial automation systems operating on 200VAC input at up to 20A continuous output. As a maintenance-ready original spare, this unit is sourced, inspected, and dispatched to support rapid field replacement in TD-300 series servo and linear motion control architectures. Whether you are managing a scheduled overhaul, responding to an unplanned axis fault, or building a strategic spare parts buffer for a multi-axis gantry or precision machining cell, the TD-300CU-200AC-G20L2-5U-J delivers verified compatibility and immediate drop-in readiness.

For maintenance engineers and procurement teams operating in environments where axis downtime translates directly to production loss, having a pre-tested, shelf-ready TD-300CU-200AC-G20L2-5U-J on hand is a fundamental risk mitigation measure. This driver integrates into the TD-300 control architecture without firmware reconfiguration in most standard deployments, reducing mean time to repair (MTTR) and eliminating the extended lead times associated with OEM procurement channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A TD-300CU-200AC-G20L2-5U-J replacement should never be treated as an isolated swap. In a multi-axis TD-300 system, the linear motor driver operates in close coordination with a range of upstream and downstream components, and a fault in one axis often signals stress or degradation in adjacent circuits. Maintenance engineers should treat a driver replacement as a trigger for a broader cabinet inspection.

Begin with the 24VDC control power supply feeding the TD-300 controller backplane — voltage sag or ripple under load is a common root cause of spurious axis faults that are misdiagnosed as driver failures. Verify the AC input filter and line reactor upstream of the driver to confirm harmonic suppression is within spec. Inspect the regenerative braking resistor or dynamic braking module associated with the affected axis; excessive deceleration cycles can degrade these components in parallel with the driver.

Check the encoder feedback cable and linear scale interface connected to the axis — signal degradation or intermittent continuity in these cables is frequently the actual failure mode, with the driver absorbing the fault code. Review the I/O terminal block and relay output module handling axis enable, servo-ready, and alarm signals; corroded or loose terminals in these circuits can cause false fault trips. If the system uses a MECHATROLINK-II or MECHATROLINK-III communication module, inspect the bus terminator and cable routing for EMI exposure.

For systems with an HMI panel (touch screen operator interface) connected to the TD-300 controller, verify that axis status displays and alarm history logs are cleared and re-initialized after the driver swap to avoid ghost alarms. If a signal isolator or analog output module is used for speed reference or torque limit commands, confirm isolation integrity post-replacement. Finally, inspect the cabinet fuse block and circuit breaker protecting the driver’s AC input — a blown or weakened fuse is often the first casualty of a driver fault and must be replaced concurrently.

Building a spare parts kit around the TD-300CU-200AC-G20L2-5U-J should include: a spare 24VDC SMPS module, a set of encoder extension cables, a replacement regenerative resistor, spare I/O relay modules, and a bus communication terminator. This kit approach reduces cabinet downtime from hours to minutes during emergency callouts.

Site Replacement Workflow

When replacing a failed or end-of-life TD-300CU-200AC-G20L2-5U-J in the field, follow this sequence to minimize downtime and ensure system compatibility:

1. Isolate and de-energize: Switch off the main AC breaker feeding the driver. Confirm zero voltage on the DC bus capacitors using a multimeter before opening the cabinet — TD-300 series drivers retain bus charge for up to 5 minutes after power-off.

2. Document existing wiring: Photograph or sketch all connector positions, cable labels, and DIP switch / parameter settings on the outgoing unit before disconnection. The TD-300CU-200AC-G20L2-5U-J parameter set (axis gain, current limit, encoder resolution) must be replicated on the replacement unit.

3. Parameter transfer: If the TD-300 controller supports parameter backup via the HMI or engineering software, export the axis configuration before removing the old driver. Upload to the replacement unit prior to first power-on.

4. Mechanical installation: Mount the replacement driver in the same panel position. Reconnect AC input, DC bus (if shared), motor power output, encoder feedback, and I/O connectors in reverse order of removal. Torque all terminal screws to specification.

5. Commissioning check: Power up in manual jog mode at reduced speed. Verify encoder feedback direction, axis homing, and alarm-free operation before returning to automatic cycle. Log the replacement date and unit serial number in the maintenance record.

This workflow applies equally to planned preventive replacements and emergency fault recovery, and is compatible with legacy TD-300 installations where the original driver may have been in service for 8–15 years.

Spare Parts Support FAQ

Q1: How long is the warranty on the TD-300CU-200AC-G20L2-5U-J spare?
All units supplied carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit is function-tested prior to dispatch. Warranty claims are supported with replacement or refund within the coverage period.

Q2: How do I verify compatibility before installation?
Confirm the existing driver’s nameplate matches SKU TD-300CU-200AC-G20L2-5U-J, input voltage (200VAC), current rating (20A), and axis count (5). Cross-reference the TD-300 series controller model number against the driver’s compatibility matrix. If your system uses a non-standard parameter set or modified firmware, contact our technical team with the controller model and software version before ordering.

Q3: What is the recommended inventory strategy for this driver?
For facilities operating 3 or more TD-300 series axes, we recommend maintaining a minimum of 1 spare TD-300CU-200AC-G20L2-5U-J on-site. For critical production lines with no redundancy, a 2-unit buffer is advisable. Shelf life in original packaging under controlled storage (15–25°C, <70% RH) exceeds 5 years without performance degradation.

Q4: Can this unit replace older or discontinued TD-300 driver variants?
The TD-300CU-200AC-G20L2-5U-J is designed as a direct replacement within the TD-300 series. It is compatible with systems originally fitted with earlier TD-300 driver revisions sharing the same electrical ratings. Minor firmware or parameter differences between hardware revisions may require adjustment via the TD-300 engineering tool — our team can advise on revision-specific migration steps upon request.
