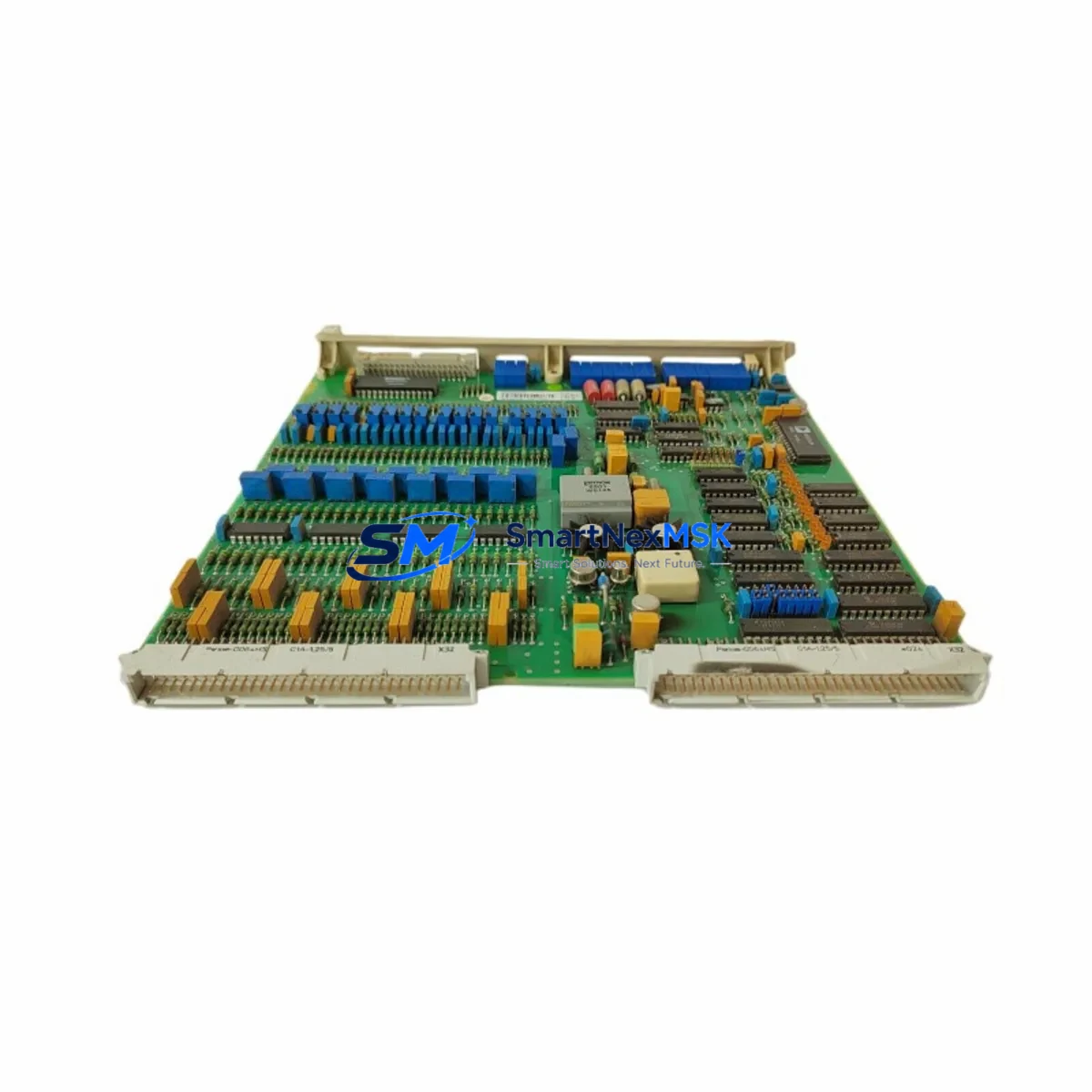

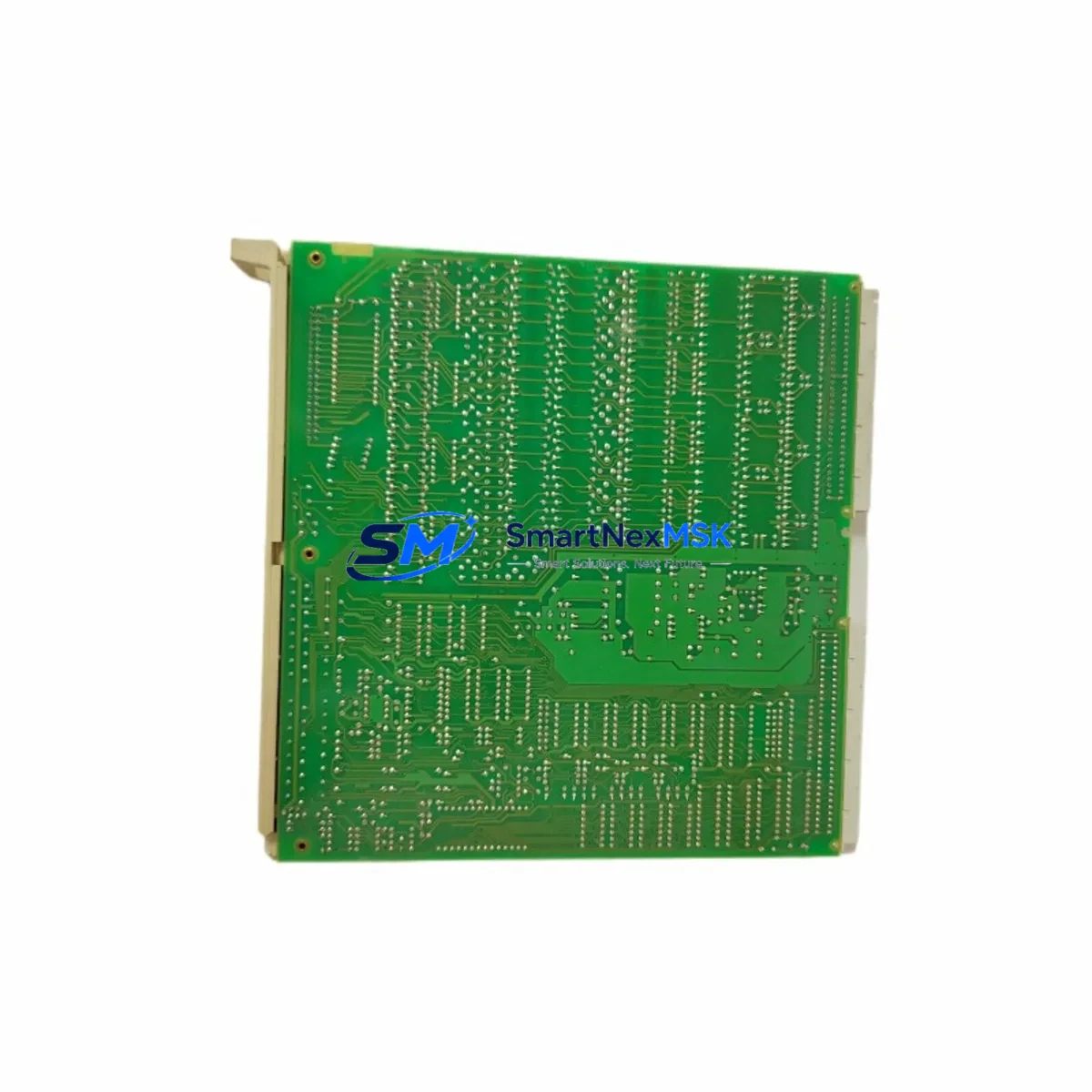

ABB DSAI130D Maintenance-Ready Spare for Advant AC400 Automation
The ABB DSAI130D is an 8-channel analog input module engineered for the Advant AC400 distributed control system. For maintenance engineers managing aging process automation infrastructure, securing a verified original spare of the DSAI130D is a critical step in any downtime-reduction strategy. Whether you are executing a planned turnaround, responding to an unplanned fault, or building a strategic spare parts buffer for a long-running AC400 installation, this module delivers the signal accuracy, backplane compatibility, and firmware alignment that the AC400 architecture demands.
Each DSAI130D unit supplied by SMARTNEXMSK is sourced from original ABB production channels, individually inspected, and function-tested prior to dispatch. A 12-month warranty covers every shipment, giving procurement and reliability teams the confidence to stock this module as a long-term asset rather than a one-time emergency purchase.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | DSAI130D |
| Manufacturer | ABB |
| Series / Platform | Advant AC400 DCS |
| Module Type | 8-Channel Analog Input |
| Input Signal Range | 4–20 mA / 0–10 V (configurable per channel) |
| Resolution | 12-bit A/D conversion |
| Isolation | Channel-to-channel and channel-to-backplane galvanic isolation |
| Backplane Compatibility | Advant AC400 S100 I/O backplane |
| Operating Temperature | 0 °C to +55 °C |
| Power Supply | Supplied via S100 backplane (24 VDC bus) |
| Mounting | Direct plug-in to S100 I/O rack; no tools required |
| Origin | Germany (Original ABB manufacture) |
| Condition | Original / New-surplus; function-tested before shipment |
| Warranty | 12 Months from date of shipment |
| Typical Application | Process temperature, pressure, flow, and level signal acquisition in AC400 DCS loops |
| Maintenance Recommendation | Inspect terminal block seating and channel calibration every 12 months; replace on first sign of drift >0.5% FS |
Maintenance Planning for Continuous Operation
When a DSAI130D fault is identified during routine control cabinet inspection or triggered by a DCS alarm, the replacement workflow rarely ends with the analog input module alone. Experienced maintenance engineers know that a degraded or failed DSAI130D is often accompanied by stress on adjacent components sharing the same S100 I/O rack and power distribution bus.
Begin your inspection by verifying the DSAI130D terminal block connections and confirming that the 24 VDC backplane supply rail — typically fed through an ABB DSDO115A or equivalent digital output module sharing the same rack — is within tolerance. A sagging supply voltage is a common root cause of intermittent analog channel errors that are misdiagnosed as module failure. Next, check the DSDP140 processor module for any active fault codes logged against the AI channel group; the processor’s diagnostic buffer will confirm whether the fault is isolated to the DSAI130D or is symptomatic of a wider rack communication issue.
Signal integrity on the field wiring side should also be validated. Shielded twisted-pair cables running to transmitters — particularly 4–20 mA loops feeding pressure or temperature signals — should be checked for ground loops and insulation resistance. If the installation includes ABB DSAI155A or DSAI130 modules in adjacent slots, compare their channel diagnostics to isolate whether the fault is module-specific or rack-wide.
For sites running redundant AC400 configurations, the DSCS140 communication supervisor module and the DSCL110 MasterBus 300 link module should be inspected to confirm that the redundancy switchover did not mask a deeper I/O fault. Relay output modules such as the DSDO120A in the same cabinet should be checked for contact wear if the analog fault coincided with a process trip event.
Procurement engineers building a strategic spare parts list for an AC400 installation should consider stocking the DSAI130D alongside the DSDP140 processor module, at least one DSAI155A high-density analog input module, a DSDO115A digital output module, and a set of S100 rack terminal blocks and fuse holders. This combination covers the most common single-point failures in a typical AC400 process control cabinet and supports a mean-time-to-repair target of under two hours for most fault scenarios.
Site Replacement Workflow
Step 1 — Fault Confirmation: Use the AC400 engineering workstation to confirm the DSAI130D channel fault via the DCS diagnostic display. Note the slot address and rack number before proceeding.
Step 2 — Safe Isolation: Place the affected control loop in manual mode at the operator station. Isolate the field transmitter if required by site safety procedures. The S100 rack supports hot-swap of I/O modules in most AC400 configurations — verify this against your site’s system documentation before proceeding without a full rack power-down.
Step 3 — Module Removal: Release the DSAI130D retaining latch, disconnect the terminal block, and withdraw the module from the backplane. Inspect the backplane connector pins for corrosion or mechanical damage before inserting the replacement unit.
Step 4 — Replacement Installation: Insert the new DSAI130D into the same slot. The AC400 processor will automatically detect the module and reload the channel configuration from its database — no manual re-parameterization is required in standard installations. Reconnect the terminal block and verify the LED status indicators show normal operation.
Step 5 — Loop Verification: Return the control loop to automatic mode and verify that all 8 channels report values within expected engineering unit ranges. Document the replacement in the site maintenance log and update the spare parts inventory accordingly.
This workflow is designed to minimize process downtime to under 30 minutes for a prepared maintenance team. Keeping a tested DSAI130D on the shelf — rather than sourcing one reactively during an unplanned outage — is the single most effective way to protect against extended downtime on AC400-controlled processes.
Spare Parts Support FAQ
Q1: Is the DSAI130D supplied by SMARTNEXMSK an original ABB part or a third-party compatible?
All DSAI130D units are original ABB-manufactured modules. We do not supply third-party compatible or rebranded alternatives. Each unit is individually inspected and function-tested before shipment to confirm analog channel accuracy and backplane communication integrity.
Q2: What is the warranty coverage and what does it include?
Every DSAI130D ships with a 12-month warranty from the date of shipment. The warranty covers module failure under normal operating conditions and includes free replacement or full refund. It does not cover damage caused by incorrect installation, overvoltage, or physical impact.
Q3: Can the DSAI130D replace earlier DSAI130 variants without hardware or software changes?
In most AC400 installations, the DSAI130D is a direct drop-in replacement for the DSAI130 and DSAI130B. The AC400 processor recognizes the module type automatically. However, we recommend verifying the firmware revision of your DSDP140 processor module against ABB’s compatibility matrix before installation in safety-critical loops.
Q4: What is the typical lead time and how is the module packaged for shipment?
In-stock units ship within 1–3 business days. Each module is packed in anti-static ESD shielding, cushioned in foam, and shipped in a double-wall carton. Export documentation, including a commercial invoice and packing list, is included with every international shipment. Expedited shipping options are available for emergency maintenance situations.
