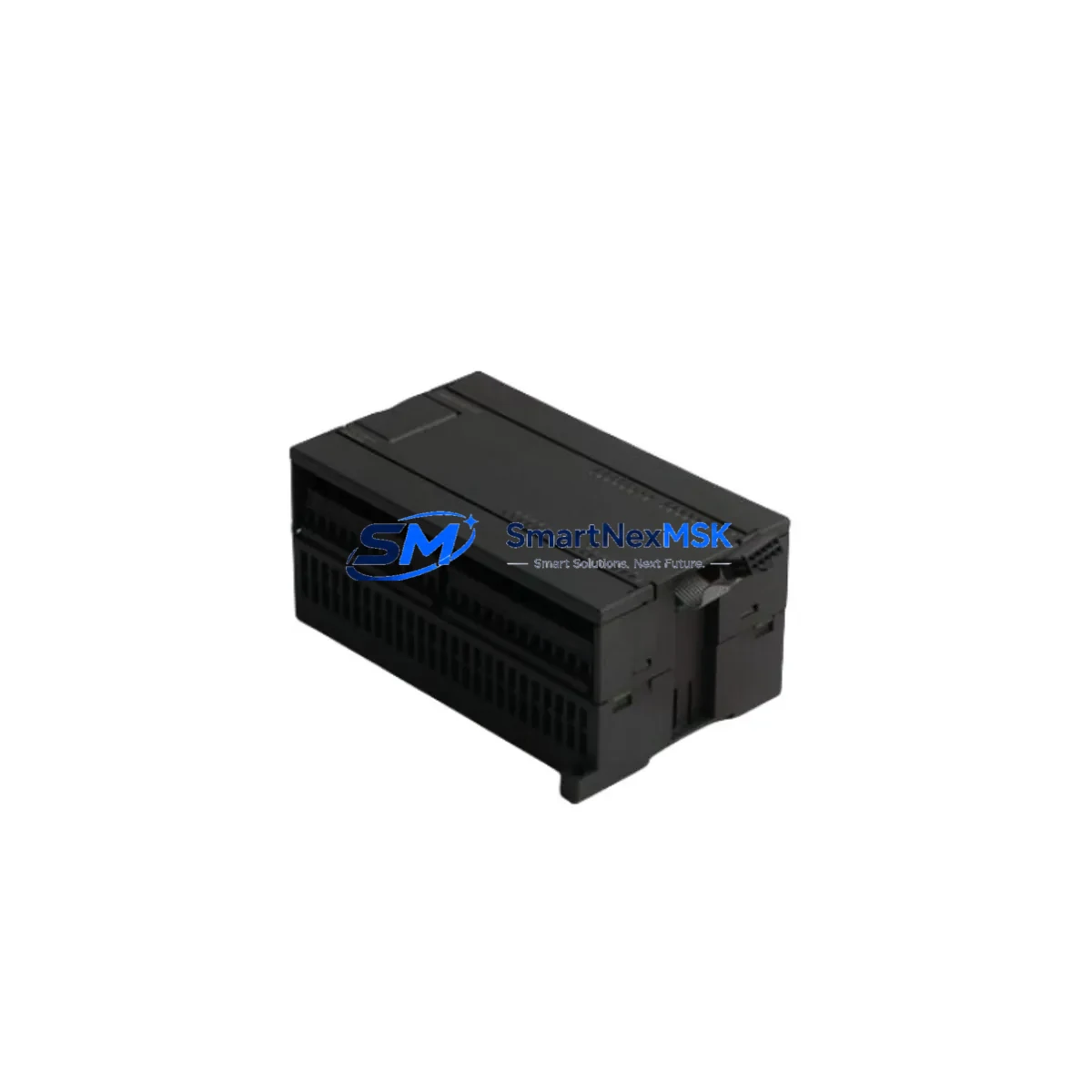

EACH A-87.213.010-5541367626 Retrofit-Ready Control Board for Cerberus Control Systems
The EACH A-87.213.010-5541367626 is a retrofit-ready fire safety control board engineered for seamless integration into legacy Cerberus fire detection and suppression control systems. As original Cerberus platform components reach end-of-life and spare parts become increasingly scarce, this board provides a verified, drop-in compatible upgrade path that preserves existing panel wiring, zone logic, and alarm output configurations — minimizing engineering rework and on-site downtime.
Whether you are managing a planned system modernization, responding to an unplanned board failure, or executing a phased control cabinet upgrade across multiple facilities, the A-87.213.010-5541367626 is stocked and ready for immediate dispatch. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Cerberus Fire Safety Control Series |
| Replaces / Supersedes | Legacy Cerberus control boards (discontinued OEM part) |
| Backplane Interface | Standard Cerberus backplane connector — no adapter required |
| Communication Protocol | Compatible with existing Cerberus loop and panel bus architecture |
| Power Supply Requirement | Verify panel PSU capacity before installation; confirm 24 VDC rail stability |
| Terminal Wiring | Existing field wiring reusable; confirm terminal pitch and polarity before reconnection |
| Module Address | Set via DIP switch or jumper — match original board address to avoid zone conflicts |
| Program Compatibility | Existing panel logic and zone mapping retained; no re-programming required in standard replacement |
| HMI / Operator Panel | Compatible with existing Cerberus operator interface and annunciator displays |
| Installation Type | Direct board swap; rack/DIN-rail mounting per original specification |
| Pre-Shipment Testing | Full functional test completed on every unit |
| Warranty | 12 Months — manufacturing defects and operational failure under normal use |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the A-87.213.010-5541367626 into an operational Cerberus fire safety panel requires careful pre-installation planning across several system layers. Begin by auditing the existing Cerberus power supply module to confirm that the 24 VDC bus can sustain the replacement board’s current draw alongside all connected loop cards and I/O modules. Insufficient PSU headroom is one of the most common causes of post-retrofit instability.
Next, document all terminal block wiring on the outgoing board before disconnection. Cerberus panels typically use a structured terminal strip layout for zone inputs, fault outputs, sounder circuits, and relay contacts. Photograph or sketch the wiring before removal, and verify that the replacement board’s terminal pitch matches the existing field cable terminations. In many legacy installations, the Cerberus loop interface card and zone expansion module remain in service alongside the new control board — confirm that these peripheral modules are still within their own service life before closing the cabinet.
For panels integrated with a Cerberus graphic annunciator or remote repeater panel, verify that the communication link between the main control board and the annunciator remains intact after the swap. Some older Cerberus annunciator models use a proprietary RS-485 or panel bus protocol that must be re-initialized after a board replacement. Similarly, if the panel is networked to a building management system (BMS) via a Cerberus network interface module, confirm that the network node address and polling parameters are correctly restored after commissioning.
Where the existing installation includes a Cerberus repeater controller or a secondary mimic panel, test all remote indication circuits after the board swap to confirm that alarm, fault, and isolate signals are correctly propagated. If the system uses a Cerberus printer interface module for event logging, verify that the event log output resumes correctly after the replacement board is initialized. Finally, confirm that the Cerberus programming cable and associated configuration software can communicate with the new board before closing the panel — this is essential for any post-retrofit parameter verification or zone label updates.
Downtime Control During System Migration
Minimizing downtime during a Cerberus control board replacement requires a structured, pre-planned approach. Before any work begins, obtain a full backup of the existing panel configuration — including zone assignments, delay timers, output relay mappings, and cause-and-effect logic. Most Cerberus panels support configuration export via the panel’s programming port; use the appropriate Cerberus configuration tool to capture this data before the board is removed.
Schedule the physical board swap during a planned maintenance window, coordinating with the facility’s fire safety officer and, where required, the local authority having jurisdiction (AHJ). Arrange for temporary fire watch coverage during the period when the panel is de-energized, in accordance with local fire code requirements. The actual board swap — disconnecting field wiring, removing the old board, seating the replacement A-87.213.010-5541367626, and reconnecting terminals — typically takes 30 to 90 minutes for a trained technician familiar with the Cerberus platform.
After power-up, perform a full zone walk-test to confirm that all detector loops, manual call points, sounder circuits, and suppression outputs respond correctly. Verify that the panel’s event log is recording correctly and that all remote monitoring links — including any Cerberus central monitoring interface — are re-established before returning the system to normal service. Document the completed retrofit with a commissioning record, including the replacement board’s serial number, test results, and technician sign-off, to support future maintenance and warranty claims.
Retrofit Support FAQ
Q1: Is the A-87.213.010-5541367626 a direct drop-in replacement for the original Cerberus board?
In the majority of standard Cerberus panel configurations, yes. The board uses the same backplane connector and terminal layout as the original OEM part. However, we recommend verifying the panel model and existing board revision against the replacement specification sheet before installation, particularly for older panel variants with non-standard backplane configurations.
Q2: Will I need to re-program the panel after replacing the board?
In most cases, no. If the original panel configuration is intact and the replacement board is set to the same module address as the outgoing unit, the panel will resume normal operation without re-programming. If the configuration has been lost or the panel requires re-initialization, the existing configuration backup (exported prior to the swap) can be re-loaded via the Cerberus programming port.
Q3: What pre-shipment testing is performed on each unit?
Every A-87.213.010-5541367626 unit undergoes a full functional test prior to dispatch, including power-on verification, communication interface check, and I/O output validation. Units that do not pass testing are not shipped. A test record is available upon request for quality assurance documentation purposes.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and operational failures arising under normal service conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or unauthorized modification. Warranty claims are supported by our technical team; contact us with the unit serial number and a description of the fault for rapid assessment and replacement processing.
