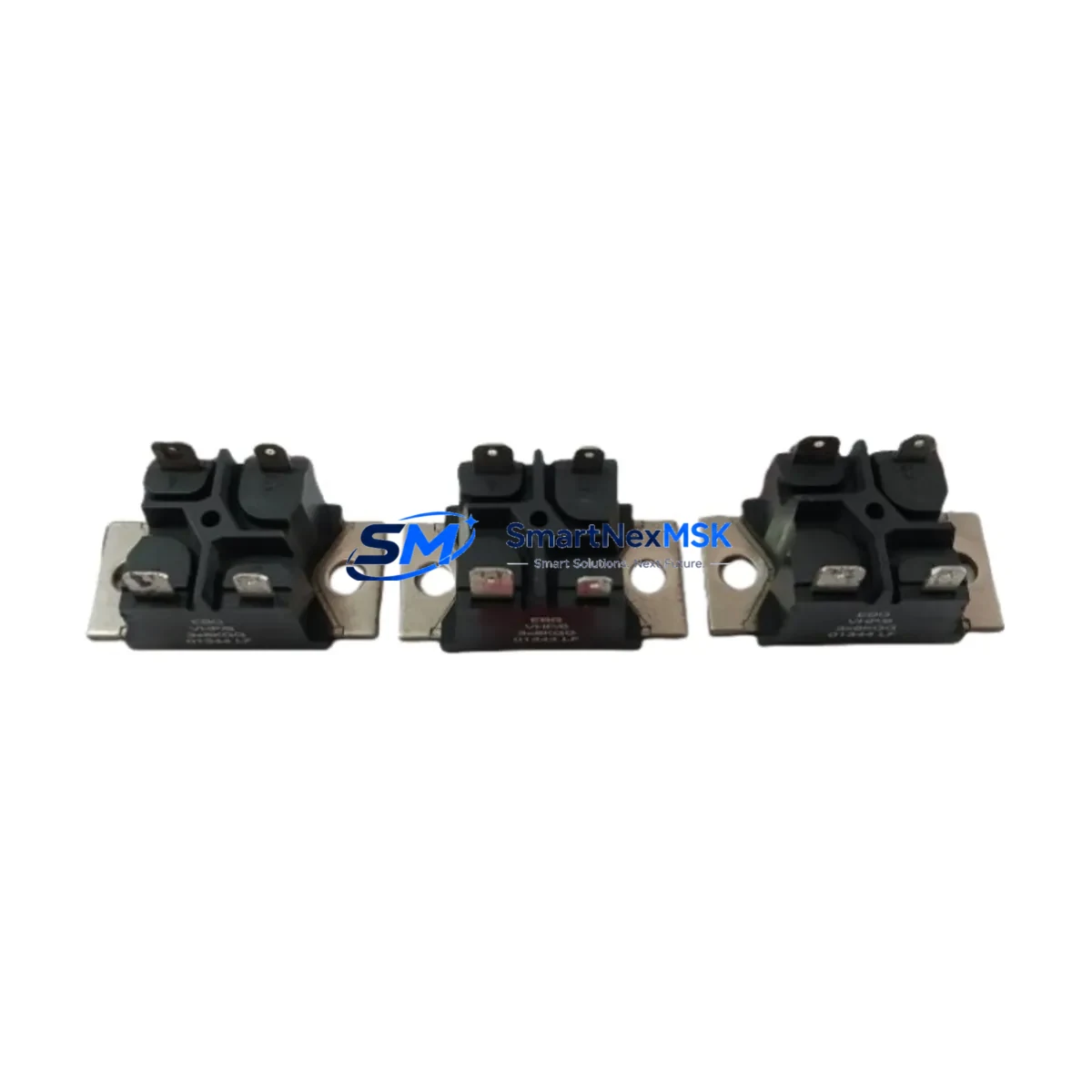

EBG VHP/2 15R G120L Retrofit-Ready Braking Resistor

EBG VHP/2 15R G120L Retrofit-Ready Braking Resistor: Compatible Modernization for VHP/2 Series Control Systems

The EBG VHP/2 15R G120L is a high-performance braking resistor engineered for retrofit and direct replacement applications within VHP/2 Series drive and motion control systems. With a resistance value of 15Ω and a continuous power rating matched to the G120L frame size, this unit is a proven solution for engineers managing legacy drive upgrades, control cabinet modernization, and system-level energy dissipation requirements. Whether you are replacing a failed unit on an aging production line or executing a planned upgrade of a Siemens SINAMICS G120L or equivalent VHP/2-compatible drive platform, the EBG VHP/2 15R G120L delivers the electrical and mechanical compatibility needed to minimize engineering risk and reduce commissioning time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the EBG VHP/2 15R G120L into an existing control system requires a structured retrofit assessment. Before removing the failed or end-of-life resistor, engineers should document the current cabinet layout, including the position of the braking chopper module, the DC bus connection points, and the thermal management arrangement — particularly if the cabinet houses a Siemens SINAMICS G120L power module alongside a CU240E-2 or CU250S-2 control unit.

Power supply verification is a critical first step. Confirm that the 24 VDC SITOP PSU100S or equivalent control power supply feeding the drive’s control electronics is stable and within specification before beginning any wiring work. An unstable control supply during resistor replacement can trigger fault codes that corrupt drive parameter sets.

Terminal wiring must be cross-referenced against the original schematic. The VHP/2 15R G120L connects to the drive’s braking chopper output terminals (typically labeled R+ and R- or B+ and B- depending on the drive variant). Confirm conductor sizing, ferrule type, and terminal torque values. If the cabinet also contains a PM240-2 power module or a PM250 regenerative module, verify that the braking resistor circuit is correctly isolated from the regenerative feedback path.

For systems where the drive communicates over PROFINET IO or PROFIBUS DP — for example, where a Siemens S7-1500 PLC or S7-300 CPU controls the drive via a CP 343-1 or PROFINET interface module — no changes to the communication configuration are required when replacing a passive braking resistor. However, if the retrofit is part of a broader migration from a legacy S7-200 or S7-300 platform to a newer S7-1500 or ET 200SP distributed I/O architecture, the opportunity should be taken to audit the drive’s parameter set and update the telegram type if required.

I/O expansion considerations are also relevant in multi-axis retrofit projects. If the control cabinet includes a SIMATIC ET 200SP HA or ET 200M I/O station managing digital outputs to contactors, safety relays, or motor starters alongside the drive, ensure that the braking resistor replacement does not affect the cabinet’s thermal load balance. Adequate spacing and airflow around the VHP/2 15R G120L is essential, particularly in high-duty-cycle deceleration applications.

For HMI integration, if the system uses a SIMATIC HMI TP700 Comfort or KTP900 Basic panel connected to the drive via the control unit’s onboard Ethernet port, no screen reconfiguration is required for a like-for-like resistor replacement. However, if the retrofit involves a drive firmware upgrade alongside the resistor change, verify that the HMI project’s drive faceplates and alarm tags remain consistent with the updated drive parameter structure.

Programming cable access — via a standard USB-to-MPI/DP adapter or a PROFINET-connected PG/PC — should be arranged before commissioning to allow parameter backup, fault log review, and post-replacement functional testing. All units supplied by SMARTNEXMSK are pre-tested and shipped with a 12-month warranty covering manufacturing defects under normal operating conditions.

Downtime Control During System Migration

Minimizing production downtime during a braking resistor replacement or broader drive retrofit is a primary concern for plant engineers. The EBG VHP/2 15R G120L supports a rapid swap-out process when the following preparation steps are completed in advance.

First, perform a full parameter backup of the drive using STARTER, Startdrive, or the drive’s onboard memory card slot before any hardware is disturbed. This ensures that the motor data set, ramp times, braking chopper thresholds, and fieldbus telegram configuration can be restored immediately if a fault occurs during commissioning. For drives connected to a Siemens S7-1500 controller via PROFINET, the drive’s GSD file and hardware configuration in TIA Portal should also be exported and archived.

Second, prepare the replacement unit and all associated consumables — including correctly rated cable lugs, ferrules, and thermal interface materials if applicable — before the planned maintenance window begins. Having the EBG VHP/2 15R G120L physically staged and pre-inspected eliminates delays caused by parts verification during the outage.

Third, use the drive’s safe torque off (STO) function or the upstream circuit breaker to isolate the drive safely before disconnecting the braking resistor terminals. Do not rely solely on the drive’s software enable signal. After replacement, perform a controlled test deceleration at reduced load before returning the axis to full production speed. Monitor the drive’s r0026 (DC bus voltage) and r0037 (power unit temperature) parameters during the first production cycle to confirm stable operation.

With proper preparation, a like-for-like EBG VHP/2 15R G120L replacement can typically be completed within a single planned maintenance shift, preserving the original program logic, HMI configuration, and fieldbus addressing without modification.

Retrofit Support FAQ

Q1: Is the EBG VHP/2 15R G120L a direct replacement for the original unit, or are wiring modifications required?
The VHP/2 15R G120L is designed as a direct replacement for the original EBG unit of the same SKU. Terminal layout and resistance value are identical. However, always verify the terminal torque specification and conductor cross-section against your original wiring diagram before installation, as cabinet-specific wiring practices may vary.

Q2: How do I verify compatibility with my existing drive before ordering?
Confirm the drive model (e.g., SINAMICS G120L PM240L power module), the braking chopper module rating, and the DC bus voltage level. The braking resistor must be rated for the drive’s maximum DC bus voltage and the application’s duty cycle. Contact SMARTNEXMSK with your drive nameplate data and we will confirm compatibility before shipment.

Q3: What pre-shipment testing is performed on each unit?
Each EBG VHP/2 15R G120L unit supplied by SMARTNEXMSK undergoes resistance value verification and insulation integrity testing prior to dispatch. A test report is available on request. All units are covered by a 12-month warranty against manufacturing defects under normal operating conditions.

Q4: Can this resistor be used in a system that is being migrated from a legacy drive platform to a newer architecture?
Yes. The EBG VHP/2 15R G120L is a passive component and is compatible with any drive platform that specifies a 15Ω braking resistor for the G120L frame size. It is commonly used in retrofit projects where the drive electronics are being upgraded while the motor, cabling, and cabinet structure are retained. Confirm the new drive’s braking chopper output specification matches the resistor’s power and resistance ratings before commissioning.
