ELCO EB100P38-P6PR-1024 Safety-Enhanced Encoder for Harsh Sites

ELCO EB100P38-P6PR-1024 Safety-Enhanced Incremental Encoder for Harsh Industrial Sites

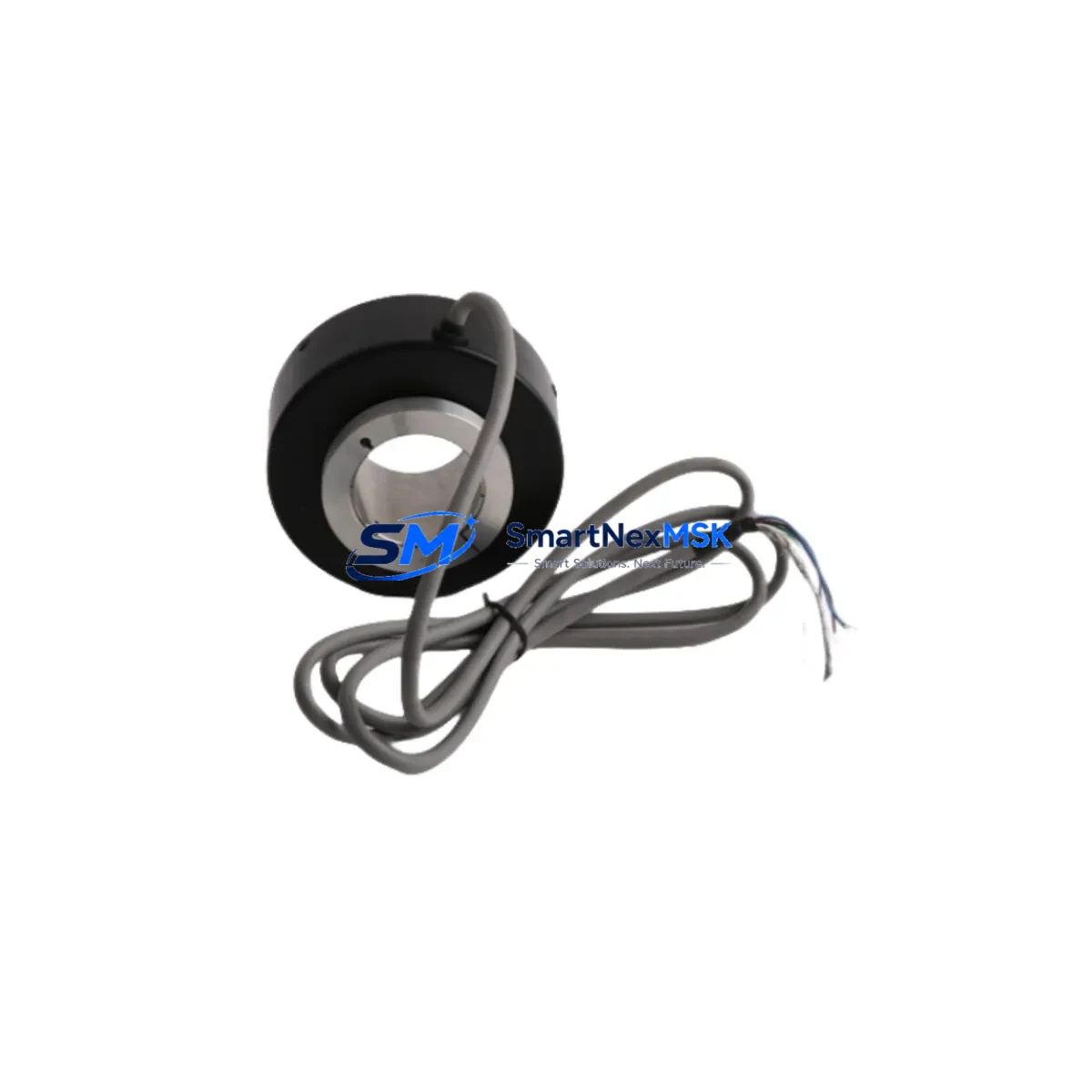

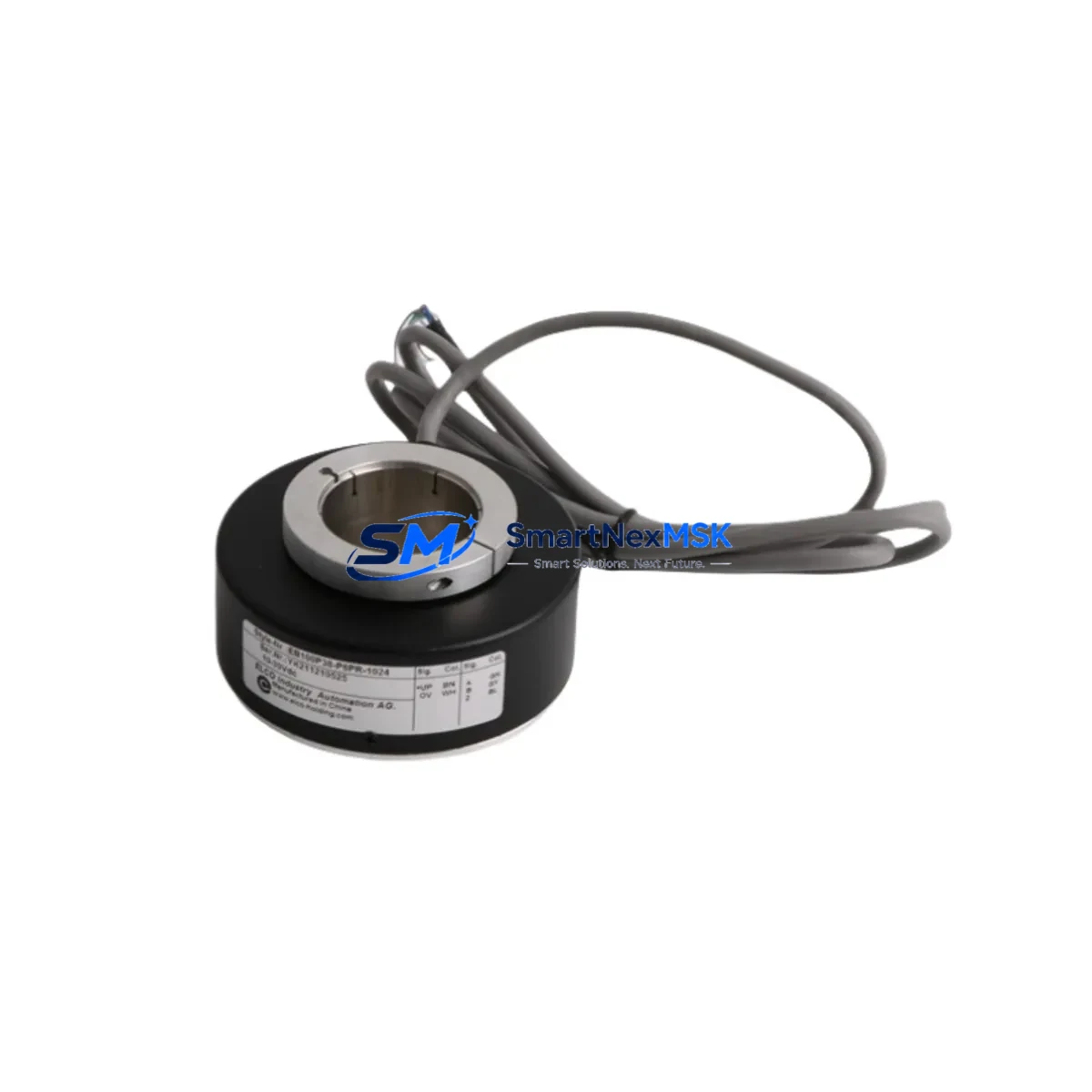

The ELCO EB100P38-P6PR-1024 is a ruggedized incremental rotary encoder engineered for mission-critical industrial automation environments where control loop integrity, signal accuracy, and continuous uptime are non-negotiable. Built on ELCO’s proven EB100 Series platform, this encoder delivers 1024 pulses per revolution (PPR) with push-pull complementary output, housed in a robust 38 mm flange body rated to IP67 — making it fully resistant to dust ingress and temporary water immersion. For industrial sites operating under high mechanical load, persistent electromagnetic interference, or extreme thermal cycling, the EB100P38-P6PR-1024 provides the positional feedback reliability that safety-critical control systems demand.

Safety Reliability Table

Control Cabinet Protection Strategy

In high-density industrial control cabinets — particularly those managing servo drives, variable frequency drives (VFDs), or multi-axis motion controllers — encoder signal integrity is the first line of defense against positional drift and unplanned shutdowns. The ELCO EB100P38-P6PR-1024 integrates directly with leading PLC platforms including Siemens S7-1500 and S7-300 series controllers via high-speed counter modules such as the Siemens FM350-1 or SM 1221 DC digital input modules, ensuring clean pulse capture even in electrically noisy environments.

To protect the encoder’s signal chain from surge events and conducted EMI, it is standard practice to install Phoenix Contact TRABTECH surge protection devices on the encoder supply line, alongside shielded twisted-pair encoder cables with proper grounding at the cabinet entry point. When the EB100P38-P6PR-1024 is deployed in motion control loops alongside Siemens SINAMICS G120 or SINAMICS S120 drive systems, the push-pull complementary output ensures differential signal transmission that actively rejects common-mode noise — a critical advantage in cabinets where VFD switching transients can reach several hundred volts per microsecond.

For safety interlock circuits and emergency stop (E-stop) logic, the encoder’s positional output is often cross-referenced with Pilz PNOZ safety relays or Sick safety controllers to validate machine state before permitting restart. In distributed control architectures, the encoder signal may be conditioned through Pepperl+Fuchs signal isolators or Weidmüller ACT20P signal converters before entering the PLC’s high-speed counter input, eliminating ground loop interference that could cause false position readings. Power supply stability for the encoder circuit is typically maintained by a dedicated MEAN WELL DR-60-24 DIN-rail 24 VDC SMPS, isolated from the main drive power bus to prevent voltage sag during motor start events.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In rotating equipment monitoring for compressors, pumps, and agitators, the EB100P38-P6PR-1024 provides continuous shaft position feedback to DCS platforms such as Honeywell Experion PKS or Emerson DeltaV. Its IP67 sealing prevents hydrocarbon vapor and wash-down fluids from compromising the sensing element, while its wide operating temperature range accommodates the thermal extremes common in outdoor refinery installations.

Power Generation & Utilities: Turbine governor control systems and boiler feed pump drives rely on precise speed feedback to maintain grid synchronization and prevent overspeed trips. The encoder’s high output frequency (up to 100 kHz) and vibration resistance (≥20g) make it suitable for direct mounting on turbine auxiliary shafts where mechanical vibration is constant and signal dropout is unacceptable.

Mining & Mineral Processing: Conveyor belt speed control, crusher drive positioning, and hoist brake management in underground and open-cut mining operations demand encoders that survive shock loads, coal dust, and high-humidity conditions. The EB100P38-P6PR-1024’s IP67 rating and anodized aluminum housing provide the mechanical and environmental resilience required for continuous 24/7 operation in these conditions.

Water & Wastewater Treatment: Pump station automation and sluice gate positioning systems benefit from the encoder’s corrosion-resistant construction and reliable pulse output, enabling accurate flow control and preventing overflow events in critical municipal infrastructure.

Metallurgy & Steel Mills: Rolling mill drive systems, ladle crane positioning, and continuous casting line speed control require encoders capable of withstanding radiated heat, electromagnetic interference from large induction furnaces, and mechanical shock from mill stand vibration. The EB100P38-P6PR-1024’s robust push-pull output maintains signal integrity across long cable runs to remote PLC panels.

Port & Heavy Logistics: Container crane hoist and trolley positioning systems, ship loader conveyors, and automated stacking cranes use incremental encoders for precise load positioning. The EB100 Series encoder’s high shaft speed rating and complementary output support the fast, repetitive positioning cycles characteristic of port automation without signal degradation over time.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ELCO EB100P38-P6PR-1024?
All units are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, premature output failure, and housing integrity issues under normal operating conditions. Warranty claims are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every EB100P38-P6PR-1024 undergoes outgoing quality inspection including pulse output verification at rated speed, supply voltage range testing, and physical inspection of the shaft, flange, and cable/connector assembly. Units are shipped with test documentation available upon request.

Q3: Is the EB100P38-P6PR-1024 a direct drop-in replacement for other EB100 Series variants?
Yes. The EB100 Series uses a standardized 38 mm flange and consistent mechanical interface across resolution variants. If you are replacing an existing EB100 encoder with a different PPR rating, only the PLC counter module scaling parameter requires adjustment — no mechanical modification is needed. Please confirm your existing wiring pinout before installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
We maintain dedicated stock of the EB100P38-P6PR-1024 and key EB100 Series variants to support planned maintenance schedules, emergency replacements, and annual spare parts procurement programs. For sites requiring guaranteed buffer stock or blanket order arrangements, please contact our sales team to discuss a supply agreement tailored to your maintenance cycle.
