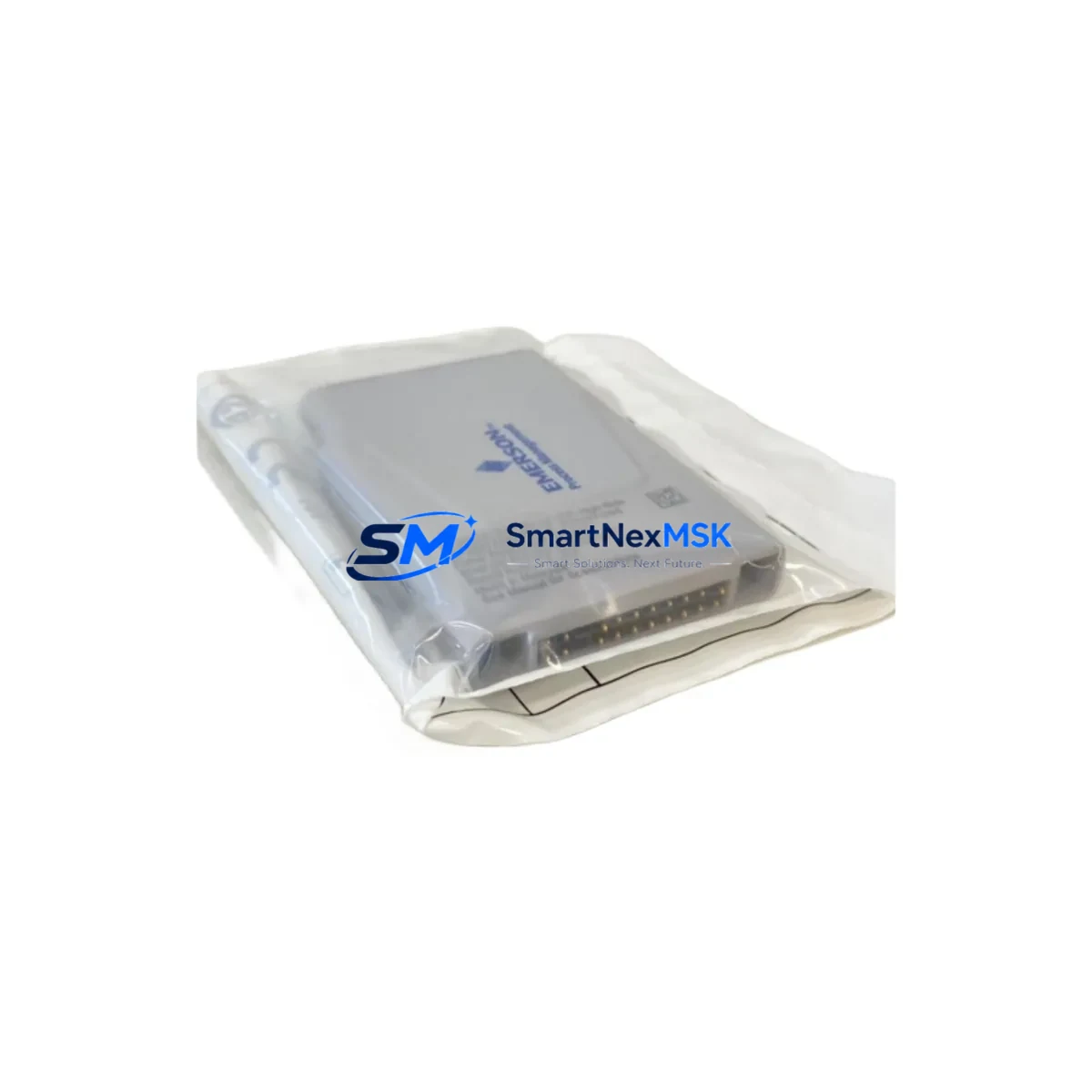

In continuous process industries — from petrochemical complexes and power generation plants to water treatment facilities and metallurgical operations — unplanned control system downtime is never an option. The Emerson 12P4627X082 is a 24VDC High-Side Digital Output Module designed for the DeltaV distributed control system platform, serving as a critical field interface between the DCS controller and final control elements such as solenoid valves, motor starters, and relay-driven actuators. Maintaining a verified, tested spare of this module in your site inventory is one of the most cost-effective strategies a maintenance engineer can implement to protect against unscheduled shutdowns.

The 12P4627X082 integrates directly into DeltaV S-series and M-series I/O subsystems, occupying a standard I/O card slot on the DeltaV carrier assembly. Its high-side switching architecture provides reliable 24VDC sourcing output to field devices, with per-channel diagnostics that report open-load, short-circuit, and over-temperature faults back to the DeltaV operator workstation in real time. This diagnostic transparency is essential for maintenance teams conducting routine control cabinet inspections and fault isolation during planned turnarounds.

When sourcing a replacement 12P4627X082, procurement engineers should simultaneously review the condition of associated components within the same I/O enclosure. The DeltaV I/O carrier or terminal block assembly that hosts this module should be inspected for corrosion, loose terminal connections, and mechanical wear. The 24VDC field power supply — typically a dedicated DeltaV Power Supply module or an equivalent Emerson KJ3221X1-BA1 power conditioner — should be load-tested to confirm it can sustain the full output channel current demand after the new module is installed. Overlooking power supply degradation is a common cause of premature module failure in high-density I/O cabinets.

From a signal integrity standpoint, the field wiring connected to the 12P4627X082 output channels should be verified for insulation resistance and continuity before commissioning the replacement module. In environments with significant electromagnetic interference — such as those near variable frequency drives, large motor control centers, or high-voltage switchgear — the use of shielded field cables and proper grounding of cable shields at the cabinet entry point is strongly recommended. If the application involves safety-critical interlock outputs, the associated safety relay modules and their wiring should be tested as part of the same maintenance window.

For DeltaV systems running redundant controller configurations, the 12P4627X082 replacement procedure should be coordinated with the DeltaV system administrator to ensure the I/O subsystem remains in a known state during the swap. The DeltaV Electronic Marshalling architecture, where applicable, may also involve reviewing the CHARM I/O module assignments and verifying that the replacement module’s firmware revision is compatible with the active DeltaV system version. Keeping a record of the installed firmware baseline is a best practice that simplifies future replacements and audit compliance.

Beyond the immediate replacement, a well-structured spare parts strategy for DeltaV-based control systems should include buffer stock of complementary modules. Maintenance planners typically co-stock the 12P4627X082 alongside DeltaV Digital Input modules such as the KJ3002X1-BA1, analog output modules, and communication interface cards that share the same I/O bus. Having these components available on-site eliminates the lead time risk associated with sourcing obsolete or long-delivery-cycle DCS components during an emergency shutdown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for a DeltaV control system cabinet housing the 12P4627X082 should address the full signal chain from the DCS controller to the field device. During a planned inspection or module replacement, maintenance engineers should systematically verify the following associated components to prevent cascading failures and ensure a clean return to service.

The DeltaV Controller module (such as the MD Plus or SD Plus controller) that governs the I/O subsystem should be checked for firmware currency and memory utilization. Excessive controller loading can mask I/O communication errors that appear as module faults. Adjacent to the controller, the DeltaV I/O Bus Extender or CIOC (Controller I/O Card) connections should be inspected for secure seating and absence of corrosion on the backplane connectors.

The 24VDC field power distribution assembly — including fused terminal blocks, DIN rail-mounted circuit breakers, and the primary power supply module — must be load-tested. A degraded power supply that delivers nominal voltage under light load may sag under the full current demand of eight active output channels, causing intermittent field device actuation failures that are difficult to diagnose without proper instrumentation.

Signal isolation barriers and Zener safety barriers or galvanic isolators installed between the DCS output and intrinsically safe field devices in hazardous areas should be tested for correct voltage clamping and current limiting performance. These components are often overlooked during routine maintenance but are critical for both personnel safety and module protection in Zone 1 or Zone 2 classified areas.

The field terminal strips and marshalling cabinet wiring connected to the 12P4627X082 output channels should be inspected for terminal torque, insulation condition, and correct labeling. In older installations, terminal block corrosion or loose connections are a primary cause of intermittent output faults that are incorrectly attributed to the I/O module itself. Replacing aged Phoenix Contact or Weidmüller terminal blocks as part of the same maintenance window is a cost-effective practice that extends the service life of the entire I/O assembly.

For facilities with Emerson DeltaV SIS (Safety Instrumented System) integration, the logic solver I/O modules and their associated safety relay output assemblies should be verified for correct proof-test status. The 12P4627X082, while a standard DCS output module, may drive pre-actuators or pilot valves that feed into safety-rated final elements, making its reliable operation a prerequisite for SIS functional integrity.

Site Replacement Workflow

Replacing the Emerson 12P4627X082 on an active DeltaV system requires a disciplined, step-by-step approach to minimize downtime and avoid introducing new faults during the maintenance window. The following workflow reflects best practices for DCS I/O module hot-swap or cold-swap replacement in industrial environments.

Step 1 — Pre-Replacement Verification: Confirm the replacement 12P4627X082 part number and revision level match the installed module. Check the DeltaV system’s module database to verify firmware compatibility. If the system is running an older DeltaV version, confirm that the replacement module’s hardware revision is backward-compatible.

Step 2 — Field Device Isolation: Place all field devices connected to the output channels in a safe state. For solenoid valves and motor starters, coordinate with the process operator to confirm that de-energizing the outputs will not create a process hazard. Use the DeltaV operator workstation to force outputs to a safe state before physically removing the module.

Step 3 — Module Removal and Inspection: Remove the faulty 12P4627X082 from the I/O carrier. Inspect the carrier connector pins for damage or contamination. Clean the connector with appropriate contact cleaner if necessary. Inspect the field wiring terminal connections for security and correct labeling.

Step 4 — Replacement Module Installation: Insert the new 12P4627X082 into the carrier slot. The DeltaV system will automatically recognize the module and download the I/O configuration. Verify that the module status LED indicates normal operation and that no diagnostic alarms are active in the DeltaV operator workstation.

Step 5 — Functional Test and Return to Service: Perform a channel-by-channel functional test by commanding each output from the DeltaV workstation and verifying field device response. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

This workflow applies equally to legacy DeltaV installations where the 12P4627X082 may be replacing an older revision module. The DeltaV platform’s backward-compatible I/O architecture ensures that newer hardware revisions can replace older ones without requiring controller configuration changes in most cases, significantly reducing the engineering effort associated with emergency replacements.

Spare Parts Support FAQ

Q1: What warranty does the 12P4627X082 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing and visual inspection prior to shipment. A test report is available upon request.

Q2: How do I verify compatibility with my DeltaV system version?
The 12P4627X082 is compatible with DeltaV S-series and M-series I/O subsystems across multiple DeltaV software versions. To confirm compatibility with your specific system revision, provide your DeltaV controller model and software version to our technical team. We will cross-reference the module hardware revision against Emerson’s compatibility matrix before shipment.

Q3: Can this module replace an older revision of the same part number?
In most cases, yes. Emerson maintains backward hardware compatibility within the DeltaV I/O platform. However, if your system is running a very early DeltaV version, a firmware check may be required. Our team can advise on revision compatibility based on your installed system details.

Q4: What is your long-term supply commitment for this part?
SMARTNEXMSK maintains ongoing inventory of DeltaV spare modules including the 12P4627X082 to support customers with long-lifecycle DCS installations. We source from verified supply channels and can support blanket order arrangements for customers requiring guaranteed stock availability over multi-year maintenance contracts.
