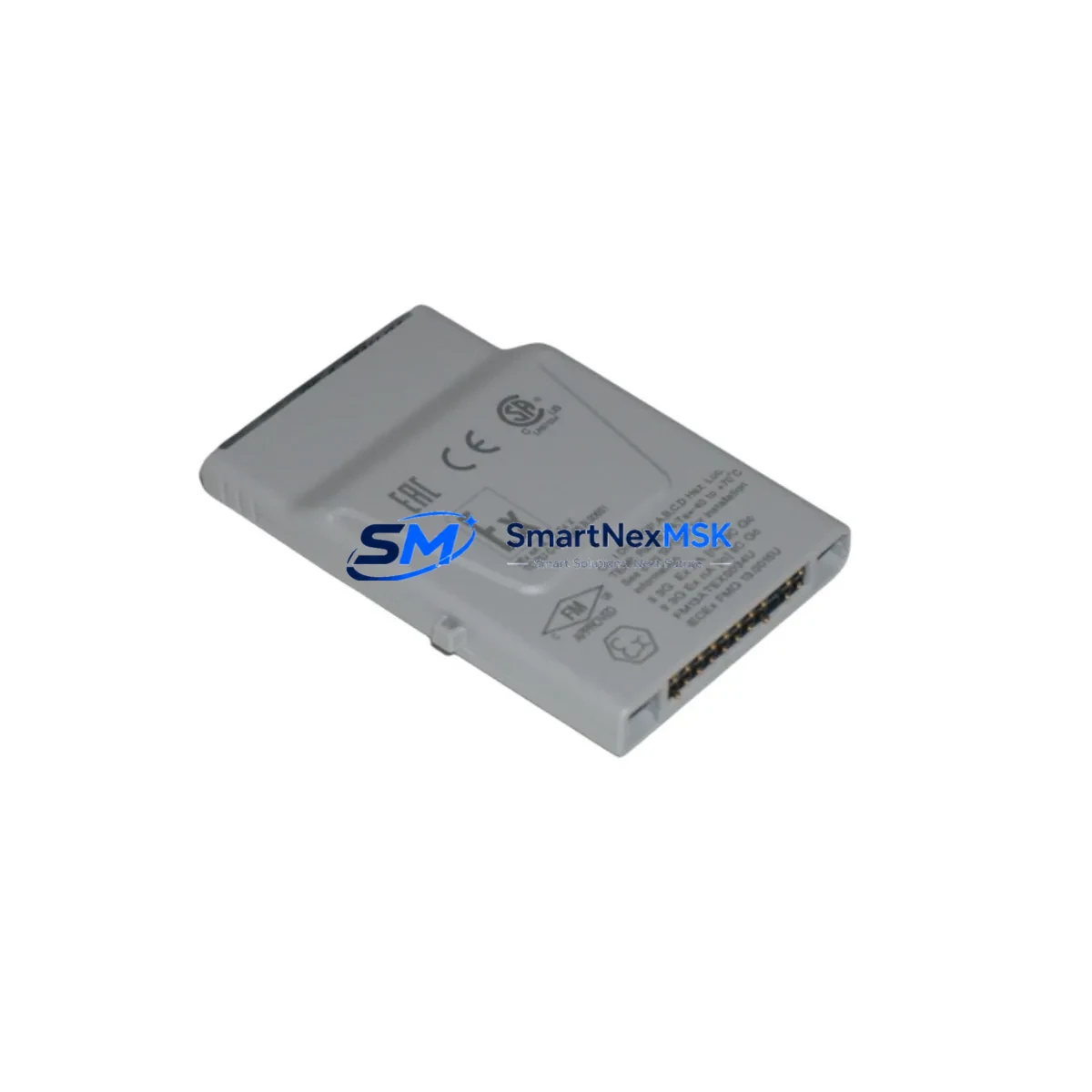

Emerson 12P4629X082 Maintenance-Ready Spare for DeltaV CHARM Automation
The Emerson 12P4629X082 is an original DeltaV CHARM (CHARacterization Module) terminal block designed for field-side I/O wiring in Emerson’s DeltaV distributed control system architecture. As a critical interface component between field instruments and CHARM I/O cards, this terminal block is a high-priority spare for any maintenance engineer managing continuous process operations. Unplanned failure of this component can interrupt signal integrity across an entire I/O channel, leading to process shutdowns, false alarms, or loss of control loop visibility. Stocking a verified original 12P4629X082 ensures your maintenance team can execute rapid replacement and restore normal operation with minimal downtime.
This spare is sourced as an original Emerson part, fully tested prior to shipment, and backed by a 12-month warranty. It is suitable for both planned maintenance rotations and emergency replacement scenarios in DeltaV S-series and CIOC-based control architectures. Whether you are managing a greenfield DeltaV installation or extending the life of an aging control system, the 12P4629X082 provides the wiring interface reliability that industrial maintenance demands.
Spare Maintenance Table
| Part Number | 12P4629X082 |
| Brand | Emerson |
| Series | DeltaV CHARM (CHARacterization Module) |
| Component Type | CHARM Terminal Block / Field Wiring Interface |
| Compatible Systems | DeltaV S-series, CIOC, CHARM I/O Cards |
| Signal Compatibility | AI, AO, DI, DO CHARM modules (per installed CHARM type) |
| Installation | DIN rail mount, snap-fit to CHARM carrier |
| Operating Environment | Industrial control cabinet, Class I Div 2 compatible environments |
| Origin | USA (Emerson Automation Solutions) |
| Condition | Original New / Tested Before Shipment |
| Warranty | 12 Months |
| Maintenance Recommendation | Inspect terminal block seating, wiring terminations, and CHARM carrier alignment during every scheduled I/O cabinet inspection |
| Replacement Trigger | Signal loss, intermittent I/O fault, physical damage to terminal housing, or corrosion on wiring terminals |
Maintenance Planning for Continuous Operation
When replacing the 12P4629X082 terminal block in a DeltaV CHARM I/O system, a thorough maintenance engineer will treat the replacement as an opportunity to inspect the surrounding electrical environment rather than a single-component swap. The CHARM architecture distributes I/O across carriers and CIOC modules, meaning a wiring fault or terminal degradation at one point can cascade into broader diagnostic noise across the control loop.
Begin by verifying the associated CHARM I/O card (such as the AI CHARM or DI CHARM module seated in the same carrier slot) for any indication of channel faults or communication errors logged in DeltaV Diagnostics. Inspect the CHARM carrier assembly for physical damage, oxidation on the carrier contacts, and proper seating of all installed CHARMs. If the terminal block failure was caused by overvoltage or field-side surge, the corresponding signal isolator or surge protection barrier in the marshalling cabinet should be tested and replaced if necessary.
Check the 24 VDC field power supply feeding the CHARM I/O carrier — voltage sag or ripple is a common root cause of intermittent CHARM communication faults. Inspect the power distribution terminal strips and fuse holders in the control cabinet for signs of heat damage or loose connections. If the affected loop involves a 4–20 mA transmitter, verify the field junction box wiring and cable shield continuity back to the marshalling panel.
For DI and DO CHARM channels, inspect the associated relay output modules or interposing relays for contact wear, especially in high-cycle applications such as motor control or valve actuation. Review the CIOC controller module event log for any recurring I/O bus errors that may indicate a deeper carrier or backplane issue beyond the terminal block itself. If the system includes FOUNDATION Fieldbus or HART communication through the same I/O cabinet, verify that the HART multiplexer or FF segment coupler is operating within specification.
Finally, confirm that the DeltaV system software configuration correctly reflects the replaced terminal block’s channel assignment, and perform a loop check before returning the process to automatic control. Maintaining a minimum of two 12P4629X082 units in your on-site spare parts inventory is recommended for any facility running more than 50 CHARM I/O points.
Site Replacement Workflow
Step 1 — Isolate and document: Place the affected DeltaV CHARM channel in manual mode from the DeltaV operator workstation. Document the current field wiring termination assignments from the as-built drawings before disconnecting any wires.
Step 2 — Remove the failed terminal block: Disconnect field wiring from the 12P4629X082 terminal block. Release the terminal block from the CHARM carrier using the appropriate tool. Remove the CHARM module if required for full carrier access.
Step 3 — Inspect the carrier and adjacent components: Before installing the replacement, inspect the CHARM carrier contacts, the adjacent CHARM modules, and the field wiring for any signs of damage, corrosion, or insulation breakdown that may have contributed to the failure.
Step 4 — Install the replacement 12P4629X082: Snap the new terminal block into the CHARM carrier. Reconnect field wiring per the documented termination schedule. Verify correct torque on all screw terminals to prevent future intermittent faults.
Step 5 — Verify and return to service: Perform a live loop check from the field instrument to the DeltaV controller. Confirm signal reading in DeltaV Diagnostics. Return the channel to automatic control and monitor for 15–30 minutes before closing the work order.
This workflow is compatible with hot-swap replacement procedures supported by the DeltaV CHARM architecture, allowing replacement without full system shutdown in most configurations — a key advantage for continuous process industries such as oil and gas, chemical, and power generation.
Spare Parts Support FAQ
Q: Is the 12P4629X082 compatible with all DeltaV CHARM carrier types?
A: The 12P4629X082 is designed for use with Emerson DeltaV CHARM carriers in S-series and CIOC-based architectures. Compatibility depends on the specific CHARM carrier generation installed in your system. We recommend confirming your carrier part number against Emerson’s CHARM compatibility matrix before ordering. Our technical team can assist with compatibility verification prior to shipment.
Q: What testing is performed before shipment?
A: Every 12P4629X082 unit is functionally tested prior to shipment to verify terminal integrity, mechanical fit, and electrical continuity. Units are inspected for physical damage, oxidation, and dimensional conformance to Emerson specifications. A test report is available upon request for quality-critical applications.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, premature failure under normal operating conditions, and any functional non-conformance identified upon installation. Warranty claims are supported by our technical team with replacement or full refund options. The warranty period begins from the date of shipment.
Q: How quickly can the 12P4629X082 be shipped for emergency maintenance situations?
A: We maintain stock of the 12P4629X082 for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for international express shipment. For emergency shutdown recovery situations, contact our sales team directly to arrange priority handling and expedited freight.
