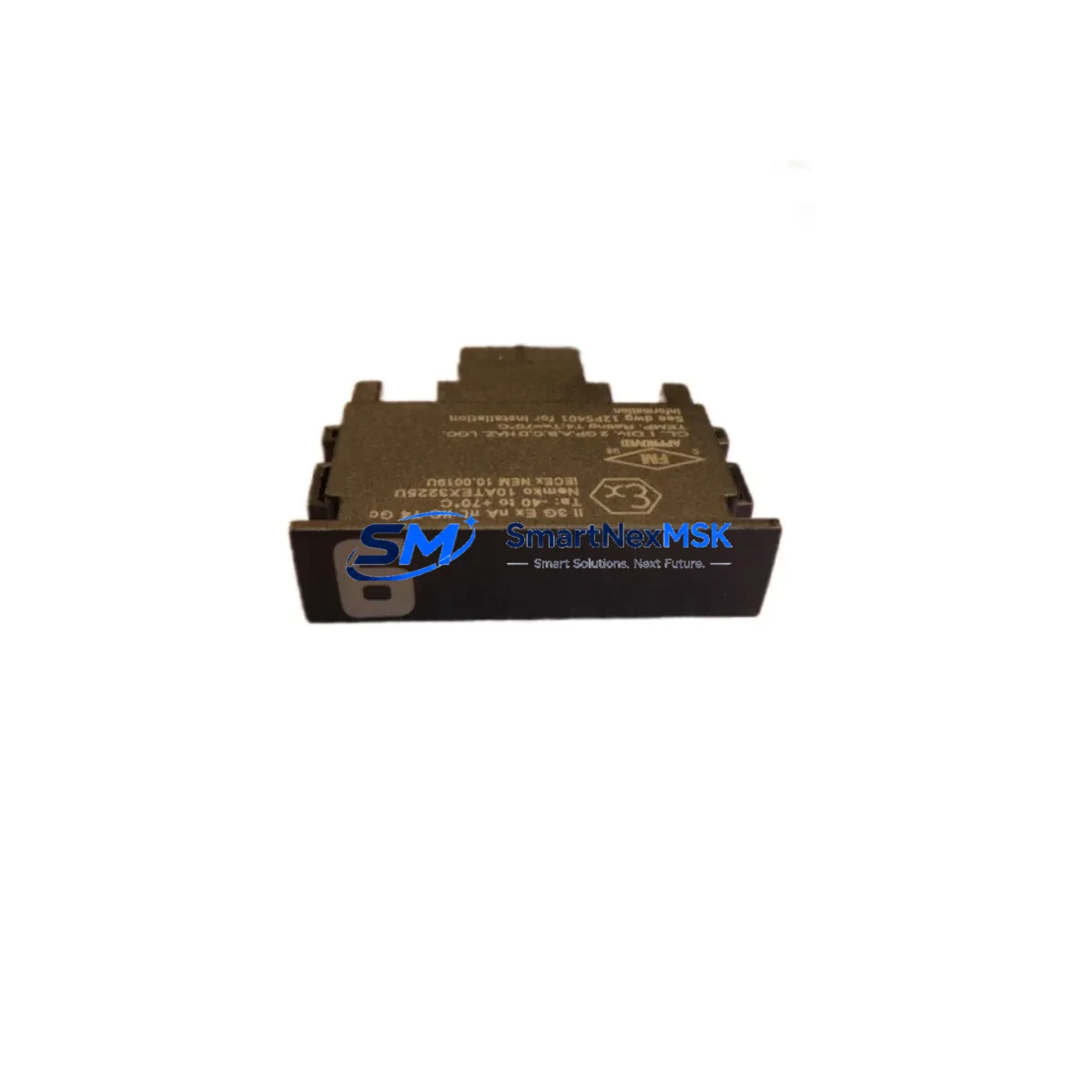

The Emerson 12P4983X302 is an original Address Plug Module designed for use within the Emerson DeltaV distributed control system (DCS) architecture. In continuous process industries — including petrochemical refining, power generation, water treatment, and metallurgical operations — the address plug is a small but mission-critical component. It physically encodes the node address of I/O subsystem hardware, ensuring that each controller, I/O carrier, or marshalling cabinet component is correctly identified on the DeltaV fieldbus network. A missing, damaged, or incorrectly configured address plug can result in node recognition failures, controller communication loss, or complete I/O subsystem dropout — all of which translate directly into unplanned downtime and production interruption.

For maintenance engineers managing aging DeltaV installations, the 12P4983X302 is a standard item on any responsible spare parts list. Whether you are conducting a scheduled annual shutdown inspection, responding to an emergency fault isolation event, or building a proactive spare parts inventory for a remote facility, having this address plug in stock eliminates a common and avoidable delay in system restoration. Its compact form factor and plug-in installation design allow for rapid field replacement without specialized tooling, making it ideal for fast-turnaround maintenance scenarios where every minute of downtime carries significant operational cost.

When replacing the 12P4983X302 in the field, experienced maintenance teams know that the address plug does not operate in isolation. A thorough inspection of the surrounding DeltaV hardware is always recommended. The I/O carrier or subsystem backplane that hosts the address plug — such as the DeltaV S-series or M-series I/O carrier assemblies — should be checked for physical damage, corrosion on connector pins, and secure seating. The associated DeltaV controller module, which reads the node address encoded by the plug, should be verified for firmware compatibility and communication health. Power supply modules feeding the I/O subsystem, including redundant 24 VDC power conditioners and bus isolators, should be inspected for output stability and load capacity.

Beyond the immediate hardware, a complete maintenance review should also cover the DeltaV CHARM I/O modules installed in the same marshalling cabinet. Components such as the 12P4627X072 CHARM terminal block and associated CIOC (CHARM I/O Controller) modules are part of the same electronic marshalling ecosystem and should be confirmed as fully seated and fault-free. Signal wiring integrity at the terminal blocks, including shield continuity and correct polarity on analog input channels, is another common source of intermittent faults that surface during address plug replacement events. Surge protection devices on field signal cables entering the cabinet should also be inspected, as transient events that damage address plugs often affect nearby protection components simultaneously.

For procurement engineers, the 12P4983X302 represents a low-cost, high-impact spare that protects a disproportionately large investment in DeltaV infrastructure. A single address plug failure that grounds a DeltaV controller node can take an entire process unit offline. Maintaining a minimum stock of two to three units per DeltaV installation — particularly for facilities operating multiple I/O subsystems across geographically distributed marshalling rooms — is a widely accepted best practice in DCS lifecycle management. SMARTNEXMSK maintains ready stock of the 12P4983X302 and related DeltaV spare components, with each unit individually tested prior to shipment and covered by a 12-month warranty against manufacturing defects and functional failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective DeltaV maintenance planning treats the 12P4983X302 address plug as part of a broader I/O subsystem health strategy. When scheduling a planned inspection or responding to a node communication alarm, maintenance teams should simultaneously assess the condition of the DeltaV I/O carrier assembly that houses the address plug, verifying that all module slots are correctly populated and that no carrier fault LEDs are active. The CIOC (CHARM I/O Controller) module governing the affected subsystem should be checked for active diagnostics in DeltaV Explorer, and its firmware version confirmed against the site’s approved baseline.

Power integrity is a frequent root cause of address plug and node communication issues. The 24 VDC bulk power supply modules feeding the marshalling cabinet — often Emerson or third-party DIN-rail mounted units — should be load-tested and output ripple verified. Redundant power feed diodes and bus bars within the cabinet should be inspected for heat damage or loose terminations. Inline fuse holders and circuit protection devices on the DC distribution rail are consumable items that should be part of every annual inspection checklist.

On the signal side, CHARM I/O modules such as analog input CHARMs, discrete output CHARMs, and temperature input CHARMs installed in the same marshalling cabinet should be confirmed as communicating normally with the CIOC. Any CHARM showing a fault or offline status during an address plug replacement event should be investigated concurrently rather than deferred, as intermittent faults in one module often indicate environmental stress — moisture ingress, vibration, or thermal cycling — that affects neighboring modules. Signal isolators and intrinsic safety barriers on hazardous-area field loops should also be verified for correct operation, as these components sit between the CHARM I/O and field instruments and can mask or amplify signal anomalies.

For facilities running DeltaV with PROFIBUS or FOUNDATION Fieldbus segments, the fieldbus segment coupler and associated termination resistors should be inspected whenever I/O subsystem maintenance is performed. Communication module health, including the DeltaV Fieldbus Interface Module (FIM) or PROFIBUS interface card, should be confirmed via DeltaV Diagnostics before returning the subsystem to service. HMI workstations connected to the DeltaV application station should also be verified for alarm display continuity after any controller node maintenance to ensure that no suppressed alarms remain active post-restoration.

Site Replacement Workflow

Replacing the Emerson 12P4983X302 in a live DeltaV installation follows a structured workflow designed to minimize downtime and eliminate configuration errors. Before removing the existing address plug, the maintenance engineer should document the current node address setting — typically a numeric value from 1 to 15 — by referencing the DeltaV hardware configuration in DeltaV Explorer or the site’s as-built documentation. This step is critical: installing a replacement plug with an incorrect address will cause the I/O subsystem to appear as an unrecognized or duplicate node on the DeltaV network, triggering controller faults and potentially affecting adjacent subsystems.

With the correct address confirmed, the replacement 12P4983X302 should be pre-set to the matching address value before installation. The plug is then inserted into the designated slot on the I/O carrier or subsystem chassis, ensuring full engagement of the connector. After installation, the DeltaV controller should be monitored in DeltaV Operate or DeltaV Explorer for node recognition confirmation, typically indicated by the subsystem returning to an online and communicating state within 30 to 60 seconds. Any persistent fault indication after this period warrants further investigation of the carrier assembly, controller module, or network cabling.

For sites managing multiple DeltaV versions — including legacy DeltaV v10 or v11 installations alongside newer v14 or v15 systems — the 12P4983X302 address plug maintains backward compatibility across DeltaV hardware generations, making it a reliable replacement option for both current and older I/O subsystem configurations. SMARTNEXMSK can provide technical confirmation of compatibility for specific site configurations upon request prior to order placement.

Spare Parts Support FAQ

Q1: What warranty does the Emerson 12P4983X302 carry?
Every 12P4983X302 shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of delivery. This warranty covers functional failure and manufacturing defects under normal operating conditions. Units that fail within the warranty period are replaced or refunded promptly, with no requirement to return the failed unit in advance of receiving the replacement.

Q2: How is each unit tested before shipment?
Each 12P4983X302 undergoes functional verification prior to dispatch. Testing confirms that the address encoding mechanism operates correctly and that the connector interface meets the physical and electrical specifications required for DeltaV I/O carrier compatibility. A test record is maintained for each unit and can be provided upon request.

Q3: Is the 12P4983X302 compatible with all DeltaV I/O subsystem generations?
The 12P4983X302 is compatible with Emerson DeltaV S-series and M-series I/O carrier assemblies, as well as Electronic Marshalling (CHARM) infrastructure that uses the same node addressing convention. For sites with highly customized or legacy DeltaV configurations, SMARTNEXMSK recommends providing the DeltaV hardware version and I/O carrier model number for compatibility confirmation before ordering.

Q4: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains ongoing stock of the 12P4983X302 and related DeltaV spare components to support planned maintenance programs, annual shutdown schedules, and emergency replacement requirements. Blanket order arrangements and reserved stock agreements are available for facilities with high-volume or time-critical spare parts needs. Contact our team to discuss a tailored supply arrangement for your site.

—
