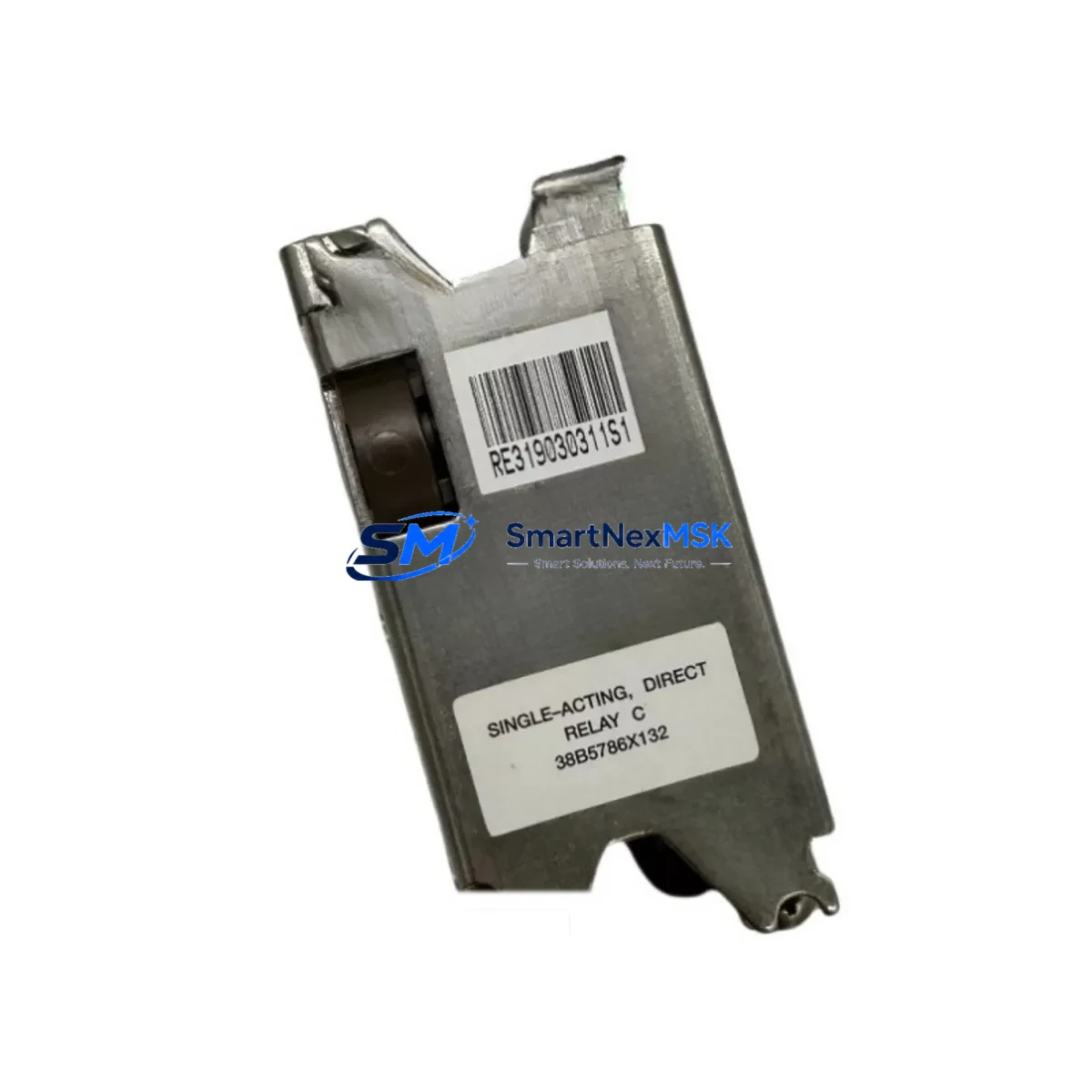

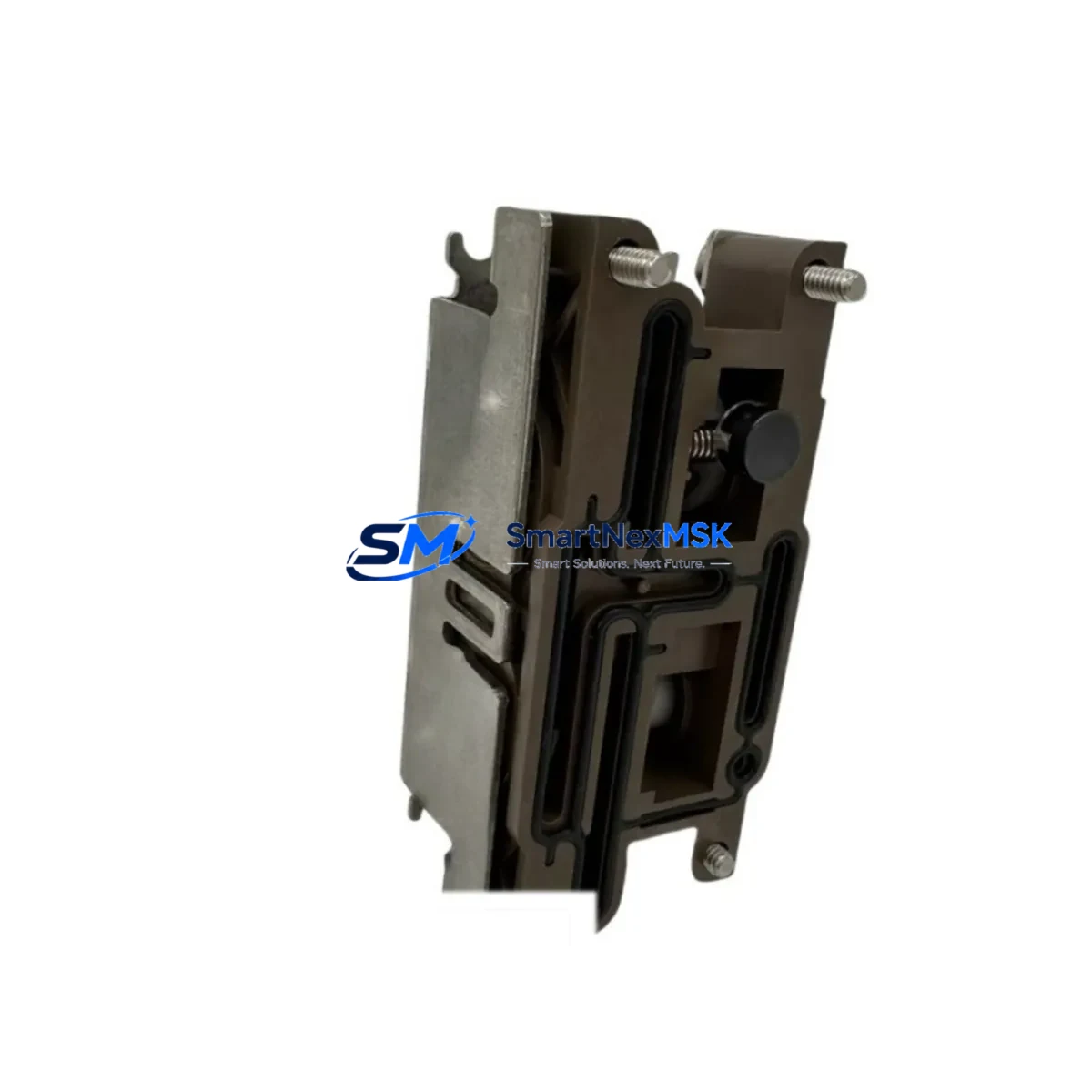

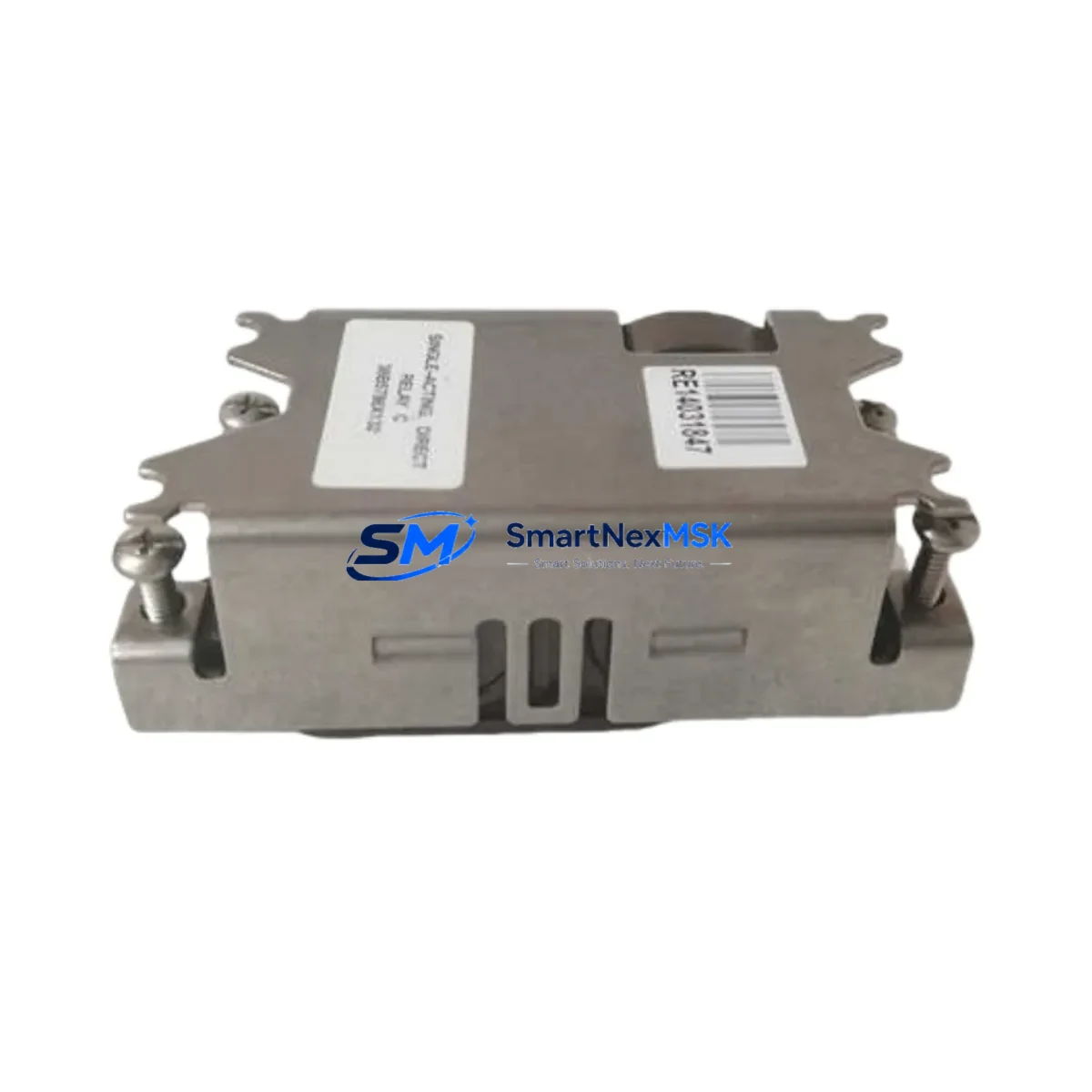

Emerson 38B5786X132 Safety-Enhanced Pneumatic Relay for Harsh Industrial Sites

Emerson 38B5786X132 Safety-Enhanced Pneumatic Relay for Harsh Industrial Sites

The Emerson 38B5786X132 is a ruggedized pneumatic relay engineered for deployment in the most demanding industrial control environments. Designed as a precision pilot amplifier for Fisher 3582 and Fisher 3610 valve positioners, this module plays a critical role in maintaining stable, uninterrupted pneumatic signal transmission across high-load, high-interference, and continuous-production facilities. Whether installed in a petrochemical control cabinet, a power generation interlock loop, or a mining automation panel, the 38B5786X132 delivers the signal fidelity and mechanical durability that safety-critical valve control demands.

In harsh industrial sites — where ambient vibration, temperature cycling, moisture ingress, and electromagnetic interference are constant threats — pneumatic relay performance directly determines whether a control loop holds or fails. The 38B5786X132 is built to resist these stressors. Its robust internal diaphragm assembly maintains accurate output pressure even under fluctuating supply conditions, preventing the signal drift and relay chatter that can cascade into valve misoperation, process upsets, or unplanned shutdowns. For facilities operating under IEC 61511 functional safety requirements or ISA-84 safety instrumented system (SIS) standards, this relay provides the mechanical reliability that underpins loop integrity.

Surge events and power transients are among the leading causes of pneumatic instrument failure in heavy industrial environments. The 38B5786X132’s sealed construction and precision-machined body protect internal components from pressure spikes and contamination, reducing the risk of spurious trips or loss of control signal in critical valve actuator circuits. When paired with a Fisher 3582 positioner mounted on a globe or rotary control valve, this relay ensures that the positioner’s output faithfully tracks the controller’s 3–15 psi or 6–30 psi command signal — even during process upsets or rapid load changes.

Field reliability is further supported by the relay’s compatibility with the broader Fisher and Emerson valve automation ecosystem. In a typical control cabinet or field junction box, the 38B5786X132 operates alongside components such as the Fisher 3582G positioner, Fisher 3610J electro-pneumatic positioner, Emerson DVC6200 digital valve controller, and Fisher 667 actuator. These components share common pneumatic supply headers and instrument air systems, meaning that relay integrity directly affects the performance of the entire valve assembly. Instrument air quality — maintained by upstream coalescing filters and regulators such as the Fisher 67CFR filter regulator — is equally critical; the 38B5786X132 is rated for clean, dry instrument air per ISA 7.0.01, and proper upstream filtration ensures long service life.

In safety instrumented systems and emergency shutdown (ESD) circuits, the 38B5786X132 may serve as the final pneumatic amplification stage before a shutdown valve actuator. In these applications, relay response time and output stability are non-negotiable. The module’s low hysteresis and consistent gain characteristics ensure that ESD commands are transmitted to the actuator without delay or attenuation — a requirement in facilities where valve response time is a key parameter in the safety integrity level (SIL) calculation. Complementary SIS components in the same loop may include Emerson ASCO solenoid valves for de-energize-to-trip logic, Rosemount 3051 pressure transmitters for process variable monitoring, and Fisher 377 trip valves for pneumatic logic control.

For facilities managing continuous production — refineries, LNG terminals, pulp and paper mills, water treatment plants, and steel manufacturing lines — the cost of an unplanned shutdown far exceeds the cost of maintaining a qualified spare parts inventory. Stocking the Emerson 38B5786X132 as a critical spare ensures that positioner relay failures can be rectified within a single maintenance window, without waiting for extended lead times from OEM channels. Our inventory is pre-tested, serialized, and shipped with full documentation to support your maintenance management system (CMMS) records and spare parts governance protocols.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet strategy for valve automation in hazardous or continuous-process environments requires more than a single reliable component — it demands a coordinated assembly of protection, control, power, and communication elements. The Emerson 38B5786X132 relay anchors the pneumatic signal chain within the positioner assembly, but its effectiveness depends on the integrity of surrounding systems.

On the pneumatic supply side, a Fisher 67CFR filter regulator or equivalent coalescing filter-regulator unit should be installed upstream of the positioner to ensure clean, regulated instrument air reaches the relay. Pressure fluctuations or contaminated air are primary causes of diaphragm wear and relay drift. A Fisher 377 pneumatic trip valve or Emerson ASCO Series 327 solenoid valve in the supply line provides the de-energize-to-trip capability required in ESD applications, ensuring that the relay and positioner assembly defaults to a safe state on loss of signal or power.

On the electrical and signal side, the Emerson DVC6200 digital valve controller or Fisher 3610J electro-pneumatic positioner converts the 4–20 mA control signal from the DCS or safety PLC into a pneumatic output that drives the relay. Surge protection devices — such as MTL or Pepperl+Fuchs Zener barriers or galvanic isolators — should be installed in the signal wiring to protect the positioner’s I/P converter from transient overvoltages originating in the field. A Rosemount 3051 differential pressure transmitter monitoring the process variable upstream of the control valve provides the feedback signal that closes the control loop, enabling the DCS to detect and correct any valve positioning error before it escalates into a process deviation.

For communication and diagnostics, HART-enabled positioners in the same cabinet can be monitored via a Emerson AMS Device Manager or equivalent asset management system, allowing maintenance teams to trend relay wear indicators and schedule predictive replacements before failures occur. This integrated approach — combining the 38B5786X132 relay with upstream filtration, surge protection, solenoid trip valves, digital positioners, and process transmitters — forms a complete, defense-in-depth control cabinet protection strategy for safety-critical valve automation.

Critical Industrial Safety Applications

The Emerson 38B5786X132 pneumatic relay is deployed across a wide range of heavy industrial sectors where valve control reliability is directly linked to process safety and regulatory compliance.

In petrochemical and refinery applications, this relay supports control valves on distillation column overhead systems, reactor feed lines, and flare header pressure control loops — environments where valve failure can result in overpressure events, flammable releases, or loss of containment. In power generation facilities, it is used in steam turbine bypass valve positioners and boiler feedwater control loops, where precise, lag-free pneumatic response is essential to maintaining drum level and steam pressure within safe operating limits.

In mining and mineral processing operations, the relay’s vibration resistance and wide operating temperature range make it suitable for slurry control valves, flotation cell level control, and crusher bypass systems — applications where ambient conditions are extreme and maintenance access is infrequent. Water and wastewater treatment facilities rely on this relay in chemical dosing valve positioners and effluent flow control loops, where consistent valve positioning ensures regulatory compliance with discharge limits.

In metallurgical and steel manufacturing plants, the 38B5786X132 supports cooling water control valves, furnace atmosphere control, and ladle transfer systems — high-temperature, high-vibration environments where relay durability directly affects product quality and worker safety. Port and terminal automation systems use this relay in loading arm control valves and tank farm pressure management, where safe, reliable valve operation is mandated by international maritime and hazardous materials handling regulations.

Across all these applications, the common requirement is a pneumatic relay that performs consistently over extended service intervals, supports rapid field replacement when needed, and is backed by a supplier with verified stock and documented quality assurance processes.

Safety and Quality FAQ

Q1: What warranty does the Emerson 38B5786X132 carry?
All units are covered by a 12-month warranty from the date of shipment. If a unit fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. Warranty claims are supported by our technical team with documented failure analysis upon request.

Q2: How is each unit tested before shipment?
Every 38B5786X132 relay undergoes functional inspection and pressure response verification prior to dispatch. Units are checked for diaphragm integrity, port cleanliness, and dimensional conformance to Fisher OEM specifications. Shipment documentation includes inspection records to support your incoming quality control process.

Q3: Is this relay compatible with both Fisher 3582 and Fisher 3610 positioners?
Yes. The 38B5786X132 is a direct replacement relay for both the Fisher 3582 series (spring-and-diaphragm actuator positioners) and the Fisher 3610 series (piston actuator positioners). Always verify the relay port configuration and supply pressure rating against your specific positioner model before installation. Our technical team can assist with compatibility confirmation.

Q4: Can you guarantee long-term supply for maintenance and spare parts programs?
Yes. We maintain standing inventory of the Emerson 38B5786X132 and related Fisher positioner components to support planned maintenance shutdowns, turnaround events, and emergency replacements. For facilities requiring guaranteed supply agreements or blanket purchase orders, please contact our sales team to discuss stocking arrangements tailored to your maintenance schedule.
