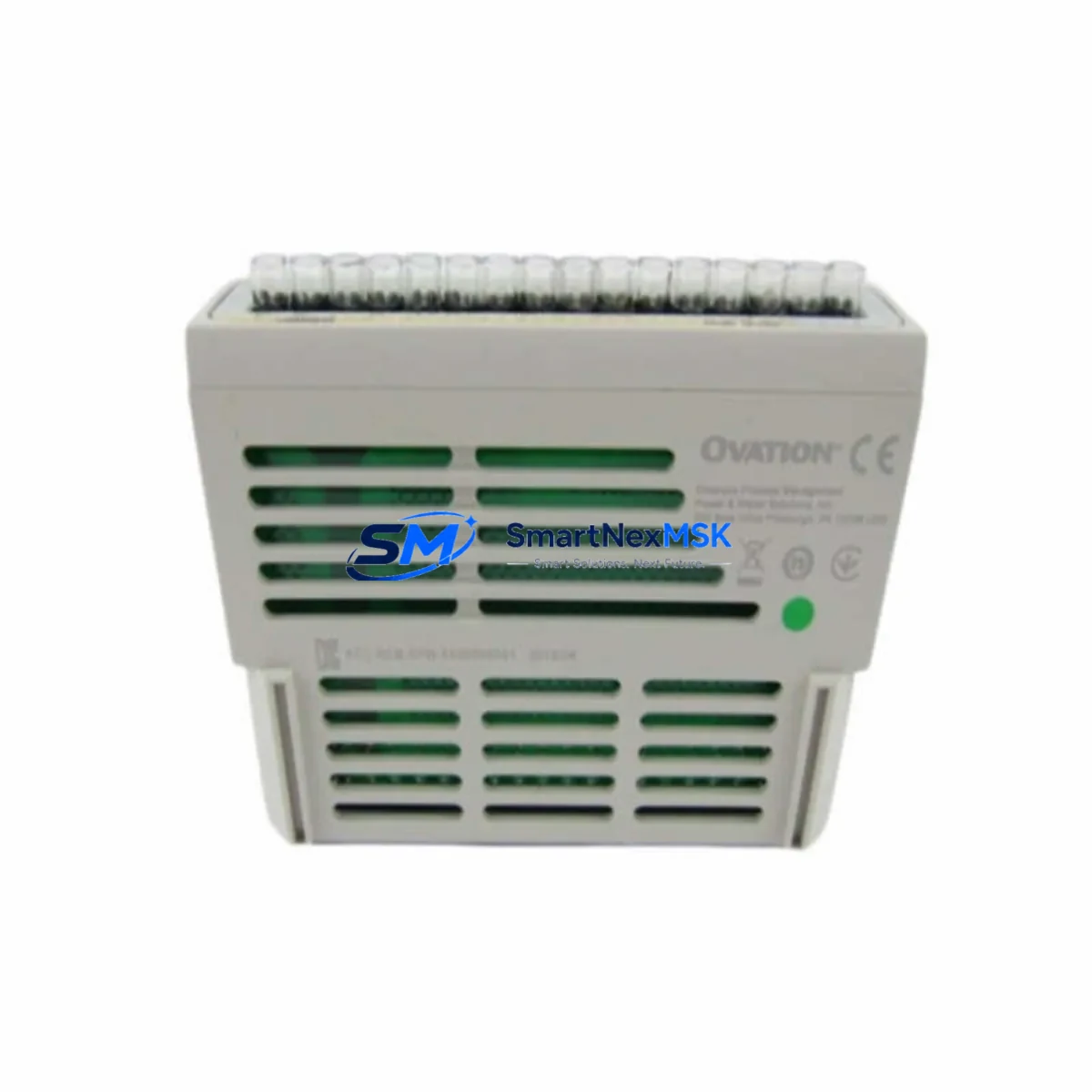

Emerson 5X00034G01 Safety-Enhanced DCS Input Module

Emerson 5X00034G01 Safety-Enhanced DCS Input Module: Reliable Control in Harsh Industrial Sites

The Emerson 5X00034G01 is a ruggedized DCS input module engineered for mission-critical distributed control system architectures operating in the most demanding industrial environments. Designed to integrate seamlessly within Emerson’s Ovation and DeltaV platforms, this module delivers consistent, high-integrity signal acquisition across continuous production facilities where control interruption is not an option. Whether deployed in a petrochemical refinery, a coal-fired power plant, a mineral processing facility, or a water treatment command center, the 5X00034G01 provides the signal fidelity and environmental resilience that safety-critical operations demand.

In high-load industrial control cabinets, input modules are the first line of defense against signal degradation. The 5X00034G01 is built to resist signal drift caused by electromagnetic interference (EMI) and radio-frequency interference (RFI) — common threats in environments with large variable-frequency drives, high-voltage switchgear, and heavy motor loads. Its isolated input channels prevent ground loops and cross-channel contamination, ensuring that field sensor data reaching the controller remains accurate and uncompromised even under severe electrical noise conditions.

Power supply fluctuations represent one of the most underestimated risks in industrial control systems. The 5X00034G01 incorporates internal surge and transient protection circuitry that shields the module from voltage spikes and power line disturbances — events that can cause module mis-operation, spurious trips, or permanent hardware damage. When paired with a properly specified Emerson Ovation Power Supply Module and a dedicated DC UPS buffer unit, the input module maintains stable operation through momentary power interruptions, protecting the integrity of the entire control loop.

In safety instrumented systems (SIS) and critical interlock circuits, the reliability of every field input directly determines the system’s ability to execute a safe state. The 5X00034G01 supports high-resolution analog input acquisition with tight accuracy tolerances, making it suitable for use in temperature, pressure, flow, and level measurement loops that feed into emergency shutdown (ESD) logic. When integrated alongside Emerson Ovation I/O Termination Assemblies and marshalling panels, the module enables clean, traceable signal paths from field instruments to the controller — a prerequisite for functional safety compliance in IEC 61511 applications.

Communication integrity is equally critical. In distributed architectures where the 5X00034G01 feeds data to an Emerson Ovation Controller Module via the system backplane, any communication anomaly — whether caused by connector wear, backplane noise, or firmware mismatch — can result in stale data, false alarms, or missed process deviations. The module’s robust backplane interface and deterministic scan cycle ensure that process values are updated reliably within the controller’s execution window, supporting real-time safety monitoring without latency-induced blind spots.

For facilities operating under continuous production mandates — refineries, LNG terminals, steel mills, and port automation systems — unplanned downtime carries enormous financial and safety consequences. The 5X00034G01 is designed for hot-swap compatibility within the Ovation I/O subsystem, allowing maintenance teams to replace a faulty module without shutting down the associated control loop. This capability, combined with the module’s compatibility with Emerson Ovation Remote I/O Nodes and field junction boxes, supports a zero-downtime maintenance strategy that keeps critical processes running safely.

Harsh environment performance is a core design criterion. The module operates reliably across a wide ambient temperature range and is rated for high-humidity, dust-laden, and vibration-prone installations — conditions typical of mining headframes, offshore platforms, and heavy metallurgical plants. Its conformal-coated PCB provides additional protection against condensation and corrosive airborne contaminants, extending service life in environments where standard commercial-grade electronics would fail prematurely.

Every Emerson 5X00034G01 unit supplied by SMARTNEXMSK undergoes a comprehensive pre-shipment functional test protocol. Each module is verified for channel accuracy, isolation integrity, communication handshake, and power consumption within specification before dispatch. Units are shipped in anti-static, shock-protected packaging with full traceability documentation. Our inventory is sourced from verified supply chains, and all modules are covered by a 12-month warranty against manufacturing defects and functional failure — giving procurement and maintenance teams the confidence to plan replacements and spare parts strategies without risk.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest component. The Emerson 5X00034G01 is most effective when deployed as part of a coordinated protection architecture. In a typical Ovation-based control cabinet, the module operates alongside an Emerson Ovation Controller Module (5X00070G01), which handles the execution of control logic and communicates with the I/O subsystem via the system backplane. The controller’s deterministic scan cycle depends on timely, accurate data from input modules like the 5X00034G01 — any signal anomaly at the input stage propagates directly into control decisions.

Power integrity is maintained through a dedicated Emerson Ovation Power Supply Module, which provides regulated DC power to the I/O chassis. For facilities with unstable grid power — common in mining, port operations, and heavy manufacturing — supplementing the power supply with a 24VDC UPS buffer module ensures that the input module remains powered through momentary outages, preventing spurious loss-of-signal alarms that could trigger unnecessary process shutdowns.

Signal conditioning begins at the field level. Emerson Ovation I/O Termination Assemblies provide the physical interface between field wiring and the module’s input channels, incorporating terminal blocks, fusing, and signal conditioning components that protect the module from field-side faults. In hazardous area installations, Zener barrier assemblies or galvanic isolators are inserted between the field instrument and the termination assembly to limit energy transfer and prevent ignition in explosive atmospheres — a critical requirement in petrochemical and gas processing facilities.

For communication-intensive architectures, the 5X00034G01 works in concert with Emerson Ovation Remote I/O Node Controllers, which extend the I/O subsystem to field locations without running individual signal cables back to the central control room. This architecture reduces wiring complexity, minimizes signal attenuation over long cable runs, and improves overall system diagnostics. Complementary Emerson DeltaV CHARM I/O modules can be used in parallel DeltaV segments of the same facility, providing a unified control strategy across mixed-platform installations.

Surge protection at the cabinet level is further reinforced by DIN-rail mounted surge protective devices (SPDs) installed on incoming power and signal lines, preventing transient energy from reaching sensitive module electronics. Together, these components form a layered defense strategy that protects the 5X00034G01 and the broader control system from the full spectrum of electrical threats present in harsh industrial environments.

Critical Industrial Safety Applications

Petrochemical & Refining: In crude distillation units, catalytic crackers, and hydrocracker control systems, the 5X00034G01 acquires temperature and pressure signals from field transmitters and feeds them into the Ovation controller for real-time process optimization and emergency shutdown logic. Its isolation and surge protection capabilities are essential in environments where ground potential differences between field instruments and control room equipment can introduce dangerous common-mode voltages.

Power Generation: Coal, gas, and nuclear power plants rely on DCS input modules to monitor boiler drum levels, turbine exhaust temperatures, and generator output parameters. The 5X00034G01’s high-resolution input acquisition and deterministic scan cycle support the tight control tolerances required for safe, efficient power generation. Its compatibility with the Ovation platform — widely deployed in power plant automation — makes it a direct replacement for aging I/O infrastructure without requiring controller reconfiguration.

Mining & Mineral Processing: Conveyor systems, crushers, ball mills, and flotation circuits operate in environments with extreme vibration, dust, and electrical noise. The 5X00034G01’s conformal-coated PCB and robust backplane interface maintain reliable operation in these conditions, supporting continuous monitoring of motor currents, bearing temperatures, and process flow rates that are critical for preventing equipment damage and personnel injury.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use DCS systems to control chemical dosing, filtration, and disinfection processes. The 5X00034G01 provides accurate analog input acquisition for pH, turbidity, chlorine residual, and flow measurements, supporting regulatory compliance and safe drinking water production. Its long-term availability as a spare part ensures that water utilities can maintain system integrity without costly platform migrations.

Metallurgy & Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills generate intense electromagnetic interference that challenges conventional I/O hardware. The 5X00034G01’s EMI-resistant design and isolated input channels maintain signal integrity in these environments, supporting precise temperature control and process sequencing that directly impacts product quality and worker safety.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Emerson 5X00034G01?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a module fails to perform within its specified parameters during the warranty period, SMARTNEXMSK will provide a replacement or repair at no additional cost. Warranty claims are processed with full traceability documentation to support your maintenance records.

Q2: What pre-shipment testing is performed on each unit?
Every Emerson 5X00034G01 unit undergoes a comprehensive functional test before dispatch, including channel accuracy verification, input isolation integrity testing, backplane communication handshake confirmation, and power consumption measurement within specification. Test results are documented and available upon request to support your incoming inspection process.

Q3: Is the 5X00034G01 compatible with both Ovation and DeltaV platforms?
The 5X00034G01 is primarily designed for the Emerson Ovation DCS platform. Compatibility with DeltaV depends on the specific I/O architecture and chassis configuration in your installation. We recommend verifying the module’s compatibility with your system’s I/O chassis and controller firmware version before installation. Our technical team can assist with compatibility assessment based on your system documentation.

Q4: Can SMARTNEXMSK support long-term spare parts supply for this module?
Yes. SMARTNEXMSK maintains ongoing inventory of the Emerson 5X00034G01 and related Ovation I/O modules to support long-term spare parts strategies for facilities with extended maintenance cycles. We provide fast global shipping and can accommodate blanket purchase orders for facilities that require guaranteed stock availability. Contact our sales team to discuss your long-term supply requirements.
