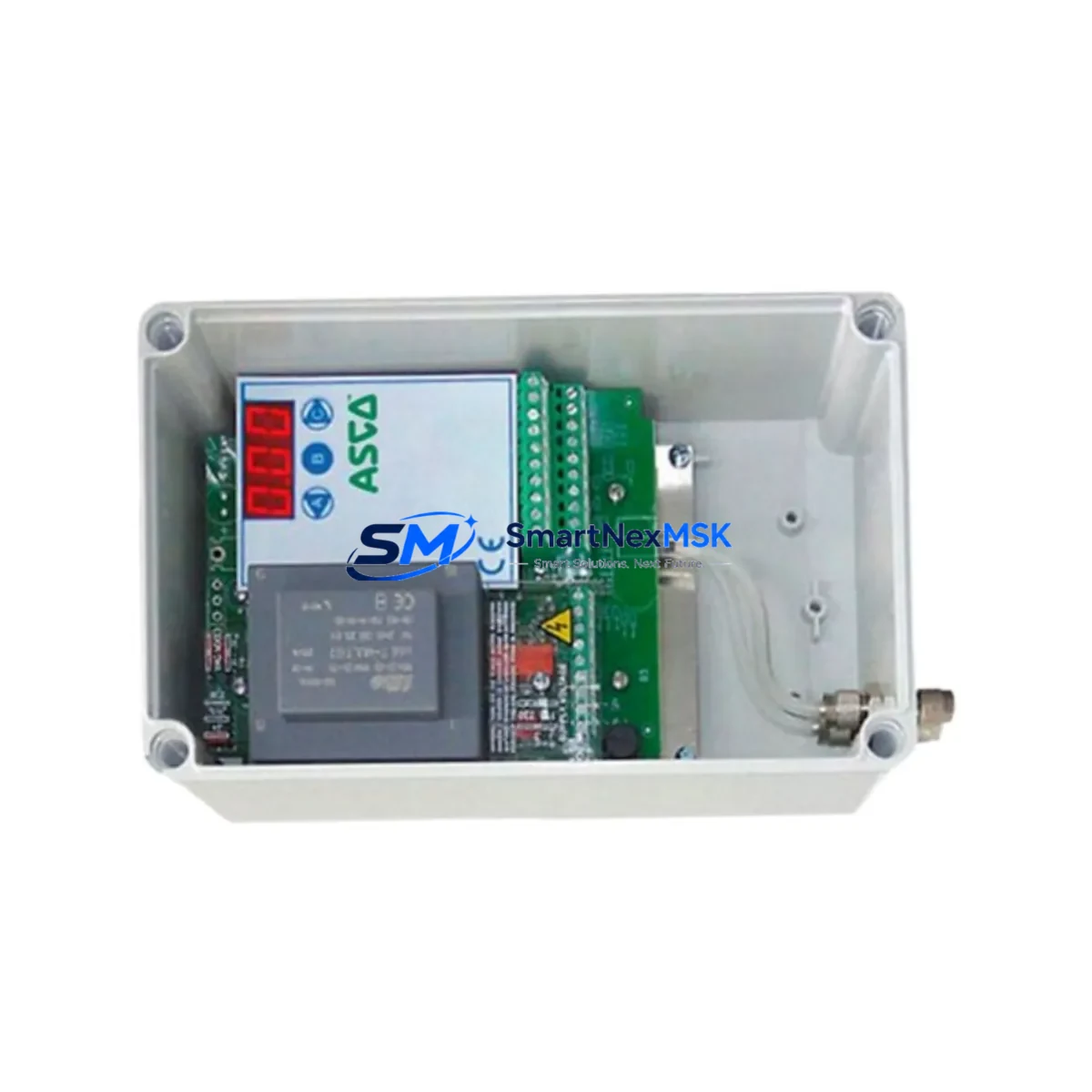

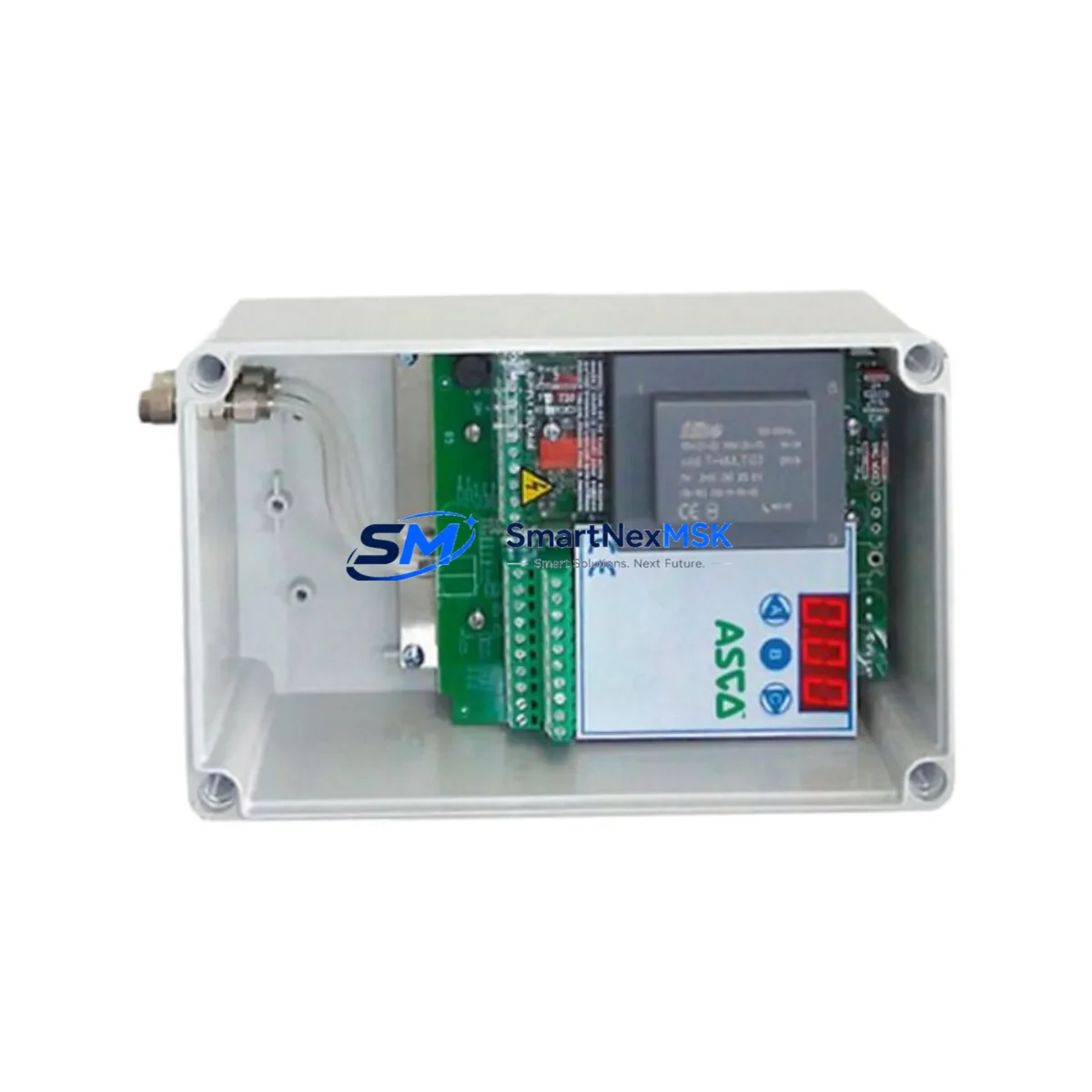

Emerson ASCO E909PA16MU1 Safety-Enhanced Solenoid Pilot Module

Emerson ASCO E909PA16MU1 Safety-Enhanced Solenoid Pilot Module: Reliable Control for Harsh Industrial Sites

The Emerson ASCO E909PA16MU1 is a 16-channel solenoid pilot module engineered for mission-critical industrial control environments where safety, signal integrity, and continuous uptime are non-negotiable. Designed to operate within demanding process automation architectures — including high-load pneumatic manifolds, safety instrumented systems (SIS), and critical interlock circuits — this module delivers consistent, repeatable valve actuation even under extreme electrical noise, thermal stress, and mechanical vibration. Whether deployed in a petrochemical control cabinet, a power generation switchgear room, or a continuous mining operation, the E909PA16MU1 is built to keep your process running safely and reliably.

Safety Reliability Table

Control Cabinet Protection Strategy

In modern industrial control cabinets, the ASCO E909PA16MU1 serves as the pneumatic output interface between the PLC safety layer and the field actuators. Its 16-channel architecture allows a single module to drive an entire valve manifold bank, reducing wiring complexity and minimizing potential failure points in the output circuit. When integrated alongside a Siemens S7-300 or S7-400 PLC safety CPU — such as the 6ES7 315-2FH13-0AB0 or 6ES7 417-5HT06-0AB0 — the E909PA16MU1 provides the final pneumatic switching element in a fully redundant safety loop.

For power supply integrity, the module is typically fed through a Phoenix Contact QUINT-PS 24VDC or Siemens SITOP PSU300S regulated power supply, ensuring stable 24 VDC even during grid fluctuations or motor start surges. Upstream, a Weidmüller WPE or Phoenix Contact PT series surge protection terminal block guards against transient overvoltage events that could otherwise trigger spurious valve actuation or damage the module’s internal suppression circuitry.

Communication integrity is maintained through a Profibus DP or DeviceNet fieldbus segment, often terminated with a Siemens DP/PA coupler or Rockwell 1788-EN2DN DeviceNet scanner depending on the control architecture. In high-vibration environments such as compressor stations or heavy press lines, the manifold assembly is secured with anti-vibration mounts, and the fieldbus cable is routed through Igus Energy Chain (e-chain) cable carriers to prevent connector fatigue and intermittent signal loss.

For safety interlock circuits, the E909PA16MU1 is often paired with a Pilz PNOZ X or PNOZ m B0 safety relay module to enforce de-energize-to-trip (DTT) logic on critical valves. This combination ensures that any loss of fieldbus communication, power interruption, or PLC fault results in a controlled, safe valve state — a fundamental requirement in SIL-2 rated process shutdown systems. Diagnostic feedback from the module is routed back to the PLC via the fieldbus, enabling real-time monitoring of coil status, short-circuit detection, and open-load alarms without additional wiring.

Critical Industrial Safety Applications

The ASCO E909PA16MU1 is deployed across a wide range of heavy industrial sectors where pneumatic valve control is integral to process safety:

Petrochemical & Refinery Plants: In crude distillation units, hydrocracker feed systems, and flare header control loops, the E909PA16MU1 drives emergency isolation valves (EIVs) and blowdown valves within the safety instrumented system. Its IP65 rating and high EMI immunity make it suitable for Zone 2 classified areas when installed in a certified Ex-rated enclosure.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the module controls pneumatic actuators on steam bypass valves, boiler feed water control valves, and turbine trip systems. The module’s fast response time and reliable coil diagnostics are critical for turbine protection systems where valve response within milliseconds can prevent catastrophic overspeed events.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust, humidity, and vibration. The E909PA16MU1’s sealed IP65 enclosure and robust sub-base design allow it to operate reliably in conveyor belt control panels, crusher feed systems, and ventilation door actuator circuits — environments where module failure can trigger production shutdowns lasting hours or days.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the E909PA16MU1 to control pneumatic actuators on filter backwash valves, chemical dosing isolation valves, and sludge dewatering press controls. The module’s corrosion-resistant construction and stable fieldbus communication ensure uninterrupted operation in high-humidity, chemically aggressive environments.

Metallurgy & Steel Production: In electric arc furnace (EAF) tapping systems, continuous casting lines, and rolling mill hydraulic control panels, the E909PA16MU1 manages pneumatic pilot valves under conditions of intense electromagnetic interference from high-current bus bars and variable frequency drives (VFDs). Its built-in EMI suppression prevents signal drift and false actuation that could result in product defects or equipment damage.

Port & Terminal Automation: Container crane control systems and bulk material handling terminals rely on the E909PA16MU1 for precise pneumatic control of spreader twist-lock mechanisms, hatch cover actuators, and conveyor diverter gates. The module’s compact manifold-integrated design simplifies installation in space-constrained crane control cabinets.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ASCO E909PA16MU1?
The 12-month warranty covers all manufacturing defects, functional failures, and component-level faults identified under normal operating conditions. If the module fails to perform to its published specifications within the warranty period, we provide a free replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit, and a replacement is dispatched immediately upon confirmation of the defect.

Q2: What pre-shipment testing is performed on each unit?
Every ASCO E909PA16MU1 unit undergoes a full functional test prior to shipment, including channel-by-channel coil actuation verification, insulation resistance testing, and fieldbus communication handshake validation. Units that fail any test parameter are quarantined and not dispatched. A test report is available upon request for customers requiring documented quality evidence for their incoming inspection process.

Q3: Is the E909PA16MU1 compatible with existing ASCO Series 900 manifold assemblies?
Yes. The E909PA16MU1 is fully backward-compatible with ASCO Series 900 sub-base manifolds and is designed as a direct replacement for earlier E909 series pilot modules. It is also compatible with standard 5/2 and 5/3 pneumatic valve bodies from Emerson ASCO, Festo, SMC, and Parker Hannifin when used with the appropriate sub-base adapter. Always verify the fieldbus protocol variant (DeviceNet, Profibus DP, or EtherNet/IP) matches your existing network configuration before ordering.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated safety stock of the ASCO E909PA16MU1 to support customers with planned maintenance schedules, emergency replacements, and MRO procurement programs. Our inventory is sourced directly from authorized Emerson distribution channels, ensuring genuine parts with full traceability. For customers requiring guaranteed supply agreements or blanket purchase orders, please contact our sales team to discuss stocking arrangements tailored to your plant’s maintenance cycle.
