EMERSON CON021/913-030 Spare for CON021 Series Automation

EMERSON CON021/913-030 Maintenance-Ready Spare for CON021 Series Automation

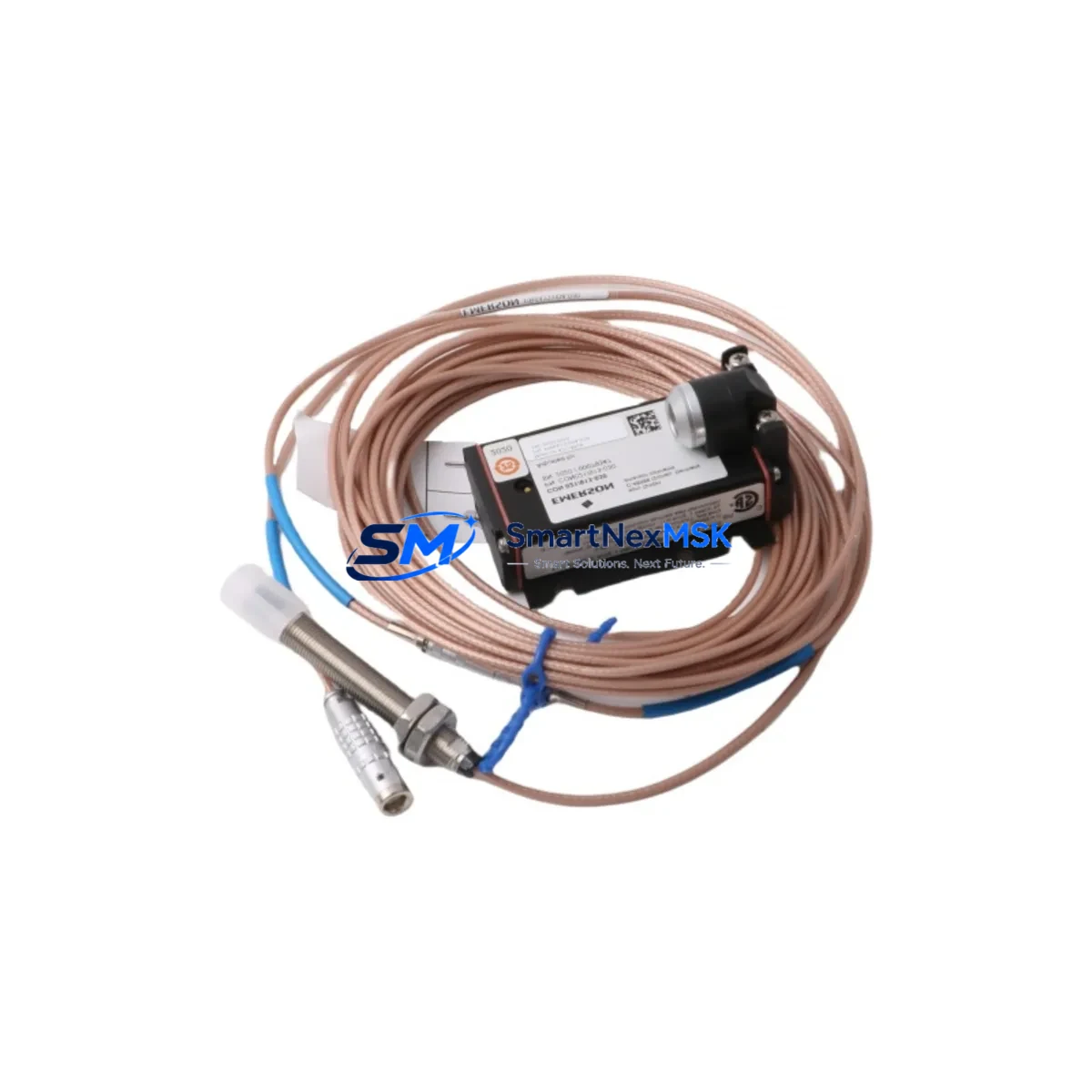

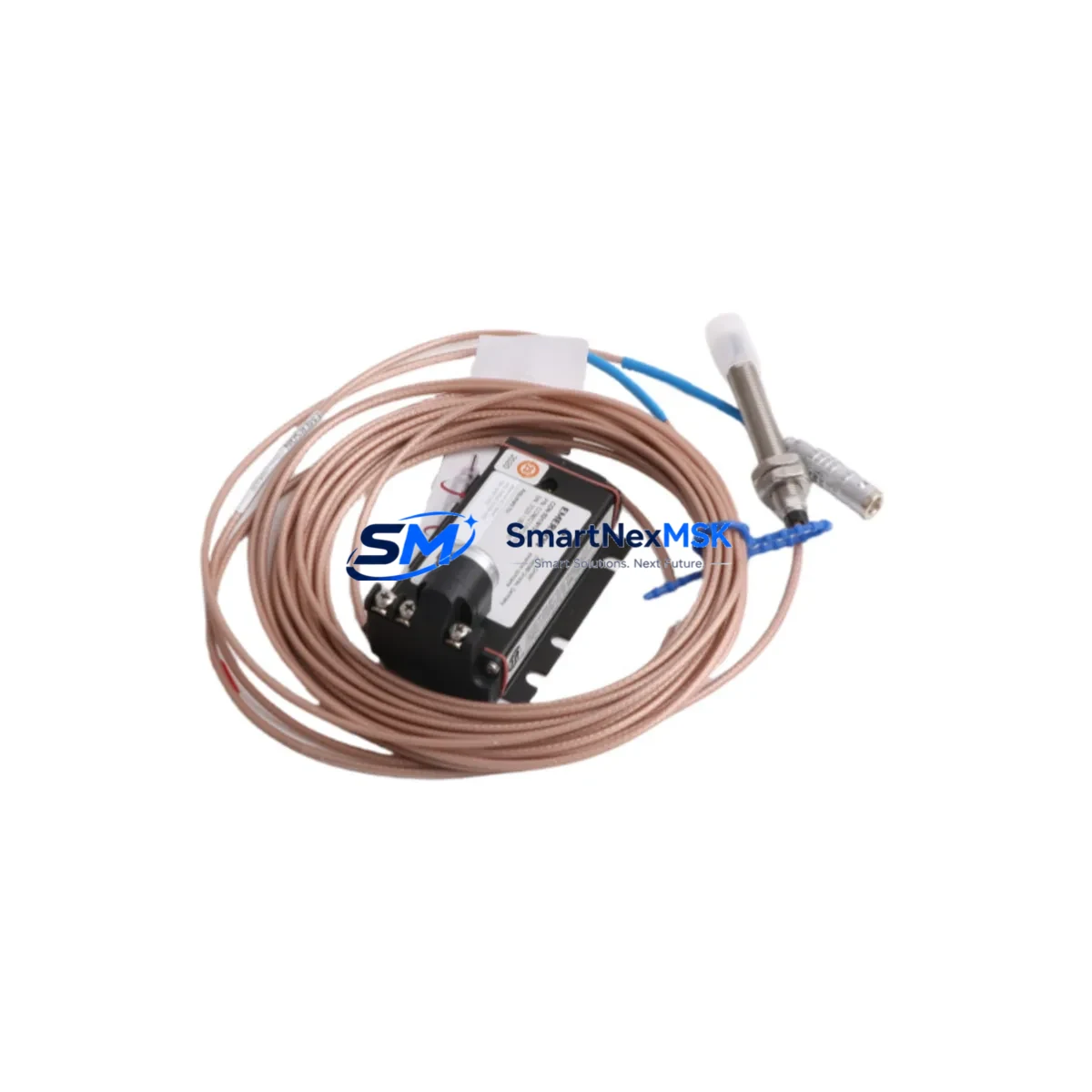

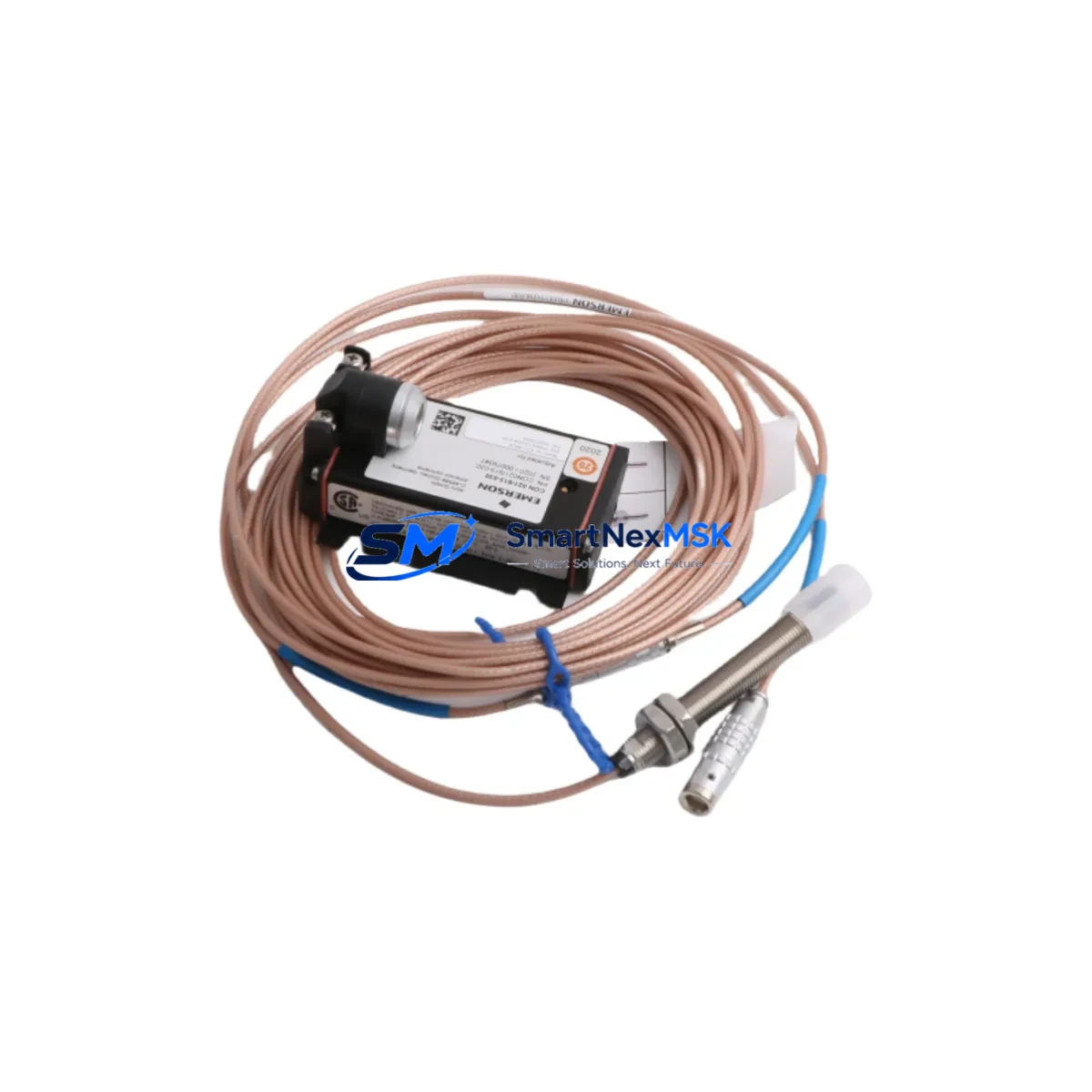

The EMERSON CON021/913-030 is an original proximity probe sensor engineered for continuous vibration monitoring in rotating machinery protection systems. As a direct maintenance-ready spare within the CON021 series, this 30-foot eddy current probe delivers the signal integrity and dimensional accuracy required for critical turbine, compressor, and pump shaft monitoring applications. For maintenance engineers managing aging Bently Nevada-compatible monitoring systems, stocking the CON021/913-030 as a verified spare eliminates the risk of extended downtime caused by probe failure during planned or unplanned outages.

Industrial facilities operating gas turbines, steam turbines, centrifugal compressors, and large rotating equipment depend on proximity probe systems to provide real-time shaft displacement data to protection and condition monitoring systems. When a CON021/913-030 probe degrades — whether from cable fatigue, connector corrosion, tip damage, or sensitivity drift — the entire vibration channel becomes unreliable. Replacing the probe with a tested, original-specification unit restores channel accuracy and allows the protection system to resume normal trip and alarm functions without recalibration of the full loop.

At SMARTNEXMSK, every CON021/913-030 unit is inspected, electrically verified, and shipped with full documentation. Our supply chain supports both emergency replacement orders and planned maintenance procurement, with stock available for fast dispatch to industrial sites worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a CON021/913-030 proximity probe is rarely an isolated task. A thorough maintenance engineer will treat probe replacement as the trigger for a broader inspection of the vibration monitoring loop and the surrounding control cabinet. When pulling the CON021/913-030 from service, the following components and assemblies should be inspected or replaced as part of the same maintenance window:

The CON021 series extension cable connecting the probe to the driver should be checked for jacket integrity, connector pin condition, and continuity. Extension cable degradation is a common source of sensitivity drift that is often misattributed to probe failure. Similarly, the CON021 proximitor/driver module — typically mounted in the field junction box or the machinery protection cabinet — should be verified for correct bias voltage output (nominally -18 VDC) and gap voltage within the linear range before the new probe is commissioned.

Within the machinery protection cabinet, the Bently Nevada 3300 XL rack or equivalent monitor card should be inspected for alarm setpoint integrity, OK relay status, and any latched trip conditions that may have been triggered by the degraded probe signal. The 3300/16 or 3300/20 vibration monitor cards should be confirmed as functional and correctly configured for the probe sensitivity constant of the replacement CON021/913-030 unit.

Power supply integrity is critical: the 3300 series power supply module feeding the monitor rack should be checked for output voltage stability, as fluctuating supply voltage directly affects probe bias and measurement accuracy. If the facility uses a redundant power supply configuration, both supply modules should be load-tested during the maintenance window.

For systems with Keyphasor probes (such as the 3300/TM or CON011 series), the Keyphasor signal should be verified after probe replacement, as phase reference accuracy affects all synchronous vibration measurements derived from the same shaft. Terminal blocks and field wiring in the junction box should be inspected for corrosion, loose terminations, and correct shielding grounding — ungrounded shields are a frequent source of electrical noise that degrades proximity probe signal quality.

If the facility operates a System 1 condition monitoring platform or equivalent historian, the new probe’s gap voltage and dynamic signal should be trended from commissioning to establish a baseline for predictive maintenance. Procurement engineers should also consider stocking a CON021/913-005 (5 ft) or CON021/913-050 (50 ft) variant as a secondary spare to cover different cable-length requirements across the same machinery train without lead-time risk.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the CON021/913-030, record the existing gap voltage (typically -10 to -18 VDC) and vibration baseline from the monitor display or DCS historian. This reference value is essential for post-installation verification.

Step 2 — Probe removal: De-energize the proximitor driver or isolate the channel at the monitor card. Unthread the probe from the probe holder using the correct spanner. Inspect the probe holder threads and the shaft target area for wear, scoring, or contamination.

Step 3 — New probe installation: Install the replacement CON021/913-030 to the manufacturer-specified gap (typically 1.0–1.5 mm from the shaft surface, corresponding to approximately -10 VDC bias). Use a non-metallic feeler gauge or a calibrated gap-setting tool. Torque the locknut to specification to prevent probe migration during operation.

Step 4 — Loop verification: Re-energize the driver and confirm bias voltage is within the linear range. Verify the OK relay is energized and the monitor card shows a valid vibration reading. Compare the static gap voltage against the pre-removal baseline. Any deviation greater than ±1 VDC warrants re-gapping or driver inspection.

Step 5 — System restoration: Reset any latched alarms or trips at the monitor card and DCS. Confirm the channel is active in the System 1 or historian platform. Document the replacement in the maintenance management system (CMMS) with the new probe serial number and gap voltage for future reference.

This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for reliability engineering review.

Spare Parts Support FAQ

Q: Is the CON021/913-030 a direct drop-in replacement for older CON021 series probes?
A: Yes. The CON021/913-030 maintains the same mechanical dimensions, thread specification, tip diameter, and sensitivity constant as the original factory part. It is compatible with all CON021 series drivers and Bently Nevada 3300 XL monitor cards without requiring recalibration of the monitor, provided the installation gap is set correctly.

Q: How is each unit tested before shipment?
A: Every CON021/913-030 unit supplied by SMARTNEXMSK undergoes electrical verification including bias voltage response, sensitivity check, and cable continuity test. Units that do not meet original specification are rejected. A test report is available upon request for critical applications.

Q: What is the recommended spare parts inventory strategy for CON021 probes?
A: For facilities with 10 or more CON021 probe channels, we recommend maintaining a minimum of 2 spare probes per cable-length variant in the site stores. Probe MTBF in clean environments exceeds 5 years, but cable fatigue and connector corrosion in harsh environments can reduce service life significantly. Annual inspection of all installed probes during planned outages is best practice.

Q: What warranty and after-sales support does SMARTNEXMSK provide?
A: All CON021/913-030 units are covered by a 12-month warranty from the date of shipment. If a unit fails within the warranty period under normal operating conditions, SMARTNEXMSK will provide a replacement at no charge. Our technical team is available to support compatibility verification, installation guidance, and loop commissioning questions via email or phone.
