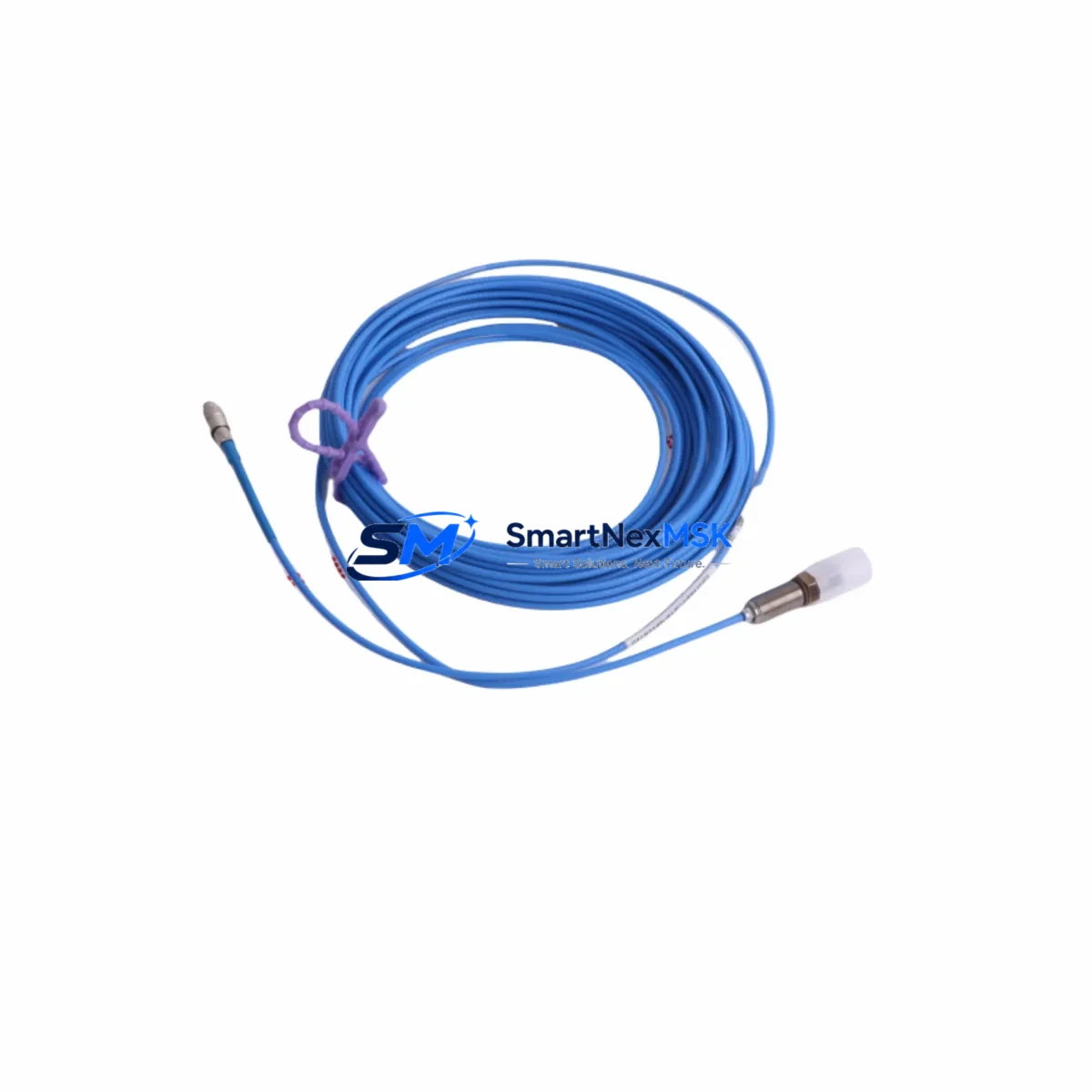

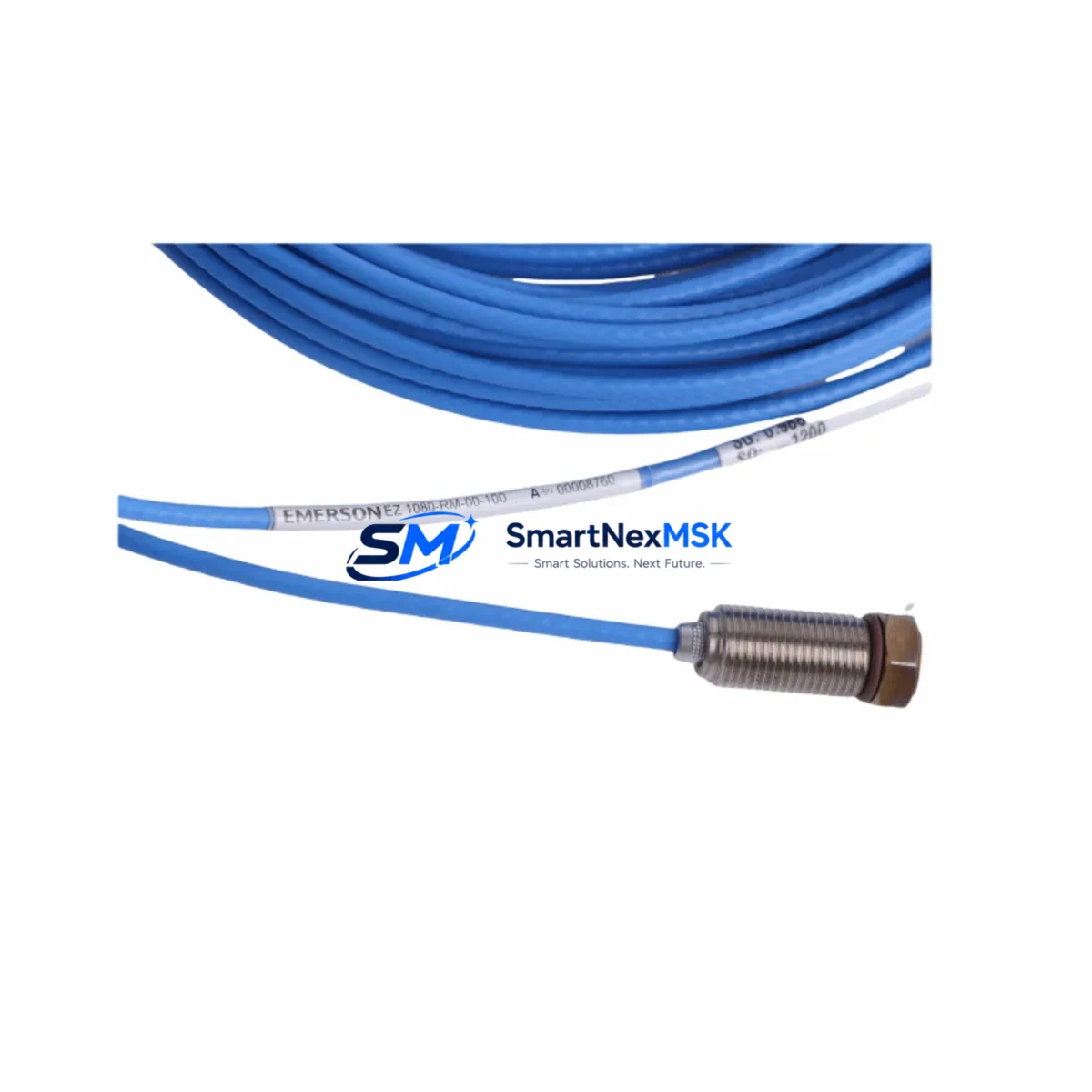

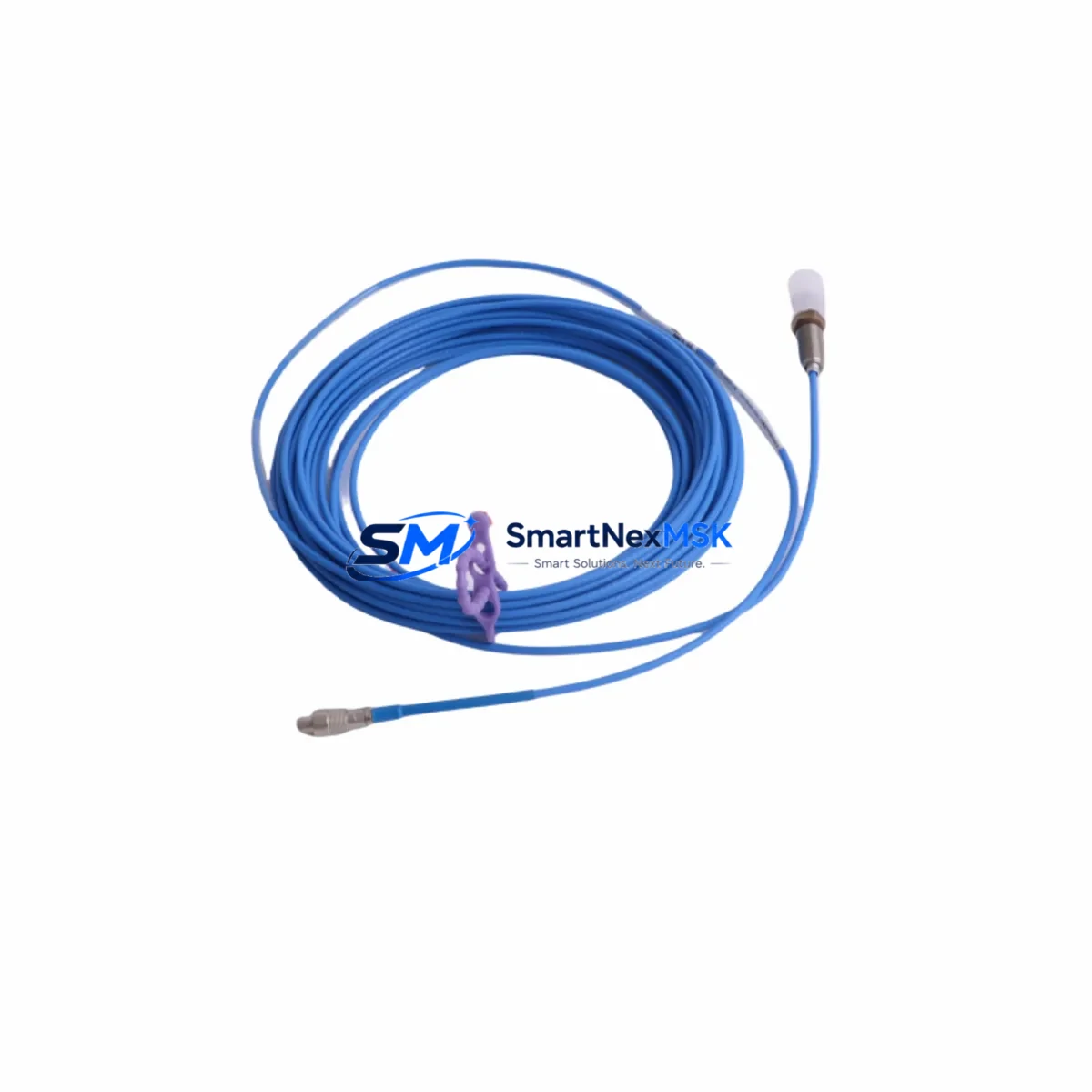

Emerson EZ1080-RM-00-100 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Emerson EZ1080-RM-00-100 is a retrofit-ready proximity probe engineered for seamless integration into legacy and active Bently Nevada 3300 XL vibration monitoring systems. Whether you are replacing a failed probe in a critical rotating machinery application, upgrading an aging control cabinet, or migrating from an obsolete Bently Nevada 7200 Series installation, the EZ1080-RM-00-100 delivers verified dimensional, electrical, and signal compatibility that minimizes engineering risk and reduces planned downtime to the shortest possible window.
Industrial facilities operating steam turbines, compressors, pumps, and gearboxes rely on continuous shaft proximity measurement to protect assets and maintain process availability. When a probe fails or a monitoring channel goes offline, every hour of unplanned downtime carries significant cost. The EZ1080-RM-00-100 is stocked and pre-tested to ship within 24–48 hours, giving maintenance engineers a reliable path to rapid restoration without waiting on long lead-time OEM orders.
Upgrade Compatibility Table
| Parameter | EZ1080-RM-00-100 (This Unit) | Typical Legacy Reference |
|---|---|---|
| Probe Series | Emerson / Bently Nevada EZ1080 | Bently Nevada 7200 / 3300 Series |
| Tip Diameter | 8 mm (standard) | 8 mm compatible |
| Cable Length | RM (Remote Mount) configuration | Verify existing conduit run length |
| Gap Voltage Range | –10 VDC to –18 VDC (nominal –12 VDC at 1.0 mm gap) | Match driver/monitor input range |
| Sensitivity | 7.87 V/mm (200 mV/mil) | Confirm monitor channel scaling |
| Connector Interface | Standard BNC / coaxial per 3300 XL spec | Verify extension cable termination |
| Monitor Compatibility | 3300 XL 8mm Proximity Transducer System | 3300/16 Monitor, 3300/20 Monitor |
| Communication Protocol | Analog (4–20 mA / voltage output via monitor) | DCS/PLC analog input card compatible |
| Installation Requirement | Standard probe holder / armour bracket | Confirm bracket thread: M10×1 or 3/8-24 UNF |
| Commissioning Check | Gap setting, static calibration, OK LED verification | Use Bently Nevada calibrator or equivalent |
| Warranty | 12-Month Warranty — covers manufacturing defects and verified compatibility failures | |
Retrofit Planning for Existing Automation Systems
A successful EZ1080-RM-00-100 retrofit begins well before the maintenance window opens. Engineers should first audit the existing Bently Nevada 3300 XL rack to confirm which monitor cards are installed — commonly the 3300/16 Dual Voting Logic Monitor or the 3300/20 Radial Vibration Monitor — and verify that the channel configuration matches the 8 mm probe system specification. The 3300/55 Power Supply module feeding the rack must be confirmed to supply adequate current for the replacement probe and any co-installed 3300/46 Tachometer or 3300/25 Thrust Position Monitor channels that share the same backplane.
Extension cable routing is a frequent source of commissioning delays. The EZ1080-RM-00-100 uses a remote-mount (RM) configuration, meaning the probe body connects to a separate driver/oscillator via a matched extension cable — typically a Bently Nevada 330130 Extension Cable in the appropriate length. Confirm the existing conduit run, verify that the extension cable is undamaged and properly shielded, and check that the connector at the 3300 XL monitor input is clean and fully seated. Any impedance mismatch introduced by a mismatched or damaged extension cable will shift the gap voltage calibration and trigger false OK/Not-OK transitions.
For facilities migrating from older Bently Nevada 7200 Series probes, the physical thread size and armour bracket must be verified before installation. The 7200 Series used a 3/8-24 UNF thread in many configurations, while the EZ1080 uses M10×1 metric thread — an adapter or replacement bracket may be required. The 3300 XL monitor channel sensitivity is factory-set for 200 mV/mil (7.87 V/mm); if the legacy system was calibrated for a different sensitivity, the monitor card configuration must be updated via the System 1 Evolution software or the local keypad interface before the new probe is energized.
Where the vibration monitoring system feeds a DCS or PLC — such as a DeltaV M-Series Controller or a ControlLogix L7x rack — the analog input card receiving the 4–20 mA or voltage signal from the 3300 XL monitor should be verified for correct scaling and alarm setpoints. HMI faceplates built in FactoryTalk View SE or DeltaV Operate that display shaft vibration trends should be reviewed to confirm that engineering unit labels and alarm limits remain valid after the probe replacement. No PLC program changes are typically required for a like-for-like probe swap, but any channel that was previously in bypass or inhibit state should be re-enabled and tested before returning the machine to service.
I/O expansion scenarios — for example, adding a second radial measurement plane to an existing single-plane installation — may require an additional 3300/16 Monitor card and a corresponding 3300 XL Rack slot. In these cases, the EZ1080-RM-00-100 can serve as the new channel probe while the existing probe remains in service, allowing staged commissioning without a full system outage.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear sequence of steps that preserves the original program logic and alarm configuration throughout the swap. Before the maintenance window begins, download and archive the current System 1 Evolution configuration database and any relevant DeltaV or ControlLogix program backups. This ensures that if any parameter is inadvertently changed during the physical swap, the original state can be restored within minutes rather than hours.
During the outage, inhibit the vibration channel at the 3300 XL monitor to prevent spurious trips while the probe is disconnected. Remove the failed probe, install the EZ1080-RM-00-100, and set the air gap to the manufacturer-specified nominal value — typically 1.0 mm for an 8 mm probe — using a non-ferrous feeler gauge or a calibrated gap-setting tool. Reconnect the extension cable, verify the OK LED on the monitor card illuminates, and confirm the gap voltage reads within the –10 to –18 VDC window on the monitor’s front-panel display or via the System 1 live data view.
Once the static calibration is confirmed, remove the channel inhibit and observe the dynamic vibration reading during machine coast-up. Compare the amplitude and phase readings against the historical baseline stored in System 1 Evolution to verify that the new probe is tracking correctly. If the readings are within ±5% of the historical baseline, the replacement is complete and the machine can be returned to normal operation. Document the as-found and as-left gap voltages, the probe serial number, and the date of replacement in the site maintenance management system to support future reliability analysis.
Retrofit Support FAQ
Q1: Is the EZ1080-RM-00-100 a direct drop-in replacement for the Bently Nevada 7200 Series 8 mm probe?
A: The EZ1080-RM-00-100 is electrically and signal-compatible with the 3300 XL 8 mm proximity transducer system and can replace many 7200 Series probes in the same application. However, the thread size and armour bracket must be verified on-site, as the 7200 Series used 3/8-24 UNF thread in some configurations while the EZ1080 uses M10×1 metric thread. An adapter bracket may be required. Confirm physical dimensions before ordering if the existing bracket cannot be replaced.
Q2: Does the replacement probe require any changes to the PLC or DCS program?
A: For a like-for-like replacement on the same channel, no PLC or DCS program changes are required. The 3300 XL monitor outputs the same analog signal regardless of which compatible probe is installed. However, if the monitor channel sensitivity or alarm setpoints were customized for the legacy probe, those parameters should be reviewed in System 1 Evolution and updated if necessary before returning the channel to service.
Q3: What commissioning tests are required after installation?
A: The minimum commissioning sequence includes: (1) static gap voltage verification at the nominal 1.0 mm air gap, (2) OK LED confirmation on the 3300 XL monitor card, (3) dynamic vibration reading comparison against the historical baseline during machine coast-up, and (4) alarm and trip setpoint functional test. For critical machinery, a full slow-roll vector check using System 1 Evolution is recommended to confirm that the new probe does not introduce a significant change in the 1× runout vector.
Q4: What warranty coverage is provided, and what does it include?
A: Every EZ1080-RM-00-100 unit ships with a 12-month warranty covering manufacturing defects and verified compatibility failures. Each unit undergoes pre-shipment functional testing including gap voltage linearity verification and connector integrity check. If a warranty claim is required, contact our technical support team with the unit serial number, installation date, and a description of the failure mode. Replacement units are dispatched within 48 hours of claim approval to minimize any impact on machine availability.
