Emerson Fisher 38B6041X082 Spare for Fieldvue DVC Automation

Emerson Fisher 38B6041X082 Spare for Fieldvue DVC Automation: Spare Replacement & Industrial Downtime Risk Control

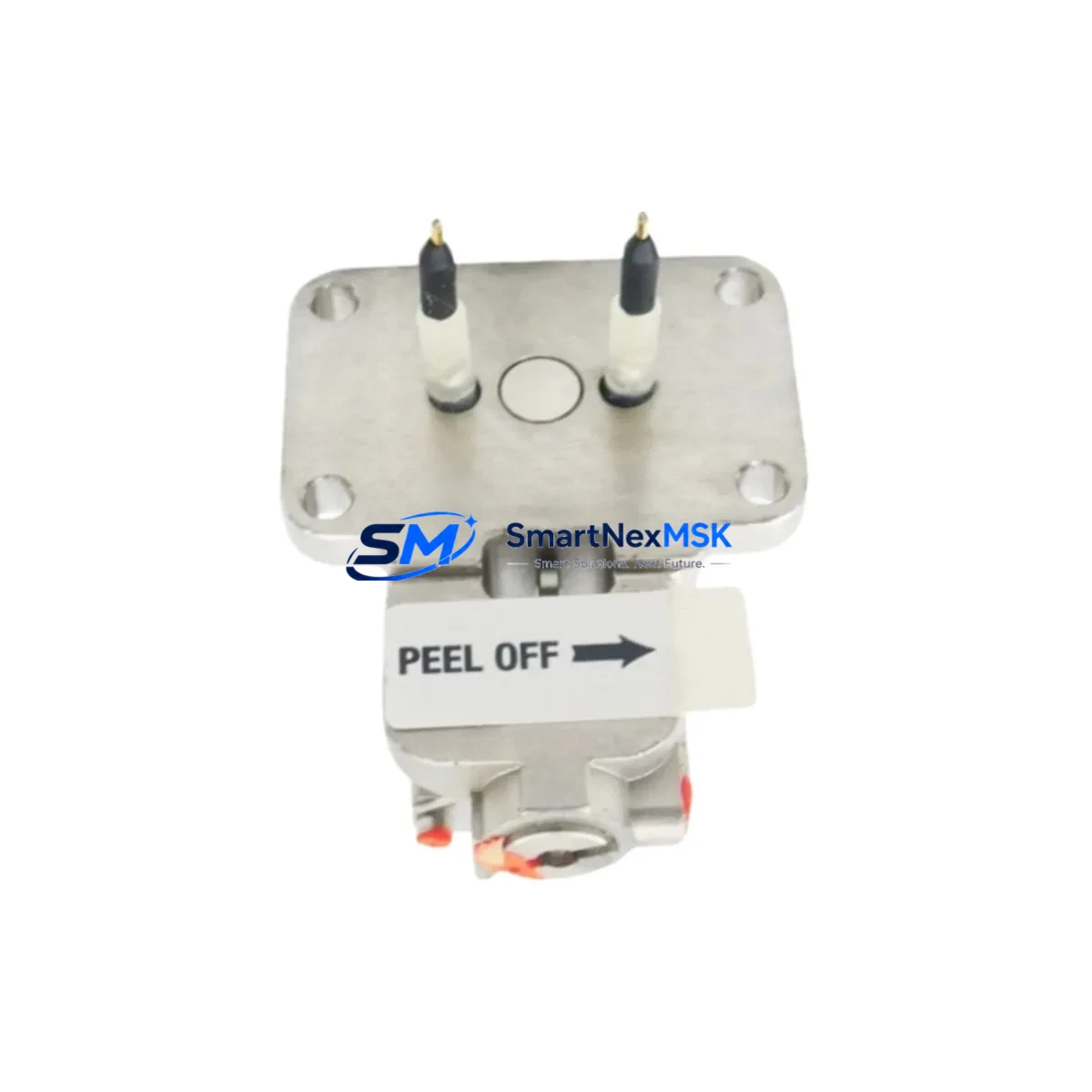

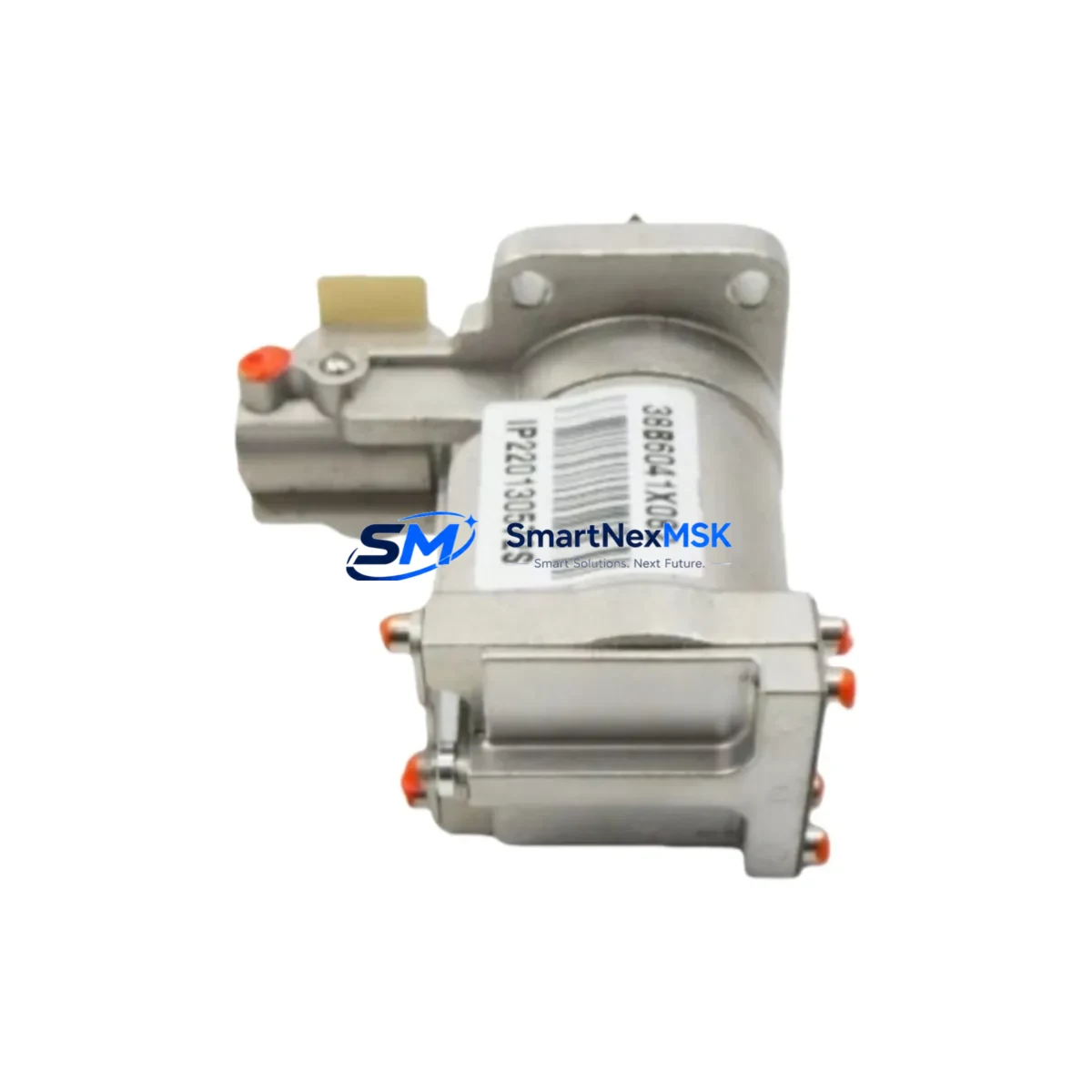

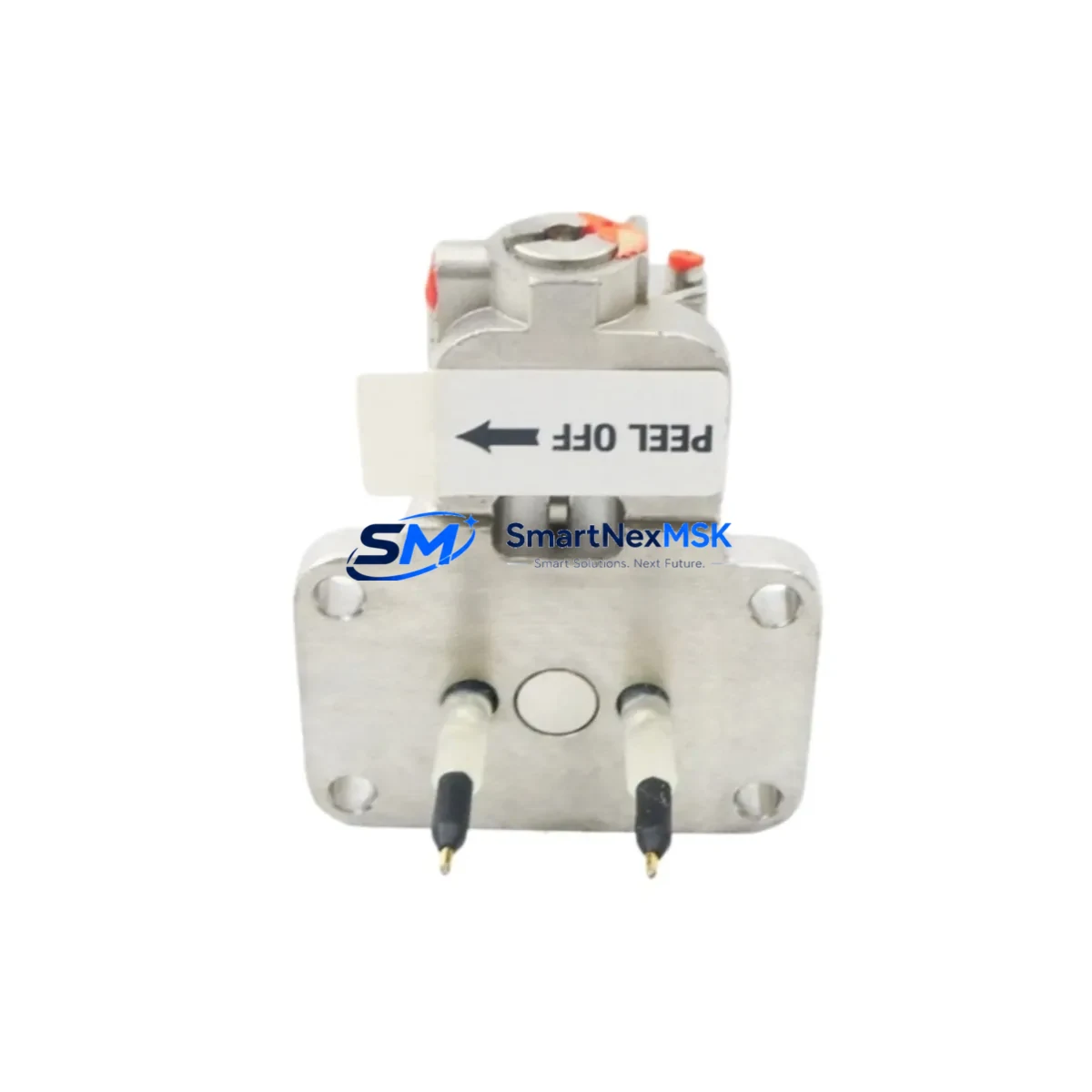

The Emerson Fisher 38B6041X082 is an original I/P Converter Kit designed for the Fieldvue DVC Series digital valve controllers, widely deployed across process automation, oil & gas, chemical, and power generation facilities. When this component fails or degrades, it directly impacts valve positioning accuracy, loop control stability, and ultimately process uptime. Sourcing a verified original spare — tested, serialized, and backed by a 12-month warranty — is the fastest path to restoring full system operation without introducing compatibility risk.

For maintenance engineers managing aging DCS or PLC-integrated valve control loops, the 38B6041X082 is a critical line-replaceable unit. Its role in converting a 4–20 mA current signal to a precise pneumatic output means that any drift, contamination, or mechanical wear will manifest as valve hunting, poor split-range response, or complete loss of positioner feedback. Planned replacement during scheduled turnarounds — rather than reactive swap-out during unplanned shutdowns — is the recommended maintenance strategy for high-cycle or safety-critical applications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 38B6041X082 I/P Converter Kit in a Fieldvue DVC positioner, a thorough maintenance engineer will treat the intervention as an opportunity to inspect the entire valve control assembly. The pneumatic supply to the positioner — typically routed through a Fisher 67CFR filter regulator or equivalent supply pressure regulator — should be checked for correct set pressure and moisture contamination. A degraded supply regulator is a common root cause of premature I/P converter failure and is frequently overlooked during reactive maintenance.

The DVC Series positioner’s printed wiring board (PWB) assembly, which processes the HART communication signal and drives the I/P module, should be visually inspected for corrosion, loose ribbon connectors, or moisture ingress. If the site operates in a high-humidity or washdown environment, the positioner housing O-ring seals and conduit entry seals warrant replacement at the same interval. The feedback linkage assembly and travel sensor — key to accurate valve position reporting back to the DCS — should be checked for wear and correct calibration after any I/P replacement.

For facilities running Fisher FIELDVUE DVC6200 positioners on rotary or sliding-stem control valves, it is good practice to simultaneously verify the condition of the pneumatic relay assembly, which works in tandem with the I/P converter to amplify output pressure. On older DVC6000 units, the relay diaphragm is a known wear item and should be stocked alongside the 38B6041X082 as part of a comprehensive positioner rebuild kit. Terminal block assemblies and field wiring connections at the positioner junction box should be torqued to specification and inspected for oxidation, particularly in sulfur-rich or coastal environments.

From a broader control loop perspective, the 4–20 mA signal wiring from the DCS I/O card to the positioner should be verified for loop resistance, shield continuity, and absence of ground loops. Signal isolators or barriers — such as those used in IS (intrinsically safe) installations — should be tested for correct output range. If the positioner is integrated into a Safety Instrumented System (SIS), the proof test documentation for the entire valve assembly, including the solenoid valve and limit switches, must be updated following any component replacement.

Site Replacement Workflow

Replacing the Emerson Fisher 38B6041X082 in the field is a straightforward procedure when the correct spare is on hand and the loop has been properly isolated. Begin by placing the control loop in manual mode at the DCS workstation and confirming the valve is in its fail-safe position. Isolate the pneumatic supply at the nearest block valve and bleed residual pressure from the positioner supply and output ports before opening the housing.

Remove the existing I/P converter module by disconnecting the electrical leads and unscrewing the retaining hardware. Install the 38B6041X082 replacement, ensuring correct orientation and secure seating of all pneumatic O-ring connections. Reconnect the electrical leads, observing polarity, and restore pneumatic supply. Perform a bench calibration check using a HART communicator or AMS Device Manager to verify the positioner’s auto-calibration routine completes successfully and that the valve strokes correctly across the full 0–100% travel range.

Document the replacement in the site CMMS (Computerized Maintenance Management System), update the positioner’s maintenance history, and retain the replaced unit for failure analysis if root cause investigation is required. This workflow minimizes loop downtime to under two hours for a prepared maintenance team and eliminates the risk of introducing an incompatible or uncertified component into a critical control loop.

Spare Parts Support FAQ

Q1: Is the 38B6041X082 compatible with all Fieldvue DVC Series positioners?
The 38B6041X082 I/P Converter Kit is designed for the Fieldvue DVC Series, including DVC6000, DVC6200, and DVC2000 variants. Always cross-reference the positioner’s nameplate and Bill of Materials (BOM) to confirm the correct kit revision before installation. Contact our technical team with your positioner serial number for compatibility verification.

Q2: What is the recommended spare parts stocking strategy for DVC positioners?
For facilities with 10 or more DVC positioners, we recommend maintaining a minimum of two 38B6041X082 kits in the site spare parts store, alongside at least one relay assembly and one PWB assembly per positioner model variant. This buffer supports both planned turnaround work and emergency reactive maintenance without waiting on lead times.

Q3: How is the unit tested before shipment?
Every 38B6041X082 unit is functionally tested for correct I/P conversion response across the 4–20 mA input range prior to dispatch. Units are packaged in ESD-safe, moisture-resistant packaging with a test certificate included. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q4: Can this spare replace an older or discontinued I/P converter revision?
In most cases, yes. Emerson Fisher periodically updates kit revisions while maintaining backward compatibility within the DVC Series platform. If you are replacing a legacy revision, our team can confirm interchangeability based on your positioner model and existing BOM. We support long-term supply continuity for older system installations to extend asset life and defer costly full positioner replacements.
