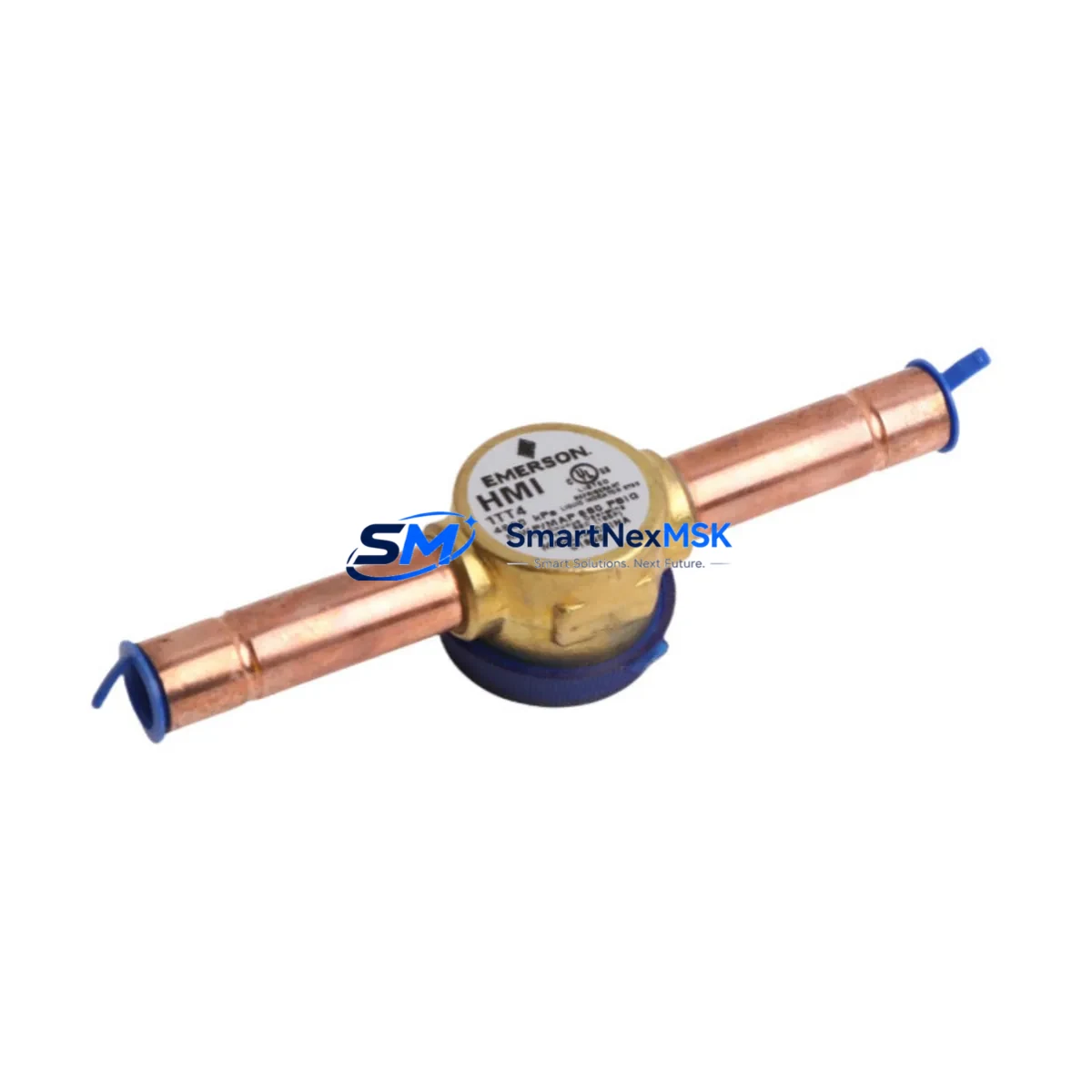

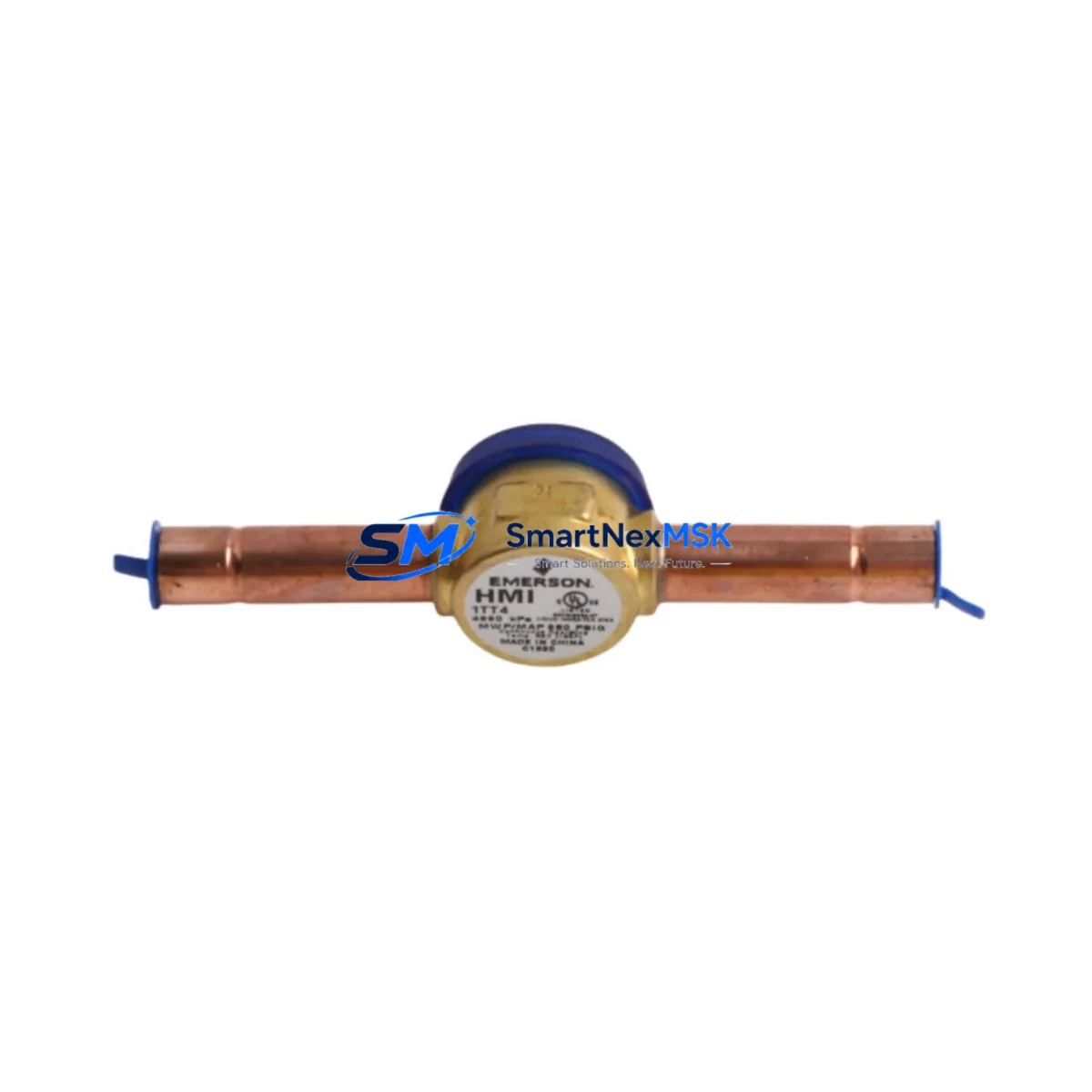

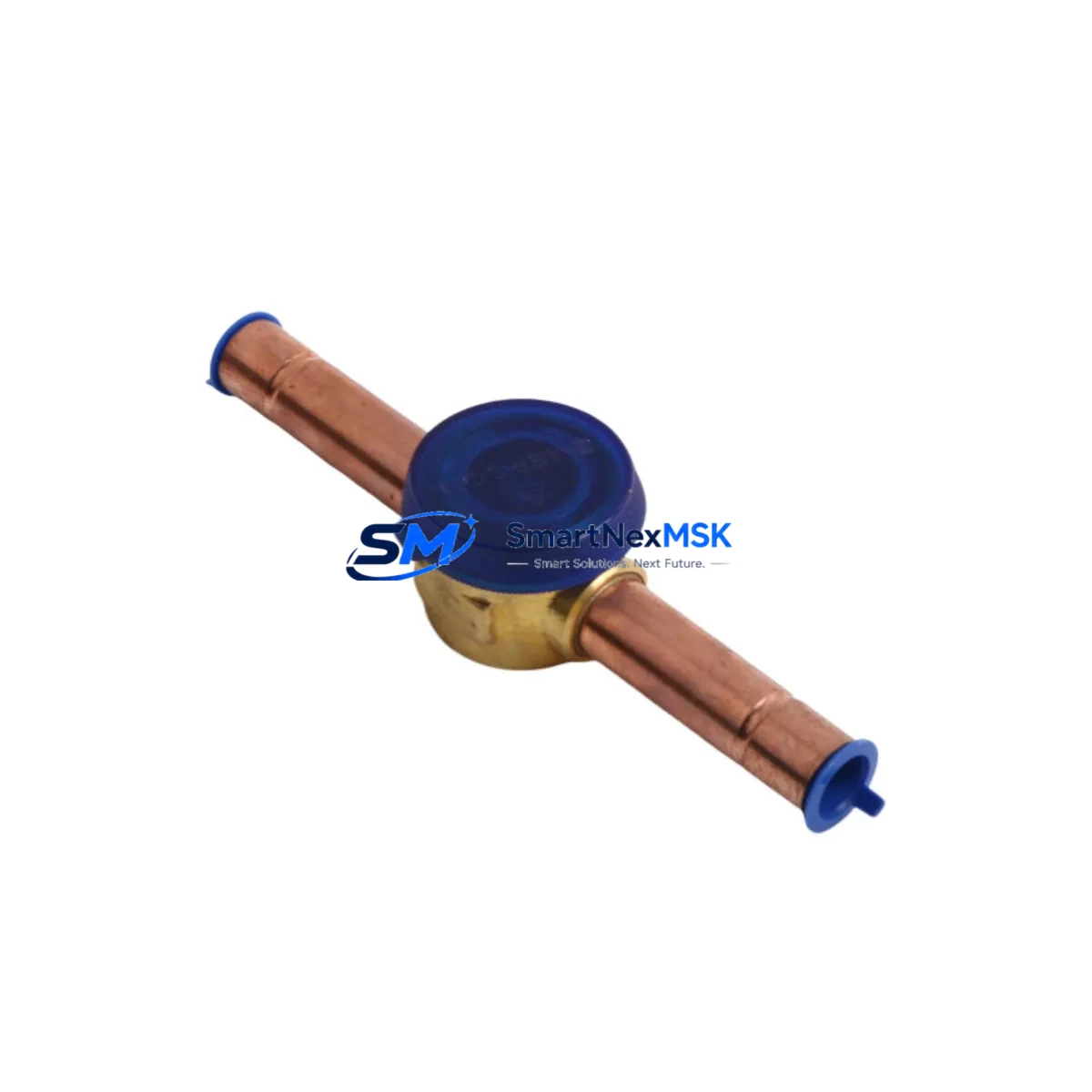

EMERSON HMI-1TT4 Retrofit-Ready Hermetic Moisture Indicator

EMERSON HMI-1TT4 Retrofit-Ready Hermetic Moisture Indicator for HMI Refrigeration Control Systems

The EMERSON HMI-1TT4 is a hermetic moisture indicator engineered for seamless integration into existing refrigeration control systems and legacy automation architectures. As refrigeration plants and industrial HVAC control panels age, the demand for reliable, drop-in replacement components that preserve system continuity without requiring full-line overhauls has never been greater. The HMI-1TT4 addresses this need directly — offering verified compatibility with the EMERSON HMI refrigeration series and serving as a proven retrofit solution for facilities managing aging compressor control cabinets, legacy refrigerant monitoring loops, and multi-zone cooling automation systems.

Whether you are replacing a failed moisture indicator in a running production environment, upgrading a refrigeration skid as part of a broader control system modernization, or sourcing a tested spare to reduce unplanned downtime risk, the HMI-1TT4 delivers the dimensional accuracy, moisture-sensing reliability, and installation compatibility that field engineers require. Each unit is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty covering manufacturing defects and functional performance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the HMI-1TT4 into an existing refrigeration or industrial cooling control system requires a structured approach to ensure system integrity and minimize disruption to ongoing operations. In most retrofit scenarios, the moisture indicator sits within the liquid line between the condenser and the expansion valve — a critical monitoring point that signals refrigerant moisture contamination before it can damage compressor internals or clog expansion devices.

Before beginning the replacement, field engineers should confirm the refrigerant type currently in the system, as the HMI-1TT4’s moisture-sensing element is calibrated for specific refrigerant families. Systems running R-404A in cold storage applications, R-134a in process cooling loops, or R-410A in commercial HVAC configurations each present slightly different moisture thresholds and indicator response characteristics. Cross-referencing the HMI-1TT4 datasheet against the existing system’s refrigerant charge is a mandatory pre-installation step.

In control cabinet environments where the refrigeration system interfaces with a broader automation platform — such as a Siemens S7-300 PLC managing compressor staging, an Allen-Bradley MicroLogix 1100 handling defrost cycle sequencing, or a Schneider Electric Modicon M340 coordinating multi-zone cooling — the HMI-1TT4 replacement does not require any changes to the PLC program logic, I/O mapping, or HMI screen configuration. The indicator is a passive visual component; its replacement is transparent to the control layer.

However, if the retrofit is part of a larger control system upgrade — for example, migrating from a legacy relay-based refrigeration panel to a modern PLC-based architecture with SCADA integration — the surrounding components will require more careful planning. In such projects, engineers commonly address the replacement of the compressor contactor and motor protection relay, the upgrade of the defrost timer from an electromechanical unit to a PLC-controlled output module, the addition of a digital pressure transducer to replace analog gauges, and the installation of a new operator interface terminal (OIT) or HMI panel to replace aging pushbutton-and-lamp control stations. The HMI-1TT4 fits naturally into this modernization path as a reliable, specification-matched component that does not introduce compatibility risk into an otherwise complex upgrade project.

For systems using older refrigerant monitoring controllers or standalone moisture alarm modules wired into the control panel, verify that the new indicator’s visual response range aligns with the alarm setpoint logic. If the existing system uses a moisture sensor with a 4–20 mA output connected to a PLC analog input module, note that the HMI-1TT4 is a visual indicator only and does not provide an electrical output signal — a separate moisture transmitter would be required if electronic moisture alarming is part of the upgrade scope.

Technicians should also inspect the condition of the surrounding liquid line components during the replacement: the filter-drier (commonly a Sporlan or Alco brand replaceable-core type), the sight glass assembly, and the service valve packing. Replacing the HMI-1TT4 while the system is open for service is an efficient opportunity to address adjacent components that may be approaching end-of-life, reducing the likelihood of a repeat service call within the same maintenance cycle.

Downtime Control During System Migration

Minimizing downtime during a moisture indicator replacement or broader refrigeration system retrofit is a primary concern for facilities where cooling continuity directly impacts production output, product quality, or cold chain compliance. The HMI-1TT4’s drop-in compatibility with the EMERSON HMI series significantly reduces the time required for mechanical installation — eliminating the need for custom adapters, line modifications, or extended system isolation periods.

For planned maintenance windows, the recommended approach is to recover the refrigerant charge into a certified recovery cylinder before opening the liquid line, replace the HMI-1TT4 and any adjacent filter-drier cores simultaneously, pressure-test the repaired section with dry nitrogen to the system’s design pressure, evacuate the line to the required micron level before recharging, and verify the new indicator’s color response after the system reaches stable operating conditions. This sequence typically allows a single-compressor refrigeration system to be returned to service within a four-to-six-hour maintenance window when all replacement parts are staged in advance.

For multi-compressor systems or refrigeration racks serving multiple zones, a staged approach — isolating and servicing one circuit at a time while maintaining cooling on parallel circuits — preserves overall system availability throughout the maintenance period. Coordinating the HMI-1TT4 replacement with the facility’s scheduled defrost cycle or low-load period further reduces the operational impact of the service intervention.

Pre-staging the HMI-1TT4 and all associated consumables (nitrogen, recovery equipment, vacuum pump, replacement drier cores, and refrigerant charge) before the maintenance window begins is the single most effective measure for controlling total downtime. Each unit shipped by SMARTNEXMSK is pre-tested and ready for immediate installation, eliminating the risk of receiving a defective component that extends the outage beyond the planned window.

Retrofit Support FAQ

Q1: Is the HMI-1TT4 a direct drop-in replacement for other EMERSON HMI-series moisture indicators?
A: In most cases, yes. The HMI-1TT4 is designed as a replacement within the EMERSON HMI refrigeration series. However, you should verify the connection type (flare vs. solder), port size, and refrigerant compatibility against your existing installation before ordering. Our technical team can assist with cross-referencing if you provide the original part number or system specifications.

Q2: Does replacing the HMI-1TT4 require changes to PLC programming or HMI screen configuration?
A: No. The HMI-1TT4 is a passive visual indicator with no electrical interface. Its replacement has no impact on PLC logic, I/O assignments, SCADA tags, or HMI display screens. If your system uses a separate electronic moisture transmitter for alarm signaling, that device is independent of the HMI-1TT4 and does not require reconfiguration.

Q3: What commissioning checks are required after installing the HMI-1TT4?
A: After installation, pressure-test the liquid line section with dry nitrogen, evacuate to the required vacuum level, recharge with the correct refrigerant type and quantity, and allow the system to reach stable operating temperature. Inspect the HMI-1TT4’s color indicator element under normal operating conditions — a green or clear indication confirms acceptable moisture levels. A yellow or yellow-green indication signals elevated moisture and may require drier core replacement before returning the system to full service.

Q4: What warranty coverage applies to the HMI-1TT4, and what does the pre-shipment test include?
A: Every HMI-1TT4 unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional performance failures under normal operating conditions. Pre-shipment testing includes visual inspection for physical integrity, verification of the moisture-sensing element’s condition, and confirmation that all connection interfaces are free from damage or contamination. Units that do not pass inspection are not shipped.
