Emerson KJ1501X1-BC4 13P0063X052 Maintenance-Ready Spare for DeltaV Automation

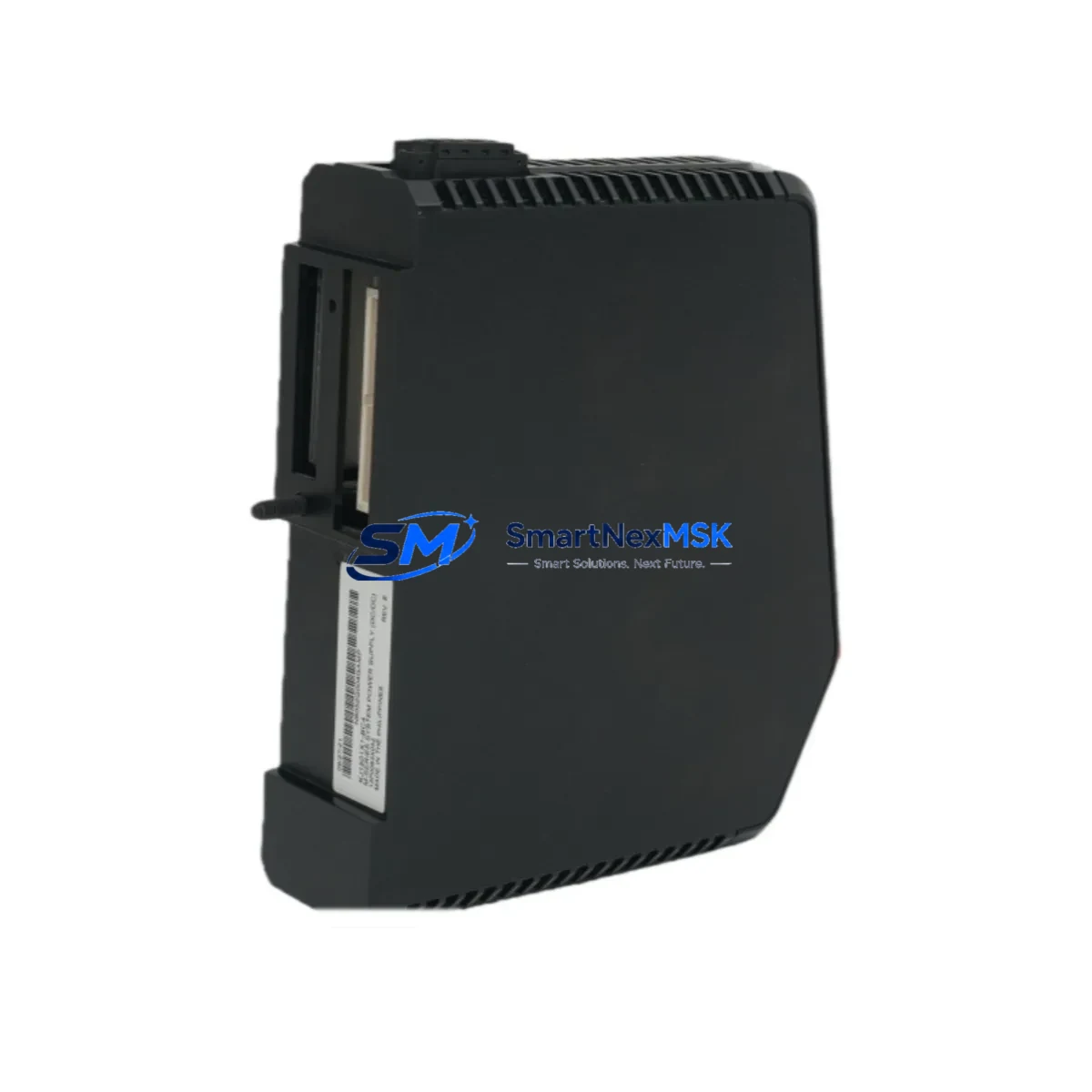

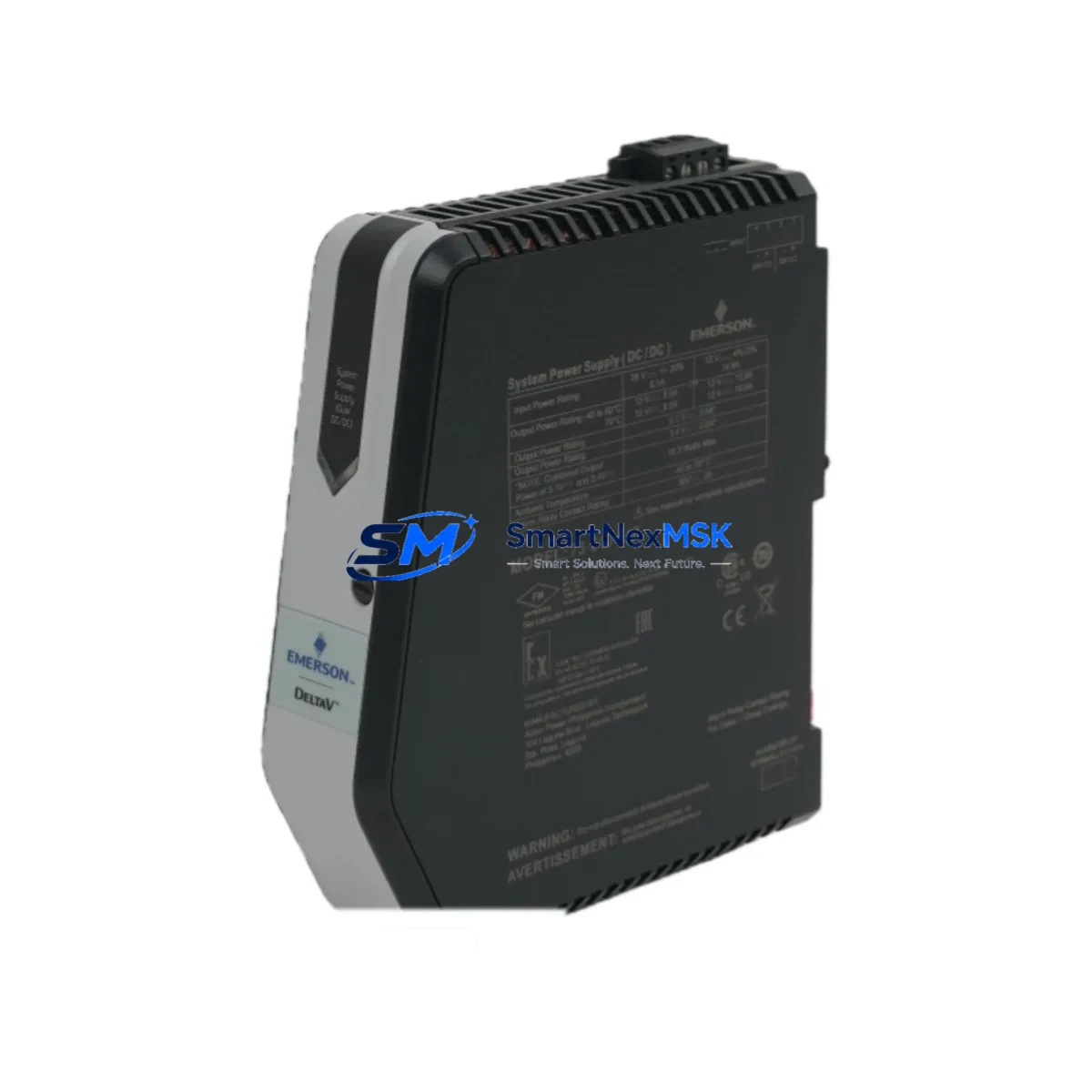

The Emerson KJ1501X1-BC4 (part number 13P0063X052) is an original dual-output DC power supply module engineered for the Emerson DeltaV distributed control system. In process industries — including oil & gas, chemical, pharmaceutical, and power generation — unplanned DCS power supply failures are among the highest-risk events for production continuity. Maintaining a verified, tested spare of the KJ1501X1-BC4 in your critical spare parts inventory is a proven strategy to reduce mean time to repair (MTTR) and protect against costly unplanned shutdowns.
This module supplies regulated DC power to DeltaV I/O subsystems and controller nodes. Its dual-output architecture supports redundant power configurations, making it a cornerstone component in high-availability control cabinet designs. When this module degrades or fails, the entire I/O subsystem it feeds — including analog input cards, digital output modules, and fieldbus interface cards — may become unavailable, triggering process trips or forcing manual override operations.
Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, visual inspection, and packaging verification. A 12-month warranty is included as standard, covering manufacturing defects and functional failures under normal operating conditions.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | KJ1501X1-BC4 |
| Reference Number | 13P0063X052 |
| Brand | Emerson (Fisher-Rosemount) |
| Series / Platform | DeltaV DCS |
| Module Type | Dual DC Power Supply Module |
| Output Configuration | Dual redundant DC outputs |
| Compatible Systems | Emerson DeltaV S-series, M-series controller nodes and I/O subsystems |
| Mounting | DeltaV carrier / backplane rail mount |
| Operating Temperature | 0°C to 60°C (standard industrial enclosure) |
| Application Environment | Process control cabinets, DCS marshalling panels, hazardous area enclosures (with appropriate barrier) |
| Condition | Original, new or refurbished-to-spec; tested before shipment |
| Origin | USA (Emerson OEM) |
| Warranty | 12 Months — covers functional failure under normal operating conditions |
| Lead Time | In-stock: ships within 2 business days; ex-stock global logistics available |
| Maintenance Recommendation | Inspect every 12–18 months; replace at first sign of output voltage drift or thermal anomaly |
Maintenance Planning for Continuous Operation
When a KJ1501X1-BC4 power supply module is flagged during routine control cabinet inspection or predictive maintenance, the replacement workflow should extend beyond the module itself. A power supply failure in a DeltaV system rarely occurs in isolation — associated components in the same power distribution chain and I/O subsystem are often subject to the same thermal stress, aging, or transient events.
Maintenance engineers should simultaneously inspect the KJ1501X1-BA2 power supply module installed in the redundant slot, as both units share the same backplane and thermal environment. If one module shows signs of wear, the redundant unit is statistically at elevated risk. Similarly, the KJ2005X1-BA1 DeltaV controller module powered by this supply should be verified for stable operation and firmware integrity after any power event.
The KJ3001X1-BA1 DeltaV I/O interface module and associated KJ3002X1-BA1 analog input cards downstream of the power supply should be checked for signal integrity and calibration drift — power transients during a supply failure can introduce offset errors in 4–20 mA loops. For digital output modules such as the KJ4001X1-BA1, verify relay contact resistance and output state consistency after power restoration.
Fieldbus and communication integrity should also be confirmed: the KJ3221X1-BA1 FOUNDATION Fieldbus H1 interface card and KJ3222X1-BA1 PROFIBUS DP interface module are sensitive to power quality and should be re-initialized and loop-tested post-replacement. Terminal blocks, DIN rail fuse holders, and 24 VDC distribution busbars within the marshalling cabinet should be inspected for loose connections or thermal discoloration — these are common secondary failure points following a power supply event.
For sites running legacy DeltaV configurations, maintaining a minimum of one spare KJ1501X1-BC4 per control node cluster is recommended. Procurement engineers should also consider stocking the KJ1501X1-BA2 as a cross-compatible spare to reduce SKU proliferation while maintaining coverage across multiple node types.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the KJ1501X1-BC4 is the fault source using DeltaV Diagnostics or a calibrated DC voltmeter. Document output voltage readings on both channels before removal.
Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. In redundant configurations, verify the standby supply has assumed full load before removing the faulty module. Do not interrupt power to active I/O nodes without confirming redundancy is active.
Step 3 — Module swap: Remove the faulty KJ1501X1-BC4 from the DeltaV carrier. Insert the replacement module — no firmware configuration is required for standard power supply modules. The DeltaV system will auto-detect the new module within the carrier.
Step 4 — Post-installation verification: Confirm output voltage stability on both channels. Check DeltaV Diagnostics for any residual alarms. Verify all downstream I/O cards have returned to normal scan state. Perform a loop check on critical analog signals if a power transient was recorded during the fault event.
Step 5 — Documentation and spare replenishment: Log the replacement in your CMMS (Computerized Maintenance Management System). Immediately initiate a purchase order for a replacement spare to restore your critical spare inventory level. Extended lead times on legacy DeltaV components make proactive restocking essential for maintaining site readiness.
Spare Parts Support FAQ
Q1: Is the KJ1501X1-BC4 still available as a new original part?
A: Emerson has transitioned some DeltaV power supply variants to updated part numbers. SMARTNEXMSK maintains stock of both original KJ1501X1-BC4 units and functionally equivalent replacements. All units are verified for compatibility with existing DeltaV S-series and M-series installations before shipment. Contact our team to confirm current stock status and lead time.
Q2: How is the module tested before shipment?
A: Each KJ1501X1-BC4 unit undergoes a pre-shipment functional test including output voltage verification on both DC channels, load regulation check, and visual inspection for physical damage, connector integrity, and label legibility. A test report is available upon request for critical plant applications.
Q3: Can this module replace the KJ1501X1-BA2 or other KJ1501 variants?
A: The KJ1501 family shares a common form factor and backplane interface, but output voltage ratings and redundancy configurations may differ between sub-variants. Always verify the exact part number and reference number (13P0063X052 for the BC4 variant) against your DeltaV system documentation before installation. Our technical team can assist with compatibility confirmation.
Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers functional failure of the module under normal operating conditions, including output voltage out-of-specification, failure to power up, and communication faults attributable to the module itself. Physical damage caused by incorrect installation, overvoltage events, or environmental factors outside the module’s rated operating range is excluded. Warranty claims are processed with priority turnaround to minimize site downtime.
