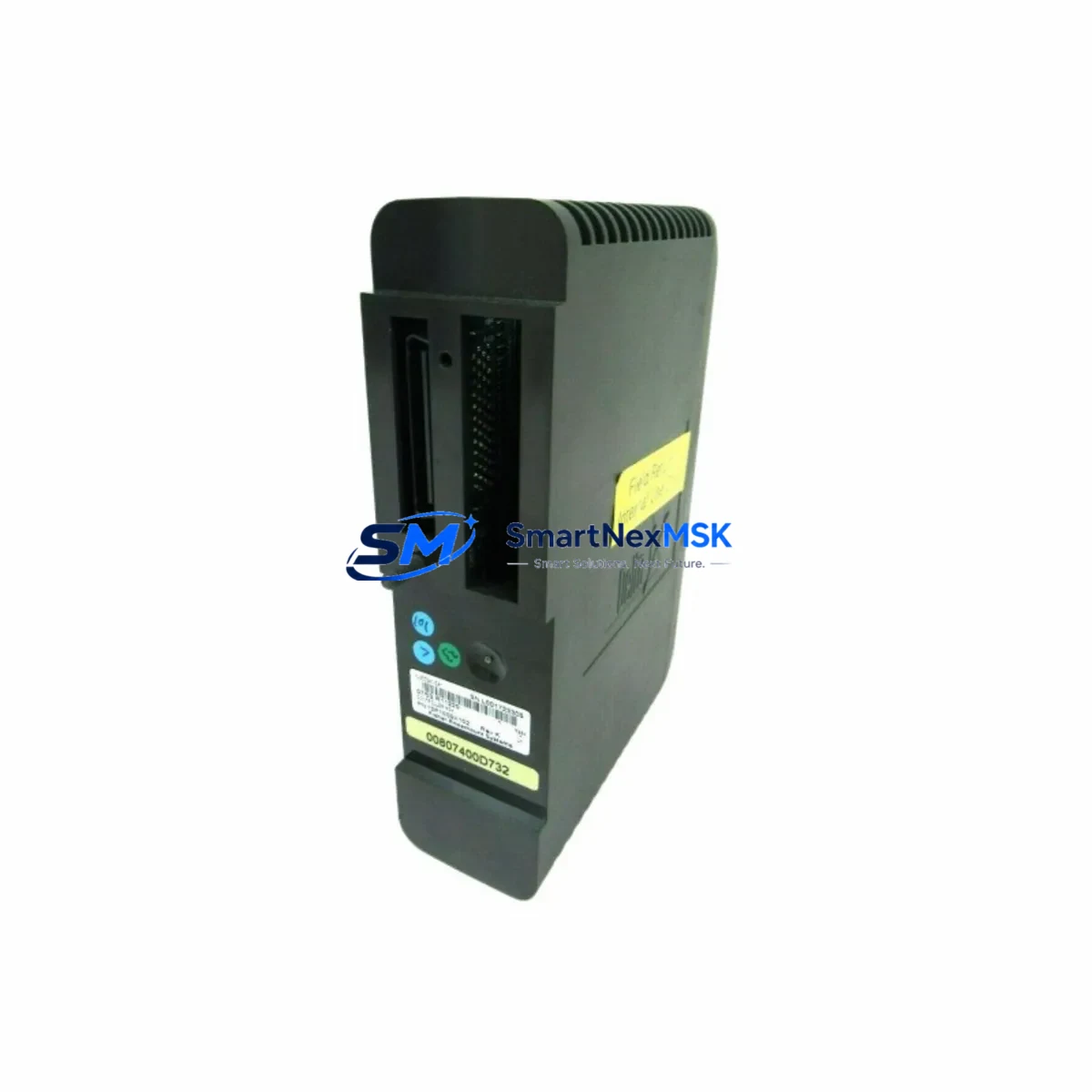

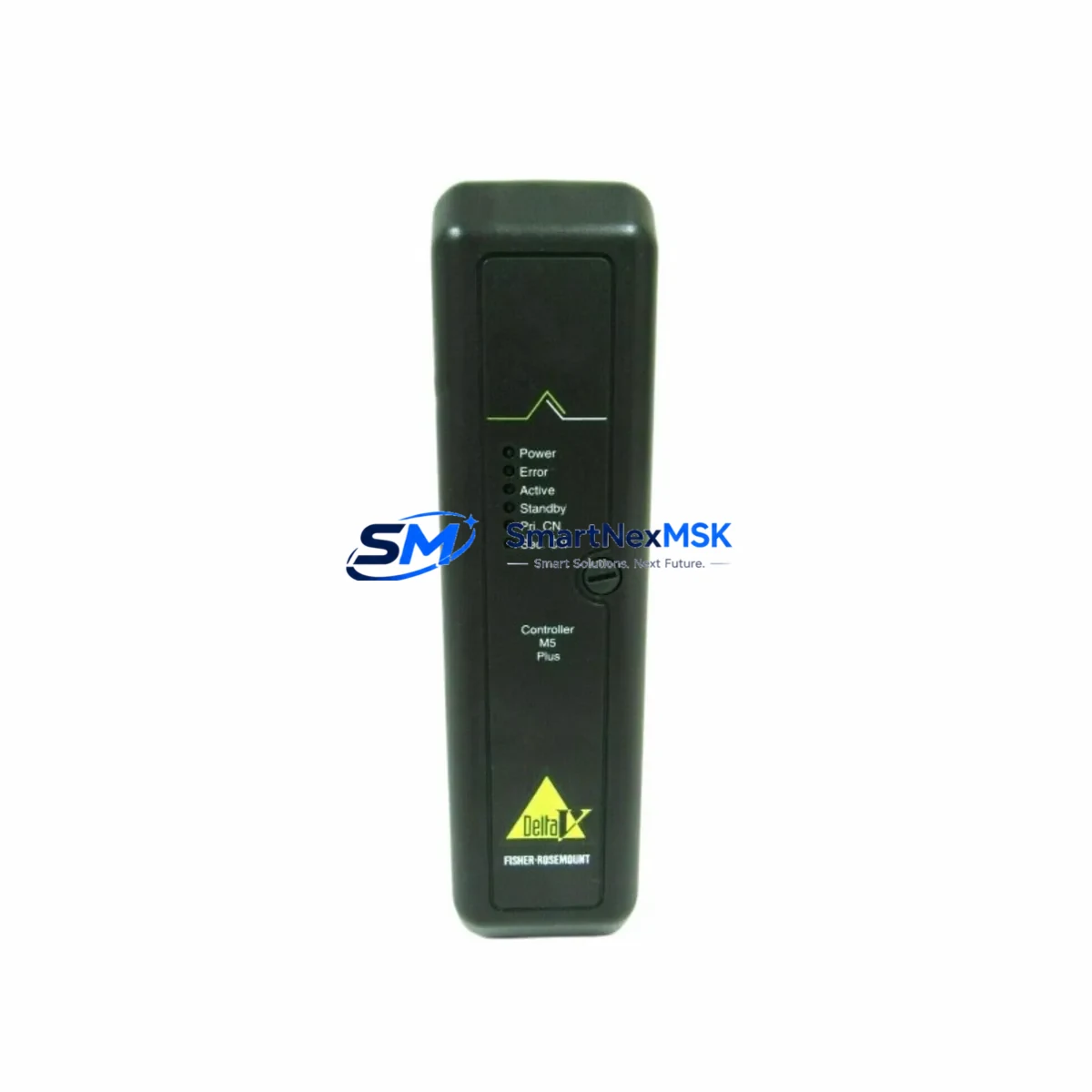

Emerson KJ2002X1-CA1 Safety-Enhanced DCS Controller Module

Emerson KJ2002X1-CA1 Safety-Enhanced DCS Controller Module: Reliable Control for Harsh Industrial Sites

The Emerson KJ2002X1-CA1 12P1509X102 is a high-integrity DCS controller module engineered for the DeltaV M5+ distributed control system. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port logistics systems — this module delivers the processing stability and signal fidelity that safety-critical control loops demand. With robust EMI shielding, wide operating temperature tolerance, and deterministic scan-cycle execution, the KJ2002X1-CA1 is a trusted backbone component for engineers who cannot afford unplanned downtime.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered DeltaV M5+ control cabinet, the KJ2002X1-CA1 controller module operates at the center of a layered protection architecture. Reliable controller performance depends on the integrity of every upstream and downstream component sharing the same backplane and power rail.

Power quality is the first line of defense. The Emerson KJ4001X1 Power Supply Module provides regulated 24 VDC to the controller backplane, and pairing it with a KJ4002X1 Redundant Power Supply eliminates single-point power failure risk. For sites with unstable grid input, an upstream Phoenix Contact QUINT-PS/1AC/24DC/20 DIN-rail power supply with integrated surge output protection ensures the DeltaV backplane never sees voltage spikes exceeding its rated tolerance.

Signal integrity is equally critical. Analog input modules such as the Emerson KJ3002X1-BA1 8-Channel AI Module feed process variables directly to the KJ2002X1-CA1 for PID execution. Any signal drift or ground loop on these inputs can cause the controller to execute incorrect control actions — a risk mitigated by proper shielded cable termination and the use of Emerson KJ3222X1-BA1 HART-enabled AI modules for smart field device diagnostics. On the output side, the Emerson KJ3001X1-BA1 Analog Output Module translates controller commands to 4–20 mA signals driving control valves and variable-frequency drives.

For discrete safety interlock circuits, the Emerson KJ2201X1-HA1 Digital Input Module monitors emergency shutdown (ESD) pushbuttons, pressure switches, and vibration trip contacts. Its companion KJ2211X1-HA1 Digital Output Module drives solenoid valves and motor contactors in the safety interlock loop. In SIL-rated applications, these I/O modules are validated alongside the KJ2002X1-CA1 controller to maintain the integrity of the safety instrumented function (SIF).

Communication redundancy is maintained through the Emerson KJ2005X1-BA1 Controller Communication Card, which provides dual-redundant Ethernet paths between the controller and the DeltaV operator workstation. Should the primary network path experience a fault — whether from a cable break, switch failure, or electromagnetic interference — the secondary path maintains uninterrupted process visibility and control. For fieldbus-connected devices, the Emerson KJ2003X1-BA1 FOUNDATION Fieldbus H1 Card extends the controller’s reach to intelligent field instruments without introducing additional failure modes in the I/O marshalling cabinet.

Surge and transient protection at the cabinet entry point is provided by Phoenix Contact TRABTECH or Weidmüller VSSC series DIN-rail surge protection devices, clamping fast transients before they reach the backplane. Together, these components form a complete, defense-in-depth control cabinet strategy that keeps the KJ2002X1-CA1 operating within its rated parameters — even during thunderstorms, grid switching events, or nearby heavy motor starts.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The KJ2002X1-CA1 is widely deployed in crude distillation unit (CDU) and hydrocracker control systems, where it manages temperature, pressure, and flow control loops in continuous 24/7 operation. Its deterministic scan cycle and redundant controller architecture ensure that a single module fault does not interrupt the process — a critical requirement in facilities where an uncontrolled shutdown can trigger flare events or product quality excursions.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the DeltaV M5+ controller handles boiler combustion control, turbine speed governing, and auxiliary system interlocks. The KJ2002X1-CA1’s wide operating temperature range and EMI immunity make it suitable for installation in electrical rooms adjacent to high-voltage switchgear and large rotating machinery.

Mining & Mineral Processing: Conveyor belt control, crusher sequencing, and flotation cell management in mining operations demand controllers that tolerate high vibration, dust ingress, and wide ambient temperature swings. The KJ2002X1-CA1, installed in sealed NEMA 12 or IP54 control enclosures, provides the processing reliability needed to maintain ore throughput targets without nuisance trips.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on DeltaV M5+ systems for dosing pump control, filtration sequencing, and effluent quality monitoring. The KJ2002X1-CA1 supports the long continuous run times — often exceeding 5 years between planned maintenance windows — that water utility operators require.

Metallurgy & Steel Production: Electric arc furnace (EAF) control, continuous casting machine sequencing, and rolling mill automation expose DCS controllers to intense electromagnetic interference from high-current switching. The KJ2002X1-CA1’s IEC 61000-4 series immunity ratings ensure stable operation in these electromagnetically hostile environments.

Port & Terminal Logistics: Automated container handling systems, ship-to-shore crane controls, and tank farm management at port terminals benefit from the KJ2002X1-CA1’s Ethernet-based communication architecture, which integrates seamlessly with SCADA systems and MES platforms for end-to-end logistics visibility.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all functional defects identified during normal operation under the module’s rated conditions. If the KJ2002X1-CA1 fails due to a manufacturing or component defect within 12 months of shipment, we provide a full replacement unit or depot repair at no additional cost. Warranty claims are processed within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed on each module?
Every KJ2002X1-CA1 unit undergoes a 100% functional burn-in test prior to shipment. This includes backplane communication verification, controller scan-cycle timing validation, I/O bus integrity checks, and power consumption measurement against OEM specifications. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with existing DeltaV M5+ systems without firmware upgrades?
Yes. The KJ2002X1-CA1 12P1509X102 is a direct OEM-equivalent replacement for existing DeltaV M5+ controller slots. It is compatible with DeltaV software versions 11.x through 14.x without requiring firmware modification. For sites running earlier DeltaV versions, compatibility verification is recommended — our technical team can assist with version cross-referencing before shipment.

Q4: Can long-term supply continuity be guaranteed for critical spares programs?
We maintain dedicated safety-stock inventory of the KJ2002X1-CA1 to support critical spares programs and emergency replacement requirements. Orders placed before 14:00 CST are typically shipped same-day. For facilities managing multi-year maintenance contracts, we offer reserved inventory agreements to ensure module availability regardless of market supply fluctuations. Contact our team to discuss your site’s specific spare parts strategy.
