Emerson KJ2005X1-MQ1 Maintenance-Ready Spare DeltaV DCS

Emerson KJ2005X1-MQ1 Maintenance-Ready Spare DeltaV DCS: Spare Replacement & Industrial Downtime Risk Control

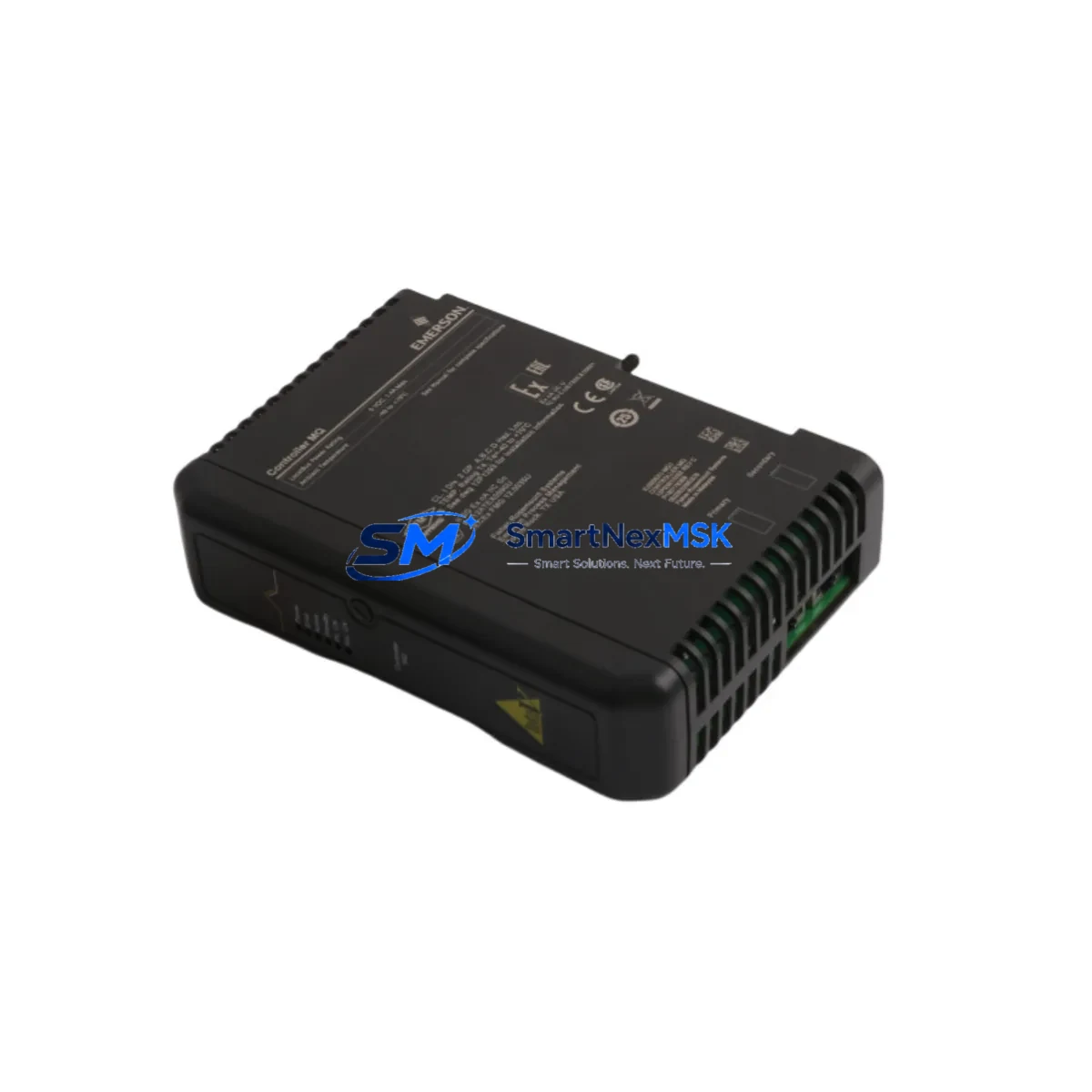

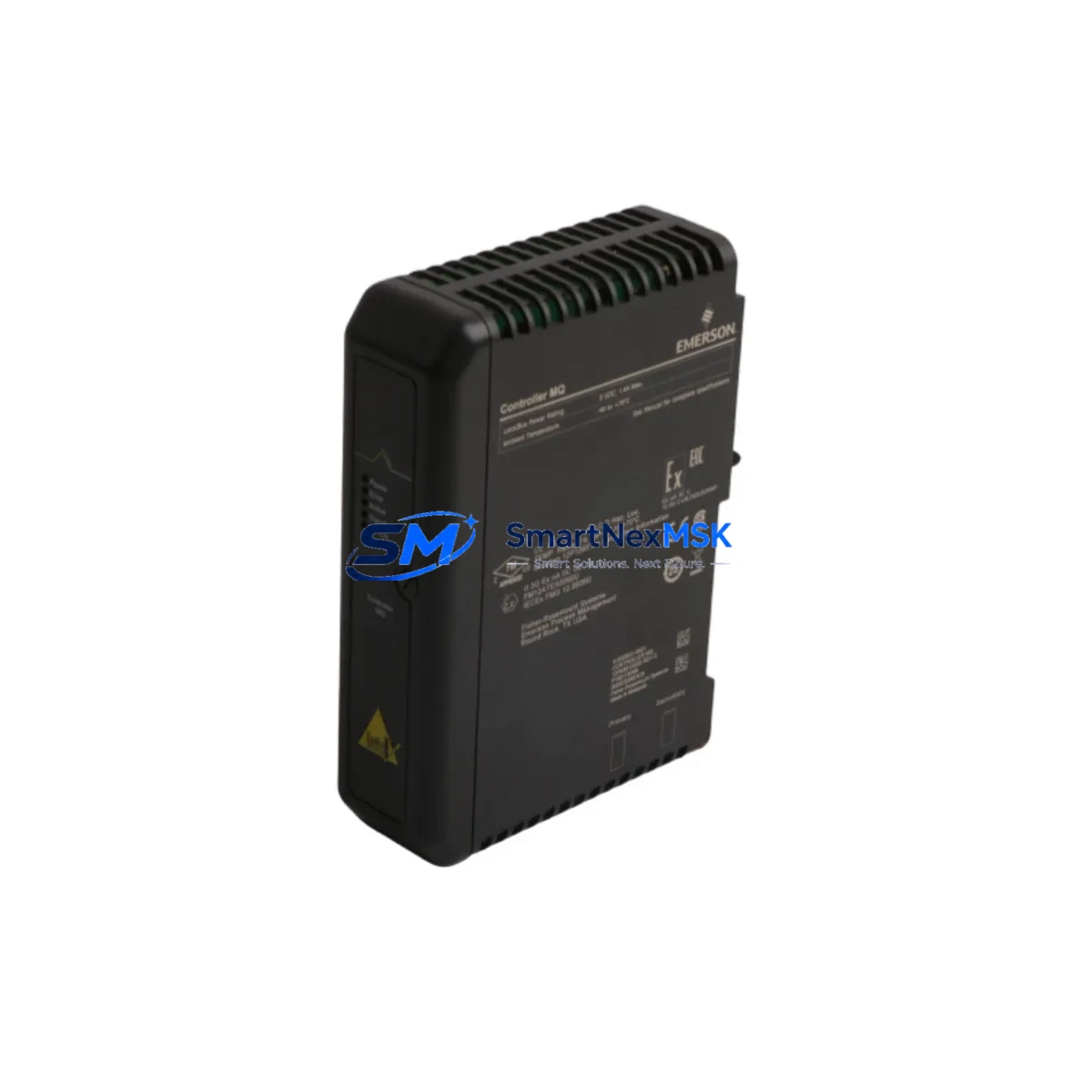

The Emerson KJ2005X1-MQ1 (cross-referenced as 12P6381X032 and VE3008) is a critical power supply module within the Emerson DeltaV distributed control system architecture. For maintenance engineers and procurement teams managing continuous-process facilities — including chemical plants, oil & gas terminals, pharmaceutical production lines, and power generation sites — securing a verified, tested spare of this module is a foundational step in any serious downtime-prevention strategy.

An unplanned power supply failure in a DeltaV controller node can cascade into full I/O loss, process shutdown, and costly recovery sequences. Holding a maintenance-ready KJ2005X1-MQ1 in your spare parts cabinet eliminates that risk entirely. This listing supplies an original Emerson KJ2005X1-MQ1 module, sourced from authorized channels, individually tested prior to shipment, and backed by a 12-month warranty. Each unit is verified for output voltage stability, inrush current behavior, and connector integrity before dispatch. Whether you are replenishing a depleted spare parts inventory, replacing a degraded unit identified during a scheduled control cabinet inspection, or responding to an emergency fault condition, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the KJ2005X1-MQ1 is flagged for replacement — through a predictive maintenance alert, a routine control cabinet inspection, or an unplanned fault — experienced maintenance engineers know that the power supply is rarely the only component that warrants attention. A thorough site assessment during the same maintenance window significantly reduces the probability of a follow-on failure.

Begin by inspecting the DeltaV controller carrier and backplane (such as the KJ2005X1-BA1 carrier assembly) for signs of thermal stress, connector oxidation, or physical damage. A degraded power supply often subjects downstream components to voltage ripple or transient spikes; the carrier connectors and backplane bus should be cleaned and verified before the replacement module is seated.

Next, audit the I/O module complement installed in the same controller node. DeltaV analog input modules (e.g., KJ3001X1-BA1 series) and digital output modules are sensitive to supply voltage quality. If the failed KJ2005X1-MQ1 exhibited slow degradation rather than sudden failure, adjacent I/O modules may have been operating outside their rated supply window for an extended period. Functional testing of each I/O channel after power supply replacement is strongly recommended.

The DeltaV controller module itself — typically a KJ2003X1-BA1 or MD-series controller — should be checked for firmware integrity and communication health following any power interruption. A power supply fault that caused an uncontrolled shutdown may have interrupted a firmware write cycle or corrupted the controller’s non-volatile configuration store.

For sites running FOUNDATION Fieldbus or HART communication through DeltaV I/O, inspect the associated fieldbus power conditioners and signal isolators. These components are often housed in the same marshalling cabinet and share the same 24 VDC bus. Surge events that accompany power supply failures can damage fieldbus terminators and signal conditioning modules.

Do not overlook the 24 VDC bulk power supply feeding the DeltaV cabinet — units such as the Emerson KJ4001X1 or equivalent DIN-rail PSU. If the KJ2005X1-MQ1 failed due to upstream voltage irregularity rather than internal component wear, replacing the module without addressing the root cause will result in premature failure of the new spare. Measure input voltage under load and verify ripple is within specification before commissioning the replacement.

Also review the cabinet fusing and terminal block assemblies. Blown fuses, loose terminal connections, and corroded DIN-rail terminal blocks are common contributors to intermittent power supply faults in aging DeltaV installations. Replacing fuses and re-torquing terminal connections during the same maintenance window is low-cost insurance against repeat callouts.

Finally, if the site operates a DeltaV SIS (Safety Instrumented System) in the same cabinet or adjacent enclosure, verify that the SIS logic solver power supply — often a separate, redundant supply module — has not been affected by the same fault condition. SIS power supply health should be confirmed and documented before the process is returned to automatic control. Additionally, check any DeltaV CHARM I/O cards and associated CHARacterization Module (CHARM) baseplates for power rail integrity, as these are directly dependent on stable upstream supply from the KJ2005X1-MQ1 in modern DeltaV installations.

Site Replacement Workflow

Step 1 — Identify and isolate. Confirm the failed module is the KJ2005X1-MQ1 using the DeltaV Diagnostics workspace or the physical label on the module faceplate. Cross-reference the alternate part numbers 12P6381X032 and VE3008 if the installed unit carries a legacy label. Place the affected controller node in manual or safe state per your site’s MOC (Management of Change) procedure before removing any hardware.

Step 2 — Verify spare compatibility. Confirm that the replacement KJ2005X1-MQ1 carries the same hardware revision as the installed base, or that the DeltaV system version in use is compatible with the revision of the spare. Emerson DeltaV hardware revisions are backward-compatible within the same module family in most cases, but this should be verified against the site’s DeltaV version release notes. Compatibility with both S-series and M-series carrier assemblies should be confirmed before installation.

Step 3 — Remove and replace. Follow Emerson’s standard ESD precautions. The KJ2005X1-MQ1 is hot-swap-capable in redundant power configurations; in non-redundant installations, a controlled shutdown of the controller node is required. Seat the replacement module firmly until the carrier latch engages. Do not force the module — misalignment of the backplane connector is a common cause of installation damage.

Step 4 — Commission and verify. Power up the controller node and observe the DeltaV Diagnostics workspace for module health status. Confirm that all I/O channels return to their pre-fault states and that no new alarms are generated. Document the replacement in the site’s CMMS with the new module’s serial number and the date of installation.

Step 5 — Replenish the spare. A consumed spare should be reordered immediately to restore the site’s minimum spare parts holding. For critical DeltaV power supply modules, a minimum of one spare per controller node cluster is the industry-standard recommendation. Sites with extended lead-time risk or remote locations should consider holding two units.

Spare Parts Support FAQ

Q: What is the shelf life of a stored KJ2005X1-MQ1 spare, and how should it be stored?
A: Emerson DeltaV power supply modules stored in original packaging in a climate-controlled environment (15–30°C, <70% RH, non-condensing) maintain full functionality for 5–7 years. Electrolytic capacitors are the primary aging component; modules stored beyond 5 years should be powered up and run for a burn-in period before being placed in service. Our 12-month warranty applies from the date of shipment, not the date of installation.

Q: Can the KJ2005X1-MQ1 replace both the 12P6381X032 and VE3008 references directly?
A: Yes. The KJ2005X1-MQ1, 12P6381X032, and VE3008 are cross-reference designations for the same Emerson DeltaV power supply module family. The KJ2005X1-MQ1 is the primary Emerson catalog number; 12P6381X032 is the Fisher-Rosemount legacy reference, and VE3008 is an alternate ordering code used in some regional markets. All three designations are physically and electrically interchangeable within compatible DeltaV carrier assemblies.

Q: What pre-shipment testing is performed, and what documentation is provided?
A: Every KJ2005X1-MQ1 unit undergoes bench testing covering output voltage accuracy, load regulation, inrush current, and connector integrity before shipment. A test report is available upon request. Units are shipped in anti-static packaging with physical protection adequate for international freight. A certificate of conformance can be provided for sites with ISO 9001 or IEC 61511 documentation requirements.

Q: What does the 12-month warranty cover, and what is the RMA process?
A: The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our sales team with the order number, module serial number, and a brief description of the fault. Replacement units are dispatched within 3 business days of fault confirmation. Return freight for warranty claims is covered by SMARTNEXMSK for the first 90 days from shipment.
