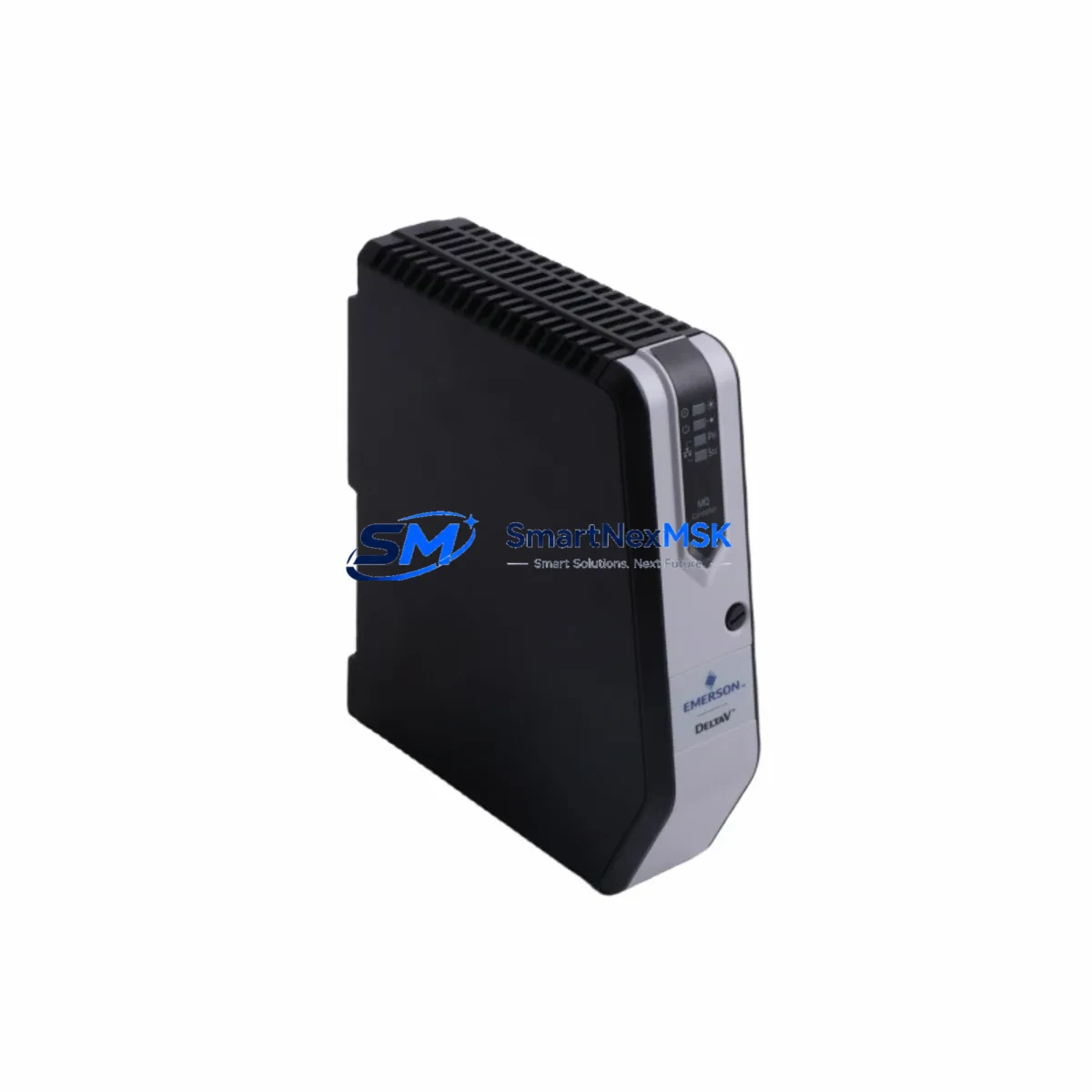

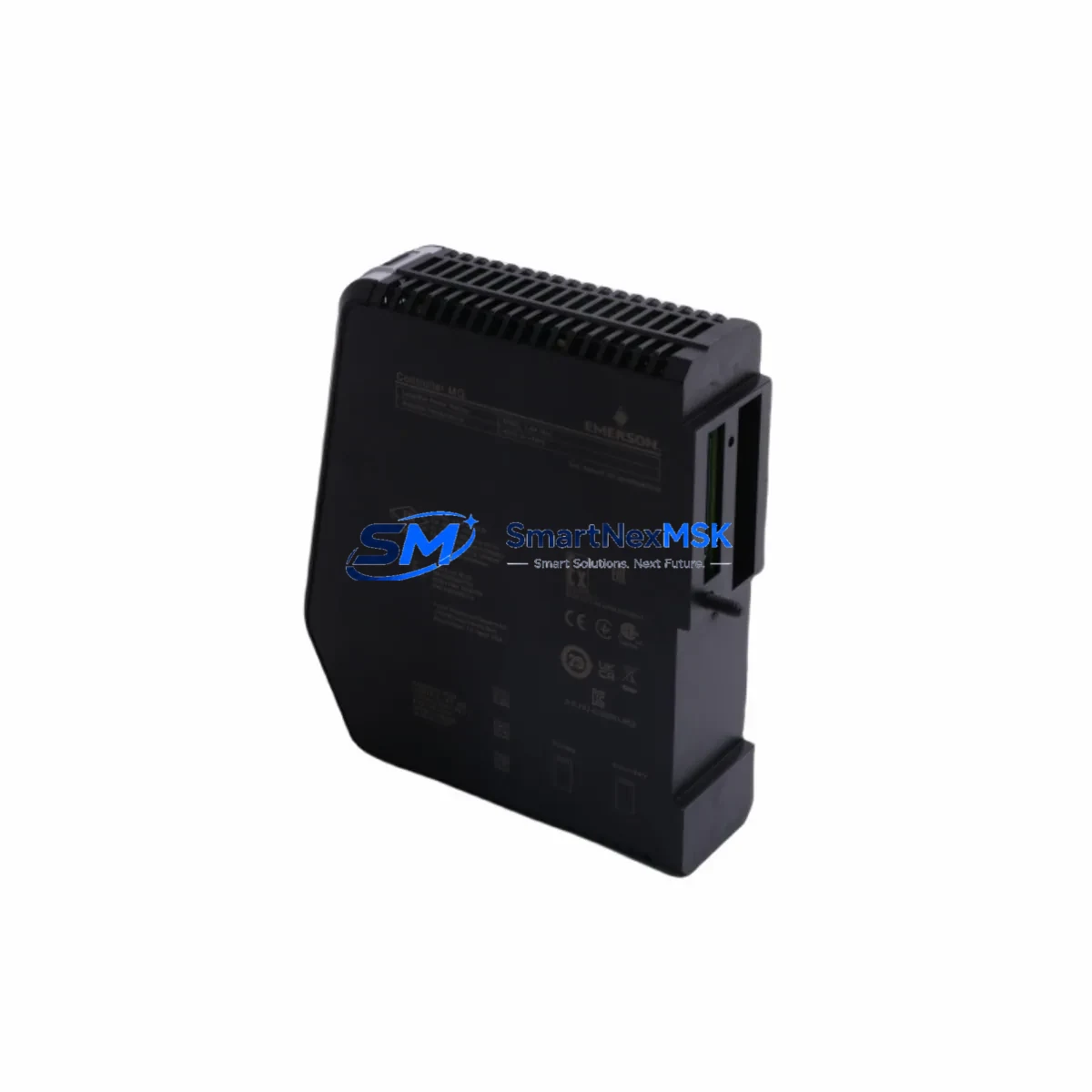

Emerson KJ2005X1-MQ2 Retrofit-Ready Controller for DeltaV Control Systems
The Emerson KJ2005X1-MQ2 (part number 13P0072X092) is a proven DCS controller module engineered for seamless integration into existing DeltaV distributed control system architectures. As legacy DeltaV hardware reaches end-of-life or becomes increasingly difficult to source, the KJ2005X1-MQ2 serves as a direct retrofit solution — enabling plant engineers and system integrators to restore full control capability without redesigning the control strategy, rewriting application logic, or replacing the entire control cabinet.
This module is purpose-built for industrial environments where uptime is critical and unplanned shutdowns carry significant operational cost. Whether you are replacing a failed controller, upgrading a degraded node, or executing a planned modernization of an aging DeltaV system, the KJ2005X1-MQ2 delivers the compatibility, reliability, and documentation support required for a confident retrofit.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Series | Emerson DeltaV S-Series, M-Series, MD-Series |
| Backplane Interface | DeltaV standard carrier / controller slot |
| Communication Protocol | DeltaV proprietary network; HART, FOUNDATION Fieldbus via I/O modules |
| Power Supply Requirement | 24 VDC via DeltaV power supply module (e.g. KJ4001X1-BA1) |
| Installation Type | Direct slot replacement — no mechanical modification required |
| Firmware Compatibility | Compatible with DeltaV v10.3 and above; verify with DeltaV Diagnostics |
| Replacement Recommendation | Direct drop-in for KJ2005X1-MQ1, KJ2005X1-BA1 and equivalent legacy controllers |
| Commissioning Requirement | Module address assignment via DeltaV Explorer; no hardware jumper setting required |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful DeltaV controller retrofit begins well before the module arrives on site. Engineers should start by auditing the existing control cabinet to confirm that the DeltaV power supply module — typically a KJ4001X1-BA1 or equivalent — can sustain the additional load of the replacement controller. Insufficient power headroom is one of the most common causes of post-retrofit instability and must be resolved before the new module is seated.
Next, verify the backplane and carrier assembly. The KJ2005X1-MQ2 installs into the standard DeltaV controller carrier, which is shared across the S-Series and M-Series platforms. If the existing carrier shows signs of corrosion, bent pins, or mechanical wear, it should be replaced with a new DeltaV controller carrier before the retrofit proceeds. Attempting to seat a new controller module into a damaged carrier risks damaging the module and voiding the warranty.
Terminal wiring and field I/O connections are managed through the DeltaV I/O subsystem rather than directly through the controller, which simplifies the physical retrofit considerably. However, engineers must confirm that all associated I/O modules — including analog input modules such as the KJ3001X1-BA1, discrete output modules, and any HART-enabled I/O cards — are correctly addressed and communicating on the DeltaV I/O network before the new controller is brought online.
For systems that include FOUNDATION Fieldbus segments, the fieldbus interface module and associated H1 cards must be verified for compatibility with the replacement controller’s firmware version. Similarly, if the plant uses Modbus RTU or OPC DA/UA bridges for third-party SCADA integration, the communication link configuration stored in DeltaV Explorer must be reviewed and re-validated after the controller swap.
The DeltaV workstation running DeltaV Operate and DeltaV Diagnostics should be used to pre-stage the module configuration. Assign the correct node name and network address in DeltaV Explorer before physical installation. This allows the system to recognize the replacement module immediately upon power-up, minimizing the time the control loop spends in manual or fallback mode. If the plant uses a DeltaV SIS Safety Instrumented System in the same cabinet, ensure that the SIS logic solver — typically a separate KJ2005X1 variant or a dedicated SIS controller — is not affected by the controller replacement procedure.
Where the existing system includes a DeltaV Remote I/O (RIO) network or CHARM I/O modules, confirm that the RIO carrier and CHARM baseplates remain powered and communicating independently of the controller node during the swap. This is particularly important in continuous process environments where field instruments must remain in service throughout the maintenance window.
All retrofit work should be documented with before-and-after screenshots from DeltaV Diagnostics, including module health status, communication link quality, and I/O channel scan rates. This documentation supports both internal change management records and any future warranty claims.
Downtime Control During System Migration
Minimizing control system downtime during a DeltaV controller replacement requires a structured pre-outage preparation protocol. Before taking the affected controller node offline, place all associated control modules in manual mode from the DeltaV Operate console. This ensures that field devices — including control valves, variable frequency drives, and process transmitters — hold their last commanded output rather than defaulting to a potentially unsafe state.
Export a full backup of the DeltaV database, including the controller configuration, module parameters, alarm limits, and historian tags, using DeltaV Explorer prior to beginning physical work. This backup serves as the recovery baseline if the replacement module requires a full download rather than an incremental update.
The physical swap of the KJ2005X1-MQ2 is straightforward: power down the controller carrier, remove the failed module, seat the replacement, and restore power. The DeltaV system will automatically detect the new module and initiate a configuration download if the node address matches the pre-staged configuration. In most cases, the controller is back online and all control modules are returned to automatic mode within 15 to 30 minutes of beginning the physical replacement — provided that pre-staging was completed correctly.
For plants that cannot tolerate even brief interruptions to specific critical loops, consider using a DeltaV redundant controller pair. The KJ2005X1-MQ2 supports controller redundancy when paired with a matching redundancy module, allowing one controller to take over seamlessly while the other is replaced. This approach reduces effective downtime for critical loops to near zero and is strongly recommended for continuous process applications such as refining, chemical production, and power generation.
After the replacement controller is online, verify all I/O channel statuses in DeltaV Diagnostics, confirm that HART device descriptors are loading correctly, and check that all historian tags are trending as expected in DeltaV Continuous Historian. Return all control modules to automatic mode in a controlled sequence, starting with the least critical loops and progressing to the most critical, to allow operators to monitor process response at each step.
Retrofit Support FAQ
Q: Is the KJ2005X1-MQ2 a direct replacement for older DeltaV controller modules such as the KJ2005X1-MQ1?
A: Yes. The KJ2005X1-MQ2 is designed as a functional replacement for earlier DeltaV controller variants including the KJ2005X1-MQ1. The module occupies the same carrier slot, uses the same backplane interface, and is recognized by DeltaV Explorer using the same node configuration. No changes to the control strategy or application logic are required in the majority of retrofit cases. Firmware version compatibility should be confirmed using DeltaV Diagnostics before installation.
Q: What wiring changes are required when installing the KJ2005X1-MQ2 as a retrofit?
A: Because the DeltaV architecture routes all field wiring through I/O modules and marshalling panels rather than directly through the controller, no field wiring changes are required for a standard controller replacement. The KJ2005X1-MQ2 connects to the system exclusively through the backplane carrier. Terminal blocks, cable trays, and field instrument connections remain undisturbed throughout the retrofit.
Q: How is the replacement module tested before shipment?
A: Each KJ2005X1-MQ2 unit supplied by SMARTNEXMSK undergoes functional verification prior to shipment, including power-on self-test, backplane communication check, and firmware version confirmation. Units are shipped with original or equivalent packaging to prevent transit damage. A 12-month warranty covering manufacturing defects and functional failures is included with every unit from the date of shipment.
Q: What support is available if compatibility issues arise during commissioning?
A: SMARTNEXMSK provides pre-sales technical consultation to confirm compatibility between the KJ2005X1-MQ2 and your specific DeltaV system version, carrier type, and firmware revision. Post-delivery technical support is available via email and phone to assist with module addressing, DeltaV Explorer configuration, and commissioning verification. Contact our technical team at sales@smartnexmsk.com or +86 18259474341 for assistance.
