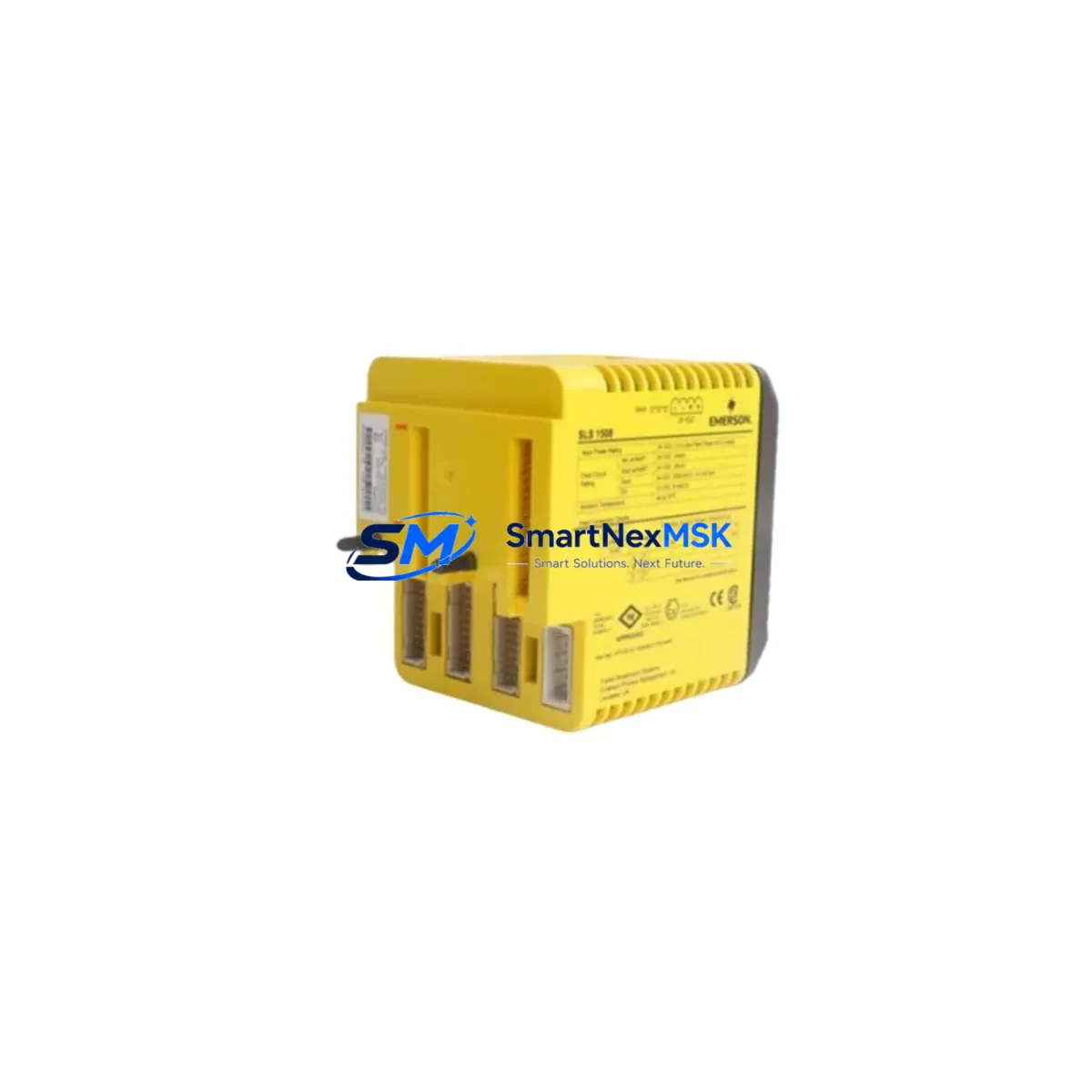

The Emerson KJ2201X1-BA1 (also catalogued as CS3202) is an original Contact Sense Input Module designed for the Emerson DeltaV SLS 1508 Safety Logic Solver platform. As a critical I/O component in safety-instrumented systems, this module handles discrete contact sense inputs that feed directly into the safety logic execution layer. When this module fails or degrades, the entire SIS loop is at risk — triggering unplanned shutdowns, failed proof tests, or forced manual overrides that compromise both production continuity and functional safety compliance.

At SMARTNEXMSK, we stock the KJ2201X1-BA1 as a maintenance-ready spare: fully tested before shipment, verified against original Emerson specifications, and backed by a 12-month warranty. Whether you are responding to an emergency fault, executing a planned proof test replacement, or building a strategic spare parts buffer for your DeltaV SLS installation, this module ships promptly with full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KJ2201X1-BA1 in a live DeltaV SLS 1508 installation is rarely an isolated task. Maintenance engineers and procurement engineers working on SIS loop restoration should treat this module replacement as a trigger for a broader inspection of the surrounding electrical and control architecture.

Begin with the SLS 1508 baseplate and power supply module — a degraded or undersized power supply is a common root cause of intermittent contact sense faults that are misdiagnosed as module failure. Verify that the baseplate’s 24 VDC rail is within tolerance before installing the replacement KJ2201X1-BA1. If the installation includes a KJ2201X1-BB1 or CS3201 Analog Input Module on the same baseplate, inspect those channels simultaneously, as shared power rail issues affect all slots.

Next, inspect the field wiring and terminal blocks connected to the contact sense inputs. Corroded terminals, loose ferrules, or undersized conductors are frequent contributors to false contact readings and premature module wear. If the installation uses Emerson DeltaV I/O marshalling cabinets, check the associated junction box terminal strips and cable shields for continuity and grounding integrity.

For installations where the SLS 1508 communicates with a DeltaV M-series or S-series controller via the DeltaV network, verify that the DeltaV controller module (e.g., MD Plus or MD Controller) is not logging communication timeouts that could indicate a broader I/O bus issue rather than a single module fault. A DeltaV CIOC (Charm I/O Card) or CSLS (Safety Logic Solver) communication card fault can produce symptoms identical to a failed contact sense input module.

Procurement engineers building a spare parts list for a DeltaV SLS 1508 installation should also consider stocking the KJ2201X1-BA1 companion output module (typically a CS3222 or equivalent DO module), as input and output modules in the same SIS loop are subject to similar aging profiles and proof test intervals. Including a spare SLS 1508 baseplate and at least one redundant power supply module in the spare parts cabinet significantly reduces mean time to repair (MTTR) during emergency shutdowns.

For older DeltaV SLS installations approaching end-of-life, the KJ2201X1-BA1 is a direct form-fit-function replacement that extends system life without requiring firmware upgrades or baseplate modifications — a critical advantage for facilities managing legacy SIS infrastructure under IEC 61511 lifecycle obligations.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the KJ2201X1-BA1 by reviewing DeltaV diagnostics for channel-specific fault codes. Cross-check with field instrument status to rule out field device failure before pulling the module.

Step 2 — Safety Bypass and Isolation: Follow your site’s Management of Change (MOC) and Safety Instrumented System bypass procedure. Place the affected SIS loop in manual or bypass mode per IEC 61511 requirements before removing the module. Document bypass start time.

Step 3 — Module Removal: Power down the affected slot if hot-swap is not supported on your baseplate revision. Remove the KJ2201X1-BA1 by releasing the module latch and sliding it clear of the baseplate connector. Inspect the baseplate connector pins for damage or contamination.

Step 4 — Replacement Installation: Insert the new KJ2201X1-BA1 (CS3202) into the correct baseplate slot. Confirm the module seats fully and the status LED initializes correctly. Reconnect field wiring to the terminal block, verifying polarity and torque on all terminals.

Step 5 — Functional Test: Restore power and perform a channel-by-channel functional test by actuating each field contact and verifying correct state change in DeltaV. Document test results as part of your proof test record.

Step 6 — Bypass Removal and Return to Service: Remove the SIS bypass, confirm all channels are in normal state, and close the MOC record. Update your spare parts inventory to reflect the consumed module and initiate a replenishment order to maintain your minimum stock level.

This workflow applies equally to planned proof test replacements and emergency fault recovery, minimizing downtime and maintaining full IEC 61511 compliance traceability.

Spare Parts Support FAQ

Q1: Is the KJ2201X1-BA1 a direct replacement for the CS3202, and will it work without firmware changes?
Yes. The KJ2201X1-BA1 is the Emerson part number for the CS3202 Contact Sense Input Module. It is a direct form-fit-function replacement for the DeltaV SLS 1508 platform and does not require firmware changes or baseplate modifications. Compatibility is verified against the standard SLS 1508 baseplate pinout before shipment.

Q2: What does the 12-month warranty cover, and how is it handled?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. If the module fails within the warranty period, SMARTNEXMSK will provide a replacement unit or full refund after fault verification. All modules are tested before shipment and shipped with inspection documentation to support warranty claims.

Q3: How quickly can the KJ2201X1-BA1 be shipped for emergency downtime recovery?
In-stock units are available for same-day or next-business-day dispatch. For emergency orders, contact our sales team directly at [email protected] or +86 18259474341 to confirm stock availability and arrange expedited freight. We support both standard and urgent delivery schedules for unplanned outage recovery.

Q4: How should I manage long-term spare parts inventory for a DeltaV SLS 1508 installation?
For a standard SLS 1508 installation, industry best practice recommends maintaining a minimum of one KJ2201X1-BA1 per installed baseplate as a cold spare, with additional units for high-criticality loops. Proof test intervals (typically 1–3 years per IEC 61511) are the natural trigger for spare consumption and replenishment. SMARTNEXMSK maintains long-term supply capability for this module and can support blanket order arrangements for facilities managing multi-site DeltaV SLS inventories.
