Emerson KJ2221X1-BA1 Spare for DeltaV SIS Automation

Emerson KJ2221X1-BA1 Spare for DeltaV SIS Automation: Spare Replacement & Downtime Risk Control

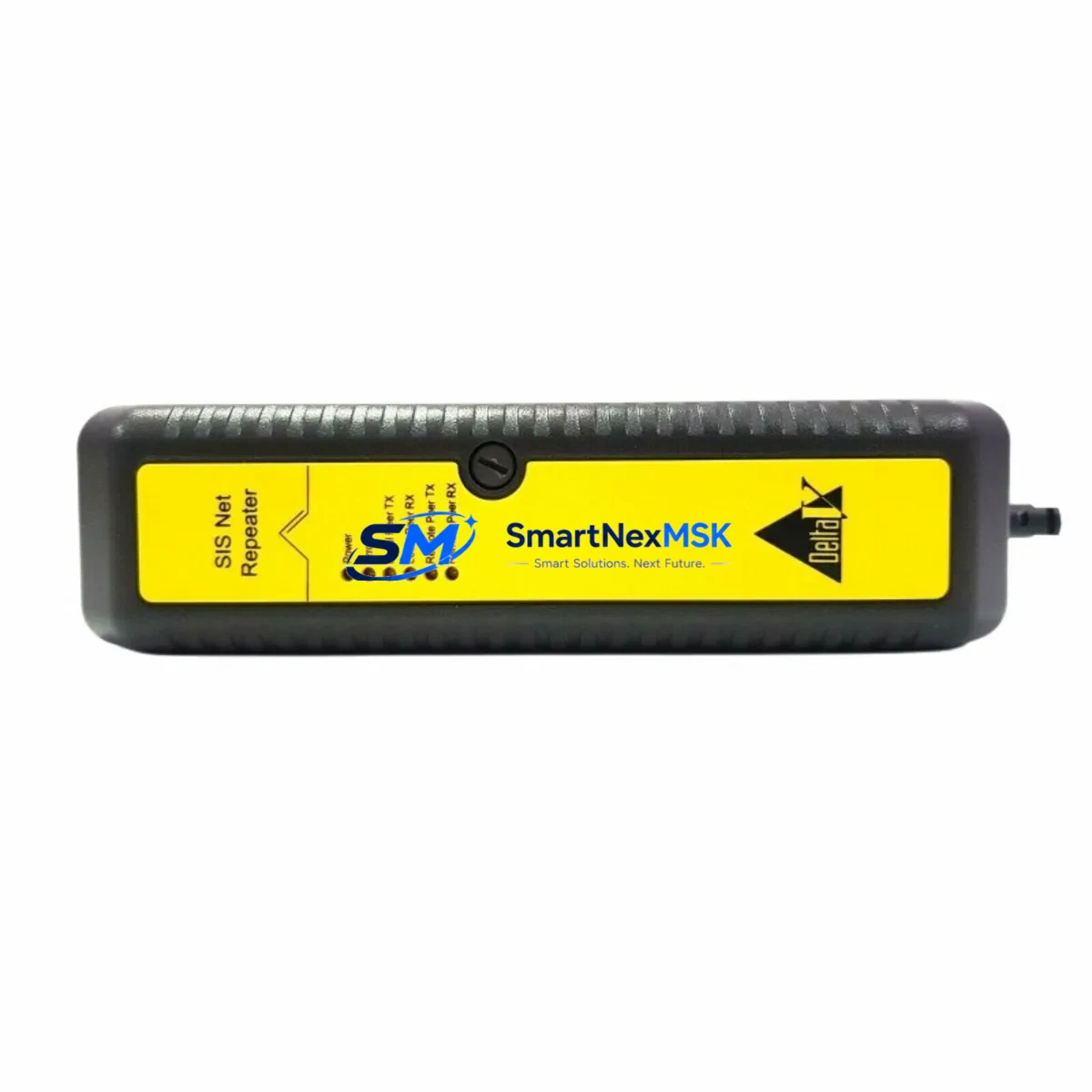

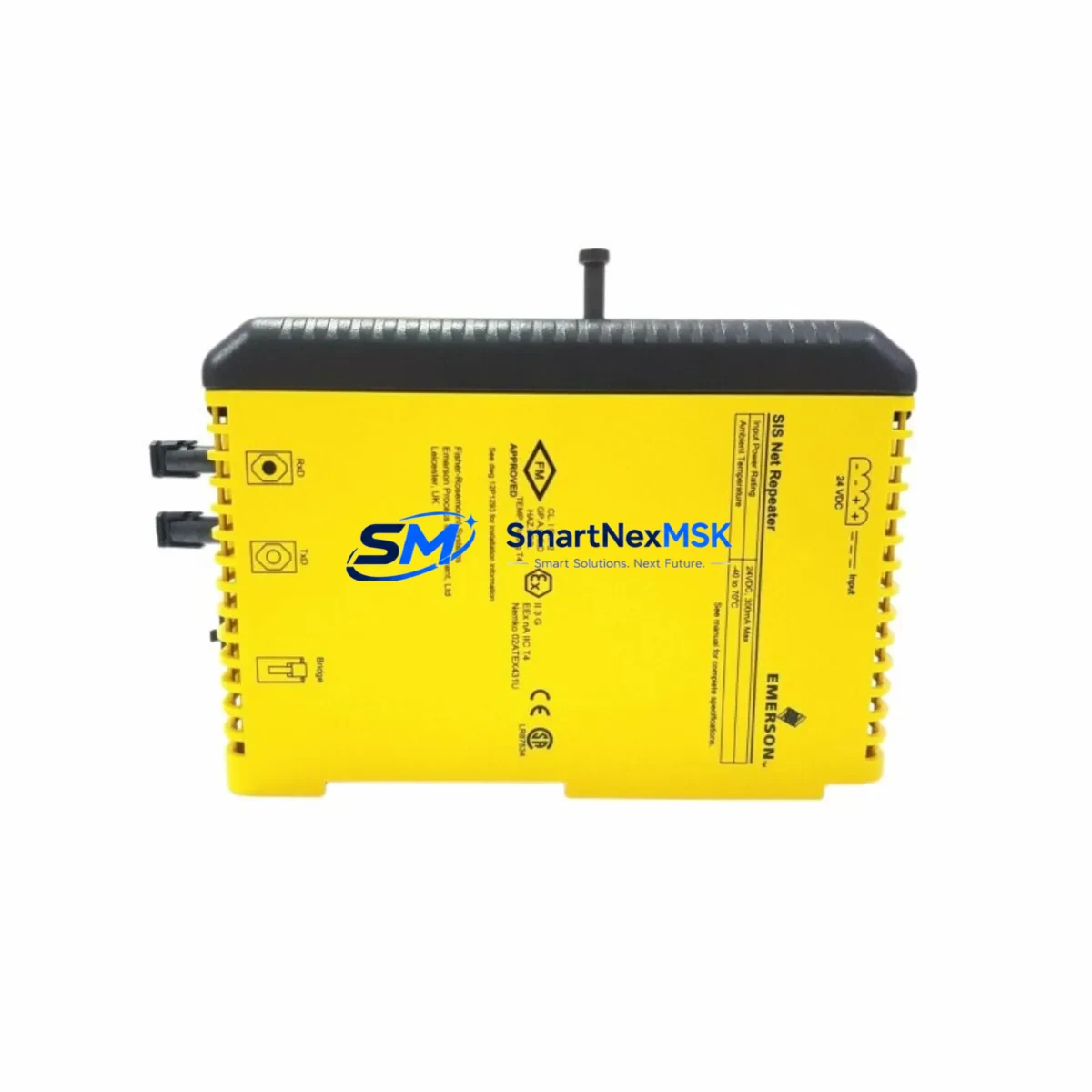

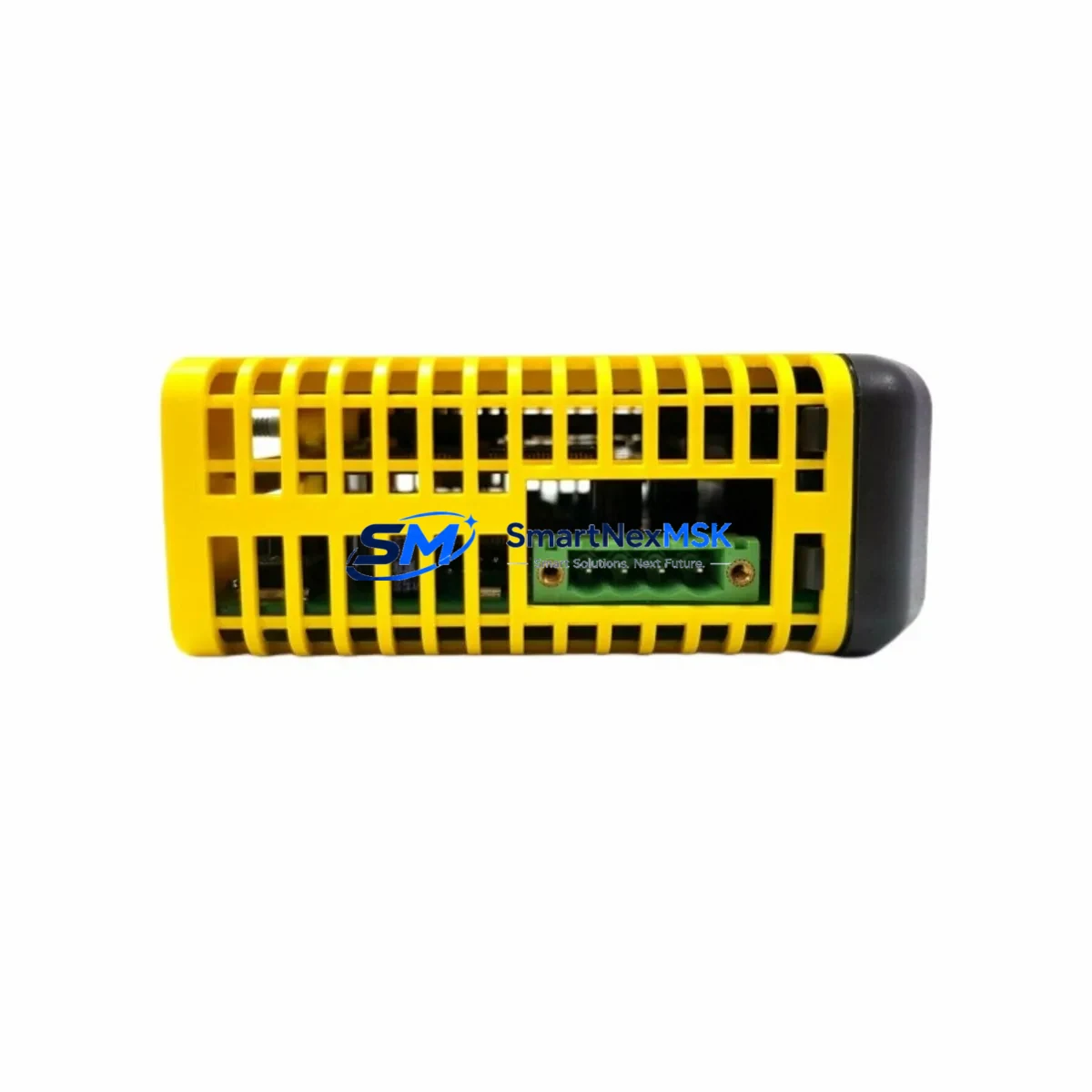

The Emerson KJ2221X1-BA1 SIS Mesh Repeater is a critical communication backbone component within Emerson DeltaV SIS (Safety Instrumented System) architectures. Designed to extend and regenerate the SIS mesh network signal across safety logic solver nodes, this module ensures uninterrupted communication between SIS controllers, I/O subsystems, and the safety network infrastructure. When this repeater fails or degrades, the entire SIS mesh segment can lose redundancy or go offline — triggering safety shutdowns, nuisance trips, or loss of SIL-rated protection. Maintaining a verified, tested spare of the KJ2221X1-BA1 in your critical spare inventory is a fundamental requirement for any facility operating DeltaV SIS-based safety systems.

This listing covers the original Emerson KJ2221X1-BA1 (also referenced under part numbers 12P3232X112 and VS6002), sourced from authorized channels, individually tested prior to shipment, and backed by a 12-month warranty. Whether you are managing a planned turnaround, responding to an unplanned trip, or building out your site spare parts list, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules inspection or replacement of the KJ2221X1-BA1 SIS Mesh Repeater, the scope of work should extend beyond the repeater itself. The SIS mesh network is an integrated communication fabric, and degradation in one node often signals stress across adjacent components. A thorough site inspection should include the following areas:

SIS Power Supply and Distribution: Verify the DeltaV SIS power supply modules (such as the KJ1501X1-BG2 or equivalent SIS power conditioner) are within specification. Voltage sag or ripple on the SIS bus can cause intermittent mesh repeater faults that mimic hardware failure. Check redundant power feeds and confirm automatic switchover is functional.

SIS Logic Solver Modules: The KJ2221X1-BA1 operates in direct communication with DeltaV SIS logic solver cards. During a repeater replacement, inspect the associated SIS controller modules for firmware version alignment and communication health. Mismatched firmware between the repeater and logic solver can prevent successful re-integration after swap.

SIS I/O Subsystems: Review the SIS I/O modules connected downstream of the mesh segment served by this repeater. Analog input modules, discrete output modules, and HART-enabled I/O cards should be checked for diagnostic alarms that may have accumulated during a mesh communication fault. Clear latched diagnostics after repeater replacement and confirm all I/O channels return to healthy status.

Termination and Wiring: Inspect the SIS mesh cable terminations at both ends of the segment. Loose or corroded terminal connections on the mesh bus are a common root cause of repeater-related faults. Check terminal blocks, cable shields, and grounding continuity. Replace any suspect terminals or cable segments before commissioning the new repeater.

Communication and Diagnostic Modules: If your DeltaV SIS architecture includes a SIS Diagnostic Module or a dedicated SIS communications interface, verify its status during the maintenance window. These modules log mesh health data and can provide historical fault records that help distinguish a genuine repeater failure from a transient network event.

Relay Output and Voting Logic: For SIS loops that use relay output modules or voting logic (2oo3 or 1oo2 configurations), confirm that the relay output modules remain in their correct de-energized or energized state during the repeater swap. Any unintended state change during maintenance must be documented and verified against the SIS cause-and-effect matrix.

HMI and Operator Interface: After replacing the KJ2221X1-BA1, confirm that the DeltaV operator workstation or HMI correctly reflects the restored mesh status. Clear any SIS-related alarms on the DeltaV DCS operator interface and verify that safety function status displays are accurate before returning the system to normal operation.

Signal Isolators and Barriers: For field instruments connected through Zener barriers or galvanic isolators into the SIS I/O, verify isolator integrity as part of the post-replacement checkout. A mesh communication fault can sometimes mask underlying field wiring issues that only become apparent once the network is restored.

Site Replacement Workflow

Replacing the KJ2221X1-BA1 in a live DeltaV SIS environment requires careful coordination with the site safety management of change (MOC) process. The following workflow is recommended to minimize downtime and maintain system integrity:

Step 1 — Pre-Replacement Verification: Confirm the replacement KJ2221X1-BA1 part number and alternate references (12P3232X112 / VS6002) match the installed module exactly. Cross-reference the DeltaV SIS hardware catalog and your site’s approved spare parts list. Verify the replacement unit has been tested and is accompanied by a test certificate or quality inspection record.

Step 2 — Safety Bypass and Isolation: Follow your site’s SIS bypass procedure. Place the affected SIS function in manual or bypass mode per the approved bypass permit. Notify the control room and document the bypass start time. Ensure compensating measures are in place for the duration of the replacement.

Step 3 — Module Removal: Power down the affected SIS mesh segment if required by your site procedure. Disconnect the mesh bus cables from the KJ2221X1-BA1, noting cable labeling and orientation. Remove the module from the carrier or backplane. Inspect the carrier connector for damage or contamination before installing the replacement.

Step 4 — Installation and Re-Integration: Seat the replacement KJ2221X1-BA1 firmly into the carrier. Reconnect mesh bus cables in the correct orientation. Power up the segment and observe the module status LEDs for normal indication. From the DeltaV SIS engineering workstation, confirm the repeater is recognized and the mesh segment is restored to healthy status.

Step 5 — Functional Verification and Bypass Removal: Perform a communication health check from the DeltaV SIS diagnostic tools. Confirm all downstream I/O modules and logic solvers are communicating normally. Remove the SIS bypass per the approved procedure, document the bypass end time, and return the safety function to automatic mode. File the completed MOC and maintenance record.

This workflow applies equally to planned turnaround replacements and emergency swap-outs. Having a pre-tested KJ2221X1-BA1 spare on-site reduces the critical path of an unplanned outage to the time required for Steps 2 through 5 — typically under two hours for an experienced SIS maintenance team.

Spare Parts Support FAQ

Q1: What is the expected service life of the KJ2221X1-BA1, and when should I plan a proactive replacement?
The KJ2221X1-BA1 SIS Mesh Repeater is designed for long-term industrial service, but Emerson and industry best practice recommend proactive replacement of SIS communication components after 10–15 years of continuous operation, or sooner if diagnostic data shows increasing error rates on the mesh segment. For aging DeltaV SIS installations, maintaining at least one verified spare per mesh segment is strongly recommended as part of your site’s critical spare inventory strategy.

Q2: How do I confirm compatibility between the KJ2221X1-BA1 and my installed DeltaV SIS version?
Compatibility is determined by the DeltaV SIS system version and the firmware revision of the installed logic solver modules. The KJ2221X1-BA1 (12P3232X112 / VS6002) is compatible with standard DeltaV SIS mesh architectures. Before installation, cross-reference the part number against your site’s DeltaV SIS hardware compatibility matrix or contact your Emerson system integrator. We can provide additional compatibility documentation upon request.

Q3: What pre-shipment testing is performed on this spare, and what does the 12-month warranty cover?
Every KJ2221X1-BA1 unit is individually tested for communication function, power integrity, and physical condition before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded. Test records are available upon request for quality-critical procurement processes.

Q4: Can this spare be used to replace older or superseded Emerson SIS mesh repeater variants?
The KJ2221X1-BA1 is the current production reference for this SIS mesh repeater function within the DeltaV SIS platform. It is suitable for direct replacement of units carrying the same base part number or the alternate references 12P3232X112 and VS6002. For cross-generation compatibility with earlier DeltaV SIS hardware revisions, we recommend verifying the installed system’s hardware revision level before ordering. Our technical team can assist with compatibility confirmation prior to purchase.
