EMERSON KJ3001X1-BG1 Retrofit-Ready DO Module for DeltaV Systems

EMERSON KJ3001X1-BG1 Retrofit-Ready DO Module for DeltaV Control Systems

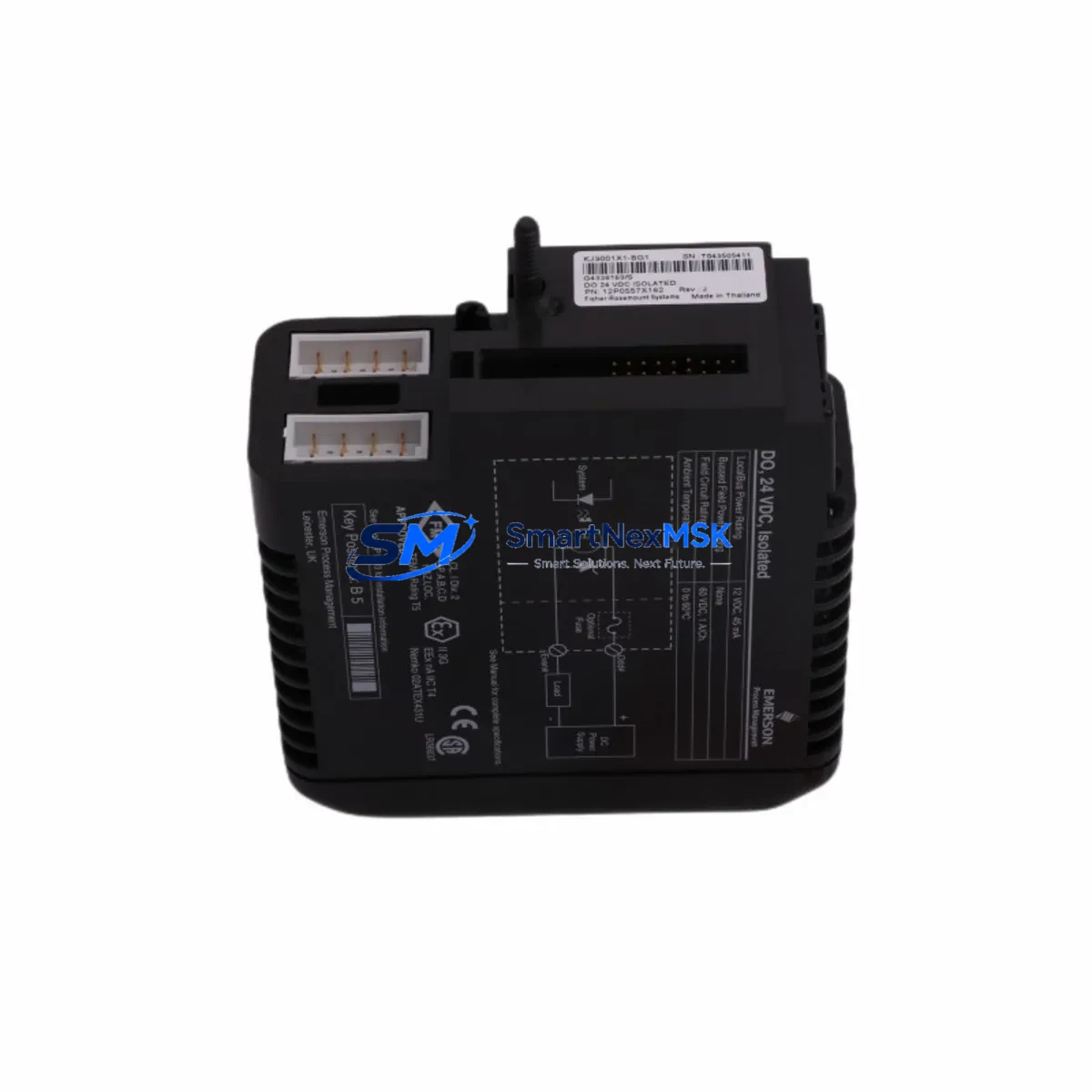

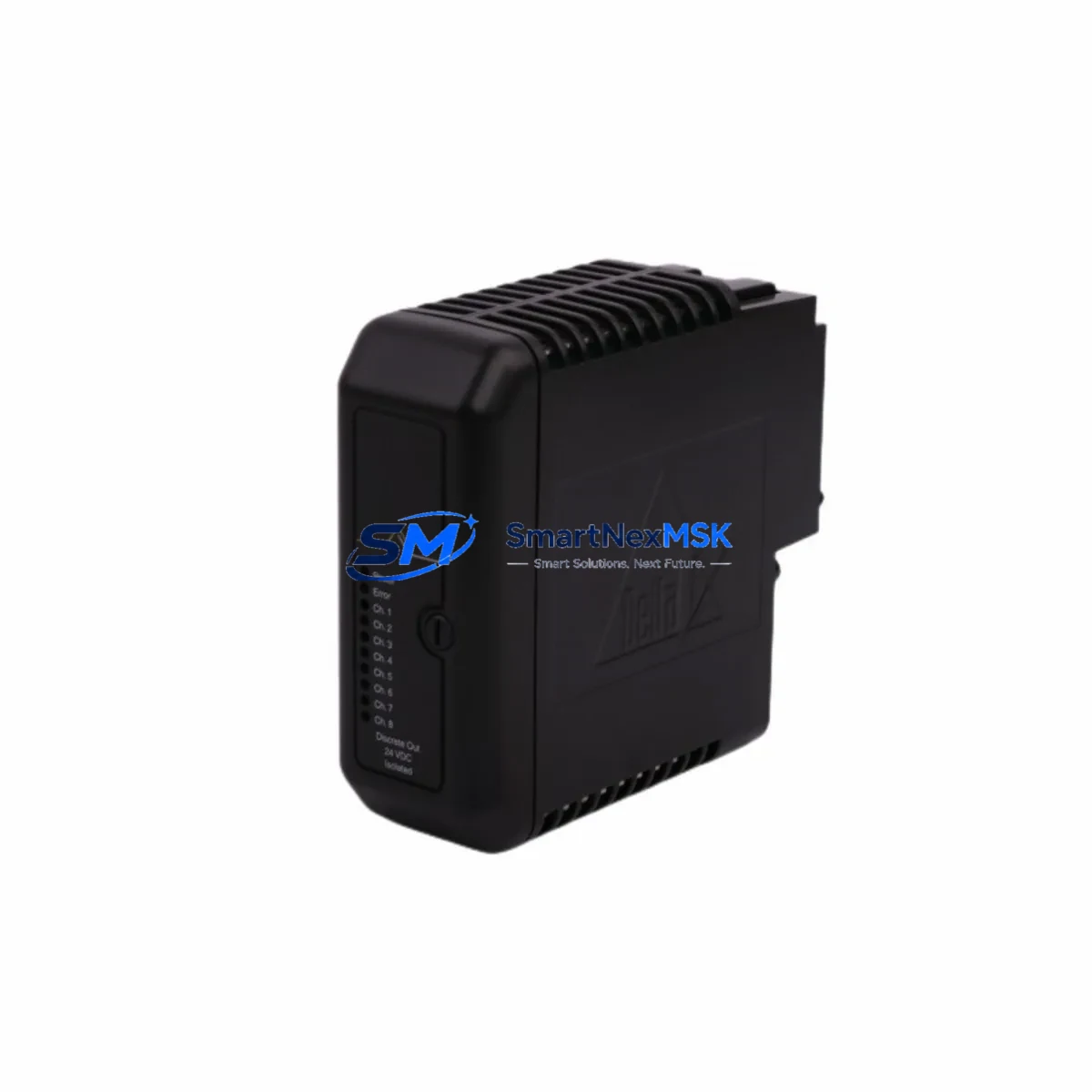

The EMERSON KJ3001X1-BG1 (part number 12P0557X162) is a 24VDC isolated digital output module engineered for the DeltaV distributed control system platform. Designed as a direct retrofit replacement for aging or discontinued output modules in legacy DeltaV cabinets, this module enables plant engineers and automation integrators to restore full I/O functionality without redesigning the control architecture or replacing the entire controller chassis.

Whether you are upgrading a mid-life DeltaV S-series controller rack, recovering from an unplanned module failure, or executing a planned modernization of a legacy process control system, the KJ3001X1-BG1 provides a wiring-compatible, firmware-recognized drop-in solution that minimizes engineering rework and reduces total downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3001X1-BG1 into an existing DeltaV installation requires a structured pre-installation review. Before removing the failed or obsolete module, engineers should document the current channel assignments, field device wiring terminations, and the associated control module logic in DeltaV Operate and DeltaV Explorer.

In most DeltaV retrofit projects, the KJ3001X1-BG1 is installed alongside a DeltaV controller carrier or CIOC (Controller I/O Card) that manages the I/O subsystem. The carrier’s power budget must be verified — particularly when the retrofit involves adding modules to an existing populated rack. The KJ3001X1-BG1 draws power from the DeltaV I/O bus, and the total load across all installed modules must remain within the carrier’s rated output capacity.

Terminal block wiring on the associated DeltaV I/O terminal block (typically a 16-channel or 32-channel marshalling panel) should be inspected for corrosion, loose terminations, or legacy labeling inconsistencies before the new module is commissioned. In older installations, field cables may be routed through junction boxes or intrinsic safety barriers — these should be verified for compatibility with the 24VDC isolated output specification of the KJ3001X1-BG1.

For plants running mixed DeltaV generations, the retrofit may also involve verifying that the DeltaV controller firmware version supports the KJ3001X1-BG1 module descriptor. In most S-series and M-series environments, the module is natively recognized. However, if the site is running an older DeltaV version (pre-v11), a firmware compatibility check against the module’s Device Description (DD) file is recommended before installation.

Projects that include communication protocol migration — for example, transitioning field devices from HART to FOUNDATION Fieldbus or Profibus — should note that the KJ3001X1-BG1 is a discrete DO module and does not handle fieldbus communication directly. In such cases, a DeltaV CHARM I/O card or a dedicated Fieldbus H1 card would be required in parallel for the fieldbus segments, while the KJ3001X1-BG1 continues to serve hardwired discrete outputs such as solenoid valves, motor starters, and relay coils.

For I/O expansion projects, the KJ3001X1-BG1 is commonly deployed alongside DeltaV AI modules (analog input), DeltaV DI modules (digital input), and DeltaV AO modules (analog output) within the same carrier to build out a complete I/O subsystem for a new process unit or expanded control loop. The DeltaV power supply module feeding the carrier should be rated for the expanded load before additional modules are added.

HMI integration is typically seamless — once the KJ3001X1-BG1 is recognized in DeltaV Explorer and the control module is downloaded, the associated DeltaV Operate faceplates and graphics will reflect the new module’s channel status without requiring manual HMI screen edits, provided the parameter paths remain unchanged from the original configuration.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a digital output module in a live DeltaV system. The KJ3001X1-BG1 supports hot-swap installation in most DeltaV carrier configurations, allowing the module to be replaced without powering down the entire controller rack. However, the specific outputs served by the module will be de-energized during the swap interval — typically 30 to 90 seconds — so field devices connected to those channels (solenoid valves, motor contactors, alarm relays) must be placed in a safe state before removal.

The recommended procedure is to place the affected control loops in manual mode via DeltaV Operate, confirm that all associated field devices are in their fail-safe positions, and then proceed with the module swap. After insertion, DeltaV will automatically detect the new module and re-establish communication within seconds. The control module download is not required if the replacement module is identical to the original — the existing configuration remains valid and active.

For sites where even brief output interruption is unacceptable (e.g., critical safety instrumented systems or continuous process lines), a parallel commissioning approach is recommended: pre-configure the replacement module in a test rack using a DeltaV engineering workstation and a DeltaV simulate environment, verify all channel assignments and logic responses offline, and then execute the physical swap during a scheduled maintenance window. This approach, combined with pre-tested wiring adapters and documented terminal assignments, routinely achieves total swap-and-verify times of under 15 minutes per module.

All KJ3001X1-BG1 units supplied by SMARTNEXMSK undergo pre-shipment functional testing, including output channel verification and backplane communication checks, to ensure the module is field-ready upon arrival. This eliminates the risk of receiving a DOA unit and further compresses on-site commissioning time.

Retrofit Support FAQ

Q1: Is the KJ3001X1-BG1 a direct drop-in replacement for the original module without reprogramming?
Yes. The KJ3001X1-BG1 is a direct functional replacement. When installed in the same carrier slot, DeltaV recognizes it automatically using the existing module descriptor. No control module download or reprogramming is required in standard replacement scenarios. Channel assignments, tag references, and HMI parameter paths remain intact.

Q2: What wiring changes are needed during installation?
In most cases, no wiring changes are required. The KJ3001X1-BG1 uses the standard DeltaV I/O terminal block interface. Existing field wiring connected to the terminal block remains in place. Engineers should inspect terminal screws for tightness and verify wire labeling before powering the new module. If the original installation used non-standard wiring adapters, those should be documented and verified for compatibility.

Q3: How is compatibility verified before installation in an older DeltaV system?
Compatibility is confirmed by checking the DeltaV system version against the module’s supported firmware range, verifying the carrier slot type (standard I/O vs. CHARM carrier), and confirming the module address is not duplicated within the controller’s I/O map. SMARTNEXMSK provides technical support to assist with pre-installation compatibility checks at no additional charge.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including output channel failure, backplane communication errors, and power regulation faults. It does not cover damage from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact SMARTNEXMSK with the order reference and a description of the fault. Replacement units are dispatched after fault verification, with priority handling for critical process applications.
