Emerson KJ3002X1-BF1 12P1732X042 Spare DeltaV Series Automation: Spare Parts Replacement & Industrial Downtime Risk Control

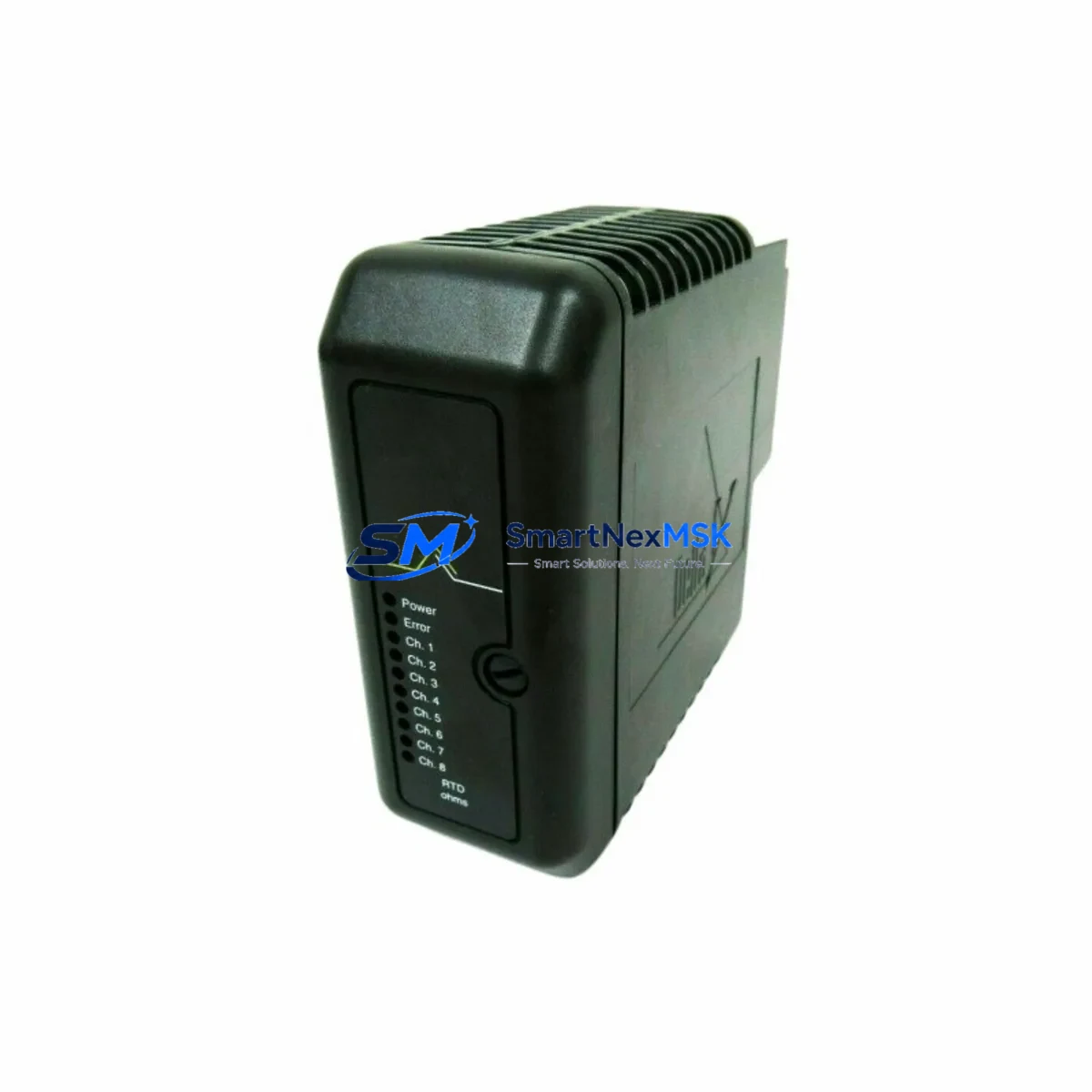

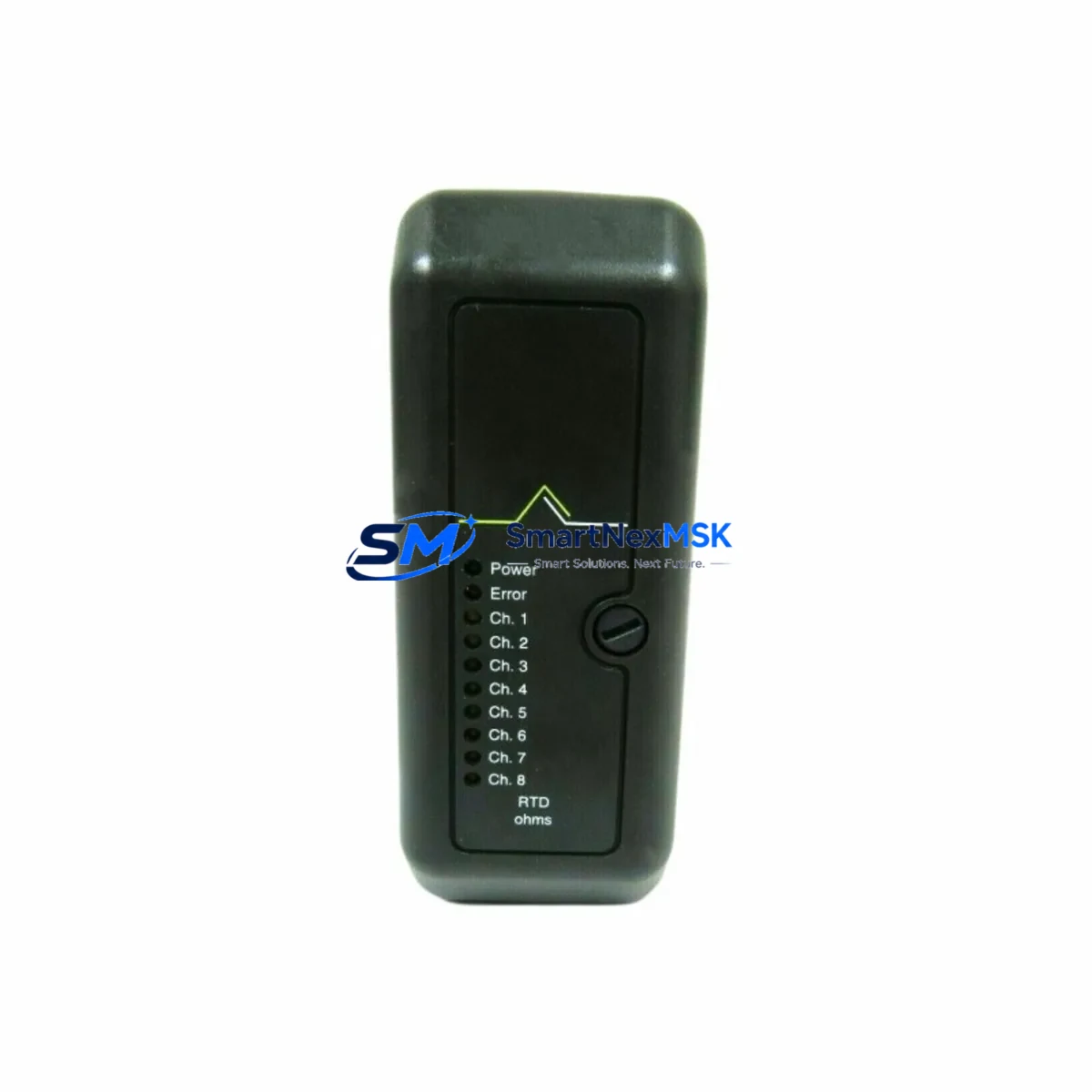

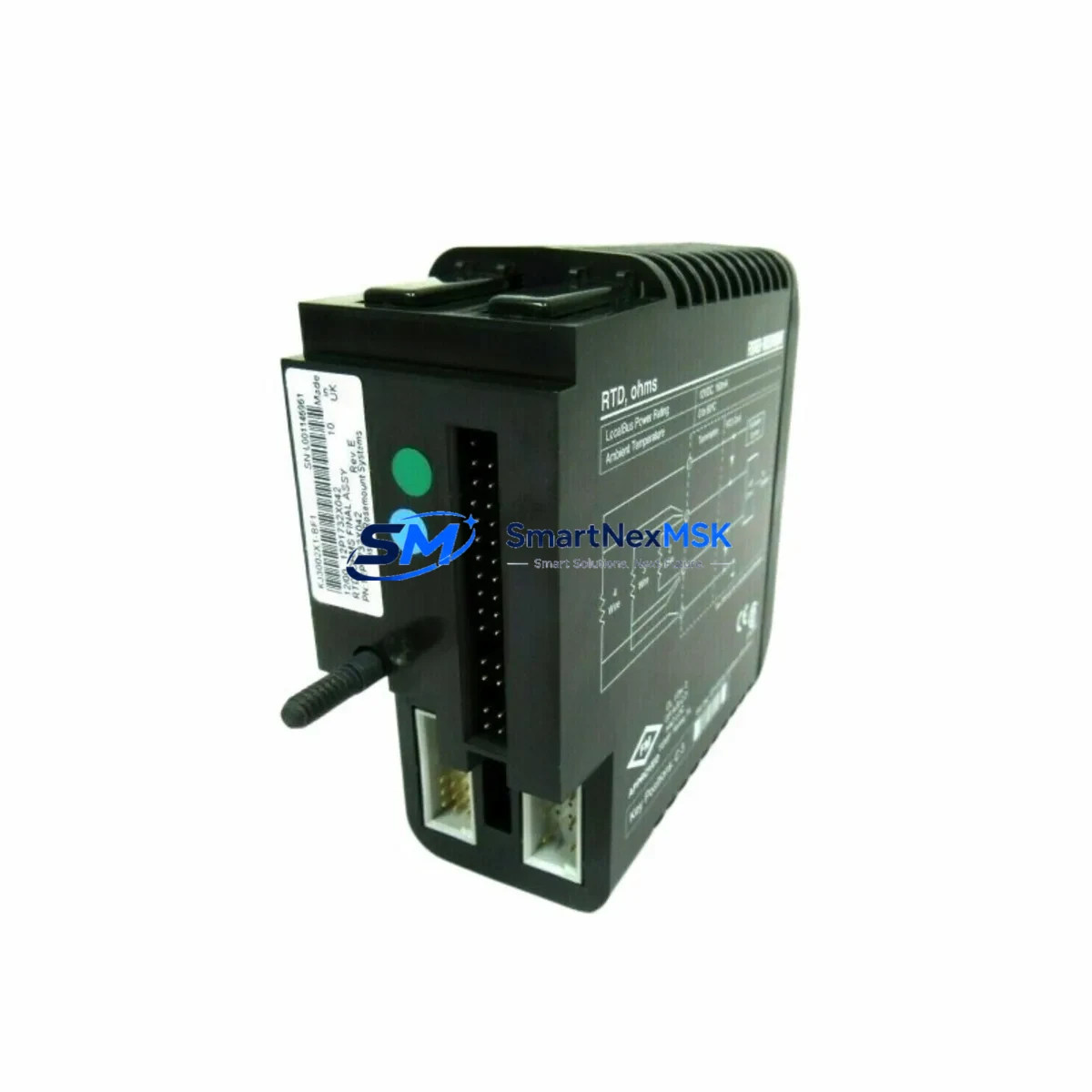

The Emerson KJ3002X1-BF1 12P1732X042 is an 8-channel RTD (Resistance Temperature Detector) input module engineered for the Emerson DeltaV distributed control system. In continuous-process industries — including refining, petrochemical, power generation, and pharmaceutical manufacturing — this module serves as a critical measurement node for temperature monitoring and control loops. When this module fails or degrades, the consequences extend beyond a single I/O point: entire temperature control strategies can be disrupted, triggering process deviations, safety interlock activations, and unplanned shutdowns that cost facilities tens of thousands of dollars per hour.

Maintaining a verified, tested spare of the KJ3002X1-BF1 12P1732X042 in your site inventory is one of the most cost-effective decisions a maintenance or reliability engineer can make. This listing provides an original Emerson KJ3002X1-BF1 12P1732X042 RTD input module, sourced from authorized supply channels, individually inspected, and shipped with full functional verification. Each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal DeltaV system conditions. Our supply chain supports both emergency replacement orders and planned maintenance procurement, with fast dispatch and export documentation available for international sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the KJ3002X1-BF1 12P1732X042, the scope of inspection must extend well beyond the module itself. RTD input failures in DeltaV systems are frequently compounded by degraded field wiring, corroded terminal blocks, or marginal power distribution — issues that will cause a new module to fail prematurely if not addressed during the same maintenance window.

Begin by inspecting the DeltaV I/O carrier (typically a KJ3001X1-series 8-wide carrier) for backplane connector wear, corrosion, or mechanical damage. A faulty carrier will prevent the replacement module from communicating correctly with the controller. Next, verify the DeltaV controller module (such as the MD Plus or MD Controller, e.g., KJ2003X1-series) is operating within normal CPU and memory utilization ranges — an overloaded controller can mask I/O faults and delay fault isolation.

Check the DeltaV power supply module (PS series, e.g., KJ1501X1-BG2) output voltage and ripple. RTD input modules are sensitive to power quality; even minor voltage sag can introduce measurement drift across all 8 channels simultaneously, which is often misdiagnosed as a field sensor problem. Inspect the terminal blocks and field wiring marshalling connected to the RTD inputs — 3-wire and 4-wire RTD configurations require clean, low-resistance connections to maintain measurement accuracy. Corroded or loose terminals on the marshalling cabinet side are a common root cause of intermittent RTD faults.

If the site uses signal isolators or signal conditioners between the field RTDs and the DeltaV I/O, inspect these for drift or failure — a failed isolator will present as a channel fault on the KJ3002X1-BF1 12P1732X042 even when the module itself is healthy. For installations with intrinsic safety barriers (Zener barriers or galvanic isolators), verify barrier resistance values are within specification, as out-of-tolerance barriers will affect RTD loop resistance calculations and introduce systematic measurement error.

During planned shutdowns, inspect adjacent analog input modules (such as the KJ3222X1-series AI modules for 4–20 mA signals) and discrete I/O modules sharing the same I/O carrier, as thermal stress and vibration affect all modules in the same enclosure equally. Review the DeltaV HART interface module if HART-enabled field devices are present in the same control loop — HART communication faults can interfere with diagnostic data from RTD channels. For sites using DeltaV Remote I/O (EIOC or WIOC) nodes, also verify the network switch ports and fiber patch cables serving the I/O node, as network-layer faults can cause false module offline alarms. Finally, confirm that the DeltaV system software (DeltaV Operate and DeltaV Diagnostics) has the correct module type assigned in the I/O configuration database before hot-swapping the replacement module.

Site Replacement Workflow

The KJ3002X1-BF1 12P1732X042 supports hot-swap replacement within the DeltaV architecture, meaning the module can be removed and replaced without powering down the I/O carrier or the controller — a critical advantage for continuous-process facilities where shutting down a controller node is operationally costly. The following workflow minimizes downtime and ensures a clean transition:

Step 1 — Pre-replacement verification: Confirm the replacement module part number matches exactly: KJ3002X1-BF1 12P1732X042. Cross-reference the 12P1732X042 revision code against your DeltaV system’s qualified hardware list. Emerson periodically releases hardware revisions; while most are backward-compatible, confirming compatibility with your DeltaV version (v11, v12, v13, v14, or later) prevents post-installation surprises.

Step 2 — DeltaV diagnostic baseline: Before removal, open DeltaV Diagnostics and record the current fault codes and channel status for all 8 RTD channels. This baseline helps confirm whether the replacement resolves the fault or whether the issue is upstream in the field wiring, carrier, or power supply.

Step 3 — Module swap: Unlatch the module from the I/O carrier, slide out the KJ3002X1-BF1 12P1732X042, and insert the replacement. The DeltaV system will automatically recognize the new module and restore I/O communication within seconds, provided the I/O configuration database entry is intact and the carrier backplane is undamaged.

Step 4 — Post-replacement validation: Verify all 8 channels return to normal status in DeltaV Diagnostics. Perform a loop check on at least 2 channels to confirm RTD measurement accuracy against a calibrated reference. Document the replacement in your CMMS with the module serial number and installation date to support warranty tracking and future maintenance planning.

For sites managing legacy DeltaV installations — particularly those running DeltaV v9 or v10 on older S-series hardware — the KJ3002X1-BF1 12P1732X042 provides a direct, drop-in replacement path that extends system life without requiring a controller upgrade or I/O architecture redesign. This makes it an essential component in any old-system life-extension (OSLE) strategy, deferring costly platform migrations while maintaining measurement integrity.

Spare Parts Support FAQ

Q1: Is the KJ3002X1-BF1 12P1732X042 compatible with all DeltaV controller versions?
The KJ3002X1-BF1 12P1732X042 is compatible with DeltaV S-series and M-series I/O architectures across DeltaV software versions v9 through v15. It is not compatible with DeltaV SIS (Safety Instrumented System) I/O carriers or the CHARM I/O architecture. Always verify your I/O carrier part number and DeltaV software version before ordering.

Q2: What is your pre-shipment testing process for this module?
Each KJ3002X1-BF1 12P1732X042 unit undergoes visual inspection, connector integrity check, and functional power-on verification prior to shipment. For new surplus units, original factory test records are referenced where available. All units are packed in anti-static packaging with desiccant to prevent moisture damage during transit. A test report is available upon request.

Q3: How should I manage spare parts inventory for DeltaV RTD input modules?
Industry best practice for continuous-process facilities is to maintain a minimum of one spare RTD input module per 10 installed units, with a floor of one spare per control room or marshalling cabinet. For critical temperature loops (reactor, furnace, or heat exchanger control), consider maintaining two spares. Rotate spares into service on a 5-year cycle to prevent storage-related degradation of electrolytic components. Pair your RTD module spares with at least one spare I/O carrier and one spare power supply module to cover the most common failure combinations.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, component failures, and functional failures under normal DeltaV operating conditions. It does not cover damage from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, module serial number, and a description of the fault. Replacement units are dispatched within 5 business days of claim approval, with return shipping labels provided for defective units.
