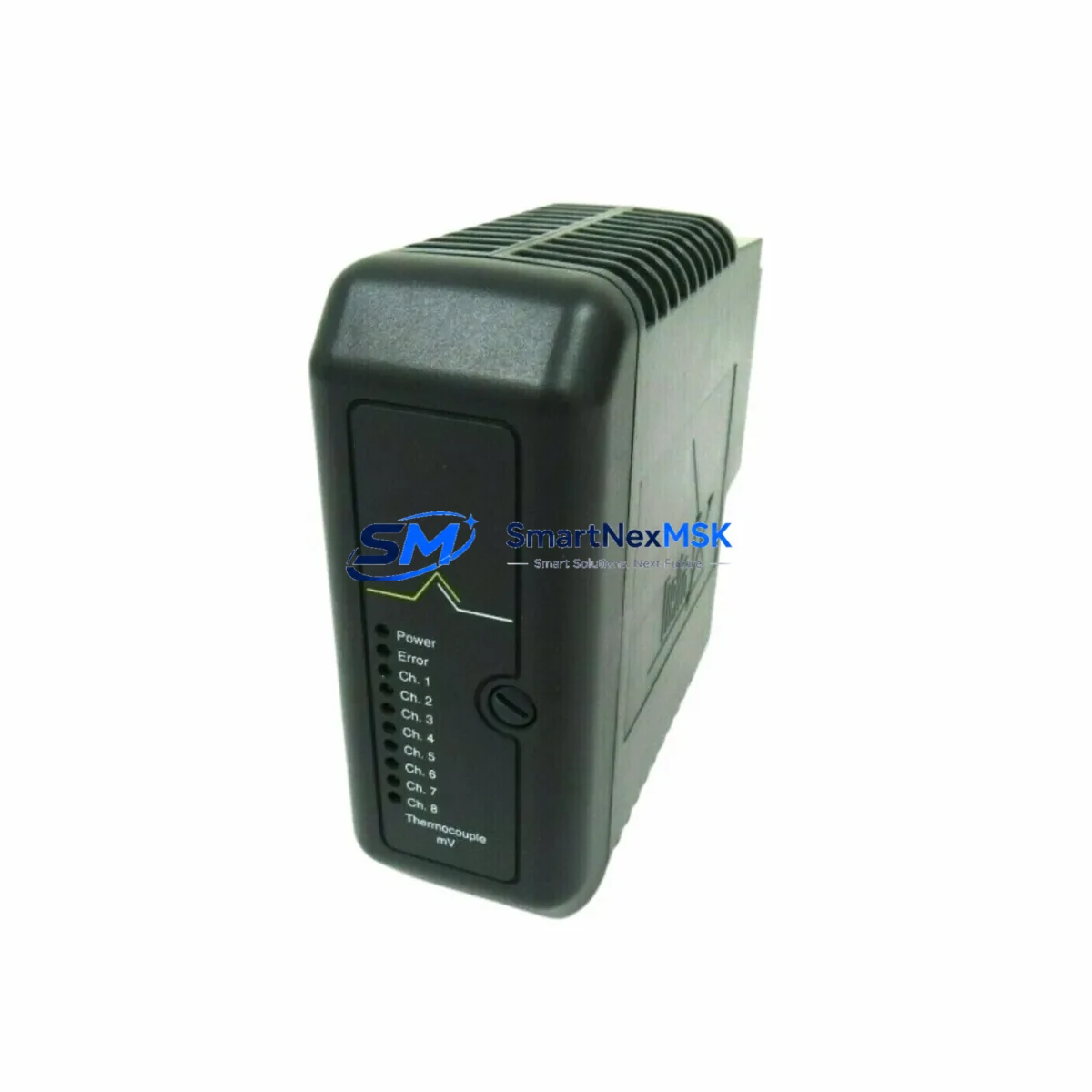

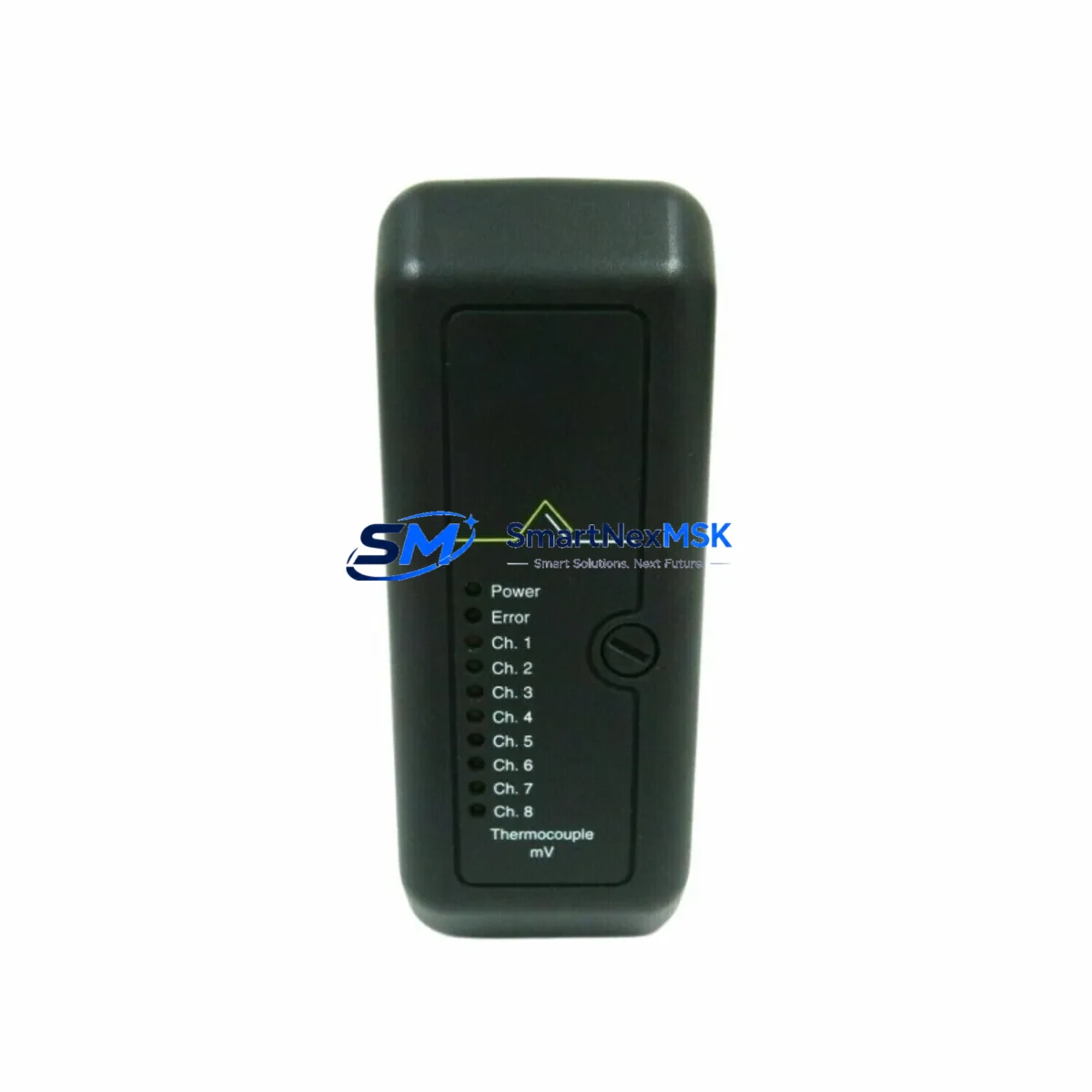

In high-stakes industrial environments — petrochemical plants, power generation facilities, metallurgical smelters, and continuous process manufacturing sites — thermocouple signal integrity is not a convenience; it is a safety imperative. The Emerson KJ3002X1-BG2 12P1731X032 is an 8-channel thermocouple input module engineered for the DeltaV S-Series DCS platform, purpose-built to deliver accurate, stable temperature measurement under the most demanding field conditions. Whether deployed in a hazardous-area control cabinet, a high-vibration compressor station, or a critical interlock loop in a refinery, this module provides the signal fidelity and system reliability that maintenance and process engineers depend on to keep operations running safely and continuously.

The KJ3002X1-BG2 12P1731X032 supports multiple thermocouple types — including J, K, T, E, R, S, and B — enabling broad compatibility across diverse process measurement points within a single DeltaV system architecture. Its cold junction compensation circuitry ensures measurement accuracy even as ambient temperatures fluctuate inside the control enclosure, a critical feature in outdoor substations or poorly climate-controlled industrial buildings. The module’s isolated channel design prevents ground loops and cross-channel interference, protecting signal quality in environments with heavy electrical noise from variable frequency drives, large motors, and high-current switching equipment.

For maintenance engineers managing aging DeltaV systems, the KJ3002X1-BG2 12P1731X032 is a direct replacement for legacy thermocouple input cards, allowing seamless substitution without controller reconfiguration or I/O mapping changes. This plug-and-play compatibility dramatically reduces planned maintenance windows and eliminates the risk of extended unplanned downtime caused by module failure in a critical temperature monitoring loop.

Safety Reliability Table

Control Cabinet Protection Strategy

When replacing or commissioning the KJ3002X1-BG2 12P1731X032 in a DeltaV control cabinet, a thorough inspection of the surrounding system components is essential to ensure the safety and reliability of the entire temperature monitoring loop. Maintenance engineers should begin by verifying the integrity of the DeltaV S-Series carrier assembly — worn or corroded backplane connectors are a common source of intermittent signal faults that are frequently misdiagnosed as module failure.

The KJ3001X1 power supply module feeding the carrier should be load-tested; an aging or undersized power supply can introduce voltage ripple that degrades A/D conversion accuracy across all eight thermocouple channels simultaneously. If the cabinet uses a redundant power supply configuration with a KJ3001X1-BA1 or equivalent, both units should be inspected for output voltage stability before the new TC input module is energized.

Field wiring terminations at the DeltaV marshalling cabinet or terminal blocks should be checked for oxidation, loose screws, and correct polarity — thermocouple extension wire is polarity-sensitive, and reversed connections produce inverted or erratic readings that can trigger false high-temperature alarms or, more dangerously, mask genuine overtemperature conditions. Shielded thermocouple extension cables should be grounded at a single point only to prevent shield current loops.

In plants where the DeltaV system interfaces with a Safety Instrumented System (SIS) — such as an Emerson DeltaV SIS controller or a third-party Triconex or Yokogawa ProSafe platform — the temperature signals from this module may feed into high-integrity interlock logic. In these applications, the KJ3002X1-BG2 12P1731X032 should be validated against the SIS cause-and-effect matrix to confirm that the replacement module’s response time and accuracy meet the Safety Integrity Level (SIL) requirements of the loop.

Procurement engineers should also consider stocking companion modules such as the KJ3002X1-BA1 analog input module for 4–20 mA process signals, the KJ3003X1 analog output module for control valve positioner loops, and the KJ2201X1 DeltaV controller module to ensure that a single-point failure in any critical I/O card does not result in a prolonged production outage. A well-structured spare parts inventory — covering I/O modules, communication cards, and power supply units — is the most cost-effective insurance against unplanned downtime in a DeltaV-based control system.

Critical Industrial Safety Applications

The Emerson KJ3002X1-BG2 12P1731X032 is deployed across a wide spectrum of safety-critical industrial applications where temperature monitoring is directly linked to process safety and regulatory compliance.

In petrochemical and refinery operations, this module monitors reactor bed temperatures, heat exchanger outlet conditions, and fired heater tube skin temperatures — measurements that feed directly into high-temperature shutdown interlocks. A failed or drifting thermocouple input card in these applications can result in either a spurious shutdown, costing hundreds of thousands of dollars in lost production, or a missed overtemperature event with catastrophic consequences. The KJ3002X1-BG2’s channel isolation and noise immunity make it particularly well-suited for installation near large rotating equipment and high-voltage switchgear.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the module is used for turbine exhaust temperature monitoring, boiler drum temperature measurement, and generator cooling system oversight. These are continuous-duty applications where module reliability over multi-year operating cycles is non-negotiable.

In metallurgical and smelting operations, the module handles furnace temperature profiling, ladle monitoring, and casting temperature control — environments characterized by extreme ambient heat, heavy vibration, and intense electromagnetic interference from induction heating equipment. The module’s robust design and Emerson’s proven DeltaV platform make it a trusted choice for these harsh-site deployments.

In water and wastewater treatment plants, the KJ3002X1-BG2 12P1731X032 supports temperature monitoring in digester systems, UV disinfection units, and chemical dosing processes — applications where regulatory compliance requires continuous, auditable measurement records. The DeltaV platform’s integrated historian and alarm management capabilities complement the module’s measurement accuracy to support compliance reporting.

In mining and mineral processing, the module is used in conveyor drive motor temperature monitoring, crusher bearing temperature surveillance, and flotation cell process control — applications where early detection of overtemperature conditions prevents costly equipment damage and unplanned production stoppages.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the KJ3002X1-BG2 12P1731X032?
Every unit is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing prior to shipment, including channel-by-channel signal verification and communication bus integrity checks, to ensure it meets Emerson’s original performance specifications.

Q2: How is compatibility with my existing DeltaV system confirmed before shipment?
The KJ3002X1-BG2 12P1731X032 is a standard DeltaV S-Series I/O module and is compatible with all S-Series carriers and controllers, including MD, MD Plus, SD, and SD Plus variants. If your system uses a specific DeltaV version or has custom I/O assignments, our technical team can review your system configuration details prior to order confirmation to ensure seamless integration.

Q3: Can this module be installed as a hot-swap replacement without shutting down the DeltaV controller?
The DeltaV S-Series platform supports I/O module hot-swap under most configurations, allowing the KJ3002X1-BG2 12P1731X032 to be replaced without a full controller shutdown. However, the specific interlock and alarm management procedures required during the swap should be reviewed with your site’s process safety management (PSM) team, particularly if the module feeds a safety-critical interlock loop.

Q4: What is the lead time and long-term supply availability for this module?
We maintain stock of the KJ3002X1-BG2 12P1731X032 to support urgent maintenance and planned turnaround requirements. Standard orders ship within 3–5 business days. For sites managing aging DeltaV systems where Emerson has discontinued active production of specific module variants, we provide long-term supply support through our industrial spare parts sourcing network, ensuring continued availability for system life extension programs.
