Emerson KJ3201X1-BA1 12P2535X042 Safety-Enhanced DI Module

Emerson KJ3201X1-BA1 12P2535X042 Safety-Enhanced DI Module: Reliable Discrete Input Control for Harsh Industrial Sites

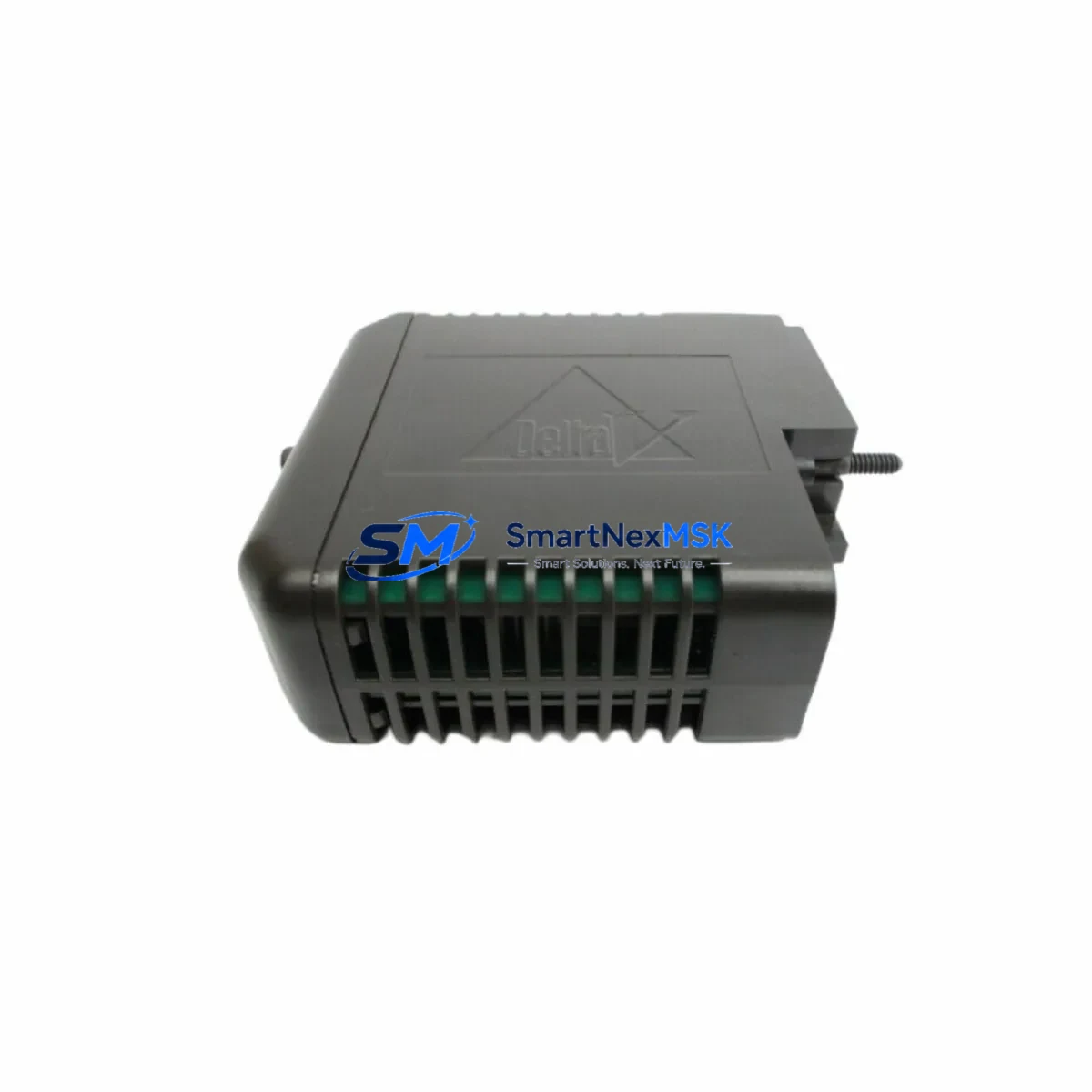

The Emerson KJ3201X1-BA1 12P2535X042 is a ruggedized Discrete Input (DI) Module designed for the Emerson DeltaV distributed control system platform. Built to operate continuously in high-noise, high-vibration, and electrically hostile industrial environments, this module delivers deterministic signal acquisition and robust field-level protection across critical process control applications. Whether deployed in a petrochemical interlock loop, a power generation safety circuit, or a continuous mining control cabinet, the KJ3201X1-BA1 12P2535X042 provides the signal integrity and operational stability that safety-critical processes demand.

Industrial facilities operating under IEC 61511 functional safety requirements or ISA-84 safety instrumented system (SIS) standards rely on discrete input modules to accurately capture field device states — limit switches, pressure switches, emergency stop contacts, and valve position feedback — without signal drift, false triggering, or communication dropout. The KJ3201X1-BA1 12P2535X042 is engineered to meet these demands, offering high common-mode noise rejection, galvanic isolation per channel group, and compatibility with the DeltaV I/O subsystem’s redundant power architecture.

Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification, including channel-by-channel input state testing, communication handshake validation with the DeltaV controller, and visual inspection for connector integrity and PCB condition. Units are supplied with a 12-month warranty covering functional defects under normal operating conditions, with documented test records available upon request.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered DeltaV control cabinet, the KJ3201X1-BA1 12P2535X042 does not operate in isolation — it functions as part of a layered protection architecture. The module slots into a DeltaV I/O carrier (such as the KJ3001X1-BA1 or compatible 8-slot carrier), which provides the mechanical and electrical interface to the DeltaV controller node. Power to the I/O subsystem is typically supplied through a DeltaV Power Supply module (PS2) or a redundant power supply pair, ensuring that a single power rail failure does not interrupt discrete input acquisition.

Field wiring from limit switches, solenoid feedback contacts, and emergency stop relays connects to the module through DeltaV marshalling terminal blocks or CHARM I/O cards in newer installations. In legacy marshalling architectures, Emerson KJ3221X1-BA1 analog input modules and KJ3002X1-BA1 discrete output modules are commonly co-located in the same cabinet, forming a complete mixed I/O node. Surge and transient protection at the field terminal level is reinforced by Phoenix Contact or Weidmüller surge protection devices (SPDs) installed on the marshalling rail, preventing lightning-induced transients from reaching the module’s input circuitry.

For safety instrumented system (SIS) applications, the DI module is often paired with a Triconex Safety Controller or a DeltaV SIS Logic Solver in a separate SIS cabinet, with the KJ3201X1-BA1 12P2535X042 handling BPCS (Basic Process Control System) discrete monitoring while the SIS layer handles independent trip logic. Communication between the BPCS and SIS layers is managed through Modbus TCP or OPC DA/UA gateways, with the DeltaV controller acting as the data concentrator. Redundant DeltaV MD Plus Controllers or DeltaV M5Plus Controllers provide controller-level redundancy, ensuring that a controller failover does not cause a loss of discrete input monitoring continuity.

In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control buildings, shielded twisted-pair field cables are routed in dedicated metal conduit, and the DeltaV I/O carrier’s chassis ground is bonded to the cabinet’s equipotential busbar. This grounding strategy, combined with the module’s built-in galvanic isolation, eliminates ground loop currents that could cause false input state transitions — a critical safety concern in interlock circuits where a spurious trip or a missed trip can both have severe consequences.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In crude distillation units, hydrotreaters, and compressor stations, the KJ3201X1-BA1 12P2535X042 monitors high-pressure switch contacts, flame detector relay outputs, and emergency shutdown valve (ESDV) position feedback. Its noise immunity and galvanic isolation prevent false ESD activations caused by ground potential differences between field instruments and the control room, a common failure mode in large refinery complexes with extensive grounding networks.

Power Generation and Substation Control: In coal-fired, gas turbine, and hydroelectric generating stations, discrete input modules capture turbine trip relay states, generator breaker positions, and cooling system interlock contacts. The KJ3201X1-BA1 12P2535X042’s transient voltage suppression is particularly valuable in substation environments where switching surges from high-voltage bus operations can couple into control wiring and damage unprotected I/O modules.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The module’s robust construction and DeltaV platform’s hot-swap capability allow maintenance teams to replace a failed DI module during a planned maintenance window without shutting down the entire control node — a critical advantage in continuous mining operations where unplanned downtime carries significant production and safety costs.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use discrete inputs to monitor pump run/fail status, valve open/closed confirmation, and high-level float switch states. The KJ3201X1-BA1 12P2535X042 provides reliable wet-contact and dry-contact input detection across the full 10–30 VDC input range, accommodating the mixed field device inventory typical of aging water infrastructure.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mill control systems generate intense electromagnetic interference. The module’s IEC 61000-4 compliant noise immunity ensures that discrete input states — such as roll gap position switches and furnace door interlock contacts — are accurately captured even in the presence of high-frequency conducted and radiated EMI from furnace power electronics.

Port and Terminal Automation: Container crane control systems and ship-to-shore loader PLCs require reliable discrete input monitoring of hoist limit switches, anti-collision sensor outputs, and emergency stop circuits. The DeltaV platform’s deterministic scan cycle, supported by the KJ3201X1-BA1 12P2535X042, ensures that safety-critical input state changes are detected and acted upon within the control system’s defined response time.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers functional defects in the module’s discrete input channels, backplane communication interface, and power regulation circuitry under normal operating conditions. Each unit undergoes pre-shipment functional testing, including channel-by-channel input state verification and DeltaV bus communication validation. Test records are available upon request and can be provided with the shipment documentation for traceability purposes.

Q2: How is the KJ3201X1-BA1 12P2535X042 tested before shipment?

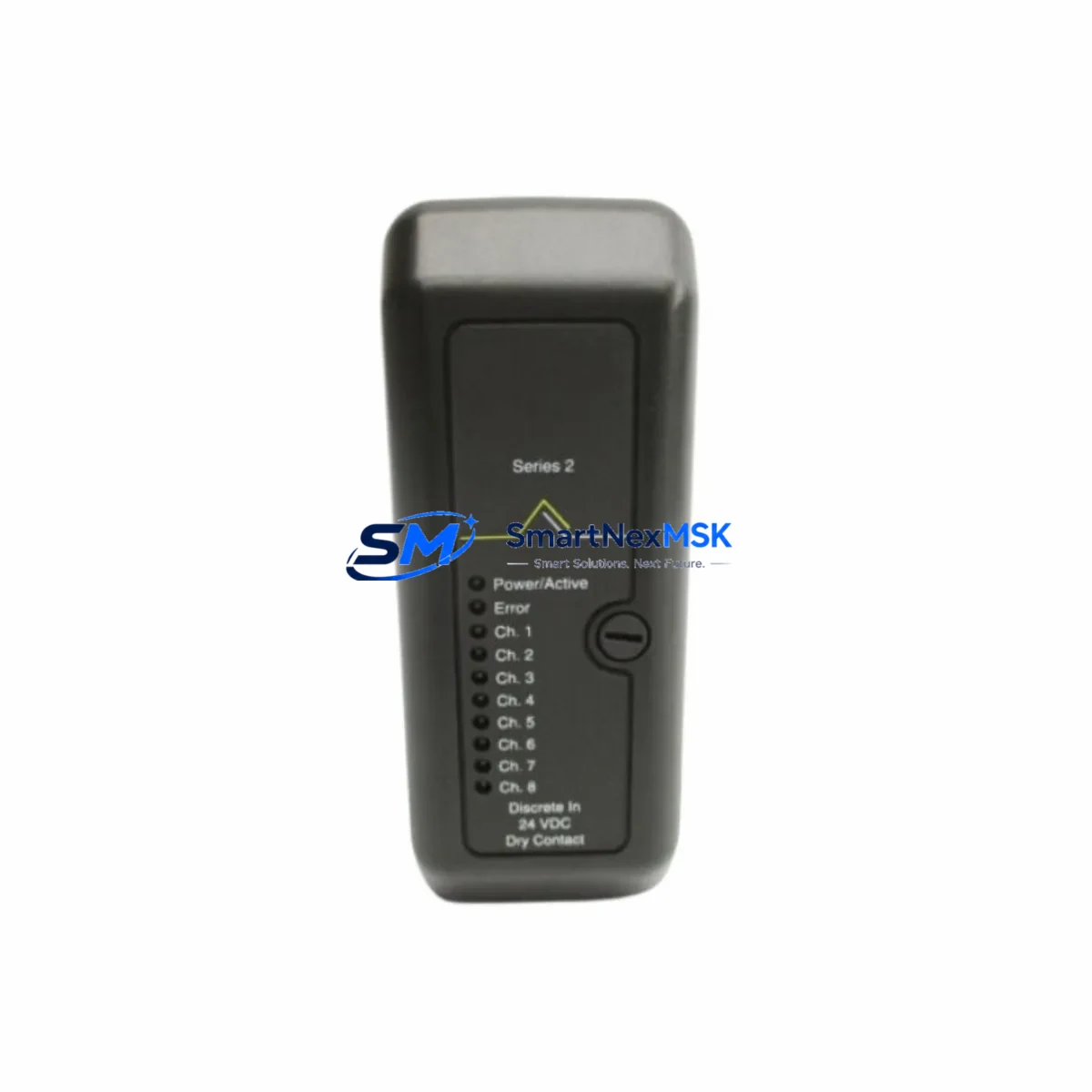

Every unit is powered up and tested on a DeltaV-compatible test bench. Testing covers all 8 discrete input channels (both wet and dry contact modes), module self-diagnostics, backplane communication handshake, and LED status indicator functionality. Units that fail any test parameter are quarantined and not shipped. This process ensures that the module will initialize correctly and pass DeltaV Explorer diagnostics upon installation.

Q3: Is this module compatible with both legacy DeltaV S-Series and current DeltaV systems?
Yes. The KJ3201X1-BA1 12P2535X042 is compatible with DeltaV Traditional I/O carriers and controller nodes across DeltaV versions 10.x through 14.x and later, subject to Emerson’s compatibility matrix. It is not compatible with DeltaV CHARM I/O or Electronic Marshalling architectures without an adapter carrier. If you are unsure about compatibility with your specific DeltaV version or controller type, contact our technical team with your system details before ordering.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains stock of the KJ3201X1-BA1 12P2535X042 and related DeltaV I/O modules to support both planned maintenance programs and emergency breakdown replacements. We offer expedited shipping for critical plant situations and can provide advance replacement units under a deposit arrangement for facilities that require zero-downtime swap capability. Long-term supply agreements are available for customers with ongoing DeltaV fleet maintenance requirements.
