Emerson KJ3201X1-BA3 Spare for DeltaV S-Series Automation: Spare Replacement & Industrial Downtime Risk Control

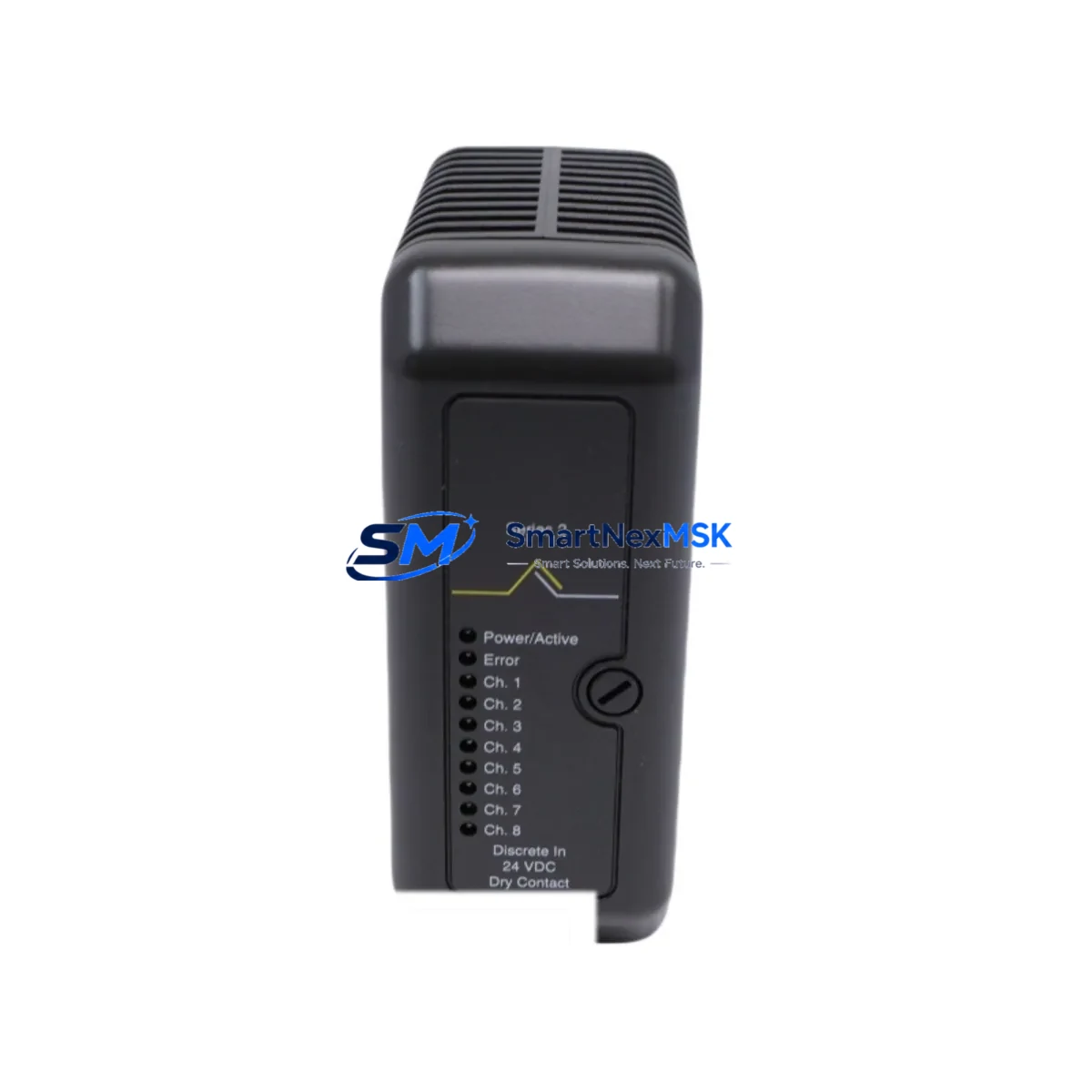

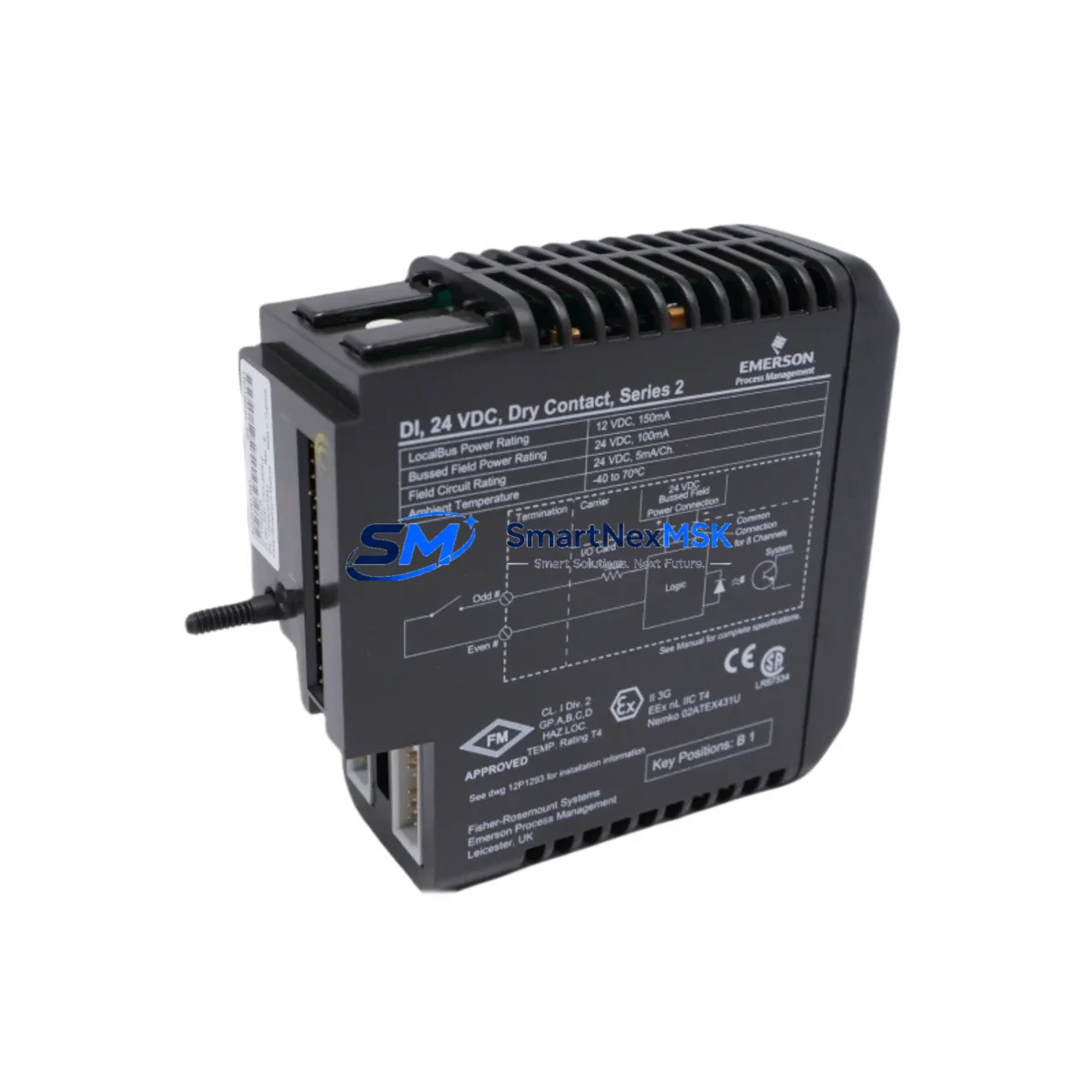

The Emerson KJ3201X1-BA3 is an original 8-channel digital input module designed for the DeltaV S-Series distributed control system. As a maintenance-ready spare, it is engineered to support rapid field replacement, minimize unplanned downtime, and sustain continuous process control in demanding industrial environments including oil & gas, chemical processing, power generation, and advanced manufacturing. Sourced directly from authorized supply chains, each unit is tested prior to shipment and backed by a 12-month warranty, ensuring your maintenance team can act with confidence during both planned shutdowns and emergency recovery scenarios.

For maintenance engineers managing aging DeltaV S-Series control cabinets, the KJ3201X1-BA3 represents a critical node in the digital input subsystem. Its 8-channel architecture interfaces directly with field-level discrete sensors, limit switches, and process interlocks. When a channel fault or module failure is detected during routine inspection or fault isolation, having a verified spare on the shelf eliminates the lead-time risk that can extend a process outage from hours to days. Procurement engineers sourcing for MRO inventories will find this module fully interchangeable with the original factory-installed unit, requiring no firmware reconfiguration when installed within a properly maintained DeltaV S-Series chassis.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a DeltaV S-Series control system extends well beyond replacing a single digital input module. When a KJ3201X1-BA3 fault is identified — whether through a DeltaV diagnostic alarm, a channel-level HART communication error, or a physical inspection during a scheduled cabinet walkdown — the replacement workflow should trigger a broader review of adjacent components to prevent cascading failures.

Maintenance engineers should simultaneously inspect the KJ3201X1-BA3’s associated I/O carrier or terminal block for signs of corrosion, loose field wiring, or terminal fatigue, as these are common root causes of intermittent digital input faults. The DeltaV S-Series power supply module (such as the KJ4001X1-BA1 or equivalent) feeding the I/O subsystem should be load-tested to confirm stable 24 VDC output, since voltage sag can cause false digital input readings across multiple channels simultaneously.

The DeltaV controller module (MD or MD Plus series) communicating with the KJ3201X1-BA3 over the S-Series backplane should be checked for firmware version compatibility and communication health. If the system includes redundant controllers, verify that the redundancy switchover function is operational before taking the primary controller offline for maintenance. The S-Series backplane or I/O bus carrier itself should be inspected for physical damage, connector wear, and proper seating of all installed modules.

For systems with mixed I/O, also review the KJ3202X1 analog input modules and any KJ3221X1 digital output modules installed in the same chassis — these share the same power rail and backplane communication path. If the control cabinet includes signal isolators or signal conditioners between field devices and the DI module inputs, verify their output signal levels and isolation integrity. Fuse blocks and 24 VDC field power distribution terminals should be checked for blown fuses or loose connections that could affect multiple input channels.

Where the DeltaV system interfaces with a HART-enabled field instrument network, confirm that HART pass-through is functioning correctly on the replacement module. For facilities running Emerson AMS Device Manager, re-register the new module after installation to restore full asset management visibility. Finally, if the control cabinet includes an Emerson DeltaV HMI workstation or operator interface panel, verify that all associated faceplates and alarm displays reflect the restored I/O status after the module swap is complete.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the KJ3201X1-BA3 module using DeltaV diagnostics. Document all 8-channel assignments, field wiring labels, and current I/O status before proceeding.

Step 2 — Safe isolation: Place affected control loops in manual mode at the DeltaV workstation. Notify the operations team of the planned I/O interruption. De-energize the field-side 24 VDC supply to the module’s terminal block before disconnecting wiring.

Step 3 — Module removal: Release the module locking tab on the S-Series I/O carrier and slide the KJ3201X1-BA3 out of the backplane slot. Inspect the carrier connector for damage or contamination.

Step 4 — Spare installation: Insert the replacement KJ3201X1-BA3 into the same backplane slot. The DeltaV S-Series system performs automatic module recognition — no manual address configuration is required. Re-energize the field-side supply and reconnect field wiring per the documented channel assignments.

Step 5 — Functional verification: From the DeltaV workstation, confirm all 8 channels report correct status. Perform a forced I/O test if permitted by site safety procedures. Return affected loops to automatic mode and document the replacement in the site maintenance log.

This plug-and-play replacement process is designed to minimize downtime to under 30 minutes for a prepared maintenance team, making the KJ3201X1-BA3 an ideal candidate for critical spare inventory in any facility running DeltaV S-Series control systems.

Spare Parts Support FAQ

Q1: Is the KJ3201X1-BA3 a direct drop-in replacement for the original module without reconfiguration?
Yes. The KJ3201X1-BA3 is recognized automatically by the DeltaV S-Series system upon installation. The controller downloads the module configuration from the DeltaV database, eliminating the need for manual parameter entry. Ensure the DeltaV system database reflects the correct module type before installation.

Q2: How is each unit tested before shipment?
Every KJ3201X1-BA3 unit undergoes functional verification prior to dispatch, including channel-level digital input response testing and backplane communication checks. A test report is available upon request. Units are packaged in anti-static protective materials to prevent ESD damage during transit.

Q3: What is the recommended spare inventory strategy for DeltaV S-Series sites?
For facilities with 10 or more KJ3201X1-BA3 modules installed, we recommend maintaining a minimum of 1–2 units as on-site critical spares. For larger installations or sites with extended supplier lead times, a 5–10% spare ratio is advisable. Storing spares in a climate-controlled environment within the original anti-static packaging preserves module integrity for multi-year storage.

Q4: What warranty and after-sales support is provided?
All KJ3201X1-BA3 units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Our technical support team is available to assist with compatibility verification, installation guidance, and warranty claims. Contact us at sales@smartnexmsk.com or +86 18259474341 for pre-sales compatibility confirmation or post-sales support.
