Emerson KJ3202X1-BA1 Retrofit-Ready I/O Module for DeltaV Control Systems

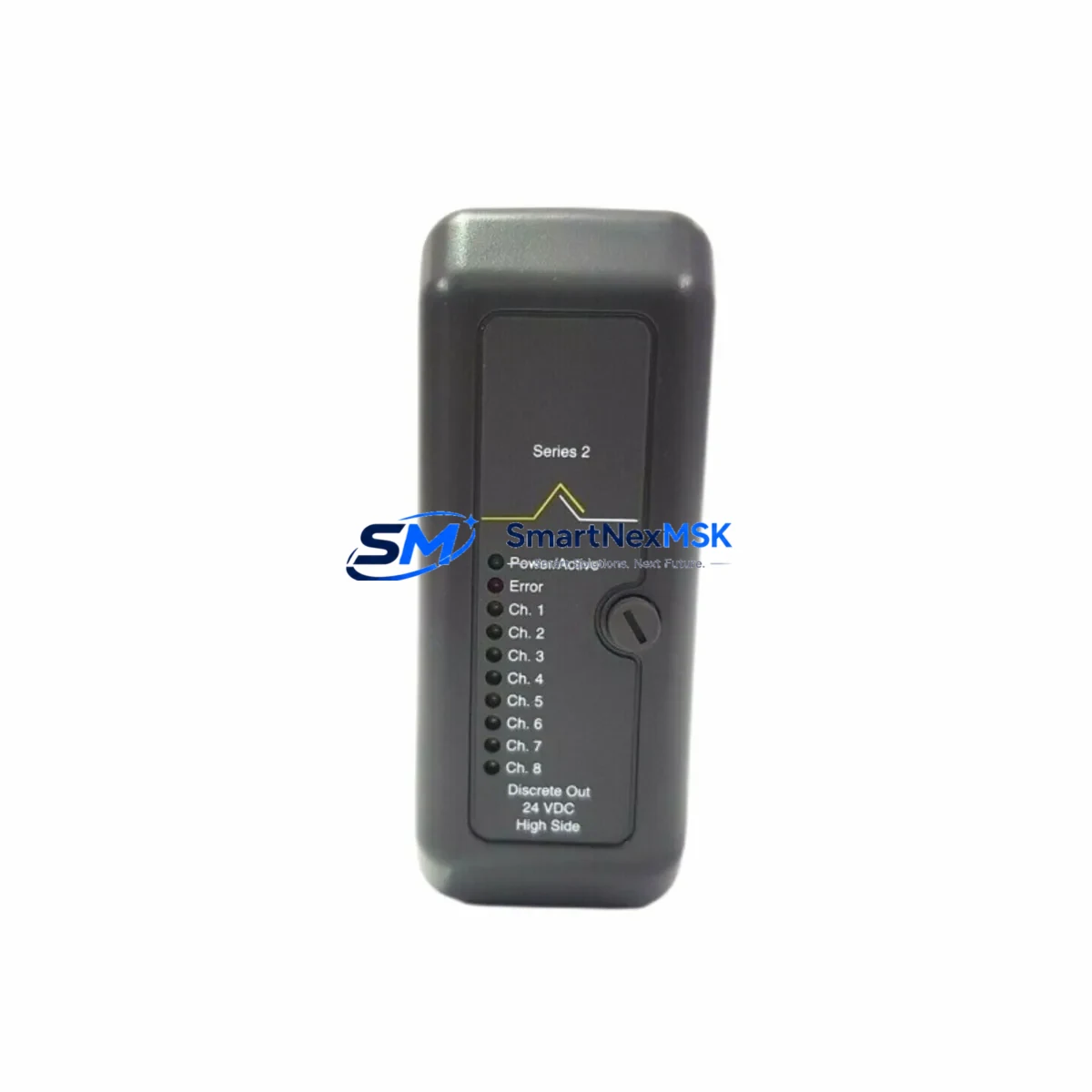

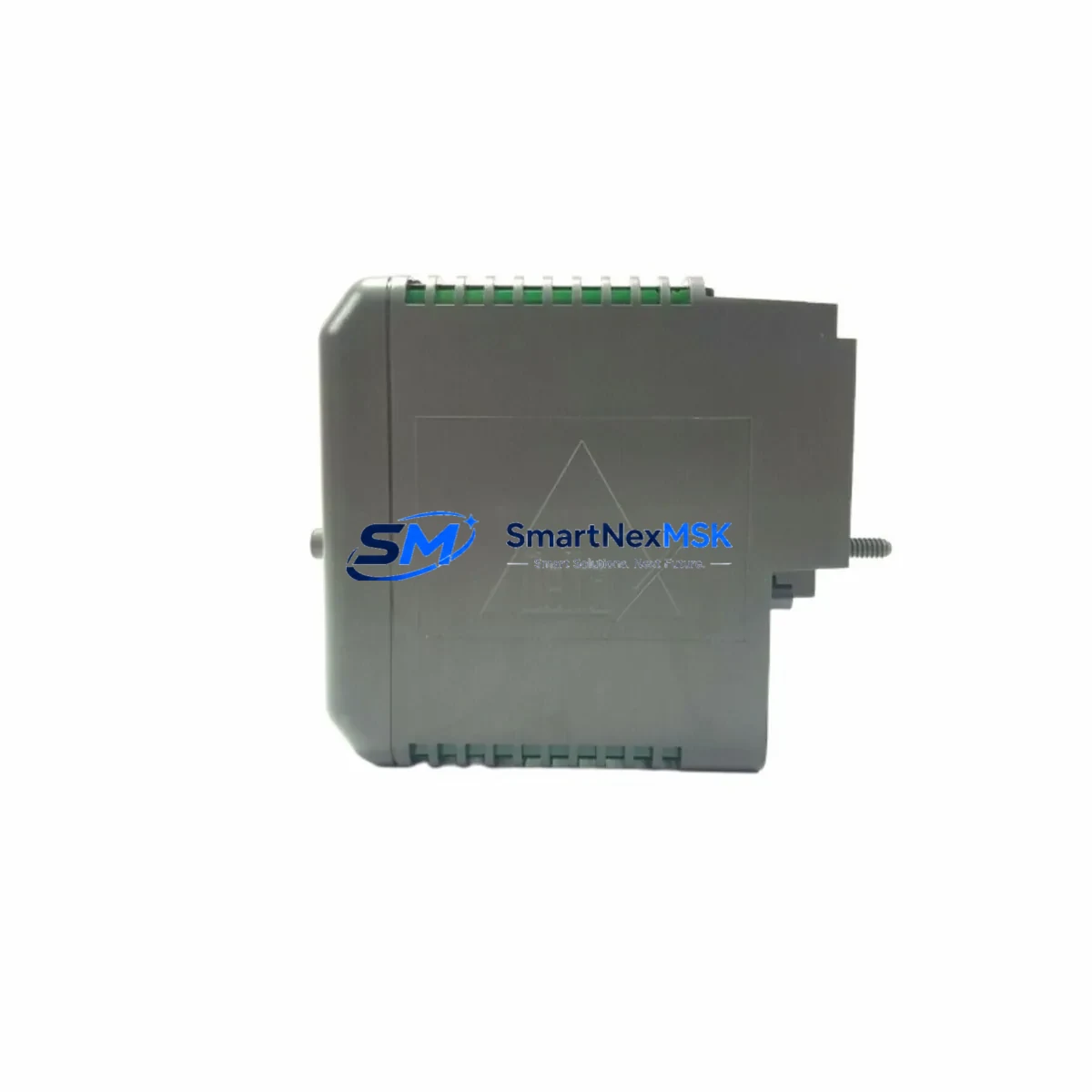

The Emerson KJ3202X1-BA1 (12P2536X062) is a high-side digital output card engineered for the Emerson DeltaV distributed control system platform. As legacy automation infrastructure ages and OEM support windows close, this module has become one of the most sought-after retrofit and replacement components for facilities running DeltaV Series 2 and Series 3 controller architectures. Whether you are replacing a failed card in a live production environment, upgrading a control cabinet during a planned shutdown, or migrating from an older PROVOX or RS3 platform to a modern DeltaV backbone, the KJ3202X1-BA1 delivers verified compatibility, reduced commissioning time, and a clear path to system continuity.

SMARTNEXMSK maintains ready stock of the KJ3202X1-BA1 12P2536X062, fully tested prior to shipment, with a 12-month warranty covering hardware defects and functional failures. Each unit is inspected against Emerson’s original specification for output channel count, power rail voltage, backplane interface signaling, and terminal block pinout before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the KJ3202X1-BA1 in an operating plant requires a structured approach that accounts for both hardware and software dependencies. Before pulling the card, engineers should document the current module tag assignments in DeltaV Explorer and export the relevant control module logic from DeltaV Control Studio. This ensures that if the replacement card triggers a re-download, the original program logic — including PID tuning parameters, interlock conditions, and alarm setpoints — can be restored without manual re-entry.

On the hardware side, the retrofit checklist should include verification of the DeltaV I/O carrier (also called the I/O subsystem base) for backplane connector integrity. Carriers that have been in service for more than ten years may show oxidation on the bus connector pins, which can cause intermittent communication faults even with a new module installed. If the carrier is suspect, replacing it alongside the KJ3202X1-BA1 is strongly recommended. Common companion components in this scenario include the KJ3001X1-BA1 DeltaV controller card, the KJ1501X1-BA1 power supply module, and the KJ2201X1-BA1 analog input card for mixed I/O cabinets.

For facilities migrating from older Emerson platforms such as the PROVOX DCS or Fisher PROVOX system, the KJ3202X1-BA1 is typically introduced as part of a phased migration where legacy I/O marshalling panels are rewired to new DeltaV I/O carriers. In these projects, the KJ3221X1-BA1 digital input module and KJ3002X1-BA1 redundant controller are frequently ordered alongside the KJ3202X1-BA1 to complete the I/O subsystem rebuild. Communication continuity during migration is maintained through the DeltaV CHARM I/O architecture or traditional hardwired marshalling, depending on the site’s existing cable infrastructure.

For control cabinets that also house third-party PLCs or safety systems, engineers should verify that the 24 VDC bus supplied by the DeltaV PS2 or PS4 power supply has sufficient headroom to support the additional output load of the KJ3202X1-BA1. A power budget calculation — accounting for all installed I/O modules, the controller card, and any DeltaV WIOC wireless I/O cards — should be completed before the new module is energized. Undersized power supplies are a common root cause of unexplained module faults during post-retrofit commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any facility replacing a DCS I/O card in a live production environment. The KJ3202X1-BA1 supports hot-swap replacement in DeltaV systems configured with redundant I/O, meaning the field outputs can remain energized on the redundant card while the failed module is removed and the replacement is seated. For non-redundant configurations, a controlled shutdown of the affected output group is required, but the scope of the outage can be limited to the specific I/O carrier rather than the entire controller node.

To protect original program logic during the swap, operators should place the affected control modules in manual mode via DeltaV Operate before the physical card removal. This prevents the controller from generating spurious output commands during the brief period when the I/O bus is interrupted. After the new KJ3202X1-BA1 is seated and the module appears online in DeltaV Explorer, a forced download of the affected module configuration should be performed from DeltaV Control Studio to re-establish the tag-to-channel mapping. Field output states should then be verified against the process P&ID before returning the control modules to automatic mode.

For sites where even a brief output interruption is unacceptable — such as continuous chemical processes or critical utility systems — SMARTNEXMSK recommends pre-staging the replacement KJ3202X1-BA1 with the module configuration pre-loaded where the DeltaV system supports offline commissioning. This approach, combined with a pre-tested spare carrier and a pre-verified terminal block wiring diagram, can reduce the physical swap window to under 15 minutes.

Retrofit Support FAQ

Q1: Is the KJ3202X1-BA1 12P2536X062 a direct drop-in replacement for the original Emerson card?
Yes. The KJ3202X1-BA1 12P2536X062 is the original Emerson part number and is a direct slot-compatible replacement for the same card in any DeltaV I/O carrier that supports the standard DeltaV I/O bus. No wiring changes or firmware modifications are required for a same-series swap. Verify the DeltaV system firmware version is compatible with the card revision before installation.

Q2: What commissioning steps are required after installing the replacement module?
After seating the new KJ3202X1-BA1, open DeltaV Explorer and confirm the module is recognized on the correct I/O carrier node. Perform a module download from DeltaV Control Studio to re-establish the channel-to-tag assignments. Verify all output channels against the field device list and confirm signal states match the expected process conditions before returning to automatic control.

Q3: Can this module be used in a migration from PROVOX or an older DeltaV generation?
Yes, with planning. The KJ3202X1-BA1 is compatible with current DeltaV S-Series and M-Series controller architectures. For migrations from PROVOX or early DeltaV generations, field wiring will need to be re-terminated to the DeltaV I/O carrier terminal block. A wiring adaptation study comparing the legacy marshalling panel pinout to the DeltaV terminal assignment is recommended before the cutover window.

Q4: What does the 12-month warranty cover, and how is it handled?
SMARTNEXMSK’s 12-month warranty covers hardware defects and functional failures under normal operating conditions. Each KJ3202X1-BA1 unit is tested prior to shipment. In the event of a warranty claim, SMARTNEXMSK will arrange replacement or repair. Contact sales@smartnexmsk.com with the order reference and a description of the fault for warranty processing.
