Emerson KJ3204X1-BA1 Retrofit-Ready DO Module for DeltaV

Emerson KJ3204X1-BA1 Retrofit-Ready DO Module for DeltaV Control Systems

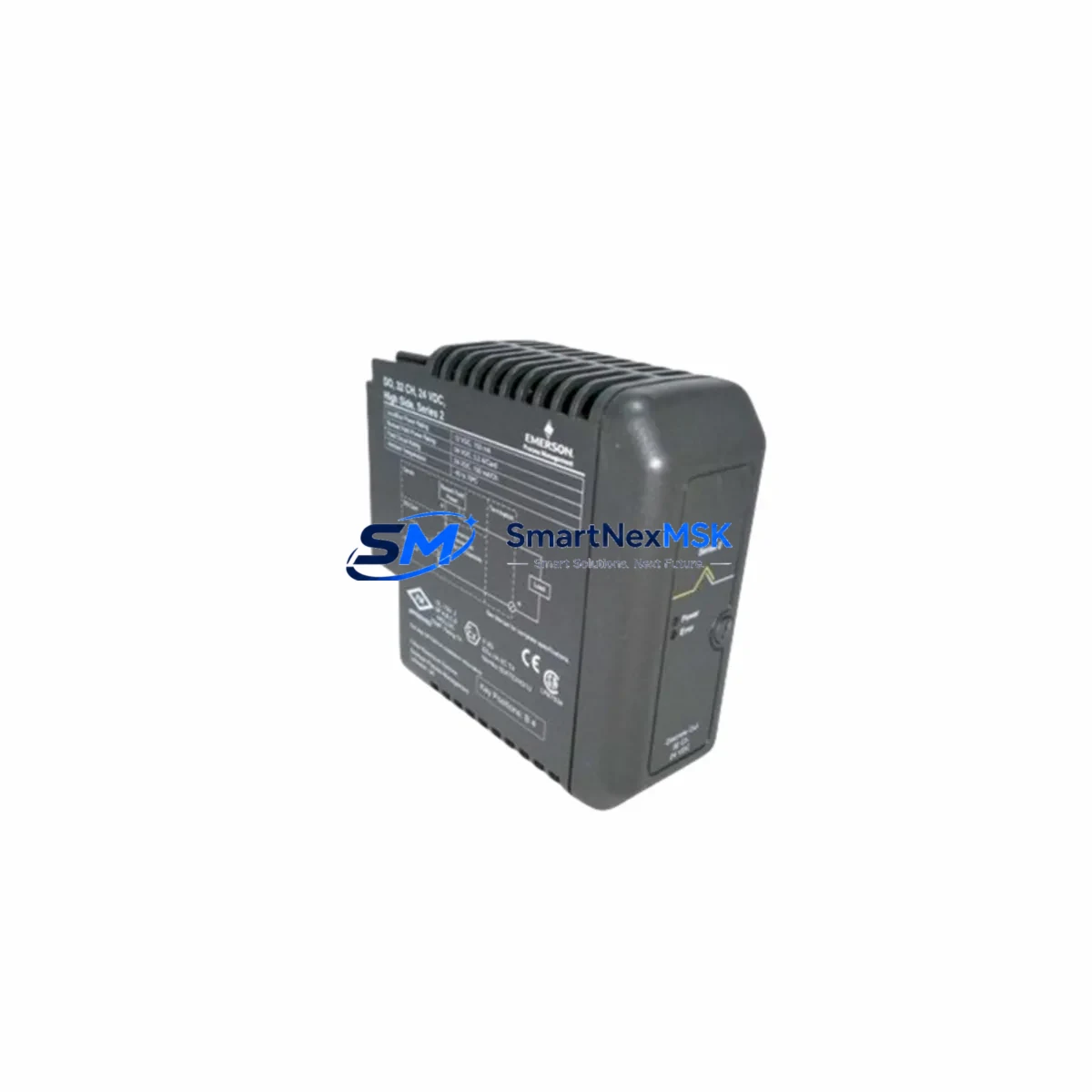

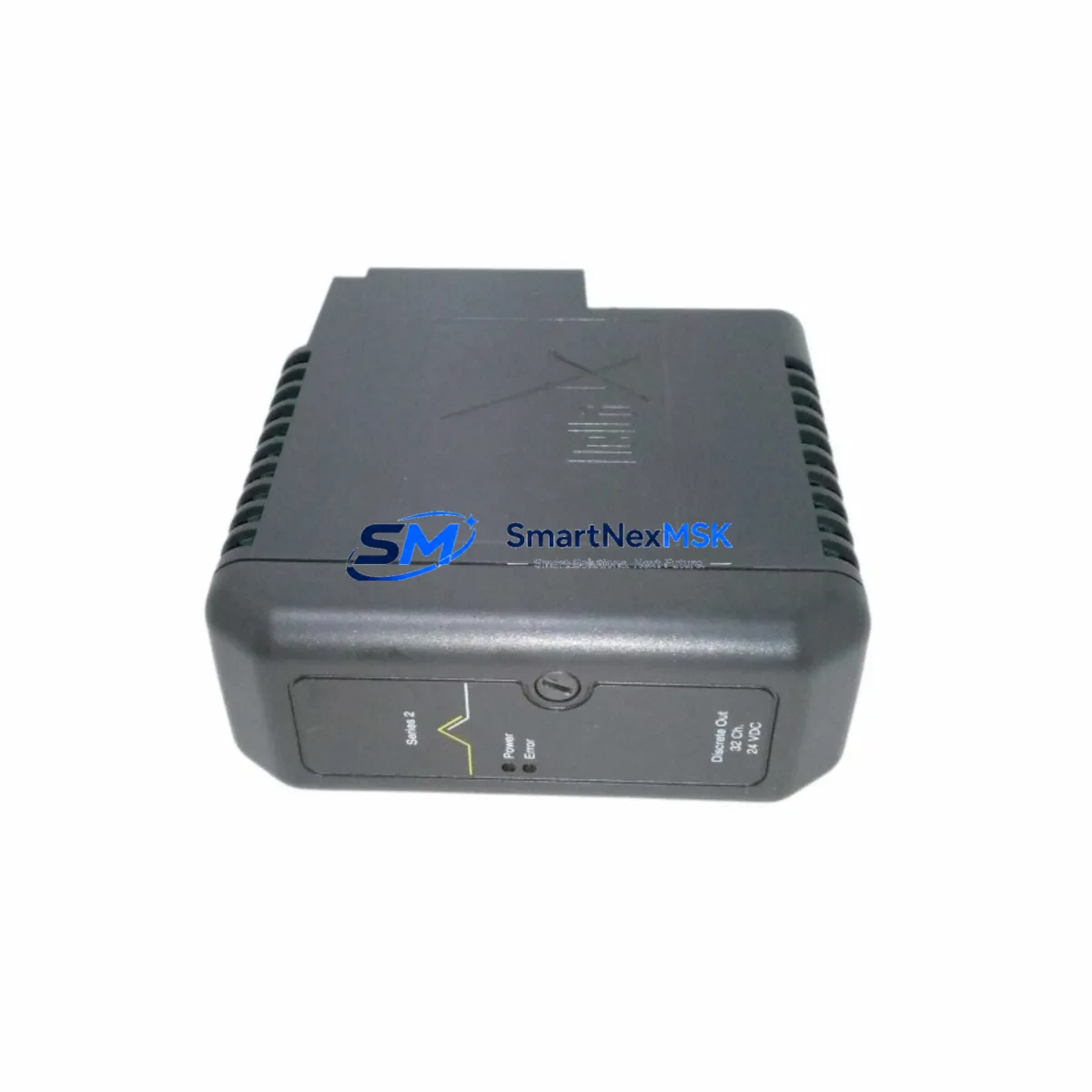

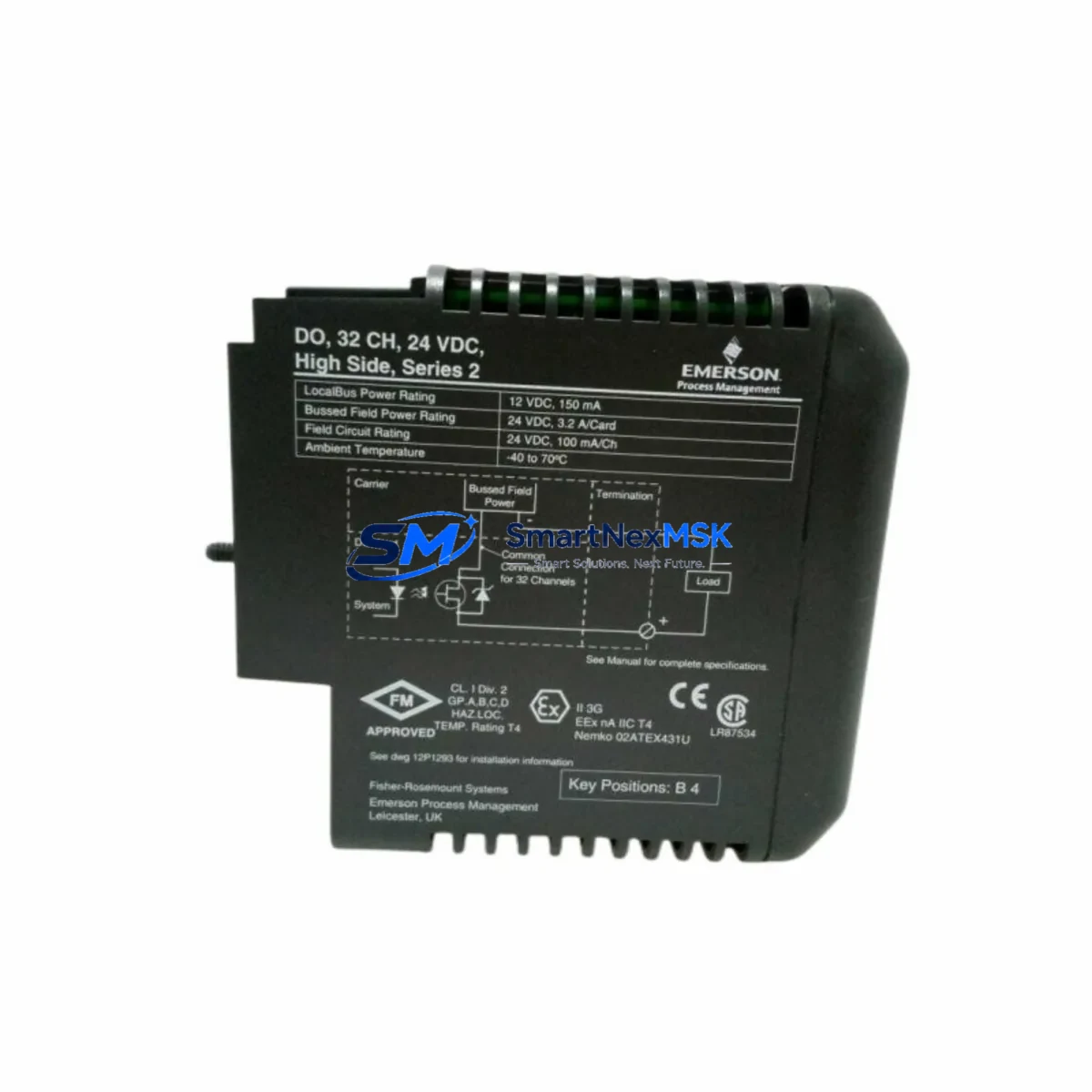

The Emerson KJ3204X1-BA1 (alternate part number 12P3275X032) is an 8-channel digital output module designed for the Emerson DeltaV distributed control system. As legacy DeltaV installations age and original modules reach end-of-life, the KJ3204X1-BA1 serves as a direct retrofit replacement — enabling plant engineers to restore full I/O capacity without redesigning the control architecture or rewriting application logic. Whether you are recovering from an unplanned module failure or executing a scheduled control cabinet upgrade, this module delivers the compatibility and reliability required for continuous process operations.

Sourced from verified industrial supply channels, each unit undergoes pre-shipment functional testing to confirm output channel integrity, backplane communication, and module identification. A 12-month warranty is included with every shipment, backed by dedicated technical support for installation and commissioning queries.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful KJ3204X1-BA1 retrofit begins well before the module arrives on site. Maintenance and automation engineers should conduct a full audit of the affected I/O carrier and control cabinet before scheduling the replacement window. Start by confirming the DeltaV I/O carrier slot assignment and verifying that the carrier’s internal power bus can support the replacement module — particularly in high-density cabinets where multiple DO modules share a single DeltaV power supply module (such as the KJ1501X1-BA2 or equivalent redundant power supply).

Field wiring connected to the existing module should be documented against the original loop drawings before disconnection. The KJ3204X1-BA1 uses a standard DeltaV terminal block interface on the I/O carrier, so field cables typically reconnect without modification — but wire labeling and torque verification on each terminal are essential steps. In marshalling cabinet configurations, confirm that the junction box or marshalling panel wiring schedule matches the new module’s channel-to-terminal mapping.

For sites running DeltaV S-Series controllers (MD, MD Plus, or SD redundant variants), the replacement module will be auto-detected once seated in the carrier. Engineers should open DeltaV Explorer to confirm the module tag, verify the I/O channel assignments, and check that no alarm suppression or forced output states are active on the replaced channels. If the plant uses DeltaV Operate or a third-party HMI connected via OPC-DA or OPC-UA, confirm that the output channel faceplates and interlock logic reflect the restored module status before returning the loop to automatic control.

Sites with FOUNDATION Fieldbus or HART-enabled I/O subsystems adjacent to the DO module should verify that the fieldbus segment power conditioner and HART multiplexer are unaffected by the carrier slot change. In mixed I/O cabinets, it is also advisable to inspect neighboring DeltaV analog input modules (such as KJ3002X1-BA1 AI modules) and digital input modules for signs of connector wear or backplane contact oxidation — conditions that often accompany aging DO module failures. Additionally, check the DeltaV redundancy module or controller link cables if the affected cabinet supports controller redundancy, as backplane disturbances during hot-swap can occasionally trigger redundancy switchover events.

Downtime Control During System Migration

Minimizing process downtime during a DeltaV DO module replacement requires a structured, pre-planned approach. Begin by placing all output channels served by the KJ3204X1-BA1 into a safe output state using DeltaV’s built-in output forcing capability — this prevents unintended actuator movement during the physical swap. Document the forced states and confirm with the field operator that all associated control loops are in manual mode before proceeding.

The physical replacement is straightforward: the DeltaV I/O carrier supports hot-swap for most module types, meaning the controller continues to run while the module is removed and reinserted. However, plant safety procedures should always take precedence — confirm with your site’s MOC (Management of Change) process whether a hot-swap is permitted for the specific loop criticality involved. Once the new KJ3204X1-BA1 is seated, DeltaV will automatically download the module configuration from the controller database, restoring channel assignments and output parameters without manual re-entry.

After the module is online, perform a channel-by-channel output verification: command each DO channel from DeltaV Operate and confirm field device response. Release output forces in sequence, return loops to automatic control, and monitor the DeltaV event log for any diagnostic alarms. The entire replacement process — from output forcing to loop restoration — can typically be completed within a single maintenance shift when spare modules are pre-staged and field documentation is current. Maintaining a minimum one-unit buffer stock of the KJ3204X1-BA1 in your site spare parts inventory is strongly recommended for plants with multiple DeltaV DO carrier slots, as it eliminates lead-time exposure during unplanned failures.

Retrofit Support FAQ

Q1: Is the KJ3204X1-BA1 a direct drop-in replacement for the original module without software changes?
Yes. The KJ3204X1-BA1 is auto-detected by the DeltaV controller upon insertion. The controller downloads the existing module configuration automatically, so no manual re-programming is required. Engineers should verify the module tag assignment in DeltaV Explorer and confirm channel forcing is cleared before returning to automatic operation.

Q2: What firmware or DeltaV version compatibility should I verify before ordering?
The KJ3204X1-BA1 is compatible with DeltaV versions 10.x through 14.x and later. For sites running older DeltaV releases (v9.x or earlier), confirm the module hardware revision against your system’s supported hardware list in the DeltaV release notes. Contact our technical team with your DeltaV version and controller type for pre-order compatibility confirmation.

Q3: How is each unit tested before shipment?
Every KJ3204X1-BA1 unit undergoes pre-shipment testing covering output channel continuity across all 8 channels, backplane connector integrity, LED status indicator function, and module identification handshake. A test report is available upon request. Units are packed in anti-static ESD packaging with foam cushioning to prevent transit damage.

Q4: What does the 12-month warranty cover, and what is the support process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating and storage conditions. It does not cover damage from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, failure description, and site installation details. Replacement or repair is processed within 5–10 business days of claim approval.
