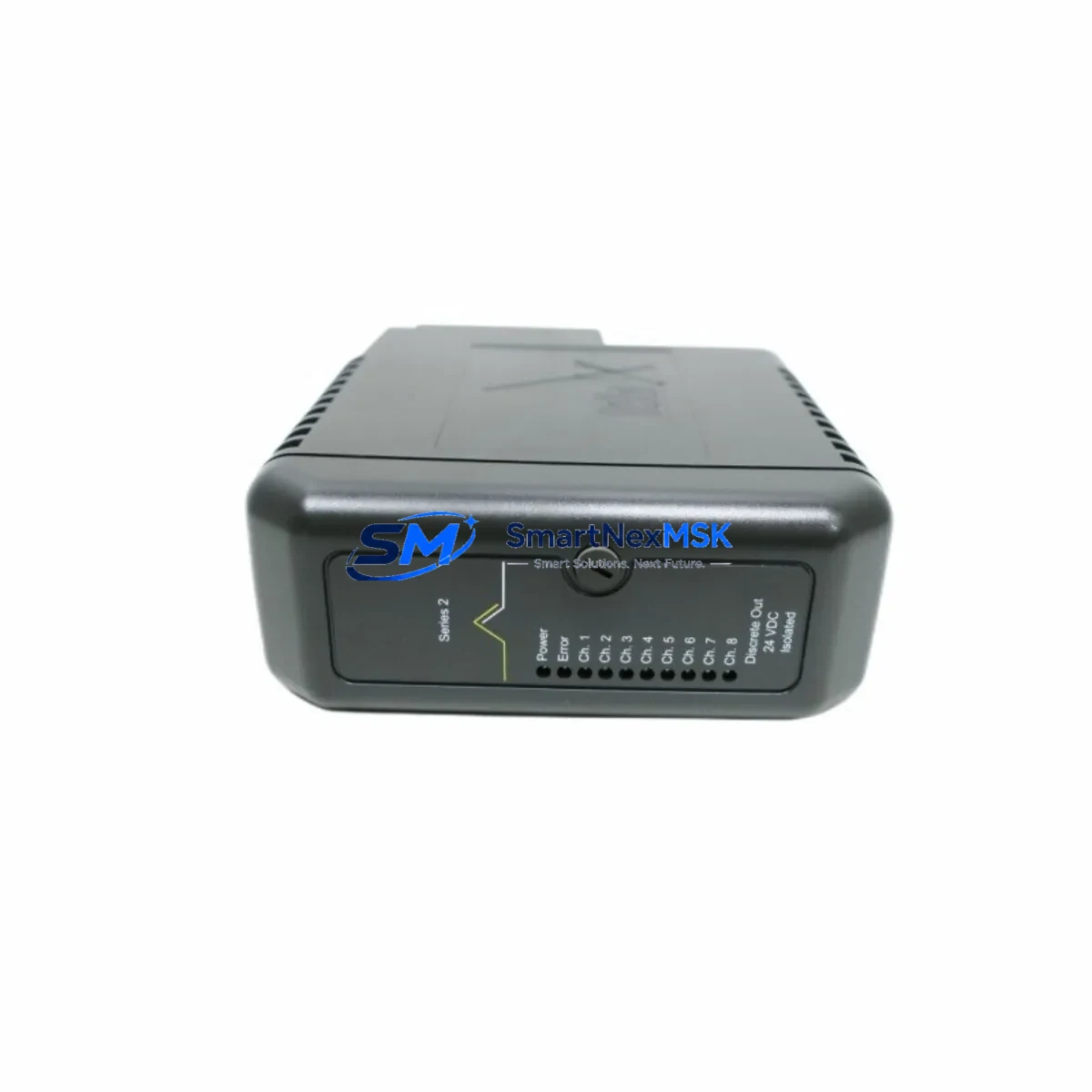

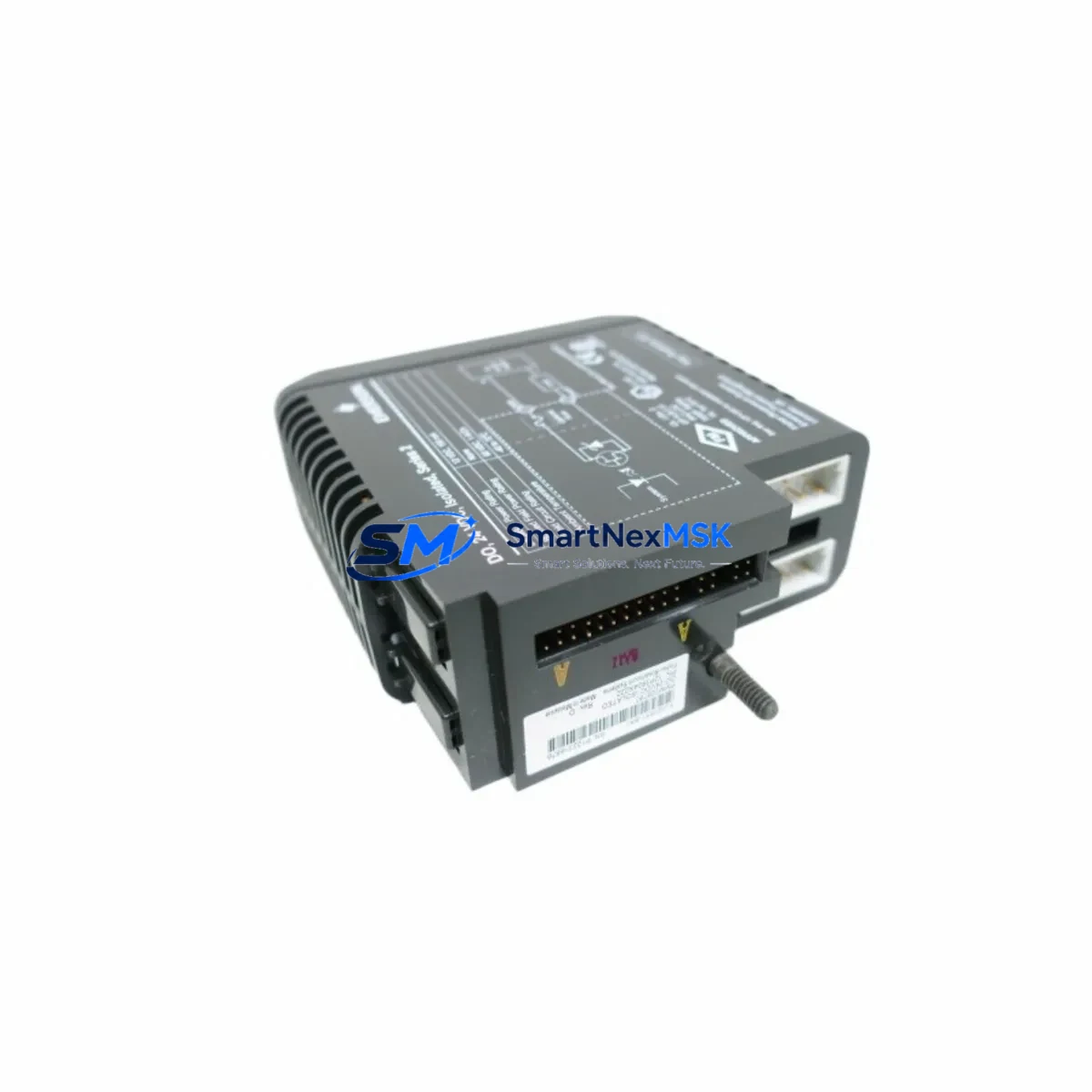

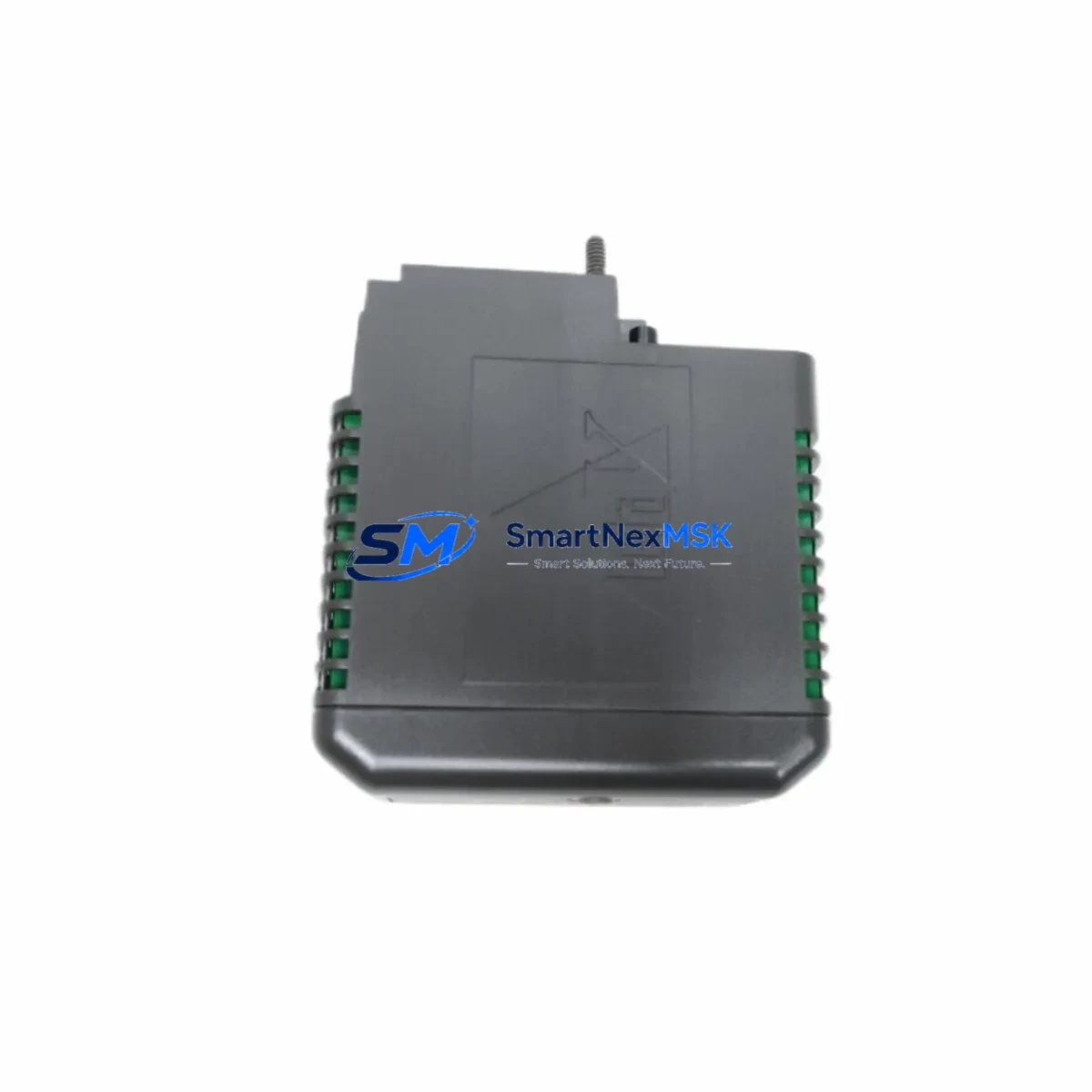

EMERSON KJ3208X1-BA1 Safety-Enhanced Discrete Output Module

EMERSON KJ3208X1-BA1 12P3904X022: Safety-Enhanced Discrete Output Module for Harsh Industrial Control

The EMERSON KJ3208X1-BA1 12P3904X022 is a ruggedized discrete output module engineered for the DeltaV distributed control system platform. Designed to operate reliably in high-load, high-interference, and continuous-production industrial environments, this module delivers deterministic output switching performance that is critical to maintaining safe and uninterrupted control loop integrity. Whether deployed in a critical interlock circuit, a safety instrumented system (SIS) panel, or a high-density control cabinet in a petrochemical refinery, power generation facility, or metallurgical plant, the KJ3208X1-BA1 is built to eliminate the risk of spurious output trips, signal drift, and module misoperation that can cascade into costly unplanned shutdowns.

In demanding field environments where electromagnetic interference from variable frequency drives, high-voltage bus bars, and heavy motor loads is constant, the KJ3208X1-BA1’s internal isolation architecture and surge-suppression circuitry ensure that each discrete output channel maintains its commanded state without false triggering. This is especially important in safety-critical applications where an unexpected output state change — even momentary — can compromise personnel safety, damage downstream equipment, or trigger emergency shutdown sequences that require hours of recovery time.

The module integrates seamlessly into the DeltaV I/O subsystem alongside companion modules such as the KJ3221X1-BA1 analog output module and the KJ3001X1-BA1 controller carrier, sharing the same backplane communication architecture and benefiting from DeltaV’s built-in diagnostics and redundancy management. When paired with the KJ2201X1-HA1 power supply module, the entire I/O node maintains stable 24 VDC rail voltage even during transient load spikes, preventing the undervoltage conditions that can cause output modules to latch into a safe-state de-energized position at the worst possible moment during process transitions.

For facilities operating under IEC 61511 or IEC 61508 functional safety standards, the KJ3208X1-BA1 supports integration into safety loops where output channel diagnostics and proof-test intervals must be documented and auditable. Its compatibility with the DeltaV SIS platform means it can be configured alongside SZ Series safety logic solvers and CHARM I/O modules to form a complete, certified safety instrumented function (SIF) without requiring additional signal conditioning or interface relays in most applications.

In control cabinets where space and heat dissipation are engineering constraints, the module’s compact form factor and low self-heating characteristics reduce thermal stress on adjacent components including KJ3222X1-BA1 analog input modules and KJ4001X1-BA1 fieldbus interface modules. Proper thermal management within the cabinet directly reduces the failure rate of all installed electronics, extending mean time between failures (MTBF) and reducing the frequency of unscheduled maintenance interventions.

For mining operations, water treatment facilities, and port automation systems where control system availability is directly tied to production throughput and regulatory compliance, the KJ3208X1-BA1 provides the output switching reliability needed to sustain 24/7 continuous operation. Its robust construction tolerates the vibration, humidity cycling, and airborne particulate contamination common in these environments without requiring sealed enclosures or additional protective coatings in most standard installation scenarios.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification including output channel continuity testing, backplane communication handshake validation, and visual inspection for physical damage or counterfeit indicators. Stock is maintained in climate-controlled storage to preserve module integrity prior to deployment. All units are covered by a 12-month warranty from the date of shipment.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable discrete output module is only as effective as the protection ecosystem surrounding it. In a well-engineered DeltaV control cabinet, the KJ3208X1-BA1 operates within a layered protection architecture. The KJ2201X1-HA1 power supply module provides regulated, filtered 24 VDC to the I/O bus, absorbing upstream voltage fluctuations from the facility power distribution system before they can reach sensitive output circuitry. Upstream of the power supply, a Phoenix Contact QUINT series UPS module or equivalent industrial UPS ensures that momentary grid interruptions — common in heavy industrial facilities during motor start sequences — do not cause the I/O node to lose power and reset active output states.

On the signal side, the KJ3208X1-BA1 output channels drive field devices such as solenoid valves, motor contactors, and pilot relays. In high-inductive-load applications, surge suppression diodes or RC snubber networks installed at the field terminal block protect the module’s output transistors from back-EMF spikes generated when inductive loads are de-energized. This is a frequently overlooked protection measure that significantly extends module service life in valve-intensive process control applications.

For communication integrity across the DeltaV network, the KJ4001X1-BA1 FOUNDATION Fieldbus H1 interface module and KJ4002X1-BA1 PROFIBUS DP interface module share the same I/O subsystem backplane and rely on the same power rail stability that protects the KJ3208X1-BA1. Any power quality issue that affects one module affects all, making the power supply and UPS selection a cabinet-level safety decision rather than a module-level one.

In safety interlock applications, the KJ3208X1-BA1 output channels are often wired in series with safety relay modules such as the Pilz PNOZ or Schneider Electric Preventa series to provide a hardware-enforced de-energize-to-trip (DTT) path that operates independently of the DCS software layer. This dual-channel architecture ensures that even a software fault or controller communication loss results in a safe output state, satisfying the requirements of SIL 2 and SIL 3 safety loops in critical process applications.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the KJ3208X1-BA1 controls emergency isolation valves (EIVs), blowdown valves, and flare system actuators within safety instrumented systems. Its deterministic output response and channel-level diagnostics support the proof-test documentation requirements mandated by IEC 61511 for SIL-rated safety functions protecting against loss of containment events.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, discrete output modules control turbine trip solenoids, boiler feed pump contactors, and generator excitation systems. The KJ3208X1-BA1’s ability to maintain output state integrity during grid disturbances and load-shedding events is essential to preventing cascading failures in the generation control system.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The KJ3208X1-BA1’s ruggedized construction and optical isolation make it suitable for controlling conveyor drive contactors, ventilation fan starters, and dewatering pump systems in these demanding environments.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on discrete output modules to control chlorination dosing pumps, UV disinfection systems, and sluice gate actuators. Continuous availability of these output functions is a regulatory requirement, making module reliability and rapid spare-parts availability critical operational priorities.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting operations, the KJ3208X1-BA1 manages cooling water valve sequences, electrode positioning contactors, and mold oscillation drive enables. The high electromagnetic interference generated by EAF operations makes the module’s EMI resistance a key selection criterion for these applications.

Safety and Quality FAQ

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers all manufacturing defects, functional failures, and premature component degradation under normal operating conditions as specified in the EMERSON DeltaV hardware documentation. Warranty claims are processed with priority turnaround to minimize control system downtime. Replacement units are dispatched from verified stock upon confirmation of the defect.

Q: What pre-shipment testing is performed on each unit?
A: Every KJ3208X1-BA1 unit undergoes a multi-point inspection prior to shipment, including output channel functional verification, backplane communication handshake testing, visual inspection for physical damage, and counterfeit-indicator screening. Test records are available upon request for quality-assurance documentation purposes.

Q: Is this module compatible with all DeltaV system versions?
A: The KJ3208X1-BA1 is designed for the EMERSON DeltaV I/O subsystem and is compatible with DeltaV system versions that support the standard 8-channel discrete output I/O card form factor. Compatibility with specific DeltaV software versions and controller types should be confirmed against the EMERSON DeltaV hardware compatibility matrix for your installed system revision. Our technical team can assist with compatibility verification prior to purchase.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: Yes. SMARTNEXMSK maintains standing inventory of the KJ3208X1-BA1 and related DeltaV I/O modules to support planned maintenance, emergency replacement, and lifecycle extension programs. We work with facilities that require annual supply agreements and can provide lead-time commitments for scheduled maintenance outages. Contact our sales team to discuss your long-term spare-parts strategy.
