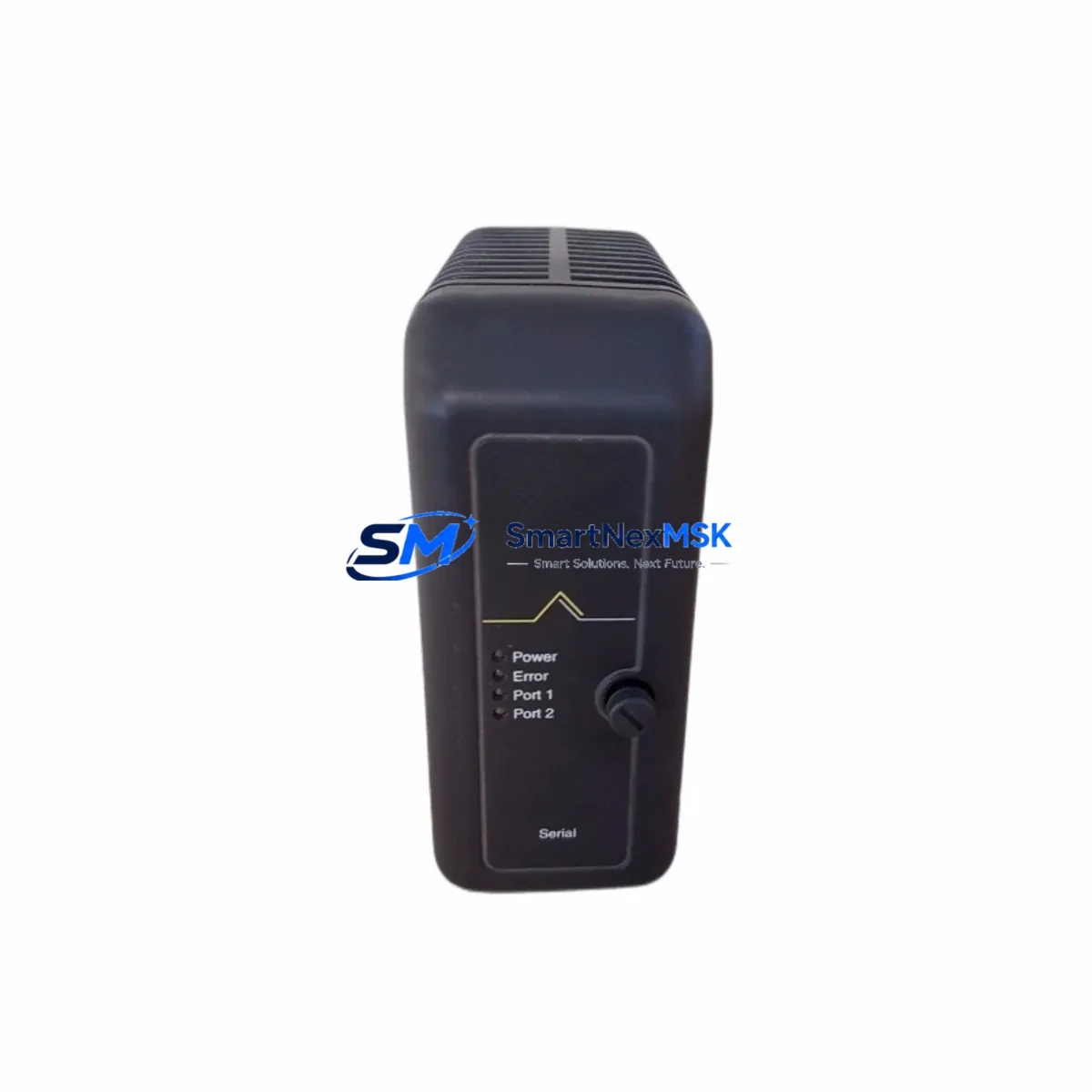

The Emerson KJ3241X1-BA1 12P2506X022 is an original redundant serial interface module designed for the DeltaV distributed control system platform. In process industries — including oil & gas, chemical, power generation, and pharmaceuticals — unplanned downtime caused by a failed serial interface module can halt production lines, trigger safety shutdowns, and result in significant financial loss. Maintaining a verified spare of the KJ3241X1-BA1 12P2506X022 in your on-site inventory is a proven strategy for rapid fault recovery and continuous operation.

This module provides the serial communication backbone between DeltaV controllers and field devices, supporting RS-232/RS-485 serial protocols commonly used in legacy instrument integration, third-party device connectivity, and HART pass-through configurations. When this module fails or degrades, the entire communication loop it serves becomes unavailable — making fast, like-for-like replacement critical to restoring system integrity without reconfiguration or firmware re-flashing.

Each unit supplied by SMARTNEXMSK is sourced from original manufacturing channels, individually tested for electrical continuity and communication function, and shipped with full traceability documentation. Our 12-month warranty covers all verified original parts against manufacturing defects, giving maintenance engineers and procurement teams confidence in every order.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault in the KJ3241X1-BA1 12P2506X022, the replacement workflow should extend beyond the module itself. Serial interface failures in DeltaV systems are often symptomatic of broader cabinet-level issues. A thorough inspection during the replacement window should include the following associated components:

Begin with the DeltaV power supply module (such as the KJ1501X1-BA1 or equivalent redundant PSU) — a degraded power rail is a common root cause of intermittent serial communication faults. Verify output voltage stability under load before reinstalling the new module. Next, inspect the DeltaV controller card (e.g., MD Plus or MD Controller) that manages the serial interface slot; controller firmware version compatibility with the KJ3241X1-BA1 should be confirmed against the DeltaV release notes.

Check the carrier assembly and backplane connectors for oxidation, bent pins, or thermal stress damage — the KJ3241X1-BA1 seats directly into the carrier, and a compromised backplane will cause recurring faults even with a new module installed. If the cabinet includes a DeltaV I/O subsystem with analog input modules (such as the KJ3002X1-BA1 AI module) or discrete output modules sharing the same carrier, inspect their status indicators simultaneously during the maintenance window.

For systems using HART multiplexers or signal isolators connected through the serial port of the KJ3241X1-BA1, verify that the isolator output levels and loop resistance remain within specification. Brands such as MTL, Pepperl+Fuchs, and R. STAHL produce compatible signal conditioning modules commonly found in the same marshalling cabinet. Additionally, inspect terminal blocks and field wiring terminations — loose RS-485 connections are a frequent cause of serial communication degradation that can be misdiagnosed as module failure.

If the DeltaV system includes a redundant communications network via the DeltaV network interface card or a DeltaV Wireless I/O card, confirm that the network topology remains intact after the module swap. Finally, review the DeltaV operator workstation (OWS) or DeltaV Pro Plus HMI alarm logs for any upstream diagnostic codes that may indicate whether the fault originated in the field device, the wiring, or the module itself — this prevents repeat failures after the spare is installed.

Site Replacement Workflow

Replacing the KJ3241X1-BA1 12P2506X022 on-site is designed to be a low-disruption procedure when the correct spare is available. The DeltaV platform supports hot-swap module replacement in redundant configurations, meaning the standby module can take over communication duties while the primary is removed — eliminating the need for a full system shutdown in most installations.

Step 1 — Verify redundancy status: Confirm via the DeltaV Diagnostics Explorer that the redundant pair is active and the standby module is healthy before initiating removal of the faulted primary.

Step 2 — Document configuration: Export the current module configuration from DeltaV Explorer. Although the KJ3241X1-BA1 stores configuration on the controller, not the module itself, documenting the serial port parameters (baud rate, parity, stop bits, device address) prevents errors during recommissioning.

Step 3 — Physical replacement: Power down the carrier slot if required by site safety procedures. Remove the faulted KJ3241X1-BA1 by releasing the module latch and sliding it from the carrier. Insert the replacement module and confirm the latch engages fully.

Step 4 — Recommission and verify: Allow the DeltaV system to auto-download configuration to the new module. Monitor the Diagnostics Explorer for module status — a green “OK” status confirms successful integration. Verify serial communication with connected field devices by checking live data in the DeltaV operator display.

Step 5 — Update maintenance records: Log the replacement in your CMMS with the new module serial number, installation date, and warranty expiry (12 months from shipment date). Schedule the next inspection interval per your site’s preventive maintenance plan.

This workflow applies equally to legacy DeltaV S-series and M-series controller configurations. The KJ3241X1-BA1 12P2506X022 is backward-compatible with earlier DeltaV carrier generations, making it a reliable drop-in replacement for aging systems without requiring hardware upgrades or software reconfiguration.

Spare Parts Support FAQ

Q1: Is the KJ3241X1-BA1 12P2506X022 still available as a new original part, or only as a refurbished spare?
Emerson has transitioned many legacy DeltaV modules to end-of-life status, meaning new production units may no longer be available through standard distribution channels. SMARTNEXMSK sources both original unused stock and professionally refurbished-to-specification units. All refurbished units undergo full electrical testing and are supplied with a 12-month warranty equivalent to new parts. The condition (new or refurbished) is clearly stated on your order confirmation.

Q2: How do I verify compatibility between the KJ3241X1-BA1 12P2506X022 and my existing DeltaV system version?
Compatibility depends on your DeltaV software version and controller type. The KJ3241X1-BA1 is compatible with DeltaV versions 9.x through 14.x and works with MD, MD Plus, and SD Plus controllers. Before ordering, provide your DeltaV system version and controller model to our technical team at [email protected] — we will confirm compatibility and advise on any firmware considerations.

Q3: What pre-shipment testing is performed on each KJ3241X1-BA1 12P2506X022 unit?
Every unit undergoes a multi-point inspection: visual inspection for physical damage, backplane connector integrity check, power-on self-test, serial port communication function test (RS-232 and RS-485 loopback), and LED status verification. A test report is available upon request. Units that do not pass all test criteria are not shipped.

Q4: What is your recommended spare parts stocking strategy for DeltaV serial interface modules?
For facilities with 10 or more DeltaV serial interface slots in service, we recommend maintaining a minimum of 2 spare KJ3241X1-BA1 units on-site. For critical process applications (continuous chemical, refinery, or power generation), a 1:5 spare ratio (one spare per five installed modules) is a widely adopted industry standard. SMARTNEXMSK offers volume pricing and long-term supply agreements to support multi-year maintenance contracts and turnaround planning.
