Emerson KJ3242X1-BA1 Retrofit-Ready H1 Card for DeltaV Systems

Emerson KJ3242X1-BA1 Retrofit-Ready H1 Card for DeltaV Systems: Compatible Modernization and Legacy System Smooth Upgrade

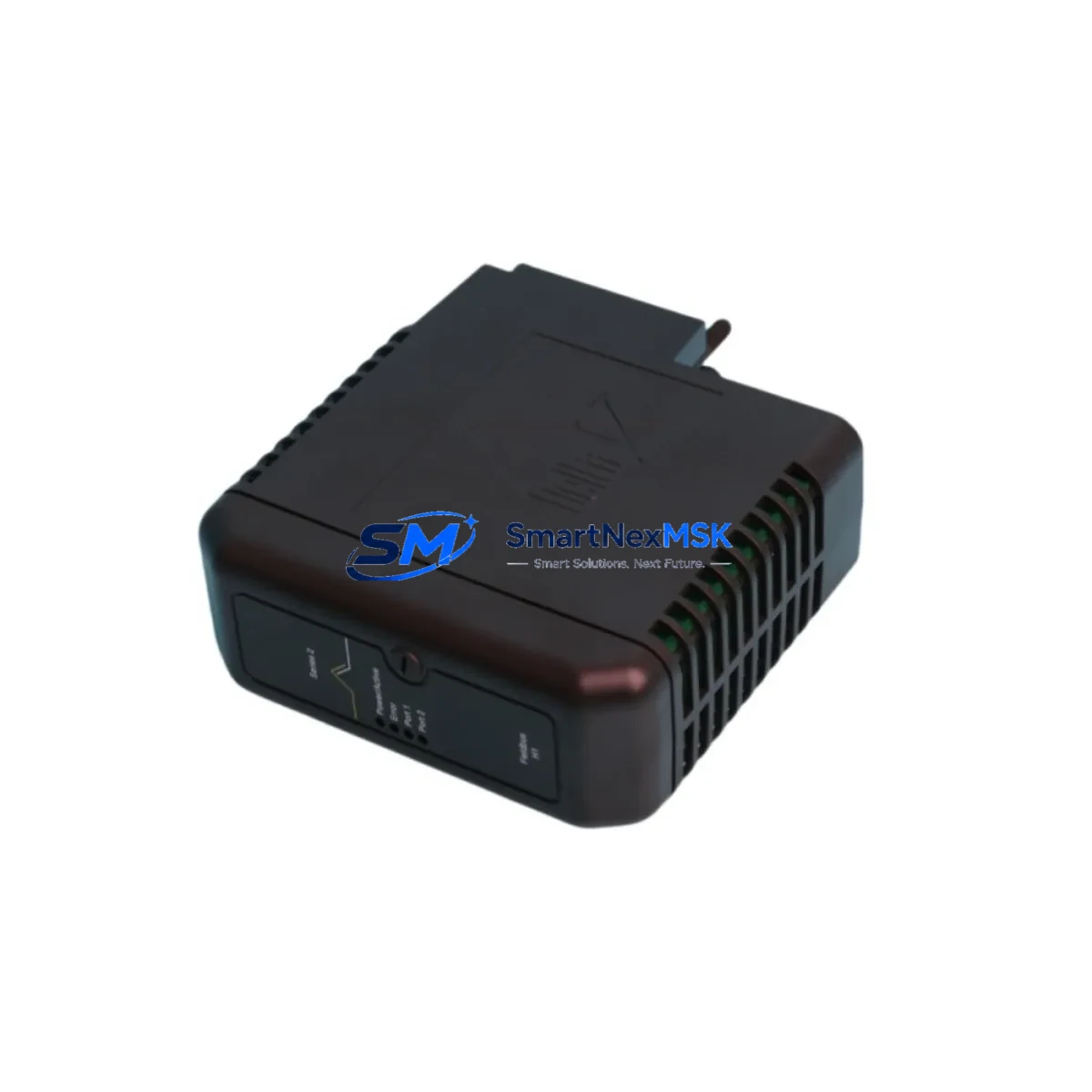

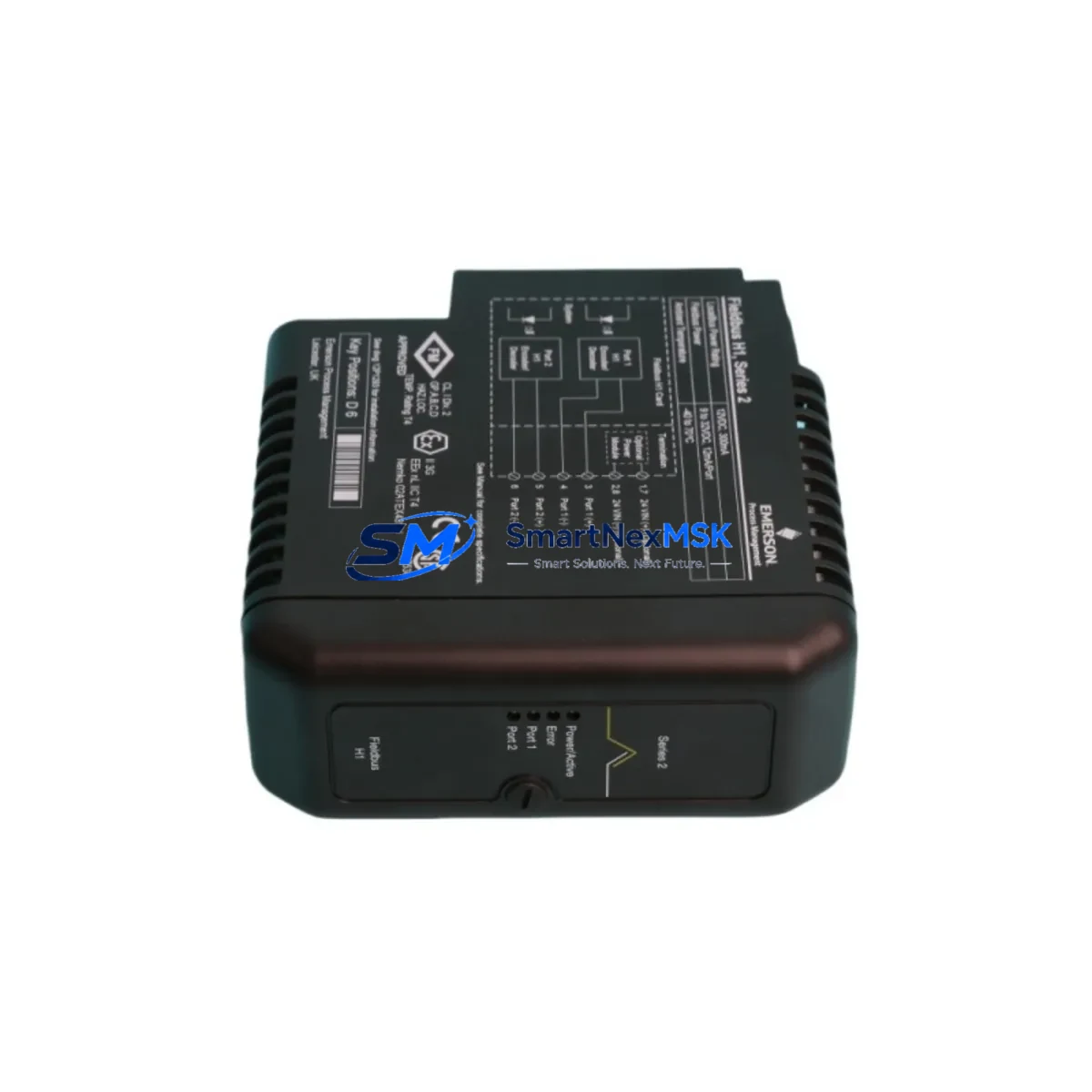

The Emerson KJ3242X1-BA1 (part number 12P2471X052) is a DeltaV Fieldbus H1 Card Module designed for seamless integration into existing DeltaV distributed control system architectures. As legacy automation infrastructure ages and OEM support for discontinued modules becomes increasingly scarce, the KJ3242X1-BA1 serves as a verified drop-in replacement for end-of-life H1 interface cards, enabling plant engineers to restore full FOUNDATION Fieldbus segment communication without redesigning the control cabinet or rewriting PLC logic.

This module is engineered to mount directly into the DeltaV Series 2 carrier and MD-series controller backplane, maintaining physical and electrical compatibility with existing wiring harnesses and terminal blocks. Each unit is pre-tested against DeltaV system firmware to confirm segment initialization, device registration, and live list population before shipment. In-stock inventory is maintained in Xiamen with a 12-month warranty covering hardware defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life KJ3242X1-BA1 in a live DeltaV environment requires careful pre-work to avoid unplanned shutdowns. Before pulling the card, engineers should document the current H1 segment topology using DeltaV Diagnostics, noting all registered device tags, physical device addresses (PD tags), and function block schedules. The KJ3242X1-BA1 shares its carrier slot with other I/O modules in the DeltaV Series 2 carrier, so adjacent modules such as the KJ3221X1-BA1 analog input card or the KJ3222X1-BA1 analog output card must remain undisturbed during the swap.

Power budget verification is critical. The DeltaV PS-series power supply feeding the carrier must have sufficient headroom to support the replacement card alongside co-installed modules. In dense cabinets running KJ3001X1-BB1 controller cards, KJ3242X1-BA1 H1 cards, and multiple KJ3221X1-BA1 I/O modules, the aggregate draw can approach the PS-series supply limit. A pre-swap power audit using the DeltaV Hardware Configurator prevents nuisance trips after installation.

For plants migrating from older DeltaV MD-Plus controllers to MD3 or MD Plus controllers, the KJ3242X1-BA1 remains compatible across the transition, provided the carrier generation matches. Engineers should also verify that the H1 segment terminator — typically a DeltaV-compatible passive terminator or an active fieldbus power conditioner — is correctly installed at both ends of the segment. Missing or double termination is a leading cause of communication errors after card replacement.

In control cabinets where the KJ3242X1-BA1 interfaces with Rosemount 3051 pressure transmitters, Fisher FIELDVUE DVC6200 valve positioners, or Micro Motion Coriolis flow meters via FOUNDATION Fieldbus, the replacement procedure must include a device re-registration step in AMS Device Manager. Each field device must be re-commissioned to its function block schedule to restore closed-loop control. HMI faceplates in DeltaV Operate linked to these field devices will display stale values until the module download completes and the segment re-establishes communication.

For sites running redundant H1 segments using paired KJ3242X1-BA1 cards, the replacement of one card in a redundant pair requires a controlled switchover to the secondary card before the primary is removed. This procedure, documented in Emerson’s DeltaV Books Online, ensures that field device communication is maintained throughout the swap. After installing the replacement card, a full segment diagnostic using DeltaV Diagnostics confirms link active scheduler (LAS) election and device live list integrity before returning the segment to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime during a KJ3242X1-BA1 replacement begins with a structured pre-outage checklist. Before the maintenance window opens, the control system engineer should export the current DeltaV module configuration, back up the controller database, and place all affected loops in manual mode at the DeltaV Operate workstation. This preserves the last known setpoints and prevents runaway control actions during the card swap.

The physical replacement of the KJ3242X1-BA1 in a hot-standby DeltaV system can typically be completed in under 15 minutes if the replacement card is pre-staged and the DeltaV Explorer node is pre-configured offline. After insertion, the module download from the DeltaV controller to the new card takes approximately 2–5 minutes depending on the number of configured function blocks and the controller scan rate. Field device re-registration in AMS adds another 5–10 minutes per segment.

To protect original program logic, engineers should avoid using the “Delete and Re-add” workflow in DeltaV Explorer unless the module address has changed. Instead, using the “Replace Module” function preserves all existing function block assignments, parameter values, and alarm configurations, reducing the risk of configuration drift. After the download completes, a loop check on each H1-connected device — verifying PV readback, output response, and alarm annunciation — confirms that the replacement card is operating correctly before loops are returned to automatic mode.

For sites without a redundant H1 card, the total controlled outage window for a KJ3242X1-BA1 replacement is typically 30–60 minutes, including pre-work, physical swap, module download, device re-registration, and loop verification. Maintaining a spare KJ3242X1-BA1 in the site’s critical spares inventory eliminates lead-time risk and allows the maintenance team to execute the replacement on their schedule rather than in response to an emergency failure.

Retrofit Support FAQ

Q1: Is the KJ3242X1-BA1 a direct drop-in replacement for all DeltaV H1 cards?
The KJ3242X1-BA1 is compatible with DeltaV Series 2 carriers used in MD, MD Plus, and MD3 controller configurations. It is not compatible with Series 1 carriers (used with older KJ2003X1 controllers) or with DeltaV SX/SQ controller platforms. Always verify the carrier generation and controller firmware version before ordering.

Q2: What wiring changes are required when replacing a failed H1 card?
No wiring changes are required if the replacement card is the same model (KJ3242X1-BA1). The H1 segment wiring connects to the carrier’s terminal block, not directly to the card, so the field cable remains undisturbed. Verify A/B polarity at the junction box and confirm that segment terminators are correctly installed at both ends of the H1 bus before powering up the replacement card.

Q3: Will my existing DeltaV function block configuration be preserved after the swap?
Yes, if you use the DeltaV Explorer “Replace Module” function rather than deleting and re-adding the module. This method retains all function block assignments, parameter values, and alarm configurations. A module download is still required after the physical swap to transfer the configuration to the new card. Verify all loop parameters after the download before returning to automatic control.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
The 12-month warranty covers hardware defects and functional failures under normal operating conditions from the date of shipment. Units are pre-tested against DeltaV system firmware before dispatch. In-stock units ship from Xiamen within 3–5 business days. Express shipping options are available for urgent replacement requirements. Contact sales@smartnexmsk.com or +86 18259474341 for availability confirmation and lead-time details.
