Emerson KJ3242X1-FA1 Maintenance-Ready Spare for DeltaV Automation

Emerson KJ3242X1-FA1 Maintenance-Ready Spare for DeltaV Automation

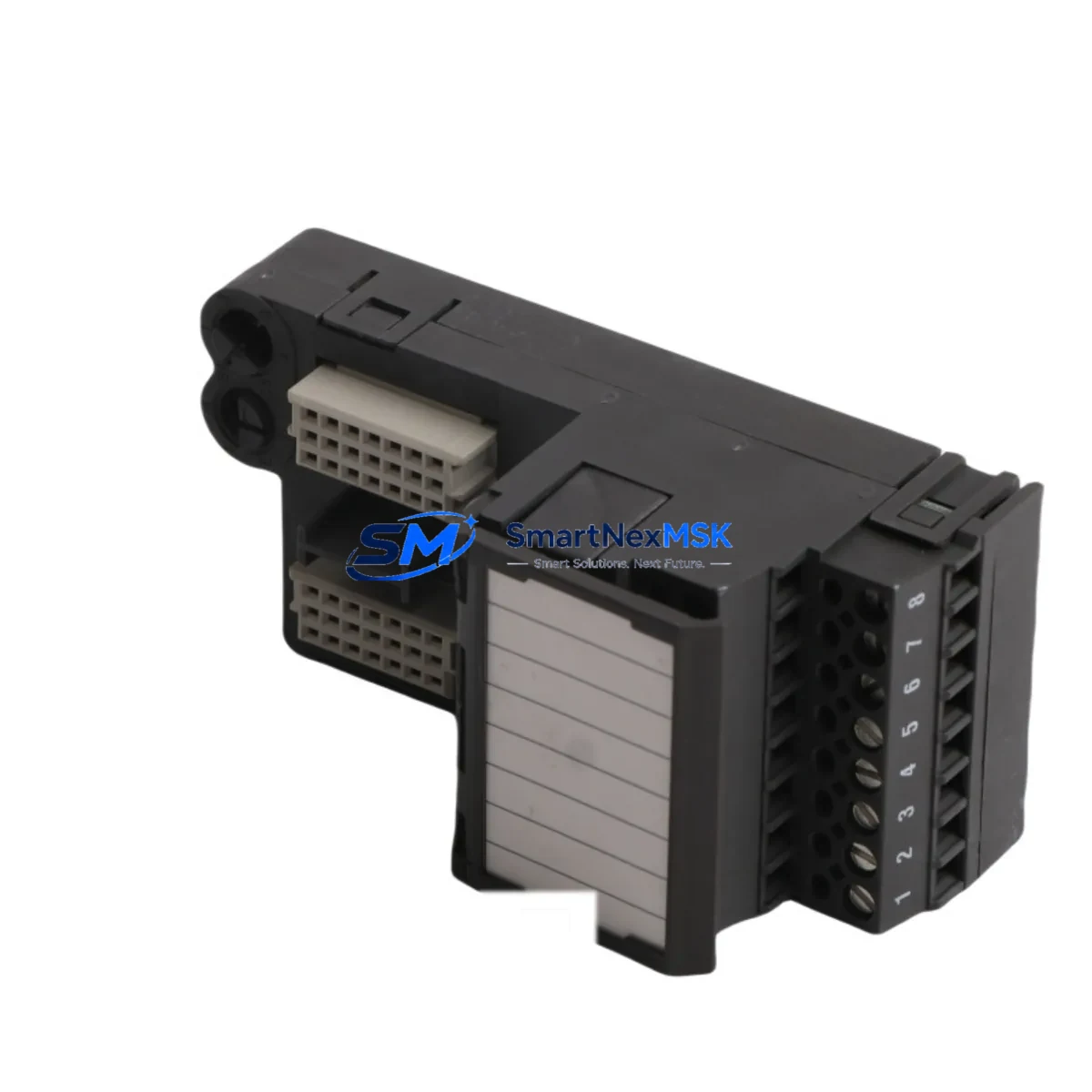

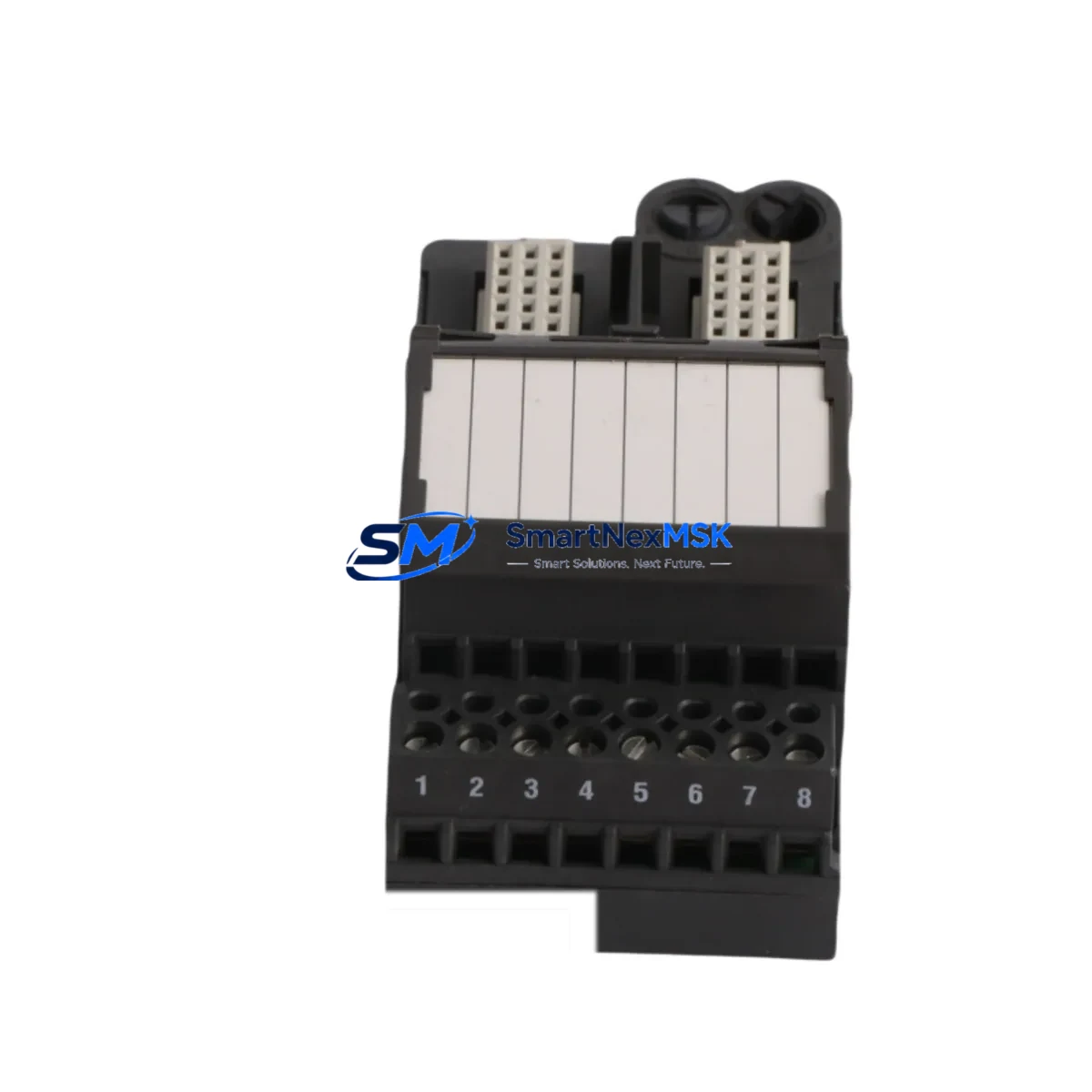

The Emerson KJ3242X1-FA1 (alternate part number 12P2575X032) is an original H1 FOUNDATION Fieldbus terminal block designed for use within the Emerson DeltaV distributed control system platform. As a critical interface component between the DeltaV controller infrastructure and field instrumentation, this terminal block supports reliable segment wiring, signal integrity, and bus power distribution across process automation environments.

For maintenance engineers managing aging DCS infrastructure, sourcing a verified original spare for the KJ3242X1-FA1 is essential to avoiding unplanned downtime. This component is commonly found in control cabinets alongside DeltaV I/O cards, H1 interface cards, and fieldbus power conditioners. When this terminal block degrades or fails, the entire H1 segment it supports may go offline — affecting multiple field devices simultaneously and triggering process shutdowns.

Our inventory of the KJ3242X1-FA1 is sourced from authorized channels, individually inspected, and tested prior to shipment. Each unit ships with a 12-month warranty and full traceability documentation, supporting your site’s spare parts governance and audit requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the KJ3242X1-FA1 terminal block, a thorough inspection of the surrounding H1 segment infrastructure is strongly recommended. Maintenance engineers should treat this replacement as an opportunity to audit the full fieldbus loop before returning the segment to service.

Begin by verifying the H1 fieldbus power conditioner output voltage and ripple — a degraded power conditioner is a common root cause of terminal block and segment failures. Inspect the DeltaV H1 interface card (such as the KJ3243X1-BA1 or KJ3244X1-BA1) seated in the carrier for any fault LEDs or communication errors logged in DeltaV Diagnostics. Check the DeltaV I/O carrier or baseplate for corrosion, bent pins, or loose seating that could cause intermittent segment faults.

On the field side, inspect the fieldbus segment cable for insulation damage, moisture ingress, or improper termination resistance. Confirm that the segment terminator is correctly installed at the far end of the bus — missing or double-terminated segments are a frequent source of communication instability. Review the junction box or marshalling panel for loose terminal screws, corroded contacts, or water ingress, particularly in outdoor or high-humidity installations.

For the broader control cabinet, check the 24 VDC bulk power supply feeding the DeltaV I/O subsystem, and verify that fuse blocks or circuit breakers protecting the H1 segment are intact and within rating. If the site uses signal isolators or intrinsic safety barriers for hazardous area field devices on this segment, inspect those units for proper operation and calibration drift. Finally, review the DeltaV controller module (e.g., MD or MD Plus) event log for any historical segment alarms that may indicate a systemic wiring or grounding issue rather than an isolated terminal block fault.

Stocking one or two spare KJ3242X1-FA1 units alongside compatible H1 interface cards and a spare fieldbus power conditioner is a best practice for sites with multiple DeltaV H1 segments, significantly reducing mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the KJ3242X1-FA1 part number and alternate number 12P2575X032 against the installed unit’s label. Cross-reference with the DeltaV system drawing and I/O list to identify all field devices on the affected H1 segment.

Step 2 — Segment isolation: Place all field devices on the segment in manual mode at the DeltaV workstation. Notify the control room operator and obtain a permit to work. De-energize the H1 segment power conditioner output before disconnecting wiring.

Step 3 — Physical replacement: Disconnect fieldbus segment cables from the terminal block, noting polarity and wire labeling. Remove the faulty KJ3242X1-FA1 from the DIN rail or panel mount. Install the replacement unit, reconnect wiring per the original drawing, and verify termination resistance with a multimeter before re-energizing.

Step 4 — Segment commissioning: Re-energize the H1 power conditioner and observe segment voltage (nominally 9–32 VDC at the device). Confirm all field devices re-establish communication in DeltaV Diagnostics. Check for any device alarms or configuration mismatches before returning the segment to automatic control.

Step 5 — Documentation: Record the replacement in the site CMMS, update the spare parts inventory, and log the event in the DeltaV audit trail. Retain the failed unit for failure analysis if required by site procedures.

This workflow minimizes segment downtime to typically under two hours for a prepared maintenance team, compared to multi-day delays when spare parts are not pre-stocked on site.

Spare Parts Support FAQ

Q: Is the KJ3242X1-FA1 still available as a new original part?
A: Yes. We maintain stock of original Emerson KJ3242X1-FA1 (12P2575X032) units sourced from authorized channels. Each unit is individually inspected and tested before shipment. Contact us to confirm current stock levels and lead times.

Q: What is the warranty coverage and what does it include?
A: Every KJ3242X1-FA1 shipped by SMARTNEXMSK carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. We provide replacement or full refund at our discretion, with no restocking fees.

Q: How do I verify compatibility with my existing DeltaV system before ordering?
A: The KJ3242X1-FA1 is designed for use with Emerson DeltaV H1 FOUNDATION Fieldbus interface cards. Provide us with your DeltaV system version, H1 interface card model, and segment drawing number, and our technical team will confirm compatibility before you place an order.

Q: What testing is performed before shipment?
A: Each unit undergoes visual inspection, continuity testing, and functional verification prior to packaging. Units are shipped in anti-static packaging with a test report. For critical applications, expedited pre-shipment testing with customer-specified parameters is available upon request.
